Patent: Augmented reality and virtual reality feedback enhancement system, apparatus and method

Drawings: Click to check drawins

Publication Number: 20210390762

Publication Date: 20211216

Applicant: Intel

Abstract

Systems, apparatuses and methods may provide away to render augmented reality and virtual reality (VR/AR) environment information. More particularly, systems, apparatuses and methods may provide a way to selectively suppress and enhance VR/AR renderings of n-dimensional environments. The systems, apparatuses and methods may deepen a user’s VR/AR experience by focusing on particular feedback information, while suppressing other feedback information from the environment.

Claims

1. (canceled)

2. A computing system, comprising: a processor; and a memory coupled to the processor, wherein the memory comprises instructions which, when executed by the processor, cause the computing system to: detect sound feedback information in environment information corresponding to a three-dimensional (3D) environment, the environment information including one more of virtual reality information or augmented reality information (VR/AR) to render one or more VR/AR scenes; calculate vector paths for the sound feedback information; receive focus information for an observer observing the 3D environment; render a sound source, when detected in a non-focus area of the observer, as a first silhouette in a field of view of the observer, the field of view including an initial focus area; and adjust a head related transformation function (HRTF) based on one or more of an operating parameter or an observer action, the observer action including one or more of an eye gaze rotation, a gesture, or an auditory signal.

3. The computing system of claim 2, wherein the vector paths for the sound feedback information are to be calculated via a ray tracing engine.

4. The computing system of claim 2, wherein the vector paths for the sound feedback information are to be calculated by using one or more of ambisonics sound field digital signal processing or ambiophonic soundfield digital signal processing.

5. The computing system of claim 2, wherein the instructions, when executed, further cause the computing system to: receive information identifying a focus area based on a gaze of the observer; and transition the first silhouette to a primary focus area view based on a focus time threshold.

6. The computing system of claim 5, wherein the instructions, when executed, further cause the computing system to transition the initial focus area to a second silhouette when the first silhouette transitions to the primary focus area view.

7. The computing system of claim 2, wherein a location to render one or more sounds is to be defined by one or more of an adjustment to the HRTF, observer head rotation information, or observer gaze information.

8. A graphics apparatus comprising: memory; and logic communicatively coupled to the memory, the logic implemented in one or more of configurable logic or fixed-functionality hardware logic, the logic to: detect sound feedback information in environment information corresponding to a three-dimensional (3D) environment, the environment information including one more of virtual reality information or augmented reality information (VR/AR) to render one or more VR/AR scenes; calculate vector paths for the sound feedback information; receive focus information for an observer observing the 3D environment; render a sound source, when detected in a non-focus area of the observer, as a first silhouette in a field of view of the observer; and adjust a head related transformation function (HRTF) based on one or more of an operating parameter or an observer action, the observer action including one or more of an eye gaze rotation, a gesture, or an auditory signal.

9. The graphics apparatus of claim 8, wherein the vector paths for the sound feedback information are to be calculated via a ray tracing engine.

10. The graphics apparatus of claim 8, wherein the vector paths for the sound feedback information are to be calculated by using one or more of ambisonics sound field digital signal processing or ambiophonic soundfield digital signal processing.

11. The graphics apparatus of claim 8, wherein the logic is further to: receive information identifying a focus area based on a gaze of the observer; and transition the first silhouette to a primary focus area view based on a focus time threshold.

12. The graphics apparatus of claim 11, wherein the logic is further to transition the initial focus area to a second silhouette when the first silhouette transitions to the primary focus area view.

13. The graphics apparatus of claim 8, wherein a location to render one or more sounds is to be defined by one or more of an adjustment to the HRTF, observer head rotation information, or observer gaze information.

14. At least one non-transitory computer readable storage medium comprising a set of instructions which, when executed, cause a computing device to: detect sound feedback information in environment information corresponding to a three-dimensional (3D) environment, the environment information including one more of virtual reality information or augmented reality information (VR/AR) to render one or more VR/AR scenes; calculate vector paths for the sound feedback information; receive focus information for an observer observing the 3D environment; render a sound source, when detected in a non-focus area of the observer, as a first silhouette in a field of view of the observer; and adjust a head related transformation function (HRTF) based on one or more of an operating parameter or an observer action, the observer action including one or more of an eye gaze rotation, a gesture, or an auditory signal.

15. The at least one non-transitory computer readable storage medium of claim 14, wherein the vector paths for the sound feedback information are to be calculated via a ray tracing engine.

16. The at least one non-transitory computer readable storage medium of claim 14, wherein the vector paths for the sound feedback information are to be calculated by using one or more of ambisonics sound field digital signal processing or ambiophonic soundfield digital signal processing.

17. The at least one non-transitory computer readable storage medium of claim 14, wherein the instructions, when executed, further cause the computing device to: receive information identifying a focus area based on a gaze of the observer; and transition the first silhouette to a primary focus area view based on a focus time threshold.

18. The at least one non-transitory computer readable storage medium of claim 17, wherein the instructions, when executed, further cause the computing device to transition the initial focus area to a second silhouette when the first silhouette transitions to the primary focus area view.

19. The at least one non-transitory computer readable storage medium of claim 14, wherein a location to render one or more sounds is to be defined by one or more of an adjustment to the HRTF, observer head rotation information, or observer gaze information.

20. A method comprising: detect sound feedback information in environment information corresponding to a three-dimensional (3D) environment, the environment information including one more of virtual reality information or augmented reality information (VR/AR) to render one or more VR/AR scenes; calculate vector paths for the sound feedback information; receive focus information for an observer observing the 3D environment; render a sound source, when detected in a non-focus area of the observer, as a first silhouette in a field of view of the observer; and adjust a head related transformation function (HRTF) based on one or more of an operating parameter or an observer action, the observer action including one or more of an eye gaze rotation, a gesture, or an auditory signal.

21. The method of claim 20, wherein the vector paths for the sound feedback information are calculated via a ray tracing engine.

22. The method of claim 20, wherein the vector paths for the sound feedback information are calculated using one or more of ambisonics sound field digital signal processing or ambiophonic soundfield digital signal processing.

23. The method of claim 20, further comprising: receiving information identifying a focus area based on a gaze of the observer; and transitioning the first silhouette to a primary focus area view based on a focus time threshold.

24. The method of claim 23, further comprising transitioning the initial focus area to a second silhouette when the first silhouette transitions to the primary focus area view.

25. The method of claim 20, wherein a location to render one or more sounds is defined by one or more of an adjustment to the HRTF, observer head rotation information, or observer gaze information.

Description

CROSS-REFERENCE TO RELATED APPLICATIONS

[0001] This present application claims the benefit of priority to U.S. application Ser. No. 16/271,368 filed on Feb. 8, 2019, which claims priority to U.S. Non-Provisional patent application Ser. No. 15/488,837, filed on Apr. 17, 2017, now U.S. Pat. No. 10,242,486.

TECHNICAL FIELD

[0002] Embodiments generally relate to graphics processing, and more particularly to rendering augmented reality and virtual reality with selective suppression and enhancement of rendered environment information.

BACKGROUND OF THE DESCRIPTION

[0003] Currently, environmental audio suppression and accentuation (e.g., attenuating) during virtual reality and/or augmented reality (VR/AR) may be uncomfortable for users, for example, when immersed in a VR/AR game. Environment information may be distracting, preventing deep and/or enhanced user experience. Traditional systems provide no way to monitor for selected feedback (e.g., important/significant sounds, such as a child in another location or a fire alarm), while also selectively suppressing undesired sounds (e.g., the dish washer). In addition, current systems may be unable to perform audio modulation as a function of three-dimensional (3D) foveation.

BRIEF DESCRIPTION OF THE DRAWINGS

[0004] The various advantages of the embodiments will become apparent to one skilled in the art by reading the following specification and appended claims, and by referencing the following drawings, in which:

[0005] FIG. 1 is a block diagram illustrating a computer system configured to implement one or more aspects of the embodiments described herein;

[0006] FIG. 2A-2D illustrate a parallel processor components, according to an embodiment;

[0007] FIGS. 3A-3B are block diagrams of graphics multiprocessors, according to embodiments;

[0008] FIG. 4A-4F illustrate an exemplary architecture in which a plurality of GPUs are communicatively coupled to a plurality of multi-core processors;

[0009] FIG. 5 illustrates a graphics processing pipeline, according to an embodiment;

[0010] FIG. 6 is a conceptual diagram of an example of an augmented reality and virtual reality (VR/AR) feedback enhancement system configuration, according to an embodiment;

[0011] FIG. 7A is a conceptual diagram of an example of a VR/AR enhanced user experience with sound sources located in a focus area and a non-focus area, according to an embodiment;

[0012] FIG. 7B is a conceptual diagram of an example of sound sources in a focus area and a non-focus area, according to an embodiment;

[0013] FIG. 8 is a flowchart of an example of a method of managing feedback enhanced rendering, according to an embodiment;

[0014] FIG. 9 a flowchart of an example of a method of superimposing normalize feedback information over a VR/AR scene, according to an embodiment; and

[0015] FIG. 10 is a flowchart of an example of a method of managing adjustment of a rendering on one or more operating parameters, according to an embodiment;

[0016] FIG. 11 is an illustration of an example of a head mounted display (HMD) system according to an embodiment;

[0017] FIG. 12 is a block diagram of an example of the functional components included in the HMD system of FIG. 11 according to an embodiment;

[0018] FIG. 13 is a block diagram of an example of a general processing cluster included in a parallel processing unit according to an embodiment;

[0019] FIG. 14 is a conceptual illustration of an example of a graphics processing pipeline that may be implemented within a parallel processing unit, according to an embodiment;

[0020] FIG. 15 is a block diagram of an example of a streaming multi-processor according to an embodiment;

[0021] FIGS. 16-18 are block diagrams of an example of an overview of a data processing system according to an embodiment;

[0022] FIG. 19 is a block diagram of an example of a graphics processing engine according to an embodiment;

[0023] FIGS. 20-22 are block diagrams of examples of execution units according to an embodiment;

[0024] FIG. 23 is a block diagram of an example of a graphics pipeline according to an embodiment;

[0025] FIGS. 24A-24B are block diagrams of examples of graphics pipeline programming according to an embodiment;

[0026] FIG. 25 is a block diagram of an example of a graphics software architecture according to an embodiment;

[0027] FIG. 26 is a block diagram of an example of an intellectual property (IP) core development system according to an embodiment; and

[0028] FIG. 27 is a block diagram of an example of a system on a chip integrated circuit according to an embodiment.

DETAILED DESCRIPTION

[0029] In the following description, numerous specific details are set forth to provide a more thorough understanding of the present invention. However, it will be apparent to one of skill in the art that the present invention may be practiced without one or more of these specific details. In other instances, well-known features have not been described in order to avoid obscuring the present invention.

[0030] System Overview

[0031] FIG. 1 is a block diagram illustrating a computing system 100 configured to implement one or more aspects of the embodiments described herein. The computing system 100 includes a processing subsystem 101 having one or more processor(s) 102 and a system memory 104 communicating via an interconnection path that may include a memory hub 105. The memory hub 105 may be a separate component within a chipset component or may be integrated within the one or more processor(s) 102. The memory hub 105 couples with an I/O subsystem 111 via a communication link 106. The I/O subsystem 111 includes an I/O hub 107 that can enable the computing system 100 to receive input from one or more input device(s) 108. Additionally, the I/O hub 107 can enable a display controller, which may be included in the one or more processor(s) 102, to provide outputs to one or more display device(s) 110A. In one embodiment the one or more display device(s) 110A coupled with the I/O hub 107 can include a local, internal, or embedded display device.

[0032] In one embodiment the processing subsystem 101 includes one or more parallel processor(s) 112 coupled to memory hub 105 via a bus or other communication link 113. The communication link 113 may be one of any number of standards based communication link technologies or protocols, such as, but not limited to PCI Express, or may be a vendor specific communications interface or communications fabric. In one embodiment the one or more parallel processor(s) 112 form a computationally focused parallel or vector processing system that an include a large number of processing cores and/or processing clusters, such as a many integrated core (MIC) processor. In one embodiment the one or more parallel processor(s) 112 form a graphics processing subsystem that can output pixels to one of the one or more display device(s) 110A coupled via the I/O Hub 107. The one or more parallel processor(s) 112 can also include a display controller and display interface (not shown) to enable a direct connection to one or more display device(s) 110B.

[0033] Within the I/O subsystem 111, a system storage unit 114 can connect to the I/O hub 107 to provide a storage mechanism for the computing system 100. An I/O switch 116 can be used to provide an interface mechanism to enable connections between the I/O hub 107 and other components, such as a network adapter 118 and/or wireless network adapter 119 that may be integrated into the platform, and various other devices that can be added via one or more add-in device(s) 120. The network adapter 118 can be an Ethernet adapter or another wired network adapter. The wireless network adapter 119 can include one or more of a Wi-Fi, Bluetooth, near field communication (NFC), or other network device that includes one or more wireless radios.

[0034] The computing system 100 can include other components not explicitly shown, including USB or other port connections, optical storage drives, video capture devices, and the like, may also be connected to the I/O hub 107. Communication paths interconnecting the various components in FIG. 1 may be implemented using any suitable protocols, such as PCI (Peripheral Component Interconnect) based protocols (e.g., PCI-Express), or any other bus or point-to-point communication interfaces and/or protocol(s), such as the NVLink high-speed interconnect, or interconnect protocols known in the art.

[0035] In one embodiment, the one or more parallel processor(s) 112 incorporate circuitry optimized for graphics and video processing, including, for example, video output circuitry, and constitutes a graphics processing unit (GPU). In another embodiment, the one or more parallel processor(s) 112 incorporate circuitry optimized for general purpose processing, while preserving the underlying computational architecture, described in greater detail herein. In yet another embodiment, components of the computing system 100 may be integrated with one or more other system elements on a single integrated circuit. For example, the one or more parallel processor(s), 112 memory hub 105, processor(s) 102, and I/O hub 107 can be integrated into a system on chip (SoC) integrated circuit. Alternatively, the components of the computing system 100 can be integrated into a single package to form a system in package (SIP) configuration. In one embodiment at least a portion of the components of the computing system 100 can be integrated into a multi-chip module (MCM), which can be interconnected with other multi-chip modules into a modular computing system.

[0036] It will be appreciated that the computing system 100 shown herein is illustrative and that variations and modifications are possible. The connection topology, including the number and arrangement of bridges, the number of processor(s) 102, and the number of parallel processor(s) 112, may be modified as desired. For instance, in some embodiments, system memory 104 is connected to the processor(s) 102 directly rather than through a bridge, while other devices communicate with system memory 104 via the memory hub 105 and the processor(s) 102. In other alternative topologies, the parallel processor(s) 112 are connected to the I/O hub 107 or directly to one of the one or more processor(s) 102, rather than to the memory hub 105. In other embodiments, the I/O hub 107 and memory hub 105 may be integrated into a single chip. Some embodiments may include two or more sets of processor(s) 102 attached via multiple sockets, which can couple with two or more instances of the parallel processor(s) 112.

[0037] Some of the particular components shown herein are optional and may not be included in all implementations of the computing system 100. For example, any number of add-in cards or peripherals may be supported, or some components may be eliminated. Furthermore, some architectures may use different terminology for components similar to those illustrated in FIG. 1. For example, the memory hub 105 may be referred to as a Northbridge in some architectures, while the I/O hub 107 may be referred to as a Southbridge.

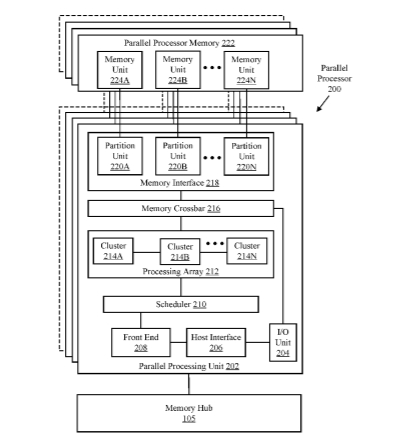

[0038] FIG. 2A illustrates a parallel processor 200, according to an embodiment. The various components of the parallel processor 200 may be implemented using one or more integrated circuit devices, such as programmable processors, application specific integrated circuits (ASICs), or field programmable gate arrays (FPGA). The illustrated parallel processor 200 is a variant of the one or more parallel processor(s) 112 shown in FIG. 1, according to an embodiment.

[0039] In one embodiment the parallel processor 200 includes a parallel processing unit 202. The parallel processing unit includes an I/O unit 204 that enables communication with other devices, including other instances of the parallel processing unit 202. The I/O unit 204 may be directly connected to other devices. In one embodiment the I/O unit 204 connects with other devices via the use of a hub or switch interface, such as memory hub 105. The connections between the memory hub 105 and the I/O unit 204 form a communication link 113. Within the parallel processing unit 202, the I/O unit 204 connects with a host interface 206 and a memory crossbar 216, where the host interface 206 receives commands directed to performing processing operations and the memory crossbar 216 receives commands directed to performing memory operations.

[0040] When the host interface 206 receives a command buffer via the I/O unit 204, the host interface 206 can direct work operations to perform those commands to a front end 208. In one embodiment the front end 208 couples with a scheduler 210, which is configured to distribute commands or other work items to a processing cluster array 212. In one embodiment the scheduler 210 ensures that the processing cluster array 212 is properly configured and in a valid state before tasks are distributed to the processing clusters of the processing cluster array 212. In one embodiment the scheduler 210 is implemented via firmware logic executing on a microcontroller. The microcontroller implemented scheduler 210 is configurable to perform complex scheduling and work distribution operations at coarse and fine granularity, enabling rapid preemption and context switching of threads executing on the processing array 212. In one embodiment, the host software can prove workloads for scheduling on the processing array 212 via one of multiple graphics processing doorbells. The workloads can then be automatically distributed across the processing array 212 by the scheduler 210 logic within the scheduler microcontroller.

[0041] The processing cluster array 212 can include up to “N” processing clusters (e.g., cluster 214A, cluster 214B, through cluster 214N). Each cluster 214A-214N of the processing cluster array 212 can execute a large number of concurrent threads. The scheduler 210 can allocate work to the clusters 214A-214N of the processing cluster array 212 using various scheduling and/or work distribution algorithms, which may vary depending on the workload arising for each type of program or computation. The scheduling can be handled dynamically by the scheduler 210, or can be assisted in part by compiler logic during compilation of program logic configured for execution by the processing cluster array 212. In one embodiment, different clusters 214A-214N of the processing cluster array 212 can be allocated for processing different types of programs or for performing different types of computations.

[0042] The processing cluster array 212 can be configured to perform various types of parallel processing operations. In one embodiment the processing cluster array 212 is configured to perform general-purpose parallel compute operations. For example, the processing cluster array 212 can include logic to execute processing tasks including filtering of video and/or audio data, performing modeling operations, including physics operations, and performing data transformations.

[0043] In one embodiment the processing cluster array 212 is configured to perform parallel graphics processing operations. In embodiments in which the parallel processor 200 is configured to perform graphics processing operations, the processing cluster array 212 can include additional logic to support the execution of such graphics processing operations, including, but not limited to texture sampling logic to perform texture operations, as well as tessellation logic and other vertex processing logic. Additionally, the processing cluster array 212 can be configured to execute graphics processing related shader programs such as, but not limited to vertex shaders, tessellation shaders, geometry shaders, and pixel shaders. The parallel processing unit 202 can transfer data from system memory via the I/O unit 204 for processing. During processing the transferred data can be stored to on-chip memory (e.g., parallel processor memory 222) during processing, then written back to system memory.

[0044] In one embodiment, when the parallel processing unit 202 is used to perform graphics processing, the scheduler 210 can be configured to divide the processing workload into approximately equal sized tasks, to better enable distribution of the graphics processing operations to multiple clusters 214A-214N of the processing cluster array 212. In some embodiments, portions of the processing cluster array 212 can be configured to perform different types of processing. For example a first portion may be configured to perform vertex shading and topology generation, a second portion may be configured to perform tessellation and geometry shading, and a third portion may be configured to perform pixel shading or other screen space operations, to produce a rendered image for display. Intermediate data produced by one or more of the clusters 214A-214N may be stored in buffers to allow the intermediate data to be transmitted between clusters 214A-214N for further processing.

[0045] During operation, the processing cluster array 212 can receive processing tasks to be executed via the scheduler 210, which receives commands defining processing tasks from front end 208. For graphics processing operations, processing tasks can include indices of data to be processed, e.g., surface (patch) data, primitive data, vertex data, and/or pixel data, as well as state parameters and commands defining how the data is to be processed (e.g., what program is to be executed). The scheduler 210 may be configured to fetch the indices corresponding to the tasks or may receive the indices from the front end 208. The front end 208 can be configured to ensure the processing cluster array 212 is configured to a valid state before the workload specified by incoming command buffers (e.g., batch-buffers, push buffers, etc.) is initiated.

[0046] Each of the one or more instances of the parallel processing unit 202 can couple with parallel processor memory 222. The parallel processor memory 222 can be accessed via the memory crossbar 216, which can receive memory requests from the processing cluster array 212 as well as the I/O unit 204. The memory crossbar 216 can access the parallel processor memory 222 via a memory interface 218. The memory interface 218 can include multiple partition units (e.g., partition unit 220A, partition unit 220B, through partition unit 220N) that can each couple to a portion (e.g., memory unit) of parallel processor memory 222. In one implementation the number of partition units 220A-220N is configured to be equal to the number of memory units, such that a first partition unit 220A has a corresponding first memory unit 224A, a second partition unit 220B has a corresponding memory unit 224B, and an Nth partition unit 220N has a corresponding Nth memory unit 224N. In other embodiments, the number of partition units 220A-220N may not be equal to the number of memory devices.

[0047] In various embodiments, the memory units 224A-224N can include various types of memory devices, including dynamic random access memory (DRAM) or graphics random access memory, such as synchronous graphics random access memory (SGRAM), including graphics double data rate (GDDR) memory. In one embodiment, the memory units 224A-224N may also include 3D stacked memory, including but not limited to high bandwidth memory (HBM). Persons skilled in the art will appreciate that the specific implementation of the memory units 224A-224N can vary, and can be selected from one of various conventional designs. Render targets, such as frame buffers or texture maps may be stored across the memory units 224A-224N, allowing partition units 220A-220N to write portions of each render target in parallel to efficiently use the available bandwidth of parallel processor memory 222. In some embodiments, a local instance of the parallel processor memory 222 may be excluded in favor of a unified memory design that utilizes system memory in conjunction with local cache memory.

[0048] In one embodiment, any one of the clusters 214A-214N of the processing cluster array 212 can process data that will be written to any of the memory units 224A-224N within parallel processor memory 222. The memory crossbar 216 can be configured to transfer the output of each cluster 214A-214N to any partition unit 220A-220N or to another cluster 214A-214N, which can perform additional processing operations on the output. Each cluster 214A-214N can communicate with the memory interface 218 through the memory crossbar 216 to read from or write to various external memory devices. In one embodiment the memory crossbar 216 has a connection to the memory interface 218 to communicate with the I/O unit 204, as well as a connection to a local instance of the parallel processor memory 222, enabling the processing units within the different processing clusters 214A-214N to communicate with system memory or other memory that is not local to the parallel processing unit 202. In one embodiment the memory crossbar 216 can use virtual channels to separate traffic streams between the clusters 214A-214N and the partition units 220A-220N.

[0049] While a single instance of the parallel processing unit 202 is illustrated within the parallel processor 200, any number of instances of the parallel processing unit 202 can be included. For example, multiple instances of the parallel processing unit 202 can be provided on a single add-in card, or multiple add-in cards can be interconnected. The different instances of the parallel processing unit 202 can be configured to inter-operate even if the different instances have different numbers of processing cores, different amounts of local parallel processor memory, and/or other configuration differences. For example and in one embodiment, some instances of the parallel processing unit 202 can include higher precision floating point units relative to other instances. Systems incorporating one or more instances of the parallel processing unit 202 or the parallel processor 200 can be implemented in a variety of configurations and form factors, including but not limited to desktop, laptop, or handheld personal computers, servers, workstations, game consoles, and/or embedded systems.

[0050] FIG. 2B is a block diagram of a partition unit 220, according to an embodiment. In one embodiment the partition unit 220 is an instance of one of the partition units 220A-220N of FIG. 2A. As illustrated, the partition unit 220 includes an L2 cache 221, a frame buffer interface 225, and a ROP 226 (raster operations unit). The L2 cache 221 is a read/write cache that is configured to perform load and store operations received from the memory crossbar 216 and ROP 226. Read misses and urgent write-back requests are output by L2 cache 221 to frame buffer interface 225 for processing. Updates can also be sent to the frame buffer via the frame buffer interface 225 for processing. In one embodiment the frame buffer interface 225 interfaces with one of the memory units in parallel processor memory, such as the memory units 224A-224N of FIG. 2 (e.g., within parallel processor memory 222).

[0051] In graphics applications, the ROP 226 is a processing unit that performs raster operations such as stencil, z test, blending, and the like. The ROP 226 then outputs processed graphics data that is stored in graphics memory. In some embodiments the ROP 226 includes compression logic to compress depth or color data that is written to memory and decompress depth or color data that is read from memory. The compression logic can be lossless compression logic that makes use of one or more of multiple compression algorithms. The type of compression that is performed by the ROP 226 can vary based on the statistical characteristics of the data to be compressed. For example, in one embodiment, delta color compression is performed on depth and color data on a per-tile basis.

[0052] In some embodiments, the ROP 226 is included within each processing cluster (e.g., cluster 214A-214N of FIG. 2) instead of within the partition unit 220. In such embodiment, read and write requests for pixel data are transmitted over the memory crossbar 216 instead of pixel fragment data. The processed graphics data may be displayed on a display device, such as one of the one or more display device(s) 110 of FIG. 1, routed for further processing by the processor(s) 102, or routed for further processing by one of the processing entities within the parallel processor 200 of FIG. 2A.

[0053] FIG. 2C is a block diagram of a processing cluster 214 within a parallel processing unit, according to an embodiment. In one embodiment the processing cluster is an instance of one of the processing clusters 214A-214N of FIG. 2. The processing cluster 214 can be configured to execute many threads in parallel, where the term “thread” refers to an instance of a particular program executing on a particular set of input data. In some embodiments, single-instruction, multiple-data (SIND) instruction issue techniques are used to support parallel execution of a large number of threads without providing multiple independent instruction units. In other embodiments, single-instruction, multiple-thread (SIMT) techniques are used to support parallel execution of a large number of generally synchronized threads, using a common instruction unit configured to issue instructions to a set of processing engines within each one of the processing clusters. Unlike a SIMD execution regime, where all processing engines typically execute identical instructions, SIMT execution allows different threads to more readily follow divergent execution paths through a given thread program. Persons skilled in the art will understand that a SIMD processing regime represents a functional subset of a SIMT processing regime.

[0054] Operation of the processing cluster 214 can be controlled via a pipeline manager 232 that distributes processing tasks to SIMT parallel processors. The pipeline manager 232 receives instructions from the scheduler 210 of FIG. 2 and manages execution of those instructions via a graphics multiprocessor 234 and/or a texture unit 236. The illustrated graphics multiprocessor 234 is an exemplary instance of a SIMT parallel processor. However, various types of SIMT parallel processors of differing architectures may be included within the processing cluster 214. One or more instances of the graphics multiprocessor 234 can be included within a processing cluster 214. The graphics multiprocessor 234 can process data and a data crossbar 240 can be used to distribute the processed data to one of multiple possible destinations, including other shader units. The pipeline manager 232 can facilitate the distribution of processed data by specifying destinations for processed data to be distributed vis the data crossbar 240.

[0055] Each graphics multiprocessor 234 within the processing cluster 214 can include an identical set of functional execution logic (e.g., arithmetic logic units, load-store units, etc.). The functional execution logic can be configured in a pipelined manner in which new instructions can be issued before previous instructions are complete. The functional execution logic supports a variety of operations including integer and floating point arithmetic, comparison operations, Boolean operations, bit-shifting, and computation of various algebraic functions. In one embodiment the same functional-unit hardware can be leveraged to perform different operations and any combination of functional units may be present.

[0056] The instructions transmitted to the processing cluster 214 constitutes a thread. A set of threads executing across the set of parallel processing engines is a thread group. A thread group executes the same program on different input data. Each thread within a thread group can be assigned to a different processing engine within a graphics multiprocessor 234. A thread group may include fewer threads than the number of processing engines within the graphics multiprocessor 234. When a thread group includes fewer threads than the number of processing engines, one or more of the processing engines may be idle during cycles in which that thread group is being processed. A thread group may also include more threads than the number of processing engines within the graphics multiprocessor 234. When the thread group includes more threads than the number of processing engines within the graphics multiprocessor 234 processing can be performed over consecutive clock cycles. In one embodiment multiple thread groups can be executed concurrently on a graphics multiprocessor 234.

[0057] In one embodiment the graphics multiprocessor 234 includes an internal cache memory to perform load and store operations. In one embodiment, the graphics multiprocessor 234 can forego an internal cache and use a cache memory (e.g., L1 cache 308) within the processing cluster 214. Each graphics multiprocessor 234 also has access to L2 caches within the partition units (e.g., partition units 220A-220N of FIG. 2) that are shared among all processing clusters 214 and may be used to transfer data between threads. The graphics multiprocessor 234 may also access off-chip global memory, which can include one or more of local parallel processor memory and/or system memory. Any memory external to the parallel processing unit 202 may be used as global memory. Embodiments in which the processing cluster 214 includes multiple instances of the graphics multiprocessor 234 can share common instructions and data, which may be stored in the L1 cache 308.

[0058] Each processing cluster 214 may include an MMU 245 (memory management unit) that is configured to map virtual addresses into physical addresses. In other embodiments, one or more instances of the MMU 245 may reside within the memory interface 218 of FIG. 2. The MMU 245 includes a set of page table entries (PTEs) used to map a virtual address to a physical address of a tile (talk more about tiling) and optionally a cache line index. The MMU 245 may include address translation lookaside buffers (TLB) or caches that may reside within the graphics multiprocessor 234 or the L1 cache or processing cluster 214. The physical address is processed to distribute surface data access locality to allow efficient request interleaving among partition units. The cache line index may be used to determine whether a request for a cache line is a hit or miss.

[0059] In graphics and computing applications, a processing cluster 214 may be configured such that each graphics multiprocessor 234 is coupled to a texture unit 236 for performing texture mapping operations, e.g., determining texture sample positions, reading texture data, and filtering the texture data. Texture data is read from an internal texture L1 cache (not shown) or in some embodiments from the L1 cache within graphics multiprocessor 234 and is fetched from an L2 cache, local parallel processor memory, or system memory, as needed. Each graphics multiprocessor 234 outputs processed tasks to the data crossbar 240 to provide the processed task to another processing cluster 214 for further processing or to store the processed task in an L2 cache, local parallel processor memory, or system memory via the memory crossbar 216. A preROP 242 (pre-raster operations unit) is configured to receive data from graphics multiprocessor 234, direct data to ROP units, which may be located with partition units as described herein (e.g., partition units 220A-220N of FIG. 2). The preROP 242 unit can perform optimizations for color blending, organize pixel color data, and perform address translations.

[0060] It will be appreciated that the core architecture described herein is illustrative and that variations and modifications are possible. Any number of processing units, e.g., graphics multiprocessor 234, texture units 236, preROPs 242, etc., may be included within a processing cluster 214. Further, while only one processing cluster 214 is shown, a parallel processing unit as described herein may include any number of instances of the processing cluster 214. In one embodiment, each processing cluster 214 can be configured to operate independently of other processing clusters 214 using separate and distinct processing units, L1 caches, etc.

[0061] FIG. 2D shows a graphics multiprocessor 234, according to one embodiment. In such embodiment the graphics multiprocessor 234 couples with the pipeline manager 232 of the processing cluster 214. The graphics multiprocessor 234 has an execution pipeline including but not limited to an instruction cache 252, an instruction unit 254, an address mapping unit 256, a register file 258, one or more general purpose graphics processing unit (GPGPU) cores 262, and one or more load/store units 266. The GPGPU cores 262 and load/store units 266 are coupled with cache memory 272 and shared memory 270 via a memory and cache interconnect 268.

[0062] In one embodiment, the instruction cache 252 receives a stream of instructions to execute from the pipeline manager 232. The instructions are cached in the instruction cache 252 and dispatched for execution by the instruction unit 254. The instruction unit 254 can dispatch instructions as thread groups (e.g., warps), with each thread of the thread group assigned to a different execution unit within GPGPU core 262. An instruction can access any of a local, shared, or global address space by specifying an address within a unified address space. The address mapping unit 256 can be used to translate addresses in the unified address space into a distinct memory address that can be accessed by the load/store units 266.

[0063] The register file 258 provides a set of registers for the functional units of the graphics multiprocessor 324. The register file 258 provides temporary storage for operands connected to the data paths of the functional units (e.g., GPGPU cores 262, load/store units 266) of the graphics multiprocessor 324. In one embodiment, the register file 258 is divided between each of the functional units such that each functional unit is allocated a dedicated portion of the register file 258. In one embodiment, the register file 258 is divided between the different warps being executed by the graphics multiprocessor 324.

[0064] The GPGPU cores 262 can each include floating point units (FPUs) and/or integer arithmetic logic units (ALUs) that are used to execute instructions of the graphics multiprocessor 324. The GPGPU cores 262 can be similar in architecture or can differ in architecture, according to embodiments. For example and in one embodiment, a first portion of the GPGPU cores 262 include a single precision FPU and an integer ALU while a second portion of the GPGPU cores include a double precision FPU. In one embodiment the FPUs can implement the IEEE 754-2008 standard for floating point arithmetic or enable variable precision floating point arithmetic. The graphics multiprocessor 324 can additionally include one or more fixed function or special function units to perform specific functions such as copy rectangle or pixel blending operations. In one embodiment one or more of the GPGPU cores can also include fixed or special function logic.

[0065] In one embodiment the GPGPU cores 262 include SIMD logic capable of performing a single instruction on multiple sets of data. In one embodiment GPGPU cores 262 can physically execute SIMD4, SIMD8, and SIMD16 instructions and logically execute SIMD1, SIMD2, and SIMD32 instructions. The SIMD instructions for the GPGPU cores can be generated at compile time by a shader compiler or automatically generated when executing programs written and compiled for single program multiple data (SPMD) or SIMT architectures. Multiple threads of a program configured for the SIMT execution model can executed via a single SIMD instruction. For example and in one embodiment, eight SIMT threads that perform the same or similar operations can be executed in parallel via a single SIMD8 logic unit.

[0066] The memory and cache interconnect 268 is an interconnect network that connects each of the functional units of the graphics multiprocessor 324 to the register file 258 and to the shared memory 270. In one embodiment, the memory and cache interconnect 268 is a crossbar interconnect that allows the load/store unit 266 to implement load and store operations between the shared memory 270 and the register file 258. The register file 258 can operate at the same frequency as the GPGPU cores 262, thus data transfer between the GPGPU cores 262 and the register file 258 is very low latency. The shared memory 270 can be used to enable communication between threads that execute on the functional units within the graphics multiprocessor 234. The cache memory 272 can be used as a data cache for example, to cache texture data communicated between the functional units and the texture unit 236. The shared memory 270 can also be used as a program managed cached. Threads executing on the GPGPU cores 262 can programmatically store data within the shared memory in addition to the automatically cached data that is stored within the cache memory 272.

[0067] FIGS. 3A-3B illustrate additional graphics multiprocessors, according to embodiments. The illustrated graphics multiprocessors 325, 350 are variants of the graphics multiprocessor 234 of FIG. 2C. The illustrated graphics multiprocessors 325, 350 can be configured as a streaming multiprocessor (SM) capable of simultaneous execution of a large number of execution threads.

[0068] FIG. 3A shows a graphics multiprocessor 325 according to an additional embodiment. The graphics multiprocessor 325 includes multiple additional instances of execution resource units relative to the graphics multiprocessor 234 of FIG. 2D. For example, the graphics multiprocessor 325 can include multiple instances of the instruction unit 332A-332B, register file 334A-334B, and texture unit(s) 344A-344B. The graphics multiprocessor 325 also includes multiple sets of graphics or compute execution units (e.g., GPGPU core 336A-336B, GPGPU core 337A-337B, GPGPU core 338A-338B) and multiple sets of load/store units 340A-340B. In one embodiment the execution resource units have a common instruction cache 330, texture and/or data cache memory 342, and shared memory 346.

[0069] The various components can communicate via an interconnect fabric 327. In one embodiment the interconnect fabric 327 includes one or more crossbar switches to enable communication between the various components of the graphics multiprocessor 325. In one embodiment the interconnect fabric 327 is a separate, high-speed network fabric layer upon which each component of the graphics multiprocessor 325 is stacked. The components of the graphics multiprocessor 325 communicate with remote components via the interconnect fabric 327. For example, the GPGPU cores 336A-336B, 337A-337B, and 3378A-338B can each communicate with shared memory 346 via the interconnect fabric 327. The interconnect fabric 327 can arbitrate communication within the graphics multiprocessor 325 to ensure a fair bandwidth allocation between components.

[0070] FIG. 3B shows a graphics multiprocessor 350 according to an additional embodiment. The graphics processor includes multiple sets of execution resources 356A-356D, where each set of execution resource includes multiple instruction units, register files, GPGPU cores, and load store units, as illustrated in FIG. 2D and FIG. 3A. The execution resources 356A-356D can work in concert with texture unit(s) 360A-360D for texture operations, while sharing an instruction cache 354, and shared memory 362. In one embodiment the execution resources 356A-356D can share an instruction cache 354 and shared memory 362, as well as multiple instances of a texture and/or data cache memory 358A-358B. The various components can communicate via an interconnect fabric 352 similar to the interconnect fabric 327 of FIG. 3A.

[0071] Persons skilled in the art will understand that the architecture described in FIGS. 1, 2A-2D, and 3A-3B are descriptive and not limiting as to the scope of the present embodiments. Thus, the techniques described herein may be implemented on any properly configured processing unit, including, without limitation, one or more mobile application processors, one or more desktop or server central processing units (CPUs) including multi-core CPUs, one or more parallel processing units, such as the parallel processing unit 202 of FIG. 2, as well as one or more graphics processors or special purpose processing units, without departure from the scope of the embodiments described herein.

[0072] In some embodiments a parallel processor or GPGPU as described herein is communicatively coupled to host/processor cores to accelerate graphics operations, machine-learning operations, pattern analysis operations, and various general purpose GPU (GPGPU) functions. The GPU may be communicatively coupled to the host processor/cores over a bus or other interconnect (e.g., a high speed interconnect such as PCIe or NVLink). In other embodiments, the GPU may be integrated on the same package or chip as the cores and communicatively coupled to the cores over an internal processor bus/interconnect (i.e., internal to the package or chip). Regardless of the manner in which the GPU is connected, the processor cores may allocate work to the GPU in the form of sequences of commands/instructions contained in a work descriptor. The GPU then uses dedicated circuitry/logic for efficiently processing these commands/instructions.

[0073] Techniques for GPU to Host Processor Interconnection

[0074] FIG. 4A illustrates an exemplary architecture in which a plurality of GPUs 410-413 are communicatively coupled to a plurality of multi-core processors 405-406 over high-speed links 440-443 (e.g., buses, point-to-point interconnects, etc.). In one embodiment, the high-speed links 440-443 support a communication throughput of 4 GB/s, 30 GB/s, 80 GB/s or higher, depending on the implementation. Various interconnect protocols may be used including, but not limited to, PCIe 4.0 or 5.0 and NVLink 2.0. However, the underlying principles of the invention are not limited to any particular communication protocol or throughput.

[0075] In addition, in one embodiment, two or more of the GPUs 410-413 are interconnected over high-speed links 444-445, which may be implemented using the same or different protocols/links than those used for high-speed links 440-443. Similarly, two or more of the multi-core processors 405-406 may be connected over high speed link 433 which may be symmetric multi-processor (SMP) buses operating at 20 GB/s, 30 GB/s, 120 GB/s or higher. Alternatively, all communication between the various system components shown in FIG. 4A may be accomplished using the same protocols/links (e.g., over a common interconnection fabric). As mentioned, however, the underlying principles of the invention are not limited to any particular type of interconnect technology.

[0076] In one embodiment, each multi-core processor 405-406 is communicatively coupled to a processor memory 401-402, via memory interconnects 430-431, respectively, and each GPU 410-413 is communicatively coupled to GPU memory 420-423 over GPU memory interconnects 450-453, respectively. The memory interconnects 430-431 and 450-453 may utilize the same or different memory access technologies. By way of example, and not limitation, the processor memories 401-402 and GPU memories 420-423 may be volatile memories such as dynamic random access memories (DRAMs) (including stacked DRAMs), Graphics DDR SDRAM (GDDR) (e.g., GDDR5, GDDR6), or High Bandwidth Memory (HBM) and/or may be non-volatile memories such as 3D XPoint or Nano-Ram. In one embodiment, some portion of the memories may be volatile memory and another portion may be non-volatile memory (e.g., using a two-level memory (2LM) hierarchy).

[0077] As described below, although the various processors 405-406 and GPUs 410-413 may be physically coupled to a particular memory 401-402, 420-423, respectively, a unified memory architecture may be implemented in which the same virtual system address space (also referred to as the “effective address” space) is distributed among all of the various physical memories. For example, processor memories 401-402 may each comprise 64 GB of the system memory address space and GPU memories 420-423 may each comprise 32 GB of the system memory address space (resulting in a total of 256 GB addressable memory in this example).

[0078] FIG. 4B illustrates additional details for an interconnection between a multi-core processor 407 and a graphics acceleration module 446 in accordance with one embodiment. The graphics acceleration module 446 may include one or more GPU chips integrated on a line card which is coupled to the processor 407 via the high-speed link 440. Alternatively, the graphics acceleration module 446 may be integrated on the same package or chip as the processor 407.

[0079] The illustrated processor 407 includes a plurality of cores 460A-460D, each with a translation lookaside buffer 461A-461D and one or more caches 462A-462D. The cores may include various other components for executing instructions and processing data which are not illustrated to avoid obscuring the underlying principles of the invention (e.g., instruction fetch units, branch prediction units, decoders, execution units, reorder buffers, etc.). The caches 462A-462D may comprise level 1 (L1) and level 2 (L2) caches. In addition, one or more shared caches 426 may be included in the caching hierarchy and shared by sets of the cores 460A-460D. For example, one embodiment of the processor 407 includes 24 cores, each with its own L1 cache, twelve shared L2 caches, and twelve shared L3 caches. In this embodiment, one of the L2 and L3 caches are shared by two adjacent cores. The processor 407 and the graphics accelerator integration module 446 connect with system memory 441, which may include processor memories 401-402

[0080] Coherency is maintained for data and instructions stored in the various caches 462A-462D, 456 and system memory 441 via inter-core communication over a coherence bus 464. For example, each cache may have cache coherency logic/circuitry associated therewith to communicate to over the coherence bus 464 in response to detected reads or writes to particular cache lines. In one implementation, a cache snooping protocol is implemented over the coherence bus 464 to snoop cache accesses. Cache snooping/coherency techniques are well understood by those of skill in the art and will not be described in detail here to avoid obscuring the underlying principles of the invention.

[0081] In one embodiment, a proxy circuit 425 communicatively couples the graphics acceleration module 446 to the coherence bus 464, allowing the graphics acceleration module 446 to participate in the cache coherence protocol as a peer of the cores. In particular, an interface 435 provides connectivity to the proxy circuit 425 over high-speed link 440 (e.g., a PCIe bus, NVLink, etc.) and an interface 437 connects the graphics acceleration module 446 to the link 440.

[0082] In one implementation, an accelerator integration circuit 436 provides cache management, memory access, context management, and interrupt management services on behalf of a plurality of graphics processing engines 431, 432, N of the graphics acceleration module 446. The graphics processing engines 431, 432, N may each comprise a separate graphics processing unit (GPU). Alternatively, the graphics processing engines 431, 432, N may comprise different types of graphics processing engines within a GPU such as graphics execution units, media processing engines (e.g., video encoders/decoders), samplers, and blit engines. In other words, the graphics acceleration module may be a GPU with a plurality of graphics processing engines 431-432, N or the graphics processing engines 431-432, N may be individual GPUs integrated on a common package, line card, or chip.

[0083] In one embodiment, the accelerator integration circuit 436 includes a memory management unit (MMU) 439 for performing various memory management functions such as virtual-to-physical memory translations (also referred to as effective-to-real memory translations) and memory access protocols for accessing system memory 441. The MMU 439 may also include a translation lookaside buffer (TLB) (not shown) for caching the virtual/effective to physical/real address translations. In one implementation, a cache 438 stores commands and data for efficient access by the graphics processing engines 431-432, N. In one embodiment, the data stored in cache 438 and graphics memories 433-434, N is kept coherent with the core caches 462A-462D, 456 and system memory 411. As mentioned, this may be accomplished via proxy circuit 425 which takes part in the cache coherency mechanism on behalf of cache 438 and memories 433-434, N (e.g., sending updates to the cache 438 related to modifications/accesses of cache lines on processor caches 462A-462D, 456 and receiving updates from the cache 438).

[0084] A set of registers 445 store context data for threads executed by the graphics processing engines 431-432, N and a context management circuit 448 manages the thread contexts. For example, the context management circuit 448 may perform save and restore operations to save and restore contexts of the various threads during contexts switches (e.g., where a first thread is saved and a second thread is stored so that the second thread can be execute by a graphics processing engine). For example, on a context switch, the context management circuit 448 may store current register values to a designated region in memory (e.g., identified by a context pointer). It may then restore the register values when returning to the context. In one embodiment, an interrupt management circuit 447 receives and processes interrupts received from system devices.

[0085] In one implementation, virtual/effective addresses from a graphics processing engine 431 are translated to real/physical addresses in system memory 411 by the MMU 439. One embodiment of the accelerator integration circuit 436 supports multiple (e.g., 4, 8, 16) graphics accelerator modules 446 and/or other accelerator devices. The graphics accelerator module 446 may be dedicated to a single application executed on the processor 407 or may be shared between multiple applications. In one embodiment, a virtualized graphics execution environment is presented in which the resources of the graphics processing engines 431-432, N are shared with multiple applications or virtual machines (VMs). The resources may be subdivided into “slices” which are allocated to different VMs and/or applications based on the processing requirements and priorities associated with the VMs and/or applications.

[0086] Thus, the accelerator integration circuit acts as a bridge to the system for the graphics acceleration module 446 and provides address translation and system memory cache services. In addition, the accelerator integration circuit 436 may provide virtualization facilities for the host processor to manage virtualization of the graphics processing engines, interrupts, and memory management.

[0087] Because hardware resources of the graphics processing engines 431-432, N are mapped explicitly to the real address space seen by the host processor 407, any host processor can address these resources directly using an effective address value. One function of the accelerator integration circuit 436, in one embodiment, is the physical separation of the graphics processing engines 431-432, N so that they appear to the system as independent units.

[0088] As mentioned, in the illustrated embodiment, one or more graphics memories 433-434, M are coupled to each of the graphics processing engines 431-432, N, respectively. The graphics memories 433-434, M store instructions and data being processed by each of the graphics processing engines 431-432, N. The graphics memories 433-434, M may be volatile memories such as DRAMs (including stacked DRAMs), GDDR memory (e.g., GDDR5, GDDR6), or HBM, and/or may be non-volatile memories such as 3D XPoint or Nano-Ram.

[0089] In one embodiment, to reduce data traffic over link 440, biasing techniques are used to ensure that the data stored in graphics memories 433-434, M is data which will be used most frequently by the graphics processing engines 431-432, N and preferably not used by the cores 460A-460D (at least not frequently). Similarly, the biasing mechanism attempts to keep data needed by the cores (and preferably not the graphics processing engines 431-432, N) within the caches 462A-462D, 456 of the cores and system memory 411.

[0090] FIG. 4C illustrates another embodiment in which the accelerator integration circuit 436 is integrated within the processor 407. In this embodiment, the graphics processing engines 431-432, N communicate directly over the high-speed link 440 to the accelerator integration circuit 436 via interface 437 and interface 435 (which, again, may be utilize any form of bus or interface protocol). The accelerator integration circuit 436 may perform the same operations as those described with respect to FIG. 4B, but potentially at a higher throughput given its close proximity to the coherency bus 462 and caches 462A-462D, 426.

[0091] One embodiment supports different programming models including a dedicated-process programming model (no graphics acceleration module virtualization) and shared programming models (with virtualization). The latter may include programming models which are controlled by the accelerator integration circuit 436 and programming models which are controlled by the graphics acceleration module 446.

[0092] In one embodiment of the dedicated process model, graphics processing engines 431-432, N are dedicated to a single application or process under a single operating system. The single application can funnel other application requests to the graphics engines 431-432, N, providing virtualization within a VM/partition.

[0093] In the dedicated-process programming models, the graphics processing engines 431-432, N, may be shared by multiple VM/application partitions. The shared models require a system hypervisor to virtualize the graphics processing engines 431-432, N to allow access by each operating system. For single-partition systems without a hypervisor, the graphics processing engines 431-432, N are owned by the operating system. In both cases, the operating system can virtualize the graphics processing engines 431-432, N to provide access to each process or application.

[0094] For the shared programming model, the graphics acceleration module 446 or an individual graphics processing engine 431-432, N selects a process element using a process handle. In one embodiment, process elements are stored in system memory 411 and are addressable using the effective address to real address translation techniques described herein. The process handle may be an implementation-specific value provided to the host process when registering its context with the graphics processing engine 431-432, N (that is, calling system software to add the process element to the process element linked list). The lower 16-bits of the process handle may be the offset of the process element within the process element linked list.

[0095] FIG. 4D illustrates an exemplary accelerator integration slice 490. As used herein, a “slice” comprises a specified portion of the processing resources of the accelerator integration circuit 436. Application effective address space 482 within system memory 411 stores process elements 483. In one embodiment, the process elements 483 are stored in response to GPU invocations 481 from applications 480 executed on the processor 407. A process element 483 contains the process state for the corresponding application 480. A work descriptor (WD) 484 contained in the process element 483 can be a single job requested by an application or may contain a pointer to a queue of jobs. In the latter case, the WD 484 is a pointer to the job request queue in the application’s address space 482.

[0096] The graphics acceleration module 446 and/or the individual graphics processing engines 431-432, N can be shared by all or a subset of the processes in the system. Embodiments of the invention include an infrastructure for setting up the process state and sending a WD 484 to a graphics acceleration module 446 to start a job in a virtualized environment.

[0097] In one implementation, the dedicated-process programming model is implementation-specific. In this model, a single process owns the graphics acceleration module 446 or an individual graphics processing engine 431. Because the graphics acceleration module 446 is owned by a single process, the hypervisor initializes the accelerator integration circuit 436 for the owning partition and the operating system initializes the accelerator integration circuit 436 for the owning process at the time when the graphics acceleration module 446 is assigned.

[0098] In operation, a WD fetch unit 491 in the accelerator integration slice 490 fetches the next WD 484 which includes an indication of the work to be done by one of the graphics processing engines of the graphics acceleration module 446. Data from the WD 484 may be stored in registers 445 and used by the MMU 439, interrupt management circuit 447 and/or context management circuit 446 as illustrated. For example, one embodiment of the MMU 439 includes segment/page walk circuitry for accessing segment/page tables 486 within the OS virtual address space 485. The interrupt management circuit 447 may process interrupt events 492 received from the graphics acceleration module 446. When performing graphics operations, an effective address 493 generated by a graphics processing engine 431-432, N is translated to a real address by the MMU 439.

[0099] In one embodiment, the same set of registers 445 are duplicated for each graphics processing engine 431-432, N and/or graphics acceleration module 446 and may be initialized by the hypervisor or operating system. Each of these duplicated registers may be included in an accelerator integration slice 490. Exemplary registers that may be initialized by the hypervisor are shown in Table 1.

TABLE-US-00001 TABLE 1 Hypervisor Initialized Registers 1 Slice Control Register 2 Real Address (RA) Scheduled Processes Area Pointer 3 Authority Mask Override Register 4 Interrupt Vector Table Entry Offset 5 Interrupt Vector Table Entry Limit 6 State Register 7 Logical Partition ID 8 Real address (RA) Hypervisor Accelerator Utilization Record Pointer 9 Storage Description Register

[0100] Exemplary registers that may be initialized by the operating system are shown in Table 2.

TABLE-US-00002 TABLE 2 Operating System Initialized Registers 1 Process and Thread Identification 2 Effective Address (EA) Context Save/Restore Pointer 3 Virtual Address (VA) Accelerator Utilization Record Pointer 4 Virtual Address (VA) Storage Segment Table Pointer 5 Authority Mask 6 Work descriptor

[0101] In one embodiment, each WD 484 is specific to a particular graphics acceleration module 446 and/or graphics processing engine 431-432, N. It contains all the information a graphics processing engine 431-432, N requires to do its work or it can be a pointer to a memory location where the application has set up a command queue of work to be completed.

[0102] FIG. 4E illustrates additional details for one embodiment of a shared model. This embodiment includes a hypervisor real address space 498 in which a process element list 499 is stored. The hypervisor real address space 498 is accessible via a hypervisor 496 which virtualizes the graphics acceleration module engines for the operating system 495.

[0103] The shared programming models allow for all or a subset of processes from all or a subset of partitions in the system to use a graphics acceleration module 446. There are two programming models where the graphics acceleration module 446 is shared by multiple processes and partitions: time-sliced shared and graphics directed shared.

[0104] In this model, the system hypervisor 496 owns the graphics acceleration module 446 and makes its function available to all operating systems 495. For a graphics acceleration module 446 to support virtualization by the system hypervisor 496, the graphics acceleration module 446 may adhere to the following requirements: 1) An application’s job request must be autonomous (that is, the state does not need to be maintained between jobs), or the graphics acceleration module 446 must provide a context save and restore mechanism. 2) An application’s job request is guaranteed by the graphics acceleration module 446 to complete in a specified amount of time, including any translation faults, or the graphics acceleration module 446 provides the ability to preempt the processing of the job. 3) The graphics acceleration module 446 must be guaranteed fairness between processes when operating in the directed shared programming model.

[0105] In one embodiment, for the shared model, the application 480 is required to make an operating system 495 system call with a graphics acceleration module 446 type, a work descriptor (WD), an authority mask register (AMR) value, and a context save/restore area pointer (CSRP). The graphics acceleration module 446 type describes the targeted acceleration function for the system call. The graphics acceleration module 446 type may be a system-specific value. The WD is formatted specifically for the graphics acceleration module 446 and can be in the form of a graphics acceleration module 446 command, an effective address pointer to a user-defined structure, an effective address pointer to a queue of commands, or any other data structure to describe the work to be done by the graphics acceleration module 446. In one embodiment, the AMR value is the AMR state to use for the current process. The value passed to the operating system is similar to an application setting the AMR. If the accelerator integration circuit 436 and graphics acceleration module 446 implementations do not support a User Authority Mask Override Register (UAMOR), the operating system may apply the current UAMOR value to the AMR value before passing the AMR in the hypervisor call. The hypervisor 496 may optionally apply the current Authority Mask Override Register (AMOR) value before placing the AMR into the process element 483. In one embodiment, the CSRP is one of the registers 445 containing the effective address of an area in the application’s address space 482 for the graphics acceleration module 446 to save and restore the context state. This pointer is optional if no state is required to be saved between jobs or when a job is preempted. The context save/restore area may be pinned system memory.

[0106] Upon receiving the system call, the operating system 495 may verify that the application 480 has registered and been given the authority to use the graphics acceleration module 446. The operating system 495 then calls the hypervisor 496 with the information shown in Table 3.

TABLE-US-00003 TABLE 3 OS to Hypervisor Call Parameters 1 A work descriptor (WD) 2 An Authority Mask Register (AMR) value (potentially masked). 3 An effective address (EA) Context Save/Restore Area Pointer (CSRP) 4 A process ID (PID) and optional thread ID (TID) 5 A virtual address (VA) accelerator utilization record pointer (AURP) 6 The virtual address of the storage segment table pointer (SSTP) 7 A logical interrupt service number (LISN)

[0107] Upon receiving the hypervisor call, the hypervisor 496 verifies that the operating system 495 has registered and been given the authority to use the graphics acceleration module 446. The hypervisor 496 then puts the process element 483 into the process element linked list for the corresponding graphics acceleration module 446 type. The process element may include the information shown in Table 4.

TABLE-US-00004 TABLE 4 Process Element Information 1 A work descriptor (WD) 2 An Authority Mask Register (AMR) value (potentially masked). 3 An effective address (EA) Context Save/Restore Area Pointer (CSRP) 4 A process ID (PID) and optional thread ID (TID) 5 A virtual address (VA) accelerator utilization record pointer (AURP) 6 The virtual address of the storage segment table pointer (SSTP) 7 A logical interrupt service number (LISN) 8 Interrupt vector table, derived from the hypervisor call parameters. 9 A state register (SR) value 10 A logical partition ID (LPID) 11 A real address (RA) hypervisor accelerator utilization record pointer 12 The Storage Descriptor Register (SDR)

[0108] In one embodiment, the hypervisor initializes a plurality of accelerator integration slice 490 registers 445.

[0109] As illustrated in FIG. 4F, one embodiment of the invention employs a unified memory addressable via a common virtual memory address space used to access the physical processor memories 401-402 and GPU memories 420-423. In this implementation, operations executed on the GPUs 410-413 utilize the same virtual/effective memory address space to access the processors memories 401-402 and vice versa, thereby simplifying programmability. In one embodiment, a first portion of the virtual/effective address space is allocated to the processor memory 401, a second portion to the second processor memory 402, a third portion to the GPU memory 420, and so on. The entire virtual/effective memory space (sometimes referred to as the effective address space) is thereby distributed across each of the processor memories 401-402 and GPU memories 420-423, allowing any processor or GPU to access any physical memory with a virtual address mapped to that memory.

[0110] In one embodiment, bias/coherence management circuitry 494A-494E within one or more of the MMUs 439A-439E ensures cache coherence between the caches of the host processors (e.g., 405) and the GPUs 410-413 and implements biasing techniques indicating the physical memories in which certain types of data should be stored. While multiple instances of bias/coherence management circuitry 494A-494E are illustrated in FIG. 4F, the bias/coherence circuitry may be implemented within the MMU of one or more host processors 405 and/or within the accelerator integration circuit 436.

[0111] One embodiment allows GPU-attached memory 420-423 to be mapped as part of system memory, and accessed using shared virtual memory (SVM) technology, but without suffering the typical performance drawbacks associated with full system cache coherence. The ability to GPU-attached memory 420-423 to be accessed as system memory without onerous cache coherence overhead provides a beneficial operating environment for GPU offload. This arrangement allows the host processor 405 software to setup operands and access computation results, without the overhead of tradition I/O DMA data copies. Such traditional copies involve driver calls, interrupts and memory mapped I/O (MMIO) accesses that are all inefficient relative to simple memory accesses. At the same time, the ability to access GPU attached memory 420-423 without cache coherence overheads can be critical to the execution time of an offloaded computation. In cases with substantial streaming write memory traffic, for example, cache coherence overhead can significantly reduce the effective write bandwidth seen by a GPU 410-413. The efficiency of operand setup, the efficiency of results access, and the efficiency of GPU computation all play a role in determining the effectiveness of GPU offload.

[0112] In one implementation, the selection of between GPU bias and host processor bias is driven by a bias tracker data structure. A bias table may be used, for example, which may be a page-granular structure (i.e., controlled at the granularity of a memory page) that includes 1 or 2 bits per GPU-attached memory page. The bias table may be implemented in a stolen memory range of one or more GPU-attached memories 420-423, with or without a bias cache in the GPU 410-413 (e.g., to cache frequently/recently used entries of the bias table). Alternatively, the entire bias table may be maintained within the GPU.

[0113] In one implementation, the bias table entry associated with each access to the GPU-attached memory 420-423 is accessed prior the actual access to the GPU memory, causing the following operations. First, local requests from the GPU 410-413 that find their page in GPU bias are forwarded directly to a corresponding GPU memory 420-423. Local requests from the GPU that find their page in host bias are forwarded to the processor 405 (e.g., over a high-speed link as discussed above). In one embodiment, requests from the processor 405 that find the requested page in host processor bias complete the request like a normal memory read. Alternatively, requests directed to a GPU-biased page may be forwarded to the GPU 410-413. The GPU may then transition the page to a host processor bias if it is not currently using the page.

[0114] The bias state of a page can be changed either by a software-based mechanism, a hardware-assisted software-based mechanism, or, for a limited set of cases, a purely hardware-based mechanism.

[0115] One mechanism for changing the bias state employs an API call (e.g. OpenCL), which, in turn, calls the GPU’s device driver which, in turn, sends a message (or enqueues a command descriptor) to the GPU directing it to change the bias state and, for some transitions, perform a cache flushing operation in the host. The cache flushing operation is required for a transition from host processor 405 bias to GPU bias, but is not required for the opposite transition.

[0116] In one embodiment, cache coherency is maintained by temporarily rendering GPU-biased pages uncacheable by the host processor 405. To access these pages, the processor 405 may request access from the GPU 410 which may or may not grant access right away, depending on the implementation. Thus, to reduce communication between the processor 405 and GPU 410 it is beneficial to ensure that GPU-biased pages are those which are required by the GPU but not the host processor 405 and vice versa.

[0117] Graphics Processing Pipeline

[0118] FIG. 5 illustrates a graphics processing pipeline 500, according to an embodiment. In one embodiment a graphics processor can implement the illustrated graphics processing pipeline 500. The graphics processor can be included within the parallel processing subsystems as described herein, such as the parallel processor 200 of FIG. 2, which, in one embodiment, is a variant of the parallel processor(s) 112 of FIG. 1. The various parallel processing systems can implement the graphics processing pipeline 500 via one or more instances of the parallel processing unit (e.g., parallel processing unit 202 of FIG. 2) as described herein. For example, a shader unit (e.g., graphics multiprocessor 234 of FIG. 3) may be configured to perform the functions of one or more of a vertex processing unit 504, a tessellation control processing unit 508, a tessellation evaluation processing unit 512, a geometry processing unit 516, and a fragment/pixel processing unit 524. The functions of data assembler 502, primitive assemblers 506, 514, 518, tessellation unit 510, rasterizer 522, and raster operations unit 526 may also be performed by other processing engines within a processing cluster (e.g., processing cluster 214 of FIG. 3) and a corresponding partition unit (e.g., partition unit 220A-220N of FIG. 2). The graphics processing pipeline 500 may also be implemented using dedicated processing units for one or more functions. In one embodiment, one or more portions of the graphics processing pipeline 500 can be performed by parallel processing logic within a general purpose processor (e.g., CPU). In one embodiment, one or more portions of the graphics processing pipeline 500 can access on-chip memory (e.g., parallel processor memory 222 as in FIG. 2) via a memory interface 528, which may be an instance of the memory interface 218 of FIG. 2.

[0119] In one embodiment the data assembler 502 is a processing unit that collects vertex data for surfaces and primitives. The data assembler 502 then outputs the vertex data, including the vertex attributes, to the vertex processing unit 504. The vertex processing unit 504 is a programmable execution unit that executes vertex shader programs, lighting and transforming vertex data as specified by the vertex shader programs. The vertex processing unit 504 reads data that is stored in cache, local or system memory for use in processing the vertex data and may be programmed to transform the vertex data from an object-based coordinate representation to a world space coordinate space or a normalized device coordinate space.

[0120] A first instance of a primitive assembler 506 receives vertex attributes from the vertex processing unit 504. The primitive assembler 506 readings stored vertex attributes as needed and constructs graphics primitives for processing by tessellation control processing unit 508. The graphics primitives include triangles, line segments, points, patches, and so forth, as supported by various graphics processing application programming interfaces (APIs).

[0121] The tessellation control processing unit 508 treats the input vertices as control points for a geometric patch. The control points are transformed from an input representation from the patch (e.g., the patch’s bases) to a representation that is suitable for use in surface evaluation by the tessellation evaluation processing unit 512. The tessellation control processing unit 508 can also compute tessellation factors for edges of geometric patches. A tessellation factor applies to a single edge and quantifies a view-dependent level of detail associated with the edge. A tessellation unit 510 is configured to receive the tessellation factors for edges of a patch and to tessellate the patch into multiple geometric primitives such as line, triangle, or quadrilateral primitives, which are transmitted to a tessellation evaluation processing unit 512. The tessellation evaluation processing unit 512 operates on parameterized coordinates of the subdivided patch to generate a surface representation and vertex attributes for each vertex associated with the geometric primitives.

[0122] A second instance of a primitive assembler 514 receives vertex attributes from the tessellation evaluation processing unit 512, reading stored vertex attributes as needed, and constructs graphics primitives for processing by the geometry processing unit 516. The geometry processing unit 516 is a programmable execution unit that executes geometry shader programs to transform graphics primitives received from primitive assembler 514 as specified by the geometry shader programs. In one embodiment the geometry processing unit 516 is programmed to subdivide the graphics primitives into one or more new graphics primitives and calculate parameters used to rasterize the new graphics primitives.

[0123] In some embodiments the geometry processing unit 516 can add or delete elements in the geometry stream. The geometry processing unit 516 outputs the parameters and vertices specifying new graphics primitives to primitive assembler 518. The primitive assembler 518 receives the parameters and vertices from the geometry processing unit 516 and constructs graphics primitives for processing by a viewport scale, cull, and clip unit 520. The geometry processing unit 516 reads data that is stored in parallel processor memory or system memory for use in processing the geometry data. The viewport scale, cull, and clip unit 520 performs clipping, culling, and viewport scaling and outputs processed graphics primitives to a rasterizer 522.

[0124] The rasterizer 522 can perform depth culling and other depth-based optimizations. The rasterizer 522 also performs scan conversion on the new graphics primitives to generate fragments and output those fragments and associated coverage data to the fragment/pixel processing unit 524. The fragment/pixel processing unit 524 is a programmable execution unit that is configured to execute fragment shader programs or pixel shader programs. The fragment/pixel processing unit 524 transforming fragments or pixels received from rasterizer 522, as specified by the fragment or pixel shader programs. For example, the fragment/pixel processing unit 524 may be programmed to perform operations included but not limited to texture mapping, shading, blending, texture correction and perspective correction to produce shaded fragments or pixels that are output to a raster operations unit 526. The fragment/pixel processing unit 524 can read data that is stored in either the parallel processor memory or the system memory for use when processing the fragment data. Fragment or pixel shader programs may be configured to shade at sample, pixel, tile, or other granularities depending on the sampling rate configured for the processing units.

[0125] The raster operations unit 526 is a processing unit that performs raster operations including, but not limited to stencil, z test, blending, and the like, and outputs pixel data as processed graphics data to be stored in graphics memory (e.g., parallel processor memory 222 as in FIG. 2, and/or system memory 104 as in FIG. 1, to be displayed on the one or more display device(s) 110 or for further processing by one of the one or more processor(s) 102 or parallel processor(s) 112. In some embodiments the raster operations unit 526 is configured to compress z or color data that is written to memory and decompress z or color data that is read from memory.

[0126] Augmented Reality and Virtual Reality Feedback Enhancement

[0127] FIG. 6 is a conceptual diagram of an example of an augmented reality (AR) and virtual reality (VR) feedback enhancement system configuration 600, according to an embodiment. The system configuration 600 may include a feedback enhancement system 602 comprising a power source 604 to supply power to the system 602, and a memory 606 coupled to a processor (not shown). The memory 606 may include n-dimensional environment information 608.

[0128] The feedback enhancement system 602 may include a graphics pipeline apparatus 610 comprising an observer monitor 612 to monitor one or more actions 614 of an observer observing the n-dimensional environment information. The environment information may include feedback information. The feedback enhancement system 602 may include a feedback manager 616 to detect feedback information. The feedback information may include a priority relationship to the observer. The priority relationship may identify one or more of observer directed feedback information directed to the observer or undirected feedback information.

[0129] The feedback enhancement system 602 may further include a ray tracing engine 618 to normalize the environment information, e.g., normalized environment information 620, including normalize the feedback information, to a location of the observer. The graphics pipeline apparatus 610 may render the normalized feedback information based on one or more of the actions 614 of the observer or the priority relationship of the feedback information to the observer.

[0130] The feedback manager 616 may attenuate one or more feedback devices 622 based on one or more operating parameters 624. The feedback devices 622 may be coupled to and/or included in the graphics pipeline apparatus 610. The feedback manager 616 may identify the feedback information as known feedback information or unknown feedback information. The feedback manager 616 may request unknown feedback identifier training, using a training model 624, when the unknown feedback information is detected. The feedback manager 616 may maintain and/or update the training model 624, by one or more training sessions conducted following a request for unknown feedback identifier training. The known feedback information may be assigned one or more feedback identifiers, and the feedback identifiers may identify one or more feedback profiles. The feedback information may include one or more sounds from one or more sound sources, or feedback indicators including one or more visual clues or auditory clues. The feedback manager 622 may actuate one or more the feedback devices.

[0131] The observer monitor 612 may monitor one or more of a gaze direction, a focus area, non-focus area or the location of the observer. The environment information 608 may include one more of virtual reality information or augmented reality information (VR/AR) to render one or more VR/AR scenes to the observer. The VR/AR information may include one or more objects, surfaces, sounds, or events. The operating parameters 626 may include one or more of power availability, power consumption parameters, user preferences, application parameters, or performance parameters. The environment information 608 may include captured information captured by one or more capture devices 628, 630 located in one or more n-dimensional environments 632, 634. One or more of the observer monitor 612 or capture devices 628, 630 may include one or more sensors, including a gaze monitor, iris monitor, gyroscopes, location and/or rotation head mounted display, gesture sensors, cameras (e.g., visible and nonvisible spectrums).

[0132] The graphics pipeline apparatus 610 may superimpose over at least one of the VR/AR scenes rendered in the gaze direction, a silhouette of an object, surface, or an event in the direction of the sound or sound source, the event or events source. The feedback manager 616 may modulate quality of the feedback information rendered in one or more of the focus area or the non-focus area. The feedback manager 616 may attenuate the non-focus area feedback information outside the focus area to draw attention or focus of the observer to the non-focus area feedback information. The focus areas may be designated based on one or more of geographical zones, or a radial distance threshold. The geographical zones or radial distance threshold may be based on one or more of the operating parameters 626.

[0133] The graphics pipeline apparatus 610 may adjust the rendering based on one or more the operating parameters. The graphics pipeline apparatus 610 may adjust a head related transformation function (HRTF) based on one or more of the operating parameters. The feedback devices 622 may include one or more beamforming directional microphones, and the one or more actions 614 may include one or more of an eye gaze, gesture, or auditory signal.

[0134] The ray tracing engine 618 may calculate vector paths 636 for the feedback information using one or more of ambisonics sound field digital signal processing or ambiophonic soundfield digital signal processing. The observer monitor may include an action predictor 638 to predict one or more of the actions of the observer based on monitor actions by the observer. The action predictor 638 may be updated following update and/or maintenance of the training model 624.

[0135] The graphics pipeline apparatus 610 may render at least one of the sounds from and/or the sound sources 640, 642, when detected in the non-focus area, as a first silhouette in the field of view of the observer detected viewing an initial focus area. The graphics pipeline apparatus 610 may transition the first silhouette to a primary focus area view based on a focus time threshold. When the first silhouette transitions to the primary focus area view, the graphics pipeline apparatus 610 may transition the initial focus area transitions to a second silhouette. The feedback enhancement system 602 may further include a display device 644 to output the render the one or more VR/AR scenes to the observer with the VR/AR information including at least one of the sounds from and/or the sound sources 640, 642.

[0136] FIG. 7A is a conceptual diagram 700 of an example of a VR/AR enhanced user experience with sound sources 702, 704 located in a focus area and a non-focus area, according to an embodiment. The focus area may be defined by an angle of view 706, 708 (e.g., 60.degree., 90.degree., 120.degree., 180.degree.) of an observer 714, and the focus area angle of view may be set by one or more operating parameters. The non-focus area(s) may be defined by an angle 710, 712 outside the view of the observer 714. A feedback manager (not shown) may attenuate one or more feedback devices 716, 718, 720 located in the environment of the observer or in and/or about a head mounted display (e.g., located 360.degree. about the head mounted display at configurable intervals) worn by the observer 714.

[0137] FIG. 7B is a conceptual diagram 750 of an example of sound sources 752, 754 in a focus area 756 and a non-focus area 758, according to an embodiment. A graphics pipeline apparatus (not shown) may render sounds from and/or the sound sources 752 in a focus area 756 (e.g., an initial focus area). The sounds and/or the sound sources may be VR/AR generated based on operating parameters such as application parameters and/or user preferences. The pipeline apparatus may, when detected in one or more non-focus areas 758, render non-focus area sound sources 754, as a silhouette (e.g., a first silhouette) in the field of view of the observer. The graphics pipeline apparatus may transition the first silhouette of the sound source and or the non-focus area to a primary focus area sound source and/or a primary focus area view (e.g., transitioning the sound source from a silhouette to opaque) based on a focus time threshold. The focus time threshold may indicate an amount of time the observer is monitored of gazing at focus area 756 and/or the focus area sound source 752. When the first silhouette transitions to the primary focus area view, the graphics pipeline apparatus may transition focus area sound source 752 and/or the initial focus area 756 to a silhouette.

[0138] FIG. 8 is a flowchart of an example of a method 800 of managing feedback enhanced rendering, according to an embodiment. The method 800 may be implemented as a module or related component in a set of logic instructions stored in a non-transitory machine- or computer-readable storage medium such as random access memory (RAM), read only memory (ROM), programmable ROM (PROM), firmware, flash memory, etc., in configurable logic such as, for example, programmable logic arrays (PLAs), field programmable gate arrays (FPGAs), complex programmable logic devices (CPLDs), in fixed-functionality hardware logic using circuit technology such as, for example, application specific integrated circuit (ASIC), complementary metal oxide semiconductor (CMOS) or transistor-transistor logic (TTL) technology, or any combination thereof. For example, computer program code to carry out operations shown in the method 800 may be written in any combination of one or more programming languages, including an object oriented programming language such as JAVA, SMALLTALK, C++ or the like and conventional procedural programming languages, such as the “C” programming language or similar programming languages.

[0139] Illustrated processing block 802 provides for monitoring, by an observer monitor, one or more actions of an observer observing n-dimensional environment information, the environment information including feedback information. Processing block 804 provides for detecting, by a feedback manager, feedback information, wherein feedback information includes a priority relationship to the observer, wherein the priority relationship identifies one or more of observer directed feedback information directed to the observer or undirected feedback information. Illustrated processing block 806 provides for normalizing, by a ray tracing engine, the environment information, including normalize the feedback information, to a location of the observer.

[0140] Illustrated processing block 808 provides for attenuating, by the feedback manager, one or more feedback devices based on one or more of the operating parameters. The feedback devices may be coupled to the graphics pipeline apparatus. The feedback manager may identify the feedback information as known feedback information or unknown feedback information. The feedback manager may request unknown feedback identifier training, when the unknown feedback information is detected. The known feedback information may be assigned one or more feedback identifiers. The feedback identifiers may identify one or more feedback profiles. The feedback information may include one or more sounds from one or more sound sources, or feedback indicators including one or more visual clues or auditory clues. Processing block 808 may further provide for actuating, by the feedback manager, one or more of the feedback devices.

[0141] Illustrated processing block 810 provides for rendering, by a graphics pipeline apparatus, the normalized feedback information based on one or more of the actions of the observer or the priority relationship of the feedback information to the observer.

[0142] Turning now to FIG. 9, is a flowchart of an example of a method 900 of superimposing normalize feedback information over a VR/AR scene, according to an embodiment. The method 1000 may be implemented as a module or related component in a set of logic instructions stored in a non-transitory machine- or computer-readable storage medium such as RAM, ROM, PROM, firmware, flash memory, etc., in configurable logic such as, for example, PLAs, FPGAs, CPLDs, in fixed-functionality hardware logic using circuit technology such as, for example, ASIC, CMOS or TTL technology, or any combination thereof.

[0143] Illustrated processing block 902 provides for monitoring, by the observer monitor, one or more of a gaze direction, a focus area, non-focus area or the location of the observer. The environment information may include one more of virtual reality information or augmented reality information (VR/AR) to render one or more VR/AR scenes. The VR/AR information may include one or more objects, surfaces, sounds, or events, wherein the operating parameters include one or more of power availability, power consumption parameters, user preferences, application parameters, or performance parameters. The environment information may include captured information captured by one or more capture devices located in one or more n-dimensional environments. One or more of the observer monitor or capture devices may include one or more sensors.

[0144] Illustrated processing block 904 provides for superimposing, by the graphics pipeline apparatus, over at least one of the VR/AR scenes rendered in the gaze direction, a silhouette of an object, surface, or an event in the direction of the sound or sound source, the event or events source. Processing block 906 provides for modulating, by the feedback manager, quality of the feedback information rendered in one or more of the focus area or the non-focus area. Processing block 908 provides for attenuating, by the feedback manager, the non-focus area feedback information outside the focus area to draw attention or focus of the observer to the non-focus area feedback information. The focus areas are designated based on one or more of geographical zones, or a radial distance threshold. The geographical zones or radial distance threshold are based on one or more of the operating parameters.

[0145] FIG. 10 is a flowchart of an example of a method 1000 of managing adjustment of a rendering on one or more operating parameters, according to an embodiment. The method 1000 may be implemented as a module or related component in a set of logic instructions stored in a non-transitory machine- or computer-readable storage medium such as RAM, ROM, PROM, firmware, flash memory, etc., in configurable logic such as, for example, PLAs, FPGAs, CPLDs, in fixed-functionality hardware logic using circuit technology such as, for example, ASIC, CMOS or TTL technology, or any combination thereof.

[0146] Illustrated processing block 1002 provides for calculating, by the ray tracing engine, vector paths for the feedback information using one or more of ambisonics sound field digital signal processing or ambiophonic soundfield digital signal processing. Processing block 1004 provides for predicting, by the action predictor, one or more actions of the observer, for example, based on previously observed actions performed by the observer detected by the observer monitor.

[0147] Processing block 1006 provides for detecting, by feedback manager, at least one of the sounds and/or sound sources. Illustrated processing block 1008 provides for rendering, by a graphics pipeline apparatus, the sounds and/or sound sources, when detected in the non-focus area, as a first silhouette in the field of view of the observer detected viewing an initial focus area. A rendering (e.g., VR/AR rendering) may be based on one or more the operating parameters. The rendering may be a sound field representation of environment information captured by one or more capture devices, and/or binaural output. Processing block 1010 provides for monitoring one or more operating parameters, rotation of gaze of the observer and/or a head mounted display (HMD), or actions including one or more of an eye gaze, gesture, or auditory signal. Processing block 1012 provides for adjusting the head related transformation function (HRTF) based on the one or more operating parameters, rotation of gaze of the observer and/or a head mounted display (HMD), or the actions. In one implementation, the HRTF may be an operating parameter used, by the HMD, with observer head rotation information and gaze information to define a location to render one or more of the sounds (e.g., auditory signal).

[0148] Processing block 1014 provides for monitoring the gaze of the observer based on a focus time threshold. Illustrated processing block 1016 provides for transitioning, by the graphics pipeline apparatus, the first silhouette to a primary focus area view based on the focus time threshold. When the first silhouette transitions to the primary focus area view, the graphics pipeline apparatus transitions the initial focus area transitions to a second silhouette.

[0149] In one embodiment, the system 602 as described in FIG. 6 may be embedded in and/or a peripheral of a head-mounted display (HMD) system as illustrated in FIG. 11 at 1100.

[0150] Head-Mounted Display System Overview

[0151] FIG. 11 shows a head mounted display (HMD) system 1100 that is being worn by a user while experiencing an immersive environment such as, for example, a virtual reality (VR) environment, an augmented reality (AR) environment, a multi-player three-dimensional (3D) game, and so forth. In the illustrated example, one or more straps 1120 hold a frame 1102 of the HMD system 1100 in front of the eyes of the user. Accordingly, a left-eye display 1104 may be positioned to be viewed by the left eye of the user and a right-eye display 1106 may be positioned to be viewed by the right eye of the user. The left-eye display 1104 and the right-eye display 1106 may alternatively be integrated into a single display in certain examples such as, for example, a smart phone being worn by the user. In the case of AR, the displays 1104, 1106 may be view-through displays that permit the user to view the physical surroundings, with other rendered content (e.g., virtual characters, informational annotations, heads up display/HUD) being presented on top a live feed of the physical surroundings.

……
……
……
