Microsoft Patent | Backlight assembly with tunable grating layer for local dimming

Patent: Backlight assembly with tunable grating layer for local dimming

Publication Number: 10151960

Publication Date: 2018-12-11

Applicants: Microsoft Technology Licensing, Llc

Abstract

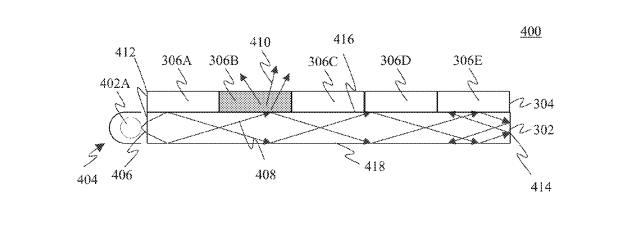

Methods, systems, apparatuses, and computer program products are provided for a backlight assembly for a display device. The backlight assembly includes a transparent waveguide layer, a plurality of light sources, and a tunable grating layer. The light sources are arranged along an edge of the waveguide layer. Each light source transmits light into the waveguide layer through the edge. The grating layer is coupled to the waveguide layer, and has multiple rows. Each row of the grating layer is segmented into a series of cells so the grating layer is sectioned into an array of cells. Each cell is independently controllable to either not extract incident light received from within the waveguide layer, or to extract the incident light for emission from the backlight assembly. In another configuration, the waveguide layer is not present, and the light sources transmit light directly into an edge of the grating layer.

Background

A backlight is a form of illumination used in liquid crystal displays (LCDs). Because an LCD does not produce its own light, another light source, the “backlight,” illuminates the LCD so that a visible image is produced. LCDs with backlights are used in many electronic user devices, such as flat panel displays, LCD televisions, mobile devices such as cell phones, etc.

Some LCDs use a backlight that gives off a uniform light over its surface, such as an electroluminescent panel (ELP). Other LCDs use multiple light sources to enable localized dimming, such as light emitting diodes (LEDs), or cold or hot cathode fluorescent lamps (CCFLs or HCFLs). Compared to LCDs with a single uniform backlight, well-designed LCDs with local dimming backlights can exhibit higher energy/power efficiencies, better image qualities, and mura-free (defect free) display qualities.

Summary

This Summary is provided to introduce a selection of concepts in a simplified form that are further described below in the Detailed Description. This Summary is not intended to identify key features or essential features of the claimed subject matter, nor is it intended to be used to limit the scope of the claimed subject matter.

Methods, systems, apparatuses, and computer program products are provided for a backlight assembly for a display device. The backlight assembly includes a transparent waveguide layer, a plurality of light sources, and a tunable grating layer. The light sources are arranged along an edge of the waveguide layer. Each light source transmits light into the waveguide layer through the edge. The grating layer is coupled to the waveguide layer, and has multiple rows. Each row of the grating layer is segmented into a series of cells so the grating layer is sectioned into an array of cells. Each cell is independently controllable to either not pass incident light received from within the waveguide layer, or to pass the incident light for emission from the backlight assembly. In another configuration, the waveguide layer is not present, and the light sources transmit light directly into an edge of the grating layer.
