Microsoft Patent | Selective Restriction Of Skeletal Joint Motion
Patent: Selective Restriction Of Skeletal Joint Motion
Publication Number: 20200081532
Publication Date: 20200312
Applicants: Microsoft
Abstract
One example provides a wireless wearable device including a flexible wearable base configured to be worn at a location of a skeletal joint, an electrostatic clutch including a first electrode, the first electrode having two or more first electrode sheets, each first electrode sheet having a core, a conductive layer formed on the core, and a dielectric coating formed on the conductive layer, and also having a common conductor to which each of the first electrode sheets are connected, and a second electrode having two or more second electrode sheets arranged alternately with the first electrode sheets in a stacked arrangement, a tensioner coupled to the electrostatic clutch, a battery, and control circuitry coupled to the electrostatic clutch and configured to generate a control signal to control an electrostatic force between the two or more first electrode sheets and the two or more second electrode sheets.
BACKGROUND
[0001] Virtual reality (VR) display systems immerse a user in an alternate reality, with virtual imagery occupying an entire field of view. Augmented reality (AR) display systems, such as mixed reality (MR) display systems, display virtual objects mixed with real imagery, such as via a see-through display system. In either case, visual and auditory aspects of a virtual experience may be represented in a lifelike manner.
SUMMARY
[0002] This Summary is provided to introduce a selection of concepts in a simplified form that are further described below in the Detailed Description. This Summary is not intended to identify key features or essential features of the claimed subject matter, nor is it intended to be used to limit the scope of the claimed subject matter. Furthermore, the claimed subject matter is not limited to implementations that solve any or all disadvantages noted in any part of this disclosure.
[0003] Examples are disclosed that relate to selectively restricting motion of a skeletal joint. One example provides a wearable device comprising a flexible wearable base configured to be worn at a location of a skeletal joint, and an electrostatic clutch mounted to the flexible wearable base. The electrostatic clutch comprises a first electrode including two or more first electrode sheets, each first electrode sheet comprising a core, a conductive layer formed on the core, and a dielectric coating formed on the conductive layer, and the first electrode also comprising a common conductor to which each of the first electrode sheets are connected. The electrostatic clutch further includes a second electrode comprising two or more second electrode sheets arranged alternately with the first electrode sheets in a stacked arrangement. The wireless wearable device further comprises a tensioner coupled to the electrostatic clutch, a battery, and control circuitry coupled to the electrostatic clutch and configured to generate a control signal to control an electrostatic force between the two or more first electrode sheets and the two or more second electrode sheets.
BRIEF DESCRIPTION OF THE DRAWINGS

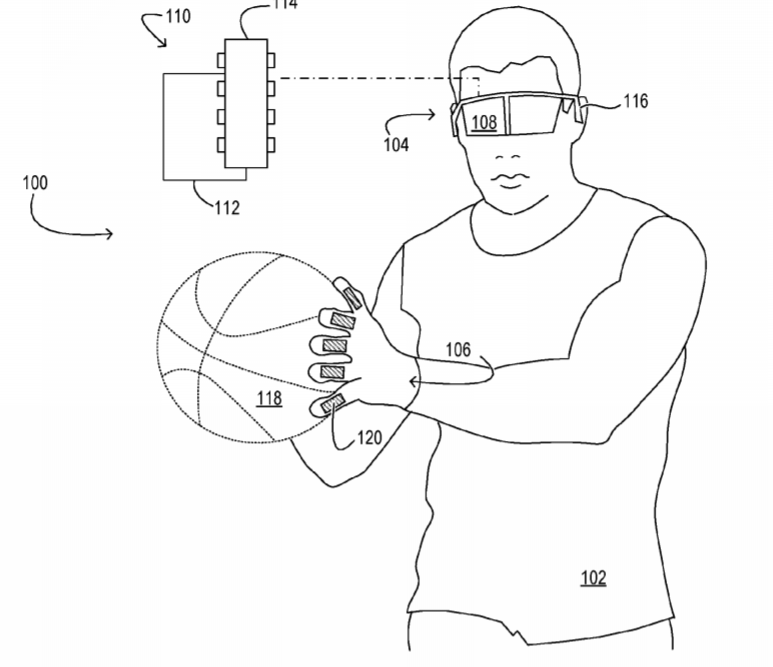

[0004] FIG. 1 shows an example use scenario in which an electrostatic clutch of a wearable device is controlled to simulate tactile interactions with displayed virtual imagery.
[0005] FIG. 2 shows an example wearable device including an electrostatic clutch.
[0006] FIG. 3 schematically shows an example electrode arrangement for an electrostatic clutch.
[0007] FIGS. 4A-4C schematically show another example electrode arrangement for an electrostatic clutch.
[0008] FIG. 5 shows an example wearable device in the form of a glove.
[0009] FIG. 6 shows a block diagram illustrating example control circuitry for controlling an electrostatic clutch.
[0010] FIG. 7 shows a flowchart illustrating an example method for controlling an electrostatic clutch.
[0011] FIG. 8 shows a block diagram illustrating an example computing system.
DETAILED DESCRIPTION
[0012] Experiences provided by VR and AR devices may be immersive in the visual and auditory sense. However, such devices may not have the ability to provide realistic tactile feedback when a user interacts with displayed virtual objects. Thus, various mechanisms have been proposed to provide tactile feedback to interactions with displayed virtual objects. Some mechanisms utilize an exoskeleton that includes mechanical joints comprising electric motors, pneumatics, and/or hydraulics that may be controlled to inhibit movement about a corresponding skeletal joint. However, such an exoskeleton may feel rigid, heavy, and otherwise unnatural to a user, and may require connection to external control circuitry.
[0013] Other mechanisms may utilize an electrostatic clutch positioned to selectively restrict joint motion. Such a clutch may comprise two thin sheet electrodes and a dielectric layer disposed between the two sheet electrodes, such that an applied voltage between the sheet electrodes exerts a resistive force between the two sheet electrodes to selectively control motion of the sheets relative to one another. However, to generate sufficient force for such control, such a clutch may require the use of a large overlapping surface area, thereby resulting in an undesirably large device. Additionally, such a clutch may use a high input voltage to obtain a desired force. As such, the power supply and waveform generators used to control the operation of such clutches may be much too large to incorporate into a wearable device, thereby requiring the devices to be tethered to external power supply and control circuits via wired connections.
[0014] Accordingly, examples are disclosed that relate to an electrostatic clutch configured to addresses such issues. Briefly, the disclosed examples utilize an electrode arrangement in which multiple layers of overlapping electrode sheets are arranged in a stack, thereby allowing for the generation of relatively strong mechanical resistive forces in a smaller area than the use of single-sheet electrodes. Further, the disclosed examples comprise control circuitry for controlling the electrostatic clutch via a low input voltage (e.g., between 3 to 5 volts) and with low power usage, which may allow resistive force to be generated from the output of a lightweight battery, without being tethered to external circuitry or heavy-duty equipment. The stacked electrode arrangement and control circuitry together provide a compact and lightweight form factor for implementing an electrostatic clutch in a portable wireless wearable device.
[0015] FIG. 1 shows aspects of an example display system 100 configured to present an augmented or virtual reality environment to a user 102. The display system 100 as illustrated is used to support gameplay, but may be used in numerous other scenarios as well. Display system 100 includes a head-mounted display (HMD) device 104 and a wireless wearable motion-restricting device 106. HMD device 104 includes a near-eye display 108 configured to display virtual imagery in the user’s field of view. In some examples, the near-eye display 108 is a see-through display, enabling real-world and virtual imagery to be admixed in the user’s field of view. In other examples, the near-eye display 108 is opaque, providing a fully immersive virtual reality. In the HMD device 104, signals encoding the virtual display imagery are sent to the display 108 via an on-board computing device 110. Computing device 110 includes at least one processor 112 and associated memory 114, examples of which are described below with reference to FIG. 8. HMD device 104 includes loudspeakers 116 that enable the user 102 to experience immersive audio.
[0016] Leveraging communications componentry arranged in the HMD device 104, the computing device 110 may be communicatively coupled to one or more off-board computing devices via a network. Thus, the virtual display imagery that the user 102 sees may, in some examples, be composed and/or rendered by an off-board computing device and sent wirelessly to the computing device 110. In other examples, the virtual display imagery may be composed and rendered on-board.
[0017] The motion-restricting device 106 is configured to further augment the augmented, mixed, or virtual reality experience by providing a lifelike physical sensation responsive to user interaction with virtual imagery. In the example shown in FIG. 1, the motion-restricting device 106 takes the form of a glove, which is worn on the hand of the user 102. In other examples, a motion-restricting device may take the form of a sleeve worn around an arm, a leg, and/or another body part.
[0018] The motion-restricting device 106 may be configured to provide a mechanically resistive physical sensation in response to detection of contact between the body of the user 102 and a virtual display object projected into a field of view of the user. In the example shown in FIG. 1, the mechanically resistive physical sensation may be provided whenever the hand of the user 102 intersects virtual basketball 118. In some examples, the mechanically resistive physical sensation provided by the wearable device upon user interaction with a virtual display object may vary based on the virtual display object, such that the user is provided different tactile experiences for interactions with different virtual objects (e.g. a virtual pillow compared to a virtual table).
[0019] To simulate the sensation of the touch of a virtual object on the user’s hand, the wearable motion-restricting device 106 includes at least one electrostatic clutch 120. FIG. 2 schematically shows aspects of an example wearable motion-restricting device 200 that takes the form of a glove worn on a hand 204 of a user, and that may be used as motion-restricting device 106. An electrostatic clutch 202 is controllable to change a frictional force between two or more electrode sheets of a first electrode 206 and two or more electrode sheets of a second electrode 208 that are positioned alternately in a stacked arrangement and are moveable translationally with respect to each other. The electrostatic clutch 202 is mounted to a flexible wearable base 210 (such as an inner fabric layer of the glove, a substrate layer positioned on the inner layer of the glove, or even an outer surface of the glove), via a first housing 212a fixed to a distal end of the first electrode 206. The second electrode 208 is coupled to a flexible ribbon 213 that extends along a length of a finger portion of the wearable device between the inner 210 and outer fabric 214 layers of the glove. In other examples, an electrostatic clutch may be attached to a wearable device in any other suitable manner.
[0020] The second electrode 208 is configured to move relative to the first electrode 206 based upon flexion and extension of a skeletal joint 216, during which an overlapping region 218 of the first electrode 206 and the second electrode 208 shortens and lengthens, respectively. In FIG. 2, a single electrostatic clutch controls motion restriction for all skeletal joints of the forefinger. In other examples, two or more electrostatic clutches may be provided for a finger, such that different clutches restrict motion of different joints.
[0021] The flexible ribbon 213 connects the second electrode 208 to one or more locations of the wearable device 200 such that the flexible ribbon 213 pulls the second electrode relative to the first electrode when a finger is flexed. The flexible ribbon 213 may be formed from any suitable material, such as a stretchable or non-stretchable flexible fabric or polymer sheet. The use of the flexible ribbon 213 may help to more widely distribute a resistive force compared to the use of a narrower wire or yarn segment. In the illustrated example, the flexible ribbon 213 is disposed between the inner layer 210 and the outer layer 214 of the glove, but may be disposed outside of the glove in some examples. In other examples, a yarn, wire, or other suitable structure may be used instead of or in addition to the flexible ribbon 213.
[0022] Wireless wearable device 200 further comprises a tensioner, shown schematically as dashed line 220 in FIG. 2, configured to provide a retractive force so that the first and second electrode are pulled into a state of greater overlap when the skeletal joint extends. The tensioner 220 may take any suitable form, such as an elastomer band or a mechanical spring. In the illustrated example, the tensioner 220 is disposed between the inner glove layer 210 and the electrostatic clutch 202. In other examples, a tensioner may additionally or alternatively be positioned along one or both sides of the electrostatic clutch 202, and/or above the electrostatic clutch, on a side opposite to that depicted in FIG. 1.
[0023] Each electrode of the electrostatic clutch 202 includes two or more electrode sheets connected electrically via a common conductor. The electrode sheets may be mechanically and electrically connected in any suitable manner. FIG. 3 schematically shows an example electrostatic clutch 300 in which a first mechanical fastener 304 mechanically and electrically connects electrode sheets 302a, 302b, and 302c of a first electrode, and a second mechanical fastener 308 mechanically and electrically connects electrode sheets 306a, 306b, and 306c of a second electrode. The common conductors 304, 308 also respectively connect electrode sheets 302a, 302b, and 302c of the first electrode and electrode sheets 306a, 306b, and 306c of the second electrode to control circuitry 318. Mechanical fasteners 304 and 308 may take the form of a conductive metal screw, rivet or other suitable connector, and may be coated with a desired conductive material (e.g. copper, silver-containing epoxy, etc.) in some examples.
[0024] FIGS. 4A-4C show another example mechanism for electrically and mechanically connecting plural electrode sheets of an electrode. In this example, a conductive crimping structure 400 holds each electrode sheet 402a, 402b, 402c, and 402d of a first electrode within respective crimps, and electrically connects the electrode sheets 402a, 402b, 402c, and 402d to each other and to control circuitry 408. Each electrode sheet is positioned within a different crimp 404 (FIG. 4A), and a mechanical clamping force is applied to mechanically and electrically connect the electrode sheets 402a, 402b, 402c, and 402d to one another, thereby forming the first electrode (FIG. 4B). FIG. 4C shows a different relative orientation of the crimping structure and the electrode sheets in which these structures are rotated ninety degrees relative to each other compared to FIGS. 4A and 4B. Crimping the electrode sheets 402a, 402b, 402c, and 402d as shown in FIGS. 4A-C further may help attain a low-profile electrode structure.
[0025] The conductive crimping structure 400 may be formed from any suitable material. Examples include metal foils, such as copper foil. The electrode sheets 402a, 402b, 402c, and 402d may be mechanically connected solely by mechanical clamping force, or a conductive adhesive may be used to help strengthen the connection between the electrode sheets and the conductive crimped structure. Any suitable conductive adhesive may be used, including a silver-containing polymer adhesive.
[0026] Continuing with FIG. 3, each electrode sheet includes a layered structure comprising a core 312, a conductive layer 314 formed on the core, and a dielectric coating 316 formed on the conductive layer. While the stacked electrode arrangement shown in FIG. 3 includes six electrode sheets, other examples may comprise any other suitable number of electrode sheets. In some examples, the number of electrode sheets, shape and configuration of a face of each electrode sheet, and/or a thickness of each electrode sheet may be selected to help prevent buckling of the electrode sheets as the tensioner pulls the electrodes into a state of greater overlap. In one specific example, a stacked electrode arrangement comprises 10 to 12 electrode sheets (e.g., 5 to 6 electrode sheets per electrode), each having a thickness in a range of 0.10 mm to 0.16 mm.
[0027] Applying voltage of either polarity to an electrode of an electrostatic clutch draws the electrodes together via the Coulomb force. Increasing normal force brings about a corresponding increase in both static and sliding friction forces between neighboring electrode sheets. Accordingly, materials and thicknesses of each layer within the layered electrode sheet structure may be selected based upon a desired electrostatic force provided at a given voltage, and/or to provide a suitably high electrostatic force at low operating voltages.
[0028] Core 312 may be formed from any material or materials of suitable tensile strength. Core 312 may be rigid or flexible, depending on the detailed configuration of the electrostatic clutch. In some examples, the core 312 comprises a fabric material or polymer film. In a more specific example, the core 312 comprises bi-axially oriented polyethylene terephthalate (BOPET).
[0029] An electrically conductive, continuous or discontinuous (e.g., patterned) conductive layer 314 is applied to the core 312 on opposing top and bottom surfaces of the core 312. Conductive layer 314 may be formed in any suitable manner, such as by printing (e.g. ink-jet printing, screen printing, gravure printing, or flexographic printing), other solvent-based coating methods (e.g. slot-die coatings and spin coatings), vacuum deposition methods such as physical vapor deposition, sputtering, chemical vapor deposition, electroless plating, electroplating, atomic-layer deposition, and/or other forms of material deposition. Any suitable conductive material may be used as conductive layer 314. Examples include graphite, silver, copper, and/or aluminum. In one specific example, a core sputtered with aluminum on a top surface and a bottom surface comprises a thickness in a range of 0.10 mm to 0.13 mm.
[0030] Dielectric coating 316 may be of a thickness and dielectric material selected to achieve a suitably strong electrostatic force at a given voltage, and to reduce the operating voltage for operating the electrostatic clutch. The dielectric material may also be selected to exhibit a high dielectric strength, in order to support a large electric field without suffering breakdown. In one example, electrode sheets of a first and second electrode having a 0.025 mm to 0.060 mm thick coating of barium titanate (BaTiO.sub.3) may attain a tensile force of 60N with 300 volts applied between the first and second electrodes, and also may attain a tensile force of 70N with 350 volts applied between the first and second electrodes and an operating current of less than 50 nA. Comparatively, electrode sheets coated with lower dielectric constant materials, such as polymer-based dielectric materials, may attain a peak force during extension of 60N with 1000 volts or higher applied between the first and second electrodes. In other examples, the dielectric coating 316 may comprise any other suitable high-.kappa. dielectric material, such as a material with a dielectric constant or .kappa..gtoreq.50.
[0031] Dielectric coating 316 may be applied to the conductive layer 314 in any suitable manner. In the specific example of BaTiO.sub.3, the dielectric layer may be formed via physical methods (e.g. sputtering) or chemical methods (e.g. CVD), as examples. In the example shown in FIG. 3, a high-.kappa. dielectric material coats the conductive layer 314 of each electrode sheet 302a-c and 306a-c such that the dielectric coating of a first electrode sheet is in slidable contact with the dielectric coating of a second electrode sheet. In other examples, electrode sheets of the second electrode may omit the dielectric coating, such that the conductive layer on an electrode sheet of the second electrode is in slidable contact with the dielectric coating 316 of neighboring electrode sheets of the first electrode. In yet other examples, electrode sheets 302a-c of the first electrode and electrode sheets of the second 306a-c may comprise the dielectric coating 316 on a single face of the conductive layer 314 such that the dielectric coating 316 is in slidable contact with a conductive layer of a neighboring electrode sheet.
[0032] An electrostatic clutch further may comprise a displacement sensor 320 which provides an output signal responsive to the displacement of electrode sheets of the first electrode relative to electrode sheets of the second electrode. The output signal from the displacement sensor may facilitate various computations–e.g., estimating the degree of extension of the user’s finger and the area of overlap between electrode sheets of the first electrode and electrode sheets of the second electrode. Any suitable displacement sensor may be used. In one example, an electrode sheet of the first electrode may include a plurality of contrast features detectable by a photodiode mounted to an electrode sheet of the second electrode, to generate a digital signal as the electrode sheet of the first electrode moves relative to the electrode sheet of the second electrode. Analog resistive and capacitive displacement sensors may also be used. Example capacitive displacement sensors include those in which the capacitance between an electrode sheet of the first electrode and an electrode sheet of the second electrode is measured and used to determine the degree of lateral displacement between the electrodes. The output from a displacement sensor may be provided to control circuitry, which may adjust a control signal based upon an amount of overlap between the electrodes. This may allow more charge to be applied to the electrode when less overlap is present to obtain a suitably strong resistive force.
[0033] As mentioned above, a wearable device may provide a user of a virtual or augmented reality display system with a tactile experience in which a simulated “feel” of a virtual object is similar to the feel of a real object represented by the virtual object. To observe user interactions with virtual objects, a mapping of virtual objects within a user’s environment may be maintained by an on-board computing device of an HMD device, a motion-restricting wearable device, and/or a remote computer in communication with an HMD or motion-restricting wearable device, wherein the mapping may include information regarding a position and shape of each virtual object. Such a mapping may also include metadata regarding material properties of each virtual object (e.g. hardness, texture, etc.). An onboard camera of an HMD, and/or one or more other cameras in a use environment, may observe a location of a user’s hand that is wearing the motion-restricting glove, and thereby determine when the hand intersects the glove. Such data may be used to determine a control signal to generate for controlling the electrostatic clutch. Such a computation also may take into account other data, such as a current displacement of the electrodes as sensed via a displacement sensor.
[0034] In some instances, a user may wish to prevent or cease the operation of an electrostatic clutch during a virtual experience, for example, to freely move the body part on which a wearable motion-restricting device is worn. For example, in FIG. 1, the user 102 may wish to regain a full range of hand motion while the user’s hand intersects the virtual basketball 118. Thus, the wearable motion-restricting device may be configured to recognize specific motions via data received from sensors residing on the wearable device that express intent to regain full hand motion, and in response to recognizing such motions, control the electrostatic clutch to release motion restriction. Likewise, the wearable motion-restricting device may be configured to infer a user intent to start or resume use of an electrostatic clutch based upon such inputs.
[0035] FIG. 5 schematically shows an example wearable device 500 that includes sensors that may be used to sense such expressions of user intent. Wearable device 500 takes the form of a glove comprising a plurality of electrostatic clutches (one of which is indicated at 502), pressure sensors 506, flex sensors 508, and associated control circuitry 504. The pressure sensors 506 are positioned in locations corresponding to fingertips of the thumb, forefinger, and middle finger, but may be positioned at any suitable locations in other examples. The illustrated flex sensors are located on a dorsal side of the hand and oriented along a locking axis of each electrostatic clutch, but may be positioned at any suitable locations in other examples. Various other examples may use one or the other of pressure and touch sensors, and/or may utilize other suitable sensors.
[0036] Sensor data received from the pressure sensors 506, flex sensors 508, and/or other suitable sensors may provide control circuitry 504 with information regarding a user intent to release or resume motion restriction. For example, bending sensed along a locking axis of an electrostatic clutch while the electrostatic clutch is controlled to restrict skeletal joint motion may inform the control circuitry 504 that the user wishes to release motion restriction.
[0037] Control circuitry 504 may further receive information from other sensors on the wearable device, such as one or more inertial measurement sensors (e.g., magnetometer, gyroscope, and/or accelerometer). For example, the control circuitry 504 may be configured to release or resume motion restriction based upon a sensed pose of the hand received from the inertial measurement sensors.
[0038] Control circuitry 504 further may receive information from (or derived from) one or more sensors external to the wearable device, in addition or alternatively to sensors local to the wearable device. For example, an integrated image sensor of a head-mounted display device, or other image sensor in the environment, may capture images of wearable device 500, and the images may be analyzed to identify a plurality of optical markers 509 (or other known features) located on the wireless wearable device in the image data, and thereby generate a three-dimensional pose of the wearable device based upon the identified optical marker locations compared to a model. In some examples, data from a flex sensor 508 (or displacement sensor on an electrostatic clutch) on the wearable device may provide information regarding a bend state of a finger to inform a fitting algorithm of a bend state of that finger, for example, to help perform model fitting. Control signals based upon the determined pose then may be sent to the wearable device 500 to control the operation of one or more electrostatic clutches based upon such pose data.
[0039] Wearable device 500 further comprises a power supply, such as a battery 510, connected to control circuitry 504. The control circuitry 504 is configured to form a boosted voltage from a low-voltage output of the battery 510 (e.g. 3-5 V), generate a control waveform to controllably apply charge to a first electrode and a second electrode of an electrostatic clutch (e.g., electrostatic clutch 502), and amplify the control waveform via the boosted voltage to form a control signal to apply to an electrostatic clutch electrode.
[0040] FIG. 6 shows a block diagram illustrating example control circuitry 600 suitable for use as control circuitry 318, 408, and/or 504. Control circuitry 600 comprises a microcontroller unit (MCU) 602, a waveform generator 604, a hysteretic DC/DC voltage converter 606, and an amplifier 608. Control circuitry 600 may be implemented as multiple discrete components, as an application-specific integrated circuit (ASIC), a system-on-chip (SoC), or in any other suitable form. In any example, the control circuitry 600 is configured to be implemented in a wireless wearable device as a lightweight, low-power, portable system to provide a suitable control voltage for an electrostatic clutch as disclosed.
[0041] The MCU 602 communicates with an external computing device (e.g., an HMD device) that determines a control signal for controlling the electrostatic clutch (e.g. based upon a detected intersection of the wearable device with a virtual object, and potentially upon specific properties of the virtual object, e.g. metadata regarding hardness/texture), and outputs the control signal to the MCU 602. In other examples, the MCU 602 itself may be configured to determine the control signal to send to an electrostatic clutch of the wireless wearable device based on the current state of the wireless wearable device. MCU 602 further may be configured to interface with one or more sensors residing on the wearable device 610 and/or external to the wearable device (via wireless interface 612) to receive sensor data and process the sensor data to help determine control signals.
[0042] Waveform generator 604 comprises a digital-to-analog converter controlled by the MCU 602 to generate an analog control waveform. The waveform generator 604 may be configured to generate a control waveform that is sinusoidal, triangular, square, complex, or has any other suitable shape. In some examples, the waveform generator 604 may be configured to generate a waveform of fixed amplitude and/or period. In other examples, the waveform generator 604 may be configured to generate a control waveform of varying amplitude and/or period.
[0043] Hysteretic DC/DC voltage converter 606 comprises a boost converter configured to operate at a low current according to a duty cycle to boost an output voltage of a battery. In one example, the hysteretic DC/DC voltage converter 606 boosts an output voltage in a range of 3 to 5 volts to a boosted voltage in a range of 250 to 430 volts. In another example, the hysteric DC/DC voltage converter 606 is configured to step a 3- to 5-volt battery output up to 650 volts. While traditional voltage converters utilize a large, high voltage power supply for high power output that may not be suited for use in a portable, wireless wearable device, the disclosed hysteretic DC/DC voltage converter 606 utilizes a small current input and consumes little power. As such, the hysteretic DC/DC voltage converter 606 may be implemented in a low-profile form factor suitable for use in a wireless wearable device.
[0044] Amplifier 608 is configured to amplify the control waveform generated by the waveform generator 604 via the boosted voltage to form a control signal. Any suitable amplifier may be used. In some examples, the amplifier comprises a voltage-controlled amplifier such as a field-effect transistor (FET) amplifier (e.g. a small signal, high voltage metal-oxide-semiconductor field-effect transistor (MOSFET) amplifier).
[0045] FIG. 7 shows a flowchart illustrating an example method 700 for controlling an electrostatic clutch. Method 700 may be implemented as stored instructions executable by control circuitry on a same portable wearable device as the electrostatic clutch, for example.
[0046] At 702, method 700 comprises receiving information for controlling an electrostatic clutch of the wireless wearable device. The information may comprise control instructions from an external computing device (e.g., a virtual or augmented reality HMD device). For example, as described above, a mapping of virtual objects within a user’s environment may be maintained by an on-board computing device of the HMD device, and may include information regarding a position and shape of each virtual object. Such information also may include metadata regarding material properties of each virtual object. Using such information, the computing device or MCU may determine a signal to send to the wearable device for controlling the electrostatic clutch.
[0047] In some examples, method 700 may comprise receiving sensor data regarding a current state of a wireless wearable device, as indicated at 704. The sensor data may be received from sensors local to the wireless wearable device and/or external to the wireless wearable device. For example, the control signal may be determined based at least in part on a current displacement of the electrodes as sensed via a displacement sensor. Other examples of suitable sensor data include data from a pressure sensor, a flex sensor, an inertial measurement sensor, an integrated image sensor of a HMD device, and an image sensor location elsewhere in a user’s environment.
[0048] Method 700 comprises, at 706, forming, via control circuitry residing on the wearable device, a boosted voltage from an output of a battery residing on the wireless wearable device. Forming a boosted voltage may comprise boosting a voltage obtained from a battery (which may be on the order of 3-5 V) via a DC/DC voltage converter to a suitable level, such as within a range of 250 to 650 V, or within a range of 300 to 350 volts in more specific embodiments.
[0049] At 708, method 700 comprises generating a control waveform via the control circuitry. Generating the control waveform may comprise using a digital-to-analog converter to build an analog voltage waveform, such as a sinusoidal, triangular, square, or complex waveform. In some examples, the control waveform comprises a fixed amplitude and period. In other examples one or more of the amplitude and/or period of the control waveform may be variable.
[0050] At 710, method 700 comprises amplifying the control waveform via the boosted voltage to form a control signal. In some examples, the control waveform may be amplified via a small signal, high-voltage metal-oxide-semiconductor field-effect transistor (MOSFET) amplifier circuit. In other examples, any suitable amplifier may be used.
[0051] At 712, method 700 comprises outputting the control signal to an electrostatic clutch of the wearable device. Outputting the control signal comprises outputting the control signal to the first electrode and the second electrode of the electrostatic clutch, to provide an electrostatic force between alternately arranged electrode sheets of each electrode. In some examples, outputting the control signal comprises providing electrostatic adhesion starting at 250V to 350V with very low current (e.g., less than 1 .mu.A).
[0052] In some examples, an electrostatic clutch may be used in medical, rather than computer-technology applications. Controllable body-movement restriction may be useful for the patient rehabilitating from a skeletomuscular injury such as a back or knee injury, or brain injury such as stroke. In other examples, an electrostatic clutch may be used as an active restraint for management of seizures or potentially dangerous body movements associated with autism, psychiatric disorders, or acute substance abuse.
[0053] The example electrostatic clutches disclosed herein may also be amenable to various industrial-safety applications. In one example, machine vision or other environment-sensing componentry may be used to assess whether persons are in close proximity to potentially dangerous machinery. Persons wearing an appropriate electrostatic clutch operatively coupled to the environment-sensing componentry may be protected from drawing too close to the machinery, extending a hand or finger into a cutting device, etc. In other examples, an electrostatic clutch worn by a worker may be configured for skeletal strain mitigation. When the worker is carrying a heavy object, the electrostatic clutch may lock into place, providing additional resistance to motion and relieving stress on the worker’s fingers, wrists, arms, legs, and other skeletal joints.
[0054] In still other examples, an electrostatic clutch may be used in a variety of electromechanical applications. For example, an electrostatic clutch may provide positive braking for a servomechanical (e.g., a robotic, soft robotic, and/or ball-joint) actuator.
[0055] In some embodiments, the methods and processes described herein may be tied to a computing system of one or more computing devices. In particular, such methods and processes may be implemented as a computer-application program or service, an application-programming interface (API), a library, and/or other computer-program product.
[0056] FIG. 8 schematically shows a non-limiting embodiment of a computing system 800 that can enact one or more of the methods and processes described above. Computing system 800 is shown in simplified form. Computing system 800 may take the form of one or more personal computers, server computers, tablet computers, home-entertainment computers, network computing devices, gaming devices, mobile computing devices, mobile communication devices (e.g., smart phone), and/or other computing devices.
[0057] Computing system 800 includes a logic machine 802 and a storage machine 804. Computing system 800 may optionally include a display subsystem 806, input subsystem 808, communication subsystem 810, and/or other components not shown in FIG. 8.
[0058] Logic machine 802 includes one or more physical devices configured to execute instructions. For example, the logic machine may be configured to execute instructions that are part of one or more applications, services, programs, routines, libraries, objects, components, data structures, or other logical constructs. Such instructions may be implemented to perform a task, implement a data type, transform the state of one or more components, achieve a technical effect, or otherwise arrive at a desired result.
[0059] The logic machine 802 may include one or more processors configured to execute software instructions. Additionally or alternatively, the logic machine 802 may include one or more hardware or firmware logic machines configured to execute hardware or firmware instructions. Processors of the logic machine 802 may be single-core or multi-core, and the instructions executed thereon may be configured for sequential, parallel, and/or distributed processing. Individual components of the logic machine 802 optionally may be distributed among two or more separate devices, which may be remotely located and/or configured for coordinated processing. Aspects of the logic machine 802 may be virtualized and executed by remotely accessible, networked computing devices configured in a cloud-computing configuration.
[0060] Storage machine 804 includes one or more physical devices configured to hold instructions executable by the logic machine 802 to implement the methods and processes described herein. When such methods and processes are implemented, the state of storage machine 804 may be transformed–e.g., to hold different data.
[0061] Storage machine 804 may include removable and/or built-in devices. Storage machine 804 may include optical memory (e.g., CD, DVD, HD-DVD, Blu-Ray Disc, etc.), semiconductor memory (e.g., RAM, EPROM, EEPROM, etc.), and/or magnetic memory (e.g., hard-disk drive, floppy-disk drive, tape drive, MRAM, etc.), among others. Storage machine 804 may include volatile, nonvolatile, dynamic, static, read/write, read-only, random-access, sequential-access, location-addressable, file-addressable, and/or content-addressable devices.
[0062] It will be appreciated that storage machine 804 includes one or more physical devices. However, aspects of the instructions described herein alternatively may be propagated by a communication medium (e.g., an electromagnetic signal, an optical signal, etc.) that is not held by a physical device for a finite duration.
[0063] Aspects of logic machine 802 and storage machine 804 may be integrated together into one or more hardware-logic components. Such hardware-logic components may include field-programmable gate arrays (FPGAs), program- and application-specific integrated circuits (PASIC/ASICs), program- and application-specific standard products (PSSP/ASSPs), system-on-a-chip (SOC), and complex programmable logic devices (CPLDs), for example.
[0064] The term “program: may be used to describe an aspect of computing system 800 implemented to perform a particular function. In some cases, a program may be instantiated via logic machine 802 executing instructions held by storage machine 804. It will be understood that different programs may be instantiated from the same application, service, code block, object, library, routine, API, function, etc. Likewise, the same program may be instantiated by different applications, services, code blocks, objects, routines, APIs, functions, etc. The term “program” may encompass individual or groups of executable files, data files, libraries, drivers, scripts, database records, etc.
[0065] It will be appreciated that a “service”, as used herein, is an application program executable across multiple user sessions. A service may be available to one or more system components, programs, and/or other services. In some implementations, a service may run on one or more server-computing devices.
[0066] When included, display subsystem 806 may be used to present a visual representation of data held by storage machine 804. This visual representation may take the form of a graphical user interface (GUI). As the herein described methods and processes change the data held by the storage machine, and thus transform the state of the storage machine, the state of display subsystem 806 may likewise be transformed to visually represent changes in the underlying data. Display subsystem 806 may include one or more display devices utilizing virtually any type of technology. Such display devices may be combined with logic machine 802 and/or storage machine 806 in a shared enclosure, or such display devices may be peripheral display devices.
[0067] When included, input subsystem 808 may comprise or interface with one or more user-input devices such as a keyboard, mouse, touch screen, or game controller. In some embodiments, the input subsystem 808 may comprise or interface with selected natural user input (NUI) componentry. Such componentry may be integrated or peripheral, and the transduction and/or processing of input actions may be handled on- or off-board. Example NUI componentry may include a microphone for speech and/or voice recognition; an infrared, color, stereoscopic, and/or depth camera for machine vision and/or gesture recognition; a head tracker, eye tracker, accelerometer, and/or gyroscope for motion detection and/or intent recognition; as well as electric-field sensing componentry for assessing brain activity.
[0068] When included, communication subsystem 810 may be configured to communicatively couple computing system 800 with one or more other computing devices. Communication subsystem 810 may include wired and/or wireless communication devices compatible with one or more different communication protocols. As non-limiting examples, the communication subsystem may be configured for communication via a wireless telephone network, or a wired or wireless local- or wide-area network. In some embodiments, the communication subsystem may allow computing system 800 to send and/or receive messages to and/or from other devices via a network such as the Internet.
[0069] Another example provides a wireless wearable device, comprising a flexible wearable base configured to be worn at a location of a skeletal joint, an electrostatic clutch mounted to the flexible wearable base, the electrostatic clutch comprising a first electrode, the first electrode comprising two or more first electrode sheets, each first electrode sheet comprising a core, a conductive layer formed on the core, and a dielectric coating formed on the conductive layer, and the first electrode also comprising a common conductor to which each of the first electrode sheets are connected, and a second electrode comprising two or more second electrode sheets arranged alternately with the first electrode sheets in a stacked arrangement, a tensioner coupled to the electrostatic clutch, a battery, and control circuitry coupled to the electrostatic clutch and configured to generate a control signal to control an electrostatic force between the two or more first electrode sheets and the two or more second electrode sheets. In such an example, the tensioner may additionally or alternatively be disposed between the flexible wearable base and the electrostatic clutch. In such an example, the dielectric coating may additionally or alternatively comprise barium titanate. In such an example, the core may additionally or alternatively comprise bi-axially oriented polyethylene terephthalate (BOPET). In such an example, the common conductor to which each of the first electrode sheets are connected may additionally or alternatively comprise a crimped structure, and each first electrode sheet of the two or more first electrode sheets may additionally or alternatively be positioned within a different alcove of the crimped conductive support structure. In such an example, the common conductor to which each of the first electrode sheets are connected may additionally or alternatively comprise a conductive mechanical fastener. In such an example, the common conductor may additionally or alternatively comprise a conductive epoxy. In such an example, the wireless wearable device may additionally or alternatively comprise a displacement sensor responsive to an area of overlap between first electrode sheets and second electrode sheets, and the control signal may additionally or alternatively depend upon an output of the displacement sensor. In such an example, the wireless wearable device may additionally or alternatively comprise a glove. In such an example, each first electrode sheet may additionally or alternatively comprise a thickness in range of 0.10 mm to 0.16 mm. In such an example, the conductive layer may additionally or alternatively comprise aluminum or copper. In such an example, each second electrode sheet may additionally or alternatively comprise a layered structure having a core layer, a metallic layer formed on the core layer, and a dielectric layer formed on the metallic layer.
[0070] Another example provides a wireless wearable device, comprising a flexible wearable base configured to be worn at a location of a skeletal joint, an electrostatic clutch mounted to the flexible wearable base, the electrostatic clutch comprising a first electrode comprising two or more first electrode sheets, and a second electrode comprising two or more second electrode sheets arranged with the two or more first electrode sheets in a stacked arrangement, a battery, and control circuitry configured to form a boosted voltage from an output of the battery, generate a control waveform to controllably apply charge to the first electrode and the second electrode, and amplify the control waveform via the boosted voltage to form a control signal. In such an example, the control circuitry may additionally or alternatively be configured to form the control signal based upon sensor data received from one or more of a pressure sensor, a flex sensor, a displacement sensor, and/or an inertial sensor residing on the wearable device. In such an example, the wireless wearable device may additionally or alternatively comprise one or more optical markers, and the control circuitry may additionally or alternatively be configured to form the control signal based upon image data capturing the one or more optical markers. In such an example, the control circuitry may additionally or alternatively be configured to form the boosted voltage from the output of the battery by boosting a battery output voltage in a range of 3 to 5 volts to form the boosted voltage in a range of 250 to 650 volts. In such an example, the control circuitry may additionally or alternatively be configured to form the boosted voltage via a hysteretic DC/DC voltage converter. In such an example, the wireless wearable device may additionally or alternatively comprise a glove.
[0071] Another example provides, on a computing device, a method comprising receiving information regarding controlling an electrostatic clutch of a wireless wearable device, forming, via control circuitry residing on the wearable device, a boosted voltage from an output of a battery residing on the wireless wearable device, generating, via the control circuitry, a control waveform, amplifying the control waveform via the boosted voltage to form a control signal, and outputting the control signal to the electrostatic clutch to change an electrostatic force between two or more sheets of a first electrode and two or more sheets of a second electrode within the electrostatic clutch. In such an example, forming the boosted voltage from the output of the battery residing on the wireless wearable device may additionally or alternatively comprise boosting an output voltage in a range of 3 to 5 volts to a boosted voltage in a range of 250 to 650 volts.
[0072] It will be understood that the configurations and/or approaches described herein are exemplary in nature, and that these specific embodiments or examples are not to be considered in a limiting sense, because numerous variations are possible. The specific routines or methods described herein may represent one or more of any number of processing strategies. As such, various acts illustrated and/or described may be performed in the sequence illustrated and/or described, in other sequences, in parallel, or omitted. Likewise, the order of the above-described processes may be changed.
[0073] The subject matter of the present disclosure includes all novel and non-obvious combinations and sub-combinations of the various processes, systems and configurations, and other features, functions, acts, and/or properties disclosed herein, as well as any and all equivalents thereof.
