Sony Patent | Display Apparatus
Patent: Display Apparatus
Publication Number: 20200041793
Publication Date: 20200206
Applicants: Sony
Abstract
It is an object of the present invention to provide a display apparatus having a configuration and a structure that enable virtual images to be observed by an observer to exhibit high contrast, and enable the observer who uses the display apparatus to safely act in a real environment while reliably recognizing an external environment. A display apparatus of the present invention includes: a frame to be mounted to a head of an observer; an image display apparatus attached to the frame; and a dimming apparatus 700. The image display apparatus includes an image forming apparatus, and an optical apparatus 120 having a virtual-image forming region 701 in which virtual images are formed. The optical apparatus 120 overlaps with at least a part of the dimming apparatus 700. When the dimming apparatus 700 operates, a light blocking rate of the dimming apparatus decreases, for example, from an upper region and an outer-side region of a virtual-image-forming-region facing region 701 toward a central portion of the virtual-image-forming-region facing region.
TECHNICAL FIELD
[0001] The present disclosure relates to a display apparatus, and more particularly, to a display apparatus to be used as a head mounted display (HMD).
BACKGROUND ART
[0002] In recent years, an augmented reality (AR) technology of synthesizing and presenting a virtual object or various information items as additional electronic-information items into a real environment (or part thereof) has been spotlighted. In order to implement the augmented reality technology, for example, the head mounted display has been studied as an apparatus that presents visual information items. In addition, as its application field, work supporting in the real environment is expected. For example, there may be mentioned provision of road-guidance information items, and provision of technical information items to engineers who perform maintenance and the like. In particular, the head mounted display is hands-free, and hence is significantly useful. In addition, also when an observer wants to enjoy a video or images while moving outdoors, the video or the images can be recognized together with an external environment within a field of vision. Thus, the observer can smoothly move.
[0003] A virtual-image display apparatus (display apparatus) for enabling the observer to observe a two-dimensional image formed by an image forming apparatus as a virtual image enlarged by a virtual-image optical system has been known, for example, from Japanese Patent Application Laid-open No. 2006-162767.
[0004] As illustrated in the conceptual view of FIG. 29, this image display apparatus 100’ includes an image forming apparatus 111 including a plurality of pixels arrayed in two-dimensional matrix, a collimating optical system 112 that converts light beams emitted from the pixels of the image forming apparatus 111 to parallel light beams, and an optical apparatus 120 to which the light beams converted to the parallel light beams by the collimating optical system 112 are input, and which guides and emits the parallel light beams. The optical apparatus 120 includes a light guide plate 121 in which the input light beams are propagated by total reflection therein and then emitted, first deflecting means 130 (constituted, for example, by a light reflecting film in a single layer) that reflects the light beams input to the light guide plate 121 such that the light beams input to the light guide plate are totally reflected in the light guide plate 121, and second deflecting means 140 (constituted, for example, by a light-reflecting multi-layer film having a multi-layer laminated structure) that causes the light beams propagated by the total reflection in the light guide plate 121 to be emitted from the light guide plate 121. Further, when the HMD is constituted, for example, by such an image display apparatus 100’, the HMD can be downsized and reduced in weight. Note that, with regard to reference numerals denoting other components in FIG. 29, refer to those of an image display apparatus of Embodiment 1, which is described with reference to FIG. 6.
[0005] Further, another virtual-image display apparatus (display apparatus) that uses a holographic diffraction grating so as to enable the observer to observe the two-dimensional image formed by the image forming apparatus as the virtual image enlarged by the virtual-image optical system has been known, for example, from Japanese Patent Application Laid-open No. 2007-094175.
[0006] As illustrated in the conceptual view of FIG. 30, this image display apparatus 300’ basically includes the image forming apparatus 111 that display images, the collimating optical system 112, and an optical apparatus 320 to which the light beams displayed on the image forming apparatus 111 are input, and which guides the light beams to a pupil 21 of the observer. In this context, the optical apparatus 320 includes a light guide plate 321, a first diffraction-grating member 330 and a second diffraction-grating member 340 each constituted by a reflective volume-holographic diffraction grating provided to the light guide plate 321. In addition, the light beams emitted from the pixels of the image forming apparatus 111 are input to the collimating optical system 112. A plurality of parallel light beams different from each other in incident angle with respect to the light guide plate 321 are generated by the collimating optical system 112, and input to the light guide plate 321. The parallel light beams are input and emitted through a first surface 322 of the light guide plate 321. Meanwhile, the first diffraction-grating member 330 and the second diffraction-grating member 340 are attached to a second surface 323 of the light guide plate 321, which is parallel to the first surface 322 of the light guide plate 321. Note that, with regard to reference numerals denoting other components in FIG. 30, refer to those of an image display apparatus of Embodiment 3, which is described with reference to FIG. 17.
[0007] Then, when the virtual image based on the image is formed in these image display apparatuses 100’ and 300’, the observer can view an image of an outside world and the formed virtual image in a superimposed manner.
[0008] Incidentally, when surrounding environments of the image display apparatuses 100’ and 300’ are significantly bright, or depending on contents of the formed virtual image, a problem that sufficient contrast cannot be exhibited by the virtual image to be observed by the observer may arise. As a countermeasure, a virtual-image display apparatus (display apparatus) including means for solving such problems, that is, a dimming apparatus has been known, for example, from Japanese Patent Application Laid-open No. 2012-252091.
CITATION LIST
Patent Literature
[0009] Patent Literature 1: Japanese Patent Application Laid-open No. 2006-162767
[0010] Patent Literature 2: Japanese Patent Application Laid-open No. 2007-094175
[0011] Patent Literature 3: Japanese Patent Application Laid-open No. 2012-252091
DISCLOSURE OF INVENTION
Technical Problem
[0012] In this context, the display apparatus is frequently required to enable the observer who uses the display apparatus not only to reliably recognize the virtual image by sight while reliably recognizing an external environment, but also to safely act in a real environment.
[0013] In view of such circumstances, the present disclosure has been made to provide a display apparatus having a configuration and a structure that enable virtual images to be observed by an observer to exhibit high contrast, and enable the observer who uses the display apparatus to safely act in a real environment while reliably recognizing an external environment.
Solution to Problem
[0014] In order to achieve the above-mentioned object, according to the present disclosure, there is provided a display apparatus including:
[0015] (A) a frame to be mounted to a head of an observer;
[0016] (B) an image display apparatus attached to the frame;* and*
[0017] (C) a dimming apparatus that adjusts light intensities of external light beams that enter from an outside,
[0018] the image display apparatus including [0019] (a) an image forming apparatus, and [0020] (b) an optical apparatus having a virtual-image forming region in which virtual images are formed on a basis of light beams emitted from the image forming apparatus,
[0021] the optical apparatus overlapping with at least a part of the dimming apparatus,
[0022] when the dimming apparatus operates,
[0023] (i) a light blocking rate of the dimming apparatus decreasing from an upper region and an outer-side region of a virtual-image-forming-region facing region toward a central portion of the virtual-image-forming-region facing region,
[0024] (ii) the light blocking rate of the dimming apparatus decreasing from a lower region and the outer-side region of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region,
[0025] (iii) the light blocking rate of the dimming apparatus decreasing from the outer-side region of the virtual-image-forming-region facing region toward an inner-side region of the virtual-image-forming-region facing region,
[0026] (iv) the light blocking rate of the dimming apparatus decreasing from the lower region of the virtual-image-forming-region facing region toward the upper region of the virtual-image-forming-region facing region,* or*
[0027] (v) the light blocking rate of the dimming apparatus decreasing from an outer-edge region of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region, the inner side being an observer’s nose side, the outer side being an observer’s ear side, the virtual-image-forming-region facing region being a region in the dimming apparatus, the region facing the virtual-image forming region in the optical apparatus.
Advantageous Effects of Invention
[0028] The display apparatus according to the present disclosure includes the dimming apparatuses, which enable the virtual images that the observer observes to exhibit high contrast. Further, the observer who uses the display apparatus is enabled to reliably recognize an external environment. In addition, the light blocking rate of each of the dimming apparatuses is set to start to decrease from a first predetermined region of the virtual-image-forming-region facing region to a second predetermined region of the virtual-image-forming-region facing region. Thus, through the virtual-image-forming-region facing region, through the virtual-image-forming-region facing region, which has a proper color tone, the observer who uses the display apparatus can safely act in a real environment while reliably recognizing an external environment. Note that, the advantages described herein are merely examples, and hence are not limited thereto. Thus, other advantages may be obtained.
BRIEF DESCRIPTION OF DRAWINGS
[0029] FIG. 1A is a schematic front view of an optical apparatus and a dimming apparatus in a display apparatus according to Embodiment 1, and FIG. 1B is a schematic cross-sectional view of the optical apparatus and the dimming apparatus, which is taken along arrows B-B in FIG. 1A.
[0030] FIG. 2A is a schematic front view of an optical apparatus and a dimming apparatus in a modification of the display apparatus according to Embodiment 1, and FIG. 2B is a schematic cross-sectional view of the optical apparatus and the dimming apparatus, which is taken along lines B-B in FIG. 2A.
[0031] FIG. 3 is a schematic view in which the dimming apparatus and the optical apparatus of the present disclosure are viewed from front.

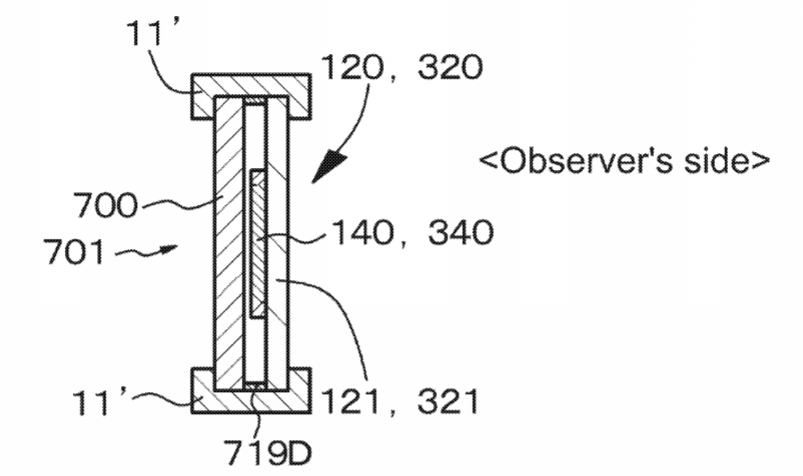

[0032] FIG. 4A is a schematic cross-sectional view of the dimming apparatus in the display apparatus according to Embodiment 1 as taken along the arrows B-B in FIG. 1A, and FIG. 4B is a schematic side view of the display apparatus according to Embodiment 1.
[0033] FIG. 5A is a schematic front view of the dimming apparatus before its operation in the display apparatus according to Embodiment 1, and FIG. 5B is a schematic front view of the dimming apparatus during its operation.
[0034] FIG. 6 is a conceptual view of an image display apparatus in the display apparatus according to Embodiment 1.
[0035] FIG. 7 is a conceptual view illustrating a modification of the image display apparatus in the display apparatus according to Embodiment 1.
[0036] FIG. 8 is a schematic view of the display apparatus according to Embodiment 1 as viewed from above.
[0037] FIG. 9 is a schematic front view of an optical apparatus and a dimming apparatus in another modification of the display apparatus according to Embodiment 1.
[0038] FIG. 10A and FIG. 10B are schematic front views of the optical apparatus and the dimming apparatus in still another modification of the display apparatus according to Embodiment 1 (specifically, a display apparatus according to a first embodiment).
[0039] FIG. 11A, FIG. 11B, and FIG. 11C are schematic front views of the optical apparatus and the dimming apparatus in yet another modification of the display apparatus according to Embodiment 1 (specifically, display apparatus according to the first embodiment).
[0040] FIG. 12 and FIG. 12B are schematic front views of the optical apparatus and the dimming apparatus in yet another modification of the display apparatus according to Embodiment 1 (specifically, a display apparatus according to a second embodiment).
[0041] FIG. 13A, FIG. 13B, and FIG. 13C are schematic front views of the optical apparatus and the dimming apparatus in yet another modification of the display apparatus according to Embodiment 1 (specifically, display apparatus according to the second embodiment).
[0042] FIG. 14A, FIG. 14B, and FIG. 14C are schematic front views of the optical apparatus and the dimming apparatus in yet another modification of the display apparatus according to Embodiment 1 (specifically, display apparatus according to a third embodiment).
[0043] FIG. 15A, FIG. 15B, and FIG. 15C are schematic front views of the optical apparatus and the dimming apparatus in yet other modifications of the display apparatus according to Embodiment 1 (specifically, display apparatus according to a fourth embodiment, display apparatus according to a fifth embodiment, and display apparatus according to a sixth embodiment).
[0044] FIG. 16 is a conceptual view of an image display apparatus in a display apparatus according to Embodiment 2.
[0045] FIG. 17 is a conceptual view of an image display apparatus in a display apparatus according to Embodiment 3.
[0046] FIG. 18 is a schematic cross-sectional view illustrating, on an enlarged scale, a part of a reflective volume-holographic diffraction grating in the display apparatus according to Embodiment 3.
[0047] FIG. 19 is a conceptual view of an image display apparatus in a display apparatus according to Embodiment 4.
[0048] FIG. 20 is a schematic view of a display apparatus according to Embodiment 5 as viewed from above.
[0049] FIG. 21A is a schematic view of a display apparatus according to Embodiment 6 as viewed from above, and FIG. 21B is a schematic diagram of a circuit that controls illuminance sensors.
[0050] FIG. 22A is a schematic view of a display apparatus according to Embodiment 7 as viewed from above, and FIG. 22B is a schematic diagram of a circuit that controls other illuminance sensors.
[0051] FIG. 23 is a schematic view illustrating yet another modification of the display apparatus according to Embodiment 1 as viewed from above.
[0052] FIG. 24 is a schematic front view of the optical apparatus and the dimming apparatus in the yet another modification of the display apparatus according to Embodiment 1, which is illustrated in FIG. 23.
[0053] FIG. 25 is a conceptual view of the optical apparatus in yet another modification of the display apparatus according to Embodiment 1.
[0054] FIG. 26A, FIG. 26B, FIG. 26C, FIG. 26D, FIG. 26E, FIG. 26F, FIG. 26G, and FIG. 26H are each a conceptual view of the optical apparatus in yet another modification of the display apparatus according to Embodiment 1.
[0055] FIG. 27A and FIG. 27B are each a schematic view in which the optical apparatus in a modification of the display apparatus according to Embodiment 5 is viewed from above.
[0056] FIG. 28A and FIG. 28B are schematic views in which the optical apparatus in another modification of the display apparatus according to Embodiment 5 is viewed from above and from a lateral side, respectively.
[0057] FIG. 29 is a conceptual view of an image display apparatus in a related-art display apparatus.
[0058] FIG. 30 is a conceptual view of the image display apparatus in a modification of the related-art display apparatus.
MODE(S)* FOR CARRYING OUT THE INVENTION*
[0059] Now, Embodiments of the present disclosure are described with reference to the drawings. The present disclosure is not limited to Embodiments, that is, various numerical values and materials in Embodiments are merely examples. Note that, the description is made in the following order.
[0060] 1.* Display Apparatus According to Present Disclosure and General Description Thereof*
[0061] 2. Embodiment 1 (Display Apparatus According to Present Disclosure, Display Apparatuses According to First Embodiment to Seventh Embodiment, Optical Apparatus Having Structure 1-A, and Image Forming Apparatus Having First Configuration)
[0062] 3. Embodiment 2 (Modification of Embodiment 1, Optical Apparatus Having Structure 1-A, and Image Forming Apparatus Having Second Configuration)
[0063] 4. Embodiment 3 (Another Modification of Embodiment 1, Optical Apparatus Having Structure 1-B, and Image Forming Apparatus Having First Configuration)
[0064] 5. Embodiment 4 (Still Another Modification of Embodiment 1, Optical Apparatus Having Structure 1-B, and Image Forming Apparatus Having Second Configuration)
[0065] 6. Embodiment 5 (Yet Another Modification of Embodiment 1, Optical Apparatus Having Second Structure, and Image Forming Apparatus Having Second Configuration)
[0066] 7. Embodiment 6 (Modification of Embodiment 1 to Embodiment 5)
[0067] 8. Embodiment 7 (Modification of Embodiment 1 to Embodiment 5)
[0068] 9. Embodiment 8 (Modification of Embodiment 1 to Embodiment 7)
[0069] 10. Embodiment 9 (Modification of Embodiment 8)
[0070] 11.* Others*
[0071]
[0072] In the display apparatus according to the present disclosure,* the dimming apparatuses may each include*
[0073] a first substrate,
[0074] a second substrate that faces the first substrate,
[0075] a first transparent electrode provided to face a facing surface of the first substrate, the facing surface of the first substrate facing the second substrate,
[0076] a second transparent electrode provided to face a facing surface of the second substrate, the facing surface of the second substrate facing the first substrate,* and*
[0077] a dimming layer sandwiched between the first transparent electrode and the second transparent electrode. Note that, the dimming apparatus may each further include a first electrode formed on a part of the first transparent electrode. In this case, the first electrode may be connected directly to a control circuit (dimming-apparatus control circuit) for controlling the light blocking rate of corresponding one of the dimming apparatuses. When necessary, a first connecting portion connected to the first electrode may be provided, and the first connecting portion may be connected to the dimming-apparatus control circuit. Alternatively, without providing the first electrode, the first connecting portion and the first transparent electrode may be connected directly to each other. Further, a second connection portion that is held in contact with a part of the second transparent electrode may be provided, and the second connecting portion may be connected to the dimming-apparatus control circuit. Alternatively, the dimming apparatuses may each further include a second electrode formed on a part of the second transparent electrode. In addition, the second electrode may be connected directly to the dimming-apparatus control circuit. When necessary, the second connecting portion connected to the second electrode may be provided, and the second connecting portion may be connected to the dimming-apparatus control circuit. It is appropriate to provide the first connecting portion on the facing surface of the first substrate, which faces the second substrate, in a manner that parts other than the connecting portion are kept out of contact with the first transparent electrode. It is appropriate to provide the second connecting portion on the facing surface of the second substrate, which faces the first substrate, in a manner that parts other than the connecting portion are kept out of contact with the second transparent electrode.
[0078] A voltage is applied from the dimming-apparatus control circuit to the first transparent electrode via the first electrode (or both first connecting portion and first electrode), and a voltage is applied from the same to the second transparent electrode via the second connecting portion (or both second connecting portion and second electrode). In accordance with a potential difference between a certain part of the first transparent electrode (for the sake of convenience, referred to as “part-A”), and a part of the second transparent electrode, which faces the part-A (for the sake of convenience, referred to as “part-B”), a light blocking rate of a region in the dimming layer, which is sandwiched between the part-A and the part-B, is controlled. A potential at the part-A is determined by an electric resistance depending on a distance between the first electrode and the part-A of the first transparent electrode, and a potential at the part-B is determined by an electric resistance depending on a distance between the second connecting portion (or second electrode) and the part-B of the second transparent electrode. Thus, the light-blocking-rate decrease state of (i), (ii), (iii), (iv), or (v) described above is established merely by determining, as appropriate, a position and a length of the first electrode, and a connecting position of the second connecting portion with respect to the second transparent electrode (or position and length of the second electrode).
[0079] In addition, in these cases, there may be employed a configuration in which the dimming apparatus is constituted by an optical shutter that utilizes color variation of a substance to be generated by an oxidation-reduction reaction of an inorganic or an organic electrochromic material. Specifically, in this configuration, the dimming layer may contain the inorganic or the organic electrochromic material. In addition, the dimming layer may have a laminated structure of inorganic-electrochromic material layers such as a WO.sub.3 layer/a Ta.sub.2O.sub.5 layer/an Ir.sub.XSn.sub.1-XO layer from the first transparent electrode side, or a laminated structure of inorganic-electrochromic material layers such as the WO.sub.3 layer/the Ta.sub.2O.sub.5 layer/an IrO.sub.x layer from the same. Instead of the WO.sub.3 layer, there may be used a MoO.sub.3 layer or a V.sub.2O.sub.5 layer. Further, instead of the IrO.sub.x layer, there may be used a ZrO.sub.2 layer, a zirconium phosphate layer, or a Prussian blue complex/nickel-substituted Prussian blue complex. As examples of the organic electrochromic material, there may be used electrochromic materials disclosed in Japanese Patent Application Laid-open No. 2014-111710 and Japanese Patent Application Laid-open No. 2014-159385.
[0080] In the display apparatus according to the present disclosure, which includes the various preferred configurations described above, there may be employed a configuration in which the optical apparatus is attached to corresponding one of the dimming apparatuses. Note that, the optical apparatus may be attached to corresponding one of the dimming apparatuses in close contact therewith, or may be attached to corresponding one of the dimming apparatuses with a gap therebetween.
[0081] In addition, in the display apparatus according to the present disclosure, which includes the various preferred configurations described above,* there may be employed a configuration in which*
[0082] a frame includes [0083] a front portion that is arranged in front of the observer, [0084] two temple portions attached in a freely pivotal manner to both ends of the front portion via hinges, and [0085] nose pads;* and*
[0086] the dimming apparatuses are arranged at the front portion. Further, in this configuration,
[0087] the front portion may include a rim;* and*
[0088] the dimming apparatuses may be fitted in the rim. In addition, in the display apparatus according to the present disclosure, which includes the various preferred configurations described above, the optical apparatus and the dimming apparatuses may be arranged in this order from the observer’s side, or the dimming apparatuses and the optical apparatus may be arranged in this order from the same.
[0089] Still further, in the display apparatus according to the present disclosure, which includes the various preferred configurations described above,* there may be employed a configuration in which*
[0090] the optical apparatus includes [0091] (b-1) a light guide plate in which the light beams input from the image forming apparatus are propagated by total reflection in the light guide plate, and then emitted toward the observer, [0092] (b-2) first deflecting means that deflects the light beams input to the light guide plate such that the light beams input to the light guide plate are totally reflected in the light guide plate, and [0093] (b-3) second deflecting means that deflects the light beams propagated by the total reflection in the light guide plate such that the light beams propagated by the total reflection in the light guide plate are emitted from the light guide plate,* and*
[0094] the virtual-image forming region in the optical apparatus is formed of the second deflecting means. Herein, for the sake of convenience, such an optical apparatus is referred to as an “optical apparatus having a first structure.” Note that, the term “total reflection” refers to internal total reflection or total reflection in the light guide plate. The second deflecting means (virtual-image forming region) is located within a projection image in corresponding one of the dimming apparatuses. Further, in this configuration, the second deflecting means or both the first deflecting means and the second deflecting means may be covered with one of substrates constituting corresponding one of the dimming apparatuses.
[0095] In the display apparatus according to the present disclosure, which includes the various preferred configurations described above (hereinafter, collectively referred to as “display apparatus or the like according to the present disclosure”), in operating the dimming apparatuses, in operating the dimming apparatuses, for example, a voltage higher than that to be applied to the second transparent electrode is applied to the first transparent electrode.
[0096] In the display apparatus or the like according to the present disclosure, the light blocking rate of each of the dimming apparatuses, which varies from the first predetermined region toward the second predetermined region, may gradually vary (that is, continuously vary). Depending on arrangement patterns or shapes of the electrodes and the connecting portions, there may be employed a configuration in which the light blocking rate varies in a stepwise manner, or varies continuously or in a stepwise manner from a certain value. In other words, the dimming apparatuses may be held in a state in which color gradation is displayed, or brought into a state in which color varies in a stepwise manner. Alternatively, the dimming apparatuses, which have been colored in a certain color, may be brought into a state in which the color varies continuously or in a stepwise manner. The light blocking rate can be controlled with the voltages to be applied to the first electrode and the second connecting portion. The potential difference between the first transparent electrode and the second transparent electrode may be controlled, or the voltage to be applied to the first electrode and the voltage to be applied to the second connecting portion may be controlled independently of each other. At a time of adjusting the light blocking rate, a test pattern may be displayed on the optical apparatus.
[0097] Hereinbelow, for the sake of simplicity of the description, the virtual-image forming region in the optical apparatus, an outer shape of each of the dimming apparatuses, and a planar shape of the virtual-image-forming-region facing region in each of the dimming apparatuses are each a quadrangle.
[0098] In addition, in the virtual-image-forming-region facing region, for the sake of convenience, a corner portion between an upper side (for the sake of convenience, referred to as “upper side (A)”) and an outer-side lateral side (for the sake of convenience, referred to as “outer-side lateral side (A)”) is referred to as a “first corner portion (A).” For the sake of convenience, a corner portion between a lower side (for the sake of convenience, referred to as “lower side (A)”) and the outer-side lateral side (A) is referred to as a “second corner portion (A).” For the sake of convenience, a corner portion between the lower side (A) and an inner-side lateral side (for the sake of convenience, referred to as “inner-side lateral side (A)”) is referred to as a “third corner portion (A).” For the sake of convenience, a corner portion between the upper side (A) and the inner-side lateral side (A) is referred to as a “fourth corner portion (A).”
[0099] Further, in each of the dimming apparatuses, for the sake of convenience, a corner portion between an upper side (for the sake of convenience, referred to as “upper side (B)”) and an outer-side lateral side (for the sake of convenience, referred to as “outer-side lateral side (B)”) is referred to as a “first corner portion (B).” For the sake of convenience, a corner portion between a lower side (for the sake of convenience, referred to as “lower side (B)”) and the outer-side lateral side (B) is referred to as a “second corner portion (B).” For the sake of convenience, a corner portion between the lower side (B) and an inner-side lateral side (for the sake of convenience, referred to as “inner-side lateral side (B)”) is referred to as a “third corner portion (B).” For the sake of convenience, a corner portion between the upper side (B) and the inner-side lateral side (B) is referred to as a “fourth corner portion (B).”
[0100] The four sides of these quadrangles may each be formed of a segment, or may each be formed of a part of a curve. Vertices of these quadrangles may be rounded. Note that, a planar shape of the virtual-image forming region in the optical apparatus, and the outer shape of each of the dimming apparatuses are not limited thereto. When the planar shape of the virtual-image forming region is not the quadrangle, it is appropriate to assume a rectangle that circumscribes an outline of the virtual-image forming region, to define four points at which diagonals of this assumed rectangle (referred to as “virtual rectangle”) and the outline of the virtual-image forming region intersect with each other as virtual vertices (corner portions), and to define parts of the outline of the virtual-image forming region, which connect the virtual vertices to each other, respectively as the sides (upper side, lower side, outer-side lateral side, and inner-side lateral side of the virtual-image forming region). When the outer shape of each of the dimming apparatuses is not the quadrangle, it is appropriate to assume a dimming-apparatus virtual rectangle that circumscribes the outline of each of the dimming apparatuses, to define four points at which diagonals of this dimming-apparatus rectangle and the outline of corresponding one of the dimming apparatuses with each other as virtual vertices (corner portions), and to define parts of the outline of corresponding one of the dimming apparatuses, which connect the virtual vertices to each other, respectively as the sides (upper side, lower side, outer-side lateral side, and inner-side lateral side of corresponding one of the dimming apparatuses). A direction in which the upper side and the lower side of each of the dimming apparatuses extend is referred to as a “horizontal direction,” and a direction in which the inner-side lateral side of each of the dimming apparatuses and the outer-side lateral side of each of the dimming apparatuses extend is referred to as a “perpendicular direction.”
[0101] The dimming apparatus and the optical apparatus are illustrated in the schematic view of FIG. 3. With regard to the first electrode, on the upper side (A) of the virtual-image-forming-region facing region, when a length of the upper side from the first corner portion (A) to the fourth corner portion (A) is L.sub.11-UP, a percentage of a length from the first corner portion (A), specifically, of a length from the first corner portion (A) to a position K.sub.11-UP on the upper side (A) is denoted by k.sub.11-UP (=K.sub.11-UP/L.sub.11-UP.times.100%). A position on the upper side (B) of the dimming apparatus, at which a straight line that extends through the position K.sub.11-UP on the upper side (A) and extends in the perpendicular direction intersects with the upper side (B), is denoted by K.sub.12-UP. On the lower side (A) of the virtual-image-forming-region facing region, when a length of the lower side from the second corner portion (A) to the third corner portion (A) is L.sub.11-DN, a percentage of a length from the second corner portion (A), specifically, of a length from the second corner portion (A) to a position K.sub.11-DN on the lower side (A) is denoted by k.sub.11-DN (=K.sub.11-DN/L.sub.11-DN.times.100%). A position on the lower side (B) of the dimming apparatus, at which a straight line that extends through the position K.sub.11-DN on the lower side (A) and extends in the perpendicular direction intersects with the lower side (B), is denoted by K.sub.12-DN. On the outer-side lateral side (A) of the virtual-image-forming-region facing region, when a length of the upper side from the first corner portion (A) to the second corner portion (A) is L.sub.11-OUT, a percentage of a length from the first corner portion (A), specifically, of a length from the first corner portion (A) to a position K.sub.11-OUT on the second corner portion (A) is denoted by k.sub.11-OUT (=K.sub.11-OUT/L.sub.11-OUT100%). A position on the outer-side lateral side (B) of the dimming apparatus, at which a straight line that extends through the position K.sub.11-OUT on the outer-side lateral side (A) and extends in the horizontal direction intersects with the outer-side lateral side (B), is denoted by K.sub.12-OUT. Values of the length percentages k.sub.11-UP and k.sub.11-DN are calculated with respect to the first corner portion (A). Positive ones of the values correspond to a direction toward the inner-side lateral side, and negative ones of the values correspond to a direction toward the outer-side lateral side. Values of the length percentage k.sub.11-OUT are also calculated with respect to the first corner portion (A). Positive ones of the values correspond to a downward direction, and negative ones of the values correspond to an upward direction.
[0102] In this context, (i) when the light blocking rate of the dimming apparatus decreases from the upper region and the outer-side region of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region, the light blocking rate decreases in a direction from, for example, the first corner portion (B) of the dimming apparatus substantially toward, for example, the third corner portion (B) of the dimming apparatus. Note that, for the sake of convenience, such a display apparatus is referred to as a “display apparatus according to a first embodiment.” The first electrode is arranged along the upper side (B) of the dimming apparatus, and extends from the first corner portion (B) of the dimming apparatus toward the inner side along the upper side (B) of the dimming apparatus. Specifically, as examples of the position K.sub.12-UP of an inner-side-direction end portion of the first electrode at this part, there may be mentioned positions corresponding to 10% to 100% of the value of k.sub.11-UP. In addition, the first electrode extends downward from the first corner portion (B) along the outer-side lateral side (B). Specifically, as examples of the position K.sub.12-OUT of a downward-direction end portion of the first electrode at this part, there may be mentioned positions corresponding to 10% to 70% of the value of k.sub.11-OUT. One or a plurality of first-electrode branch electrodes may be provided from the first electrode in a direction toward the lower side (B). When the first connecting portion is provided, it is appropriate to connect the first connecting portion, for example, to a part on the outer-side lateral side (B) of the first electrode.
[0103] Further, with respect to the first electrode, it is appropriate to provide the second connecting portion or the second electrode at a position where a potential gradient that causes the light blocking rate of the dimming apparatus to decrease from the upper region and the outer-side region of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region is obtained. Specifically, it is appropriate to provide the second connecting portion, for example, at the third corner portion (B) or on the lower side (B). Alternatively, it is appropriate to provide the second electrode from the third corner portion (B) to the lower side (B) and to the inner-side lateral side (B), on the lower side (B) on the third corner portion (B) side, on the inner-side lateral side (B) on the third corner portion (B) side, from the second corner portion (B) to the lower side (B) and the outer-side lateral side (B), or on the lower side (B) on the second corner portion (B) side.
[0104] Alternatively, (ii) when the light blocking rate of the dimming apparatus decreases from the lower region and the outer-side region of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region, the light blocking rate decreases from the second corner portion (B) of the dimming apparatus substantially in a direction toward, for example, the fourth corner portion (B) of the dimming apparatus. Note that, for the sake of convenience, such a display apparatus is referred to as a “display apparatus according to a second embodiment.” The first electrode is arranged along the lower side (B) of the dimming apparatus, and extends from the second corner portion (B) of the dimming apparatus toward the inner side along the lower side (B) of the dimming apparatus. Specifically, as examples of the position K.sub.12-DN of an inner-side-direction end portion of the first electrode at this part, there may be mentioned positions corresponding to 10% to 100% of the value of k.sub.11-DN. In addition, the first electrode extends upward from the second corner portion (B) along the outer-side lateral side (B). Specifically, as examples of the position K.sub.12-OUT of an upward-direction end portion of the first electrode at this part, there may be mentioned positions corresponding to 30% to 90% of the value of k.sub.11-OUT. The one or the plurality of first-electrode branch electrodes may be provided from the first electrode in a direction toward the upper side (B). When the first connecting portion is provided, it is appropriate to connect the first connecting portion, for example, to the part on the outer-side lateral side (B) of the first electrode.
[0105] Further, with respect to the first electrode, it is appropriate to provide the second connecting portion or the second electrode at a position where a potential gradient that causes the light blocking rate of the dimming apparatus to decrease from the lower region and the outer-side region of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region is obtained. Specifically, it is appropriate to provide the second connecting portion, for example, at the fourth corner portion (B) or on the upper side (B). Alternatively, the second electrode may be provided from the fourth corner portion (B) to the upper side (B) and to the inner-side lateral side (B), on the upper side (B) on the fourth corner portion (B) side, on the inner-side lateral side (B) on the fourth corner portion (B) side, from the first corner portion (B) to the upper side (B) and to the outer-side lateral side (B), or on the upper side (B) on the first corner portion (B) side.
[0106] Further, (iii) when the light blocking rate of the dimming apparatus decreases from the outer-side region of the virtual-image-forming-region facing region toward the inner-side region of the virtual-image-forming-region facing region, the light blocking rate of the dimming apparatus decreases substantially along the horizontal direction. Note that, for the sake of convenience, such a display apparatus is referred to as a “display apparatus according to a third embodiment.” The first electrode is arranged on the outer-side lateral side (B) of the dimming apparatus, and extends upward and downward from a central portion of the outer-side lateral side (B) of the dimming apparatus along the outer-side lateral side (B) of the dimming apparatus. Specifically, as examples of the position K.sub.12-OUT of the upward-direction end portion of the first electrode at this part, there may be mentioned positions corresponding to 0% to 30% of the value of k.sub.11-OUT. As examples of the position K.sub.12-OUT of the downward-direction end portion of the same, there may be mentioned positions corresponding to 70% to 100% of the value of k.sub.11-OUT. The upward-direction end portion of the first electrode may be located on the upper side (B) of the dimming apparatus, and the downward-direction end portion of the first electrode may be located on the lower side (B) of the dimming apparatus. When the first connecting portion is provided, it is appropriate to connect the first connecting portion, for example, to the part on the outer-side lateral side (B) of the first electrode. Further, with respect to the first electrode, it is appropriate to provide the second connecting portion or the second electrode at a position where a potential gradient that causes the light blocking rate of the dimming apparatus to decrease from the outer-side region of the virtual-image-forming-region facing region toward the inner-side region of the virtual-image-forming-region facing region is obtained. Specifically, it is appropriate to provide the second connecting portion, for example, at a central portion of the inner-side lateral side (B). Alternatively, it is appropriate to provide the second electrode over the inner-side lateral side (B), or from the inner-side lateral side (B) to the upper side (B) and from the inner-side lateral side (B) to the lower side (B).
[0107] Alternatively, it is appropriate to arrange the first electrode on the upper side (B) on the first corner portion side of the dimming apparatus, and on the lower side (B) on the first corner portion (B) side of the dimming apparatus. When necessary, it is appropriate to arrange the second electrode on the upper side (B) on the first corner portion (B) side of the dimming apparatus, and on the lower side (B) on the first corner portion (B) side of the dimming apparatus. Still alternatively, there may be employed a configuration in which the first connecting portion is connected to a part on the outer-side lateral side (B) of the first transparent electrode, and the second connecting portion is connected to a part on the outer-side lateral side (B) of the second transparent electrode.
[0108] Yet alternatively, (iv) when the light blocking rate of the dimming apparatus decreases from the lower region of the virtual-image-forming-region facing region toward the upper region of the virtual-image-forming-region facing region, the light blocking rate of the dimming apparatus decreases substantially along the perpendicular direction. Note that, for the sake of convenience, such a display apparatus is referred to as a “display apparatus according to a fourth embodiment.” The first electrode is arranged on the outer-side lateral side (B) of the dimming apparatus. Specifically, as examples of the position K.sub.12-DN of the end portion of the first electrode at this part, there may be mentioned positions corresponding to 100% to 120% of the value of k.sub.11-DN. The one or the plurality of first-electrode branch electrodes may be provided from the first electrode in the direction toward the upper side (B). The first connecting portion may be connected to the first electrode.
[0109] In addition, with respect to the first electrode, it is appropriate to provide the second connecting portion or the second electrode at a position where a potential gradient that causes the light blocking rate of the dimming apparatus to decrease from the lower region of the virtual-image-forming-region facing region toward the upper region of the virtual-image-forming-region facing region is obtained. Specifically, it is appropriate to provide the second connecting portion, for example, on the upper side (B). Alternatively, it is appropriate to provide the second electrode on the upper side (B).
[0110] Yet alternatively, (v) when the light blocking rate of the dimming apparatus decreases from outer-edge regions of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region, it is appropriate to provide the first electrode over the upper side (B), the outer-side lateral side (B), the lower side (B), and the inner-side lateral side (B) of the dimming apparatus, that is, over an outer peripheral portion of the dimming apparatus. In this case, the first electrode to be provided may be continuous, or the first electrode to be provided may be discontinuous. In the latter case, it is appropriate to connect segments of the first electrode to each other with the first connecting portions. In addition, with respect to the first electrode, it is appropriate to provide the second connecting portion or the second electrode at a position where a potential gradient that causes the light blocking rate of the dimming apparatus to decrease from the outer-edge regions of the virtual-image-forming-region facing region toward the central portion of the virtual-image-forming-region facing region is obtained. Specifically, it is appropriate to provide, for example, a plurality of second connecting portions to the peripheral portion of the dimming apparatus.
[0111] Yet alternatively, when necessary, (vi) there may be employed a configuration in which the light blocking rate of the dimming apparatus decreases from the upper region of the virtual-image-forming-region facing region toward the lower region of the virtual-image-forming-region facing region. In this case, the light blocking rate of the dimming apparatus decreases substantially along the perpendicular direction. Note that, for the sake of convenience, such a display apparatus is referred to as a “display apparatus according to a sixth embodiment.” The first electrode is arranged along the upper side of the dimming apparatus. Specifically, as examples of the position K.sub.12-UP of the inner-side-direction end portion of the first electrode at this part, there may be mentioned positions corresponding to 100% to 120% of the value of k.sub.11-UP. The one or the plurality of first-electrode branch electrodes may be provided from the first electrode in the direction toward the lower side (B). The first connecting portion may be connected to the first electrode. In addition, with respect to the first electrode, it is appropriate to provide the second connecting portion or the second electrode at a position where a potential gradient that causes the light blocking rate of the dimming apparatus to decrease from the upper region of the virtual-image-forming-region facing region toward the lower region of the virtual-image-forming-region facing region is obtained. Specifically, it is appropriate to provide the second connecting portion, for example, on the lower side (B). Alternatively, it is appropriate to provide the second electrode on the lower side (B).
[0112] Further, when necessary, there may be employed a configuration in which, when the virtual image is formed in a part of the virtual-image forming region on the basis of the light beams emitted from the image forming apparatus, the light blocking rate of the dimming apparatus decreases from a region in the dimming apparatus, which faces the part of the virtual-image forming region, the virtual image being formed in this part, toward the central portion of the virtual-image-forming-region facing region. Note that, for the sake of convenience, such a display apparatus is referred to as a “display apparatus according to a seventh embodiment.”
[0113] There may be employed a configuration in which the display apparatus or the like according to the present disclosure further includes an illuminance sensor (environment-illuminance measurement sensor) that measures an illuminance in a surrounding environment of the display apparatus; and in which, on the basis of a measurement result of the illuminance sensor (environment-illuminance measurement sensor), the display apparatus or the like according to the present disclosure controls the light blocking rate of the dimming apparatus. Alternatively, there may be employed a configuration in which the display apparatus or the like according to the present disclosure further includes the illuminance sensor (environment-illuminance measurement sensor) that measures the illuminance in the surrounding environment of the display apparatus; and in which, on the basis of the measurement result of the illuminance sensor (environment-illuminance measurement sensor), the display apparatus or the like according to the present disclosure controls luminances of the images to be formed by the image forming apparatus. These configurations may be combined with each other.
[0114] Still alternatively, there may be employed a configuration in which the display apparatus or the like according to the present disclosure further includes a second illuminance sensor (for the sake of convenience, sometimes referred to as “transmitted-light-illuminance measurement sensor”) that measures an illuminance on the basis of light beams from the external environment, which have transmitted through the dimming apparatus; and in which, on the basis of a measurement result of the second illuminance sensor (transmitted-light-illuminance measurement sensor), the display apparatus or the like according to the present disclosure controls the light blocking rate of the dimming apparatus. Yet alternatively, there may be employed a configuration in which the display apparatus or the like according to the present disclosure further includes the second illuminance sensor (transmitted-light-illuminance measurement sensor) that measures the illuminance on the basis of the light beams from the external environment, which have transmitted through the dimming apparatus; and in which, on the basis of the measurement result of the second illuminance sensor (transmitted-light-illuminance measurement sensor), the display apparatus or the like according to the present disclosure controls the luminances of the images to be formed by the image forming apparatus. Note that, in this configuration, it is desired that the second illuminance sensor (transmitted-light-illuminance measurement sensor) be arranged on the observer’s side with respect to the optical apparatus. At least two second illuminance sensors (transmitted-light-illuminance measurement sensors) may be arranged such that the illuminance is measured on the basis of light beams that have passed through a part corresponding to a high light-blocking rate, and that the illuminance is measured on the basis of light beams that have passed through a part corresponding to a low light-blocking rate. These configurations may be combined with each other. Further, these configurations and the above-described configurations in each of which the control is performed on the basis of the measurement result of the illuminance sensor (environment-illuminance measurement sensor) may be combined with each other.
[0115] It is appropriate to provide known illuminance sensors as the illuminance sensors (environment-illuminance measurement sensors and transmitted-light-illuminance measurement sensors), and to control the illuminance sensors with known control circuits.
[0116] There may be employed a configuration in which a maximum light transmittance of the dimming apparatus is 50% or more, and a minimum light transmittance of the dimming apparatus is 30% or less. Note that, an upper limit value of the maximum light transmittance of the dimming apparatus may be 99%, and a lower limit value of the minimum light transmittance of the dimming apparatus may be 1%. In this context,* the relationship of*
(Light Transmittance)=1-(Light Blocking Rate)
is established.
[0117] It is appropriate to connect connectors to the dimming apparatus (specifically, connect the connector to the first electrode, the second electrode, the first connecting portion, and the second connecting portion) such that, via these connectors and wires, the dimming apparatus is connected electrically to the control circuit for controlling the light blocking rate of the dimming apparatus (dimming-apparatus control circuit, which is installed, for example, in a control apparatus for controlling the image forming apparatus).
[0118] When necessary, there may be employed a configuration in which the light beams that pass through the dimming apparatus are colored in a desired color by the dimming apparatus. In addition, in this configuration, the color to be exhibited by the dimming apparatus can be varied, or the color to be exhibited by the dimming apparatus may be fixed. Note that, in the former case, it is appropriate to laminate a dimming apparatus to be colored in red, a dimming apparatus to be colored in yellow, and a dimming apparatus to be colored in blue. Further, in the latter case, although not limited, as another example of the colors to be exhibited by the dimming apparatus, there may be mentioned brown.
[0119] Instead of the configuration in which the dimming layer in the dimming apparatus provided in the display apparatus or the like according to the present disclosure contains the electrochromic material, there may be employed a configuration in which the dimming layer contains an electrophoretic dispersion liquid. Alternatively, there may be employed a configuration in which the dimming apparatus is constituted by an optical shutter of an electrodeposition type (electric-field deposition) utilizing an electrodeposition/dissociation phenomenon to be cause by a reversible oxidation-reduction reaction of a metal (such as silver particles), that is, the dimming layer contains an electrolyte containing metal ions.
[0120] In this context, the electrophoretic dispersion liquid contains a large number of charged electrophoretic particles, and a dispersion medium in a color different from that of the electrophoretic particles. For example, the electrophoretic particles are negatively charged, the first transparent electrode is patterned, and the second transparent electrode is not patterned (has what is called a solid electrode configuration). In this case, when a relatively negative voltage is applied to the first transparent electrode, and a relatively positive voltage is applied to the second transparent electrode, the negatively-charged electrophoretic particles migrate in a manner of covering the second transparent electrode. Thus, a value of the light blocking rate of the dimming apparatus increases. Meanwhile, in contrast, when the relatively positive voltage is applied to the first transparent electrode, and the relatively negative voltage is applied to the second transparent electrode, the electrophoretic particles migrate in a manner of covering the first transparent electrode. Thus, the value of the light blocking rate of the dimming apparatus decreases. By appropriately performing such voltage application to the transparent electrodes, the light blocking rate of the dimming apparatus can be controlled. The voltages may be direct-current, or may be alternating-current. It is appropriate to pattern the first transparent electrode into a shape that facilitates, when the electrophoretic particles migrate in the manner of covering the first transparent electrode, and the value of the light blocking rate of the dimming apparatus decreases thereby, optimization of the value of the light blocking rate of the dimming apparatus. It is appropriate to determine this shape through various tests. When necessary, insulating layers may be formed on the transparent electrodes. As examples of materials of these insulating layers, there may be mentioned colorless-transparent insulating resins. Specifically, there may be mentioned, for example, an acrylic resin, an epoxy resin, a fluorine resin, a silicone resin, a polyimide resin, and a polystyrene resin.
[0121] As examples of a ratio of an amount of the electrophoretic particles to an amount of a dispersion liquid (dispersion medium) in the electrophoretic dispersion liquid, there may be mentioned 0.1 parts by mass to 15 parts by mass, preferably, 1 part by mass to 10 parts by mass of the electrophoretic particles with respect to 100 parts by mass of the dispersion liquid (dispersion medium). As examples of the dispersion liquid (dispersion medium) that causes the electrophoretic particles to disperse, there may be mentioned colorless transparent liquids having high insulating properties, specifically, a non-polar dispersion medium, more specifically, aliphatic hydrocarbon, aromatic hydrocarbon, halogenated hydrocarbon, and silicone oil. In this context, as examples of the aliphatic hydrocarbon, there may be mentioned pentane, hexane, cyclohexane, heptane, octane, nonane, decane, dodecane, ligroin, solvent naphtha, kerosene, normal paraffin, and isoparaffin. Further, as examples of the aromatic hydrocarbon, there may be mentioned benzene, toluene, xylene, and alkylbenzene. As the silicone oil, there may be mentioned various dimethylpolysiloxane including modified silicone oil. More specifically, there may be mentioned, for example, Isopar G, Isopar H, Isopar L, Isopar M, Exxsol D30, Exxsol D40, Exxsol D80, Exxsol D110, and Exxsol D130 manufactured by Exxon Mobil Corporation, IP Solvent 1620, IP Solvent 2028, and IP Solvent 2835 manufactured by Idemitsu Petrochemical Co., Ltd., Shellsol 70, Shellsol 71, Shellsol 72, Shellsol A, and Shellsol AB manufactured by Shell Chemicals Japan Ltd., and Naphthesol L, Naphthesol M, and Naphthesol H manufactured by Nippon Oil Cooperation. Note that, these may be used alone, or two or more of them can be used by being mixed with each other.
[0122] There may be employed a structure in which the electrophoretic dispersion liquid is sealed in microcapsules. The microcapsules can be obtained by known methods such as an interfacial polymerization method, an in-situ polymerization method, and a coacervation method. Excellent light-transmitting properties are required of materials of the microcapsules. Specifically, as examples of these materials, there may be mentioned urea-formaldehyde resins, melamine-formaldehyde resins, polyester resins, polyurethane resins, polyamide resins, polyethylene resins, polystyrene resins, polyvinyl alcohol resins, gelatin, or copolymers thereof. A method of arranging the microcapsules on a substrate is not particularly limited, and there may be mentioned, for example, an ink jet method. Note that, in order to prevent misalignment of the microcapsules arranged on the substrate, the microcapsules may be fixed on a substrate with use of a light-transmitting binder resin. As examples of the light-transmitting binder resin, there may be mentioned water-soluble polymers, more specifically, for example, polyvinyl alcohol, polyurethane, polyester, acrylic resins, and silicone resins.
[0123] It is not particularly necessary to use a charge control agent with respect to the electrophoretic particles. However, when a positive-charge control agent is used for positively charging the electrophoretic particles, as examples of the positive-charge control agent, there may be mentioned nigrosine dyes such as Nigrosine Base EX (manufactured by Orient Chemical Industries Co., Ltd.), quaternary ammonium salts such as P-51 (manufactured by Orient Chemical Industries Co., Ltd.) and COPY CHARGE PX VP435 (manufactured by Hoechst Japan Co., Ltd.), alkoxylated amines, alkylamides, molybdic acid chelate pigments, imidazole compounds such as PLZ1001 (manufactured by SHIKOKU CHEMICALS CORPORATION), and transparent or white onium compounds. Note that, as the onium compounds, primary to quaternary compounds can be freely selected from ammonium compounds, sulfonium compounds, and phosphonium compounds. For example, a substituent bonded to a nitrogen atom, a sulfur atom, or a phosphorous atom is an alkyl group or an aryl group. As salts, halogen elements represented by chlorine, a hydroxyl group, and a carboxylic acid group are preferred as counter ions. However, salts are not limited thereto. Among them, primary to tertiary amine salts, and quaternary ammonium salts are particularly preferred. When a negative-charge control agent is used for negatively charging the electrophoretic particles, as examples of the negative-charge control agent, there may be mentioned metal complexes such as Bontron S-22, Bontron S-34, Bontron E-81, and Bontron E-84 (all manufactured by Orient Chemical Industries Co., Ltd.) and Spiron Black TRH (manufactured by Hodogaya Chemical Co., Ltd.), thioindigo pigments, quaternary ammonium salts such as COPY CHARGE NX VP434 (manufactured by Hoechst Japan Co., Ltd.), calixarene compounds such as Bontron E-89 (manufactured by Orient Chemical Industries Co., Ltd.), boron compounds such as LR147 (manufactured by Japan Carlit Co., Ltd.), fluorine compounds such as magnesium fluoride and fluorinated carbon, known metal soaps such as aluminum stearate, calcium stearate, aluminum laurate, barium laurate, sodium oleate, zirconium octylate, and cobalt naphthenate, salicylic acid-based metal complexes with azine compounds, and phenol-based condensates. As additive amounts of the charge control agents, there may be mentioned 100 parts by mass to 300 parts by mass with respect to 100 parts by mass of the electrophoretic particles.
[0124] As the dispersion liquid (dispersion medium) constituting the electrophoretic dispersion liquid, there may be used non-ionic surfactants such as sorbitan fatty acid esters (for example, sorbitan monooleate, sorbitan monolaurate, sorbitan sesqueoleate, and sorbitan trioleate); polyoxyethylene sorbitan fatty acid esters (for example, polyoxyethylene sorbitan monostearate and polyoxyethylene sorbitan monooleate); polyethylene glycol fatty acid esters (for example, polyoxyethylene monostearate and polyethylene glycol diisostearate); polyoxyethylene alkylphenyl ethers (for example, polyoxyethylene nonylphenyl ether and polyoxyethylene octylphenyl ether); and aliphatic diethanolamides. Further, as examples of a polymeric dispersing agent, there may be mentioned styrene-maleic acid resins, styrene-acrylic resins, rosin, urethane-based polymer compounds BYK-160, BYK-162, BYK-164, and BYK-182 (manufactured by BYK-Chemie GmbH), urethane-based dispersing agents EFKA-47 and LP-4050 (manufactured by Efka Chemicals BV), polyester-based polymer compound Solsperse 24000 (manufactured by Zeneca Co. Ltd.), and aliphatic diethanolamide-based polymer compound Solsperse 17000 (manufactured by Zeneca Co. Ltd.). In addition, as other examples of the polymeric dispersing agent, there may be mentioned random copolymers with monomers capable of forming segments that can be solvated to the dispersion medium, such as lauryl methacrylate, stearyl methacrylate, 2-ethylhexyl methacrylate, and cetyl methacrylate, monomers capable of forming segments that are difficult to solvate to the dispersion medium, such as methyl methacrylate, ethyl methacrylate, isopropyl methacrylate, styrene, and vinyltoluene, and monomers having polar functional groups, and graft copolymers disclosed in Japanese Patent Application Laid-open No. 3-188469. As the monomers having the polar functional groups, there may be mentioned monomers having acidic functional groups, such as acrylic acid, methacrylic acid, itaconic acid, fumaric acid, maleic acid, and styrenesulfonic acid; monomers having basic functional groups, such as dimethylaminoethyl methacrylate, diethylaminoethyl methacrylate, vinylpyridine, vinylpyrrolidine, vinylpiperidine, and vinyl lactam; salts thereof; styrene-butadiene copolymers, and block copolymers of styrene and long-chain alkyl methacrylate disclosed in Japanese Patent Application Laid-open No. 60-10263. Further, the dispersing agent such as the graft copolymers disclosed in Japanese Patent Application Laid-Open No. 3-188469 may be added. As additive amounts of the dispersing agents, there may be mentioned 0.01 parts by mass to 5 parts by mass with respect to 100 parts by mass of the electrophoretic particles. Ionic surfactants may be added to more effectively cause electrophoretic movements of the electrophoretic particles. As specific examples of anionic surfactants, there may be mentioned sodium dodecylbenzenesulfonate, sodium dodecylsulfate, sodium alkylnaphthalenesulfonate, and sodium dialkyl sulfosuccinate. Further, as specific examples of cationic surfactants, there may be mentioned alkylbeneznedimethylammonium chloride, alkyltrimethylammonium chloride, and distearylammonium chloride. In addition, ionic additives soluble in the non-polar dispersion medium, such as trifluorosulfonylimide salts, trifluoroacetate salts, and trifluorosulfate salts may be added. As additive amounts of the ionic additives, there may be mentioned 1 part by mass to 10 parts by mass with respect to 100 parts by mass of the electrophoretic particles.
[0125] As examples of the electrophoretic particles, there may be mentioned carbon black (black), various metal oxides, phthalocyanine dyes (cyan), Direct Blue 199 (Project Cyan), Magenta 377 (magenta), Reactive Red 29 (magenta), Reactive Red 180 (magenta), and azo dyes (yellow, more specifically, Yellow 104, Ilford AG, Rue de l’Industrie, CH-1700 Fribourg, Switzerland).
[0126] When the dimming layer is constituted by an electrolyte layer containing metal ions, it is desired that the metal ions be silver ions, and the electrolyte contain at least one salt (referred to as “supporting electrolyte salt”) selected from the group consisting of LiX, NaX, and KX (note that, X is a fluorine atom, a chlorine atom, a bromine atom, or an iodine atom).
[0127] The electrolyte contains the metal ions as a coloring material that exhibits its color by electrochemical reduction and oxidation, and deposition/dissolution to be caused thereby. In addition, by the electrochemical deposition/dissolution reaction of the metal ions, coloration and decoloration are caused. With this, the light blocking rate of the dimming apparatus is varied. In other words, it can be said that such an operation of the dimming apparatus in the display apparatus is what is called an operation that reversibly causes a deposition reaction of the metal by electrolytic plating and an elution reaction of the deposited metal. As examples of the metal ions capable of causing the coloration and the decoloration by the electrochemical deposition/dissolution in this way, although not particularly limited, there may be mentioned, in addition to silver (Ag) mentioned above, ions of bismuth (Bi), copper (Cu), sodium (Na), lithium (Li), iron (Fe), chromium (Cr), nickel (Ni), and cadmium (Cd), and combinations of these ions. Among them, particularly preferred metal ions are those of silver (Ag) and bismuth (Bi). Silver and bismuth are capable of causing the reversible reaction to easily progress, and have a high degree of discoloration at the time of the deposition.
[0128] In this context, with regard to the metal ions contained in the electrolyte, specifically, a substance containing the metal ions is dissolved in the electrolyte. More specifically, as examples of the substance containing the metal ions, there may be mentioned at least one of silver halides such as AgF, AgCl, AgBr, and AgI, preferably, AgI or AgBr. The substance containing ions of these metals is dissolved in the electrolyte. As examples of a concentration of the silver halide, there may be mentioned 0.03 mol/L to 2.0 mol/L.
[0129] The electrolyte containing the metal ions is sealed between the first substrate and the second substrate. In this context, the electrolyte may be an electrolytic solution or a polymer electrolyte. Specifically, as the electrolytic solution, there may be used those obtained by dissolving a metal salt or the alkyl quaternary ammonium salt into a solvent. Specifically, as the electrolyte, there may be used water, ethyl alcohol, isopropyl alcohol, 2-ethoxyethanol, 2-methoxyethanol, propylene carbonate, dimethyl carbonate, ethylene carbonate, .gamma.-butyrolactone, acetonitrile, sulfolane, dimethoxyethane, dimethylformamide (DMF), diethylformamide (DEF), dimethylsulfoxide (DMSO), N,N-dimethylacetamide (DMAA), N-methylpropionic acid amide (MPA), N-methylpyrrolidone (MP), dioxolan (DOL), ethyl acetate (EA), tetrahydrofuran (THF), methyltetrahydrofuran (MeTHF), or mixtures thereof. Further, as a matrix (base material) polymer to be used as that of the polymer electrolyte, there may be mentioned a polymeric material having a repeating unit of alkylene oxide, alkyleneimine, or alkylene sulfide in a main skeleton unit or a side chain unit, or in both the main skeleton unit and the side chain unit, a copolymer containing a plurality of these compounds in different units, a polymethyl methacrylate derivative, polyvinylidene fluoride, polyvinylidene chloride, polyacrylonitrile, a polycarbonate derivative, or a mixture thereof. When the electrolyte is formed of a polymer electrolyte, the electrolyte may be a single layer, or may have a laminated structure in which a plurality of polymer electrolytes are laminated.
[0130] A matrix polymer swollen by adding water or an organic solvent may also be used. Particularly, when, for example, a response speed is required, by adding water or the organic solvent to the matrix polymer, the metal ions contained in the electrolyte are allowed to more easily move.
[0131] Note that, when hydrophilicity is required depending on properties of the matrix polymer and on which type of electrochemical reaction is desired, it is preferred to add water, ethyl alcohol, isopropyl alcohol, or a mixture thereof. When hydrophobicity is required, it is preferred to add propylene carbonate, dimethyl carbonate, ethylene carbonate, .gamma.-butyrolactone, acetonitrile, sulfolane, dimethoxyethane, ethyl alcohol, isopropyl alcohol, dimethylformamide, dimethyl sulfoxide, dimethylacetamide, n-methylpyrrolidone, or a mixture thereof.
[0132] As described above, by the deposition of the metal on the second electrode and the dissolution of the metal into the electrolyte, which are caused by the application of the voltages to the first electrode and the second electrode, the coloration and the decoloration of the dimming apparatus (specifically, an electrodeposition-type dimming apparatus) are caused. In this case, in general, a surface of a layer formed of the metal deposited on the second electrode (metal layer), which is held in contact with the electrolyte, is uneven, and exhibits a blackish color. Meanwhile, another surface of the metal layer, which is held in contact with the second electrode, has a mirror-surface shape. Therefore, in use as the dimming apparatus, it is desired that the surface of the metal layer, which is held in contact with the electrolyte, face the observer’s side. In other words, it is preferred to employ a configuration in which the first substrate is arranged on the observer’s side with respect to the second substrate.
[0133] As described above, when the salt (supporting electrolyte salt) containing ion species different from metal ion species to be deposited or dissolved is added to the electrolyte, the electrochemical deposition/dissolution reaction can be performed more effectively and stably. As such a supporting electrolyte salt, the lithium salts, the potassium salts, the sodium salts, and the tetraalkyl quaternary ammonium salts described above may be mentioned. In this context, as examples of the lithium salts, specifically, there may be mentioned LiCl, LiBr, LiI, LiBF.sub.4, LiClO.sub.4, LiPF.sub.6, and LiCF.sub.3SO.sub.3. Further, as the potassium salts, specifically, there may be mentioned KCl, KI, and KBr. Still further, as the sodium salts, specifically, there may be mentioned NaCl, NaI, and NaBr. Yet further, as the tetraalkyl quaternary ammonium salts, specifically, there may be mentioned tetraethylammonium fluoroborate, tetraethylammonium perchlorate, tetrabutylammonium fluoroborate, tetrabutylammonium perchlorate, and tetrabutylammonium halide salts. Note that, the alkyl chain lengths of the quaternary ammonium salts mentioned above may be different from each other. It is appropriate to add the supporting electrolyte salt, for example, at a concentration of approximately 1/2 times to 5 times as high as that of the substance containing the metal ions. Further, inorganic particles may be mixed as a coloring agent into the electrolyte formed of the polymer electrolyte.
[0134] In addition, in order to reversibly and efficiently perform the electrochemical reaction, in particular, the deposition/dissolution of the metal, at least one of additives such as a growth inhibitor, a stress inhibitor, a brightener, a complexing agent, and a reducing agent may be added to the electrolyte. As such additives, organic compounds including a group having an oxygen atom or a sulfur atom are preferred. For example, it is preferred to add at least one selected from the group consisting of thiourea, 1-aryl-2-thiourea, mercaptobenzimidazole, coumalin, phthalic acid, succinic acid, salicylic acid, glycolic acid, dimethylamine borane (DMAB), trimethylamine borane (TMAB), tartaric acid, oxalic acid, and D-glucono-1,5-lactone. In particular, it is preferred to add mercaptobenzimidazole based on mercaptoalkylimidazole because the reversibility is increased, and because advantages of long-term storage stability and high-temperature storage stability can be significantly increased.
[0135] As materials of the transparent first substrate and the transparent second substrate constituting the dimming apparatus, specifically, there may be mentioned a transparent glass substrate of, for example, a soda-lime glass or a white plate glass, a plastic substrate, a plastic sheet, and a plastic film. In this context, as examples of the plastic, there may be mentioned polyethylene terephthalate, polyethylene naphthalate, polycarbonate, cellulose esters such as acetylcellulose, fluorinated polymers such as a copolymer of polyvinylidene fluoride or polytetrafluoroethylene and hexafluoropropylene, polyethers such as polyoxymethylene, polyolefins such as polyacetal, polystyrene, polyethylene, polypropylene, and a methyl pentene polymer, a polyimide such as polyamidimide or polyetherimide, polyamide, polyethersulfone, polyphenylenesulfide, polyvinylidene fluoride, tetra acetyl cellulose, brominatedphenoxy, polyarylate, and polysulfone. The plastic sheet or the plastic film may be rigid so as not to be easily bent, or may be flexible. When the first substrate and the second substrate are constituted by the transparent plastic substrates, barrier layers each made of an inorganic material or an organic material may be formed on inner surfaces of the substrates in advance.
[0136] The first substrate and the second substrate are sealed and bonded along their outer-rim portions. As a sealing member that is also referred to as a sealant, there may be used various resins such as thermosetting, photo-curable, moisture-curable, and anaerobic-curable resins, specifically, an epoxy resin, a urethane resin, an acrylic resin, a vinyl acetate resin, an ene-thiol-based resin, a silicone-based resin, or a modified polymer resin.
[0137] When one of the substrates constituting the dimming apparatus is configured to double as a component of the optical apparatus, a weight of an entirety of the display apparatus can be reduced. In addition, there is no risk that a user of the display apparatus feels a sense of discomfort. Note that, another one of the substrates may be configured to be thinner than the one of the substrates.
[0138] The first transparent electrode may be patterned, or need not necessarily be patterned. The second transparent electrode also may be patterned, or need not necessarily be patterned. As materials of the first transparent electrode and the second transparent electrode, specifically, there may be mentioned an indium-tin oxide (ITO, including Sn-doped In.sub.2O.sub.3, crystalline ITO, and amorphous ITO), fluorine-doped SnO.sub.2 (FTC), IFO (F-doped In.sub.2O.sub.3), antimony-doped SnO.sub.2 (ATO), SnO.sub.2, ZnO (including Al-doped ZnO and B-doped ZnO), an indium-zinc oxide (IZO), a spinel-type oxide, an oxide having a YbFe.sub.2O.sub.4 structure, and conductive polymers such as polyaniline, polypyrrole, and polythiophene. However, the materials are not limited thereto, and combinations of two or more thereof also may be used. For example, the first electrode and the second electrode, each of which has a thin-line planar shape, or one of the first connecting portion and the second connecting portion may be made of metals such as gold, silver, copper, aluminum, nickel, and titanium, or alloys thereof. Both the first electrode and the second electrode, or one of the first connecting portion and the second connecting portion is required to be lower in electric resistance than the first transparent electrode and the second transparent electrode. The first transparent electrode, the second transparent electrode, the first electrode, the second electrode, the first connecting portion, and the second connecting portion may be formed by physical vapor deposition methods (PVD methods) such as a vacuum deposition method and a sputtering method, various chemical vapor deposition methods (CVD methods), or various types of coating. The electrodes, the transparent electrodes, and the connecting portions may be patterned by arbitrary methods such as an etching method, a lift-off method, and methods using various types of masking.
[0139] The optical apparatus is of a transflective type (see-through type). Specifically, at least a part of the optical apparatus, which faces an eyeball (pupil) of the observer, is configured to be transflective (see-through) such that the observer can see an outside scene through this part of the optical apparatus and the dimming apparatus. The observer can observe brightness of the light beams that have passed through the dimming apparatus and the optical apparatus, and the observer can manually control and adjust the light blocking rate by operating a switch, a button, a dial, a slider, a knob, or the like. Alternatively, the light blocking rate can be controlled and adjusted on the basis of a measurement result of the above-described second illuminance sensor (transmitted-light-illuminance measurement sensor) that measures the illuminance on the basis of the light beams from the external environment, which have transmitted through the dimming apparatus. Note that, in order to control and adjust the light blocking rate, specifically, it is appropriate to control the voltages to be applied to the first electrode and the second electrode. The at least two second illuminance sensors (transmitted-light-illuminance measurement sensors) may be arranged such that the illuminance is measured on the basis of the light beams that have passed through the part corresponding to the high light-blocking rate, and that the illuminance is measured on the basis of the light beams that have passed through the part corresponding to the low light-blocking rate. The display apparatus may include one image display apparatus, or may include two image display apparatuses. When the two image display apparatuses are provided, in one of the dimming apparatuses and in another one of the dimming apparatuses, by adjusting the voltages to be applied to the first electrode and the second electrode, a light blocking rate of the one of the dimming apparatuses, and a light blocking rate of the other one of the dimming apparatuses can be equalized to each other. The light blocking rate of the one of the dimming apparatuses, and the light blocking rate of the other one of the dimming apparatuses can be controlled on the basis of, for example, the measurement results of the above-described second illuminance sensors (transmitted-light-illuminance measurement sensors) that measure the illuminance on the basis of the light beams from the external environment, which have transmitted through the dimming apparatuses. Alternatively, these light blocking rates may be manually controlled and adjusted by the operations of the switch, the button, the dial, the slider, the knob, or the like by the observer who observes brightness of light beams that have passed through one of the dimming apparatuses and corresponding one of the optical apparatuses, and brightness of light beams that have passed through the other one of the dimming apparatuses and another corresponding one of the optical apparatuses. At a time of adjusting the light blocking rates, test patterns may be displayed on the optical apparatuses.
[0140] The term “transflective,” which is used sometimes herein, does not mean transmitting or reflecting 1/2 (50%) of the light beams to be input, but means transmitting ones of the light beams to be input, and reflecting the other.
[0141] In this context, in the optical apparatus having the first structure, as described above, the configuration in which the first deflecting means deflects the light beams input to the light guide plate, and the second deflecting means deflects the light beams propagated by the total reflection in the light guide plate may be employed. Further, in this configuration, the first deflecting means may function as a reflective mirror, and the second deflecting means may function as a transflective mirror. Note that, for the sake of convenience, such a display apparatus having the first structure is referred to as an “optical apparatus having a structure 1-A.”
[0142] In such an optical apparatus having the structure 1-A, the first deflecting means may be constituted by a light reflecting film (type of mirror) that is made, for example, of metals including alloys, and that reflects the light beams input to the light guide plate, or by a diffraction grating (such as holographic diffraction-grating film) that diffracts the light beams input to the light guide plate. Alternatively, the first deflecting means may be constituted, for example, by the multi-layer laminated structure in which a large number of dielectric lamination films are laminated, a half mirror, or a polarizing beam splitter. Further, the second deflecting means may be constituted by the multi-layer laminated structure in which a large number of dielectric lamination films are laminated, the half mirror, the polarizing beam splitter, or the holographic diffraction grating. In addition, the first deflecting means and the second deflecting means are arranged in the light guide plate (built in the light guide plate). In the first deflecting means, in order that parallel light beams input to the light guide plate are totally reflected in the light guide plate, the parallel light beams input to the light guide plate are reflected or diffracted. Meanwhile, in the second deflecting means, the parallel light beams propagated by the total reflection in the light guide plate are reflected or diffracted a plurality of times, and are emitted in a state of the parallel light beams from the light guide plate.
[0143] Alternatively, there may be employed a configuration in which the first deflecting means diffracts the light beams input to the light guide plate, and the second deflecting means diffracts the light beams propagated by the total reflection in the light guide plate. Further, in this configuration, the first deflecting means and the second deflecting means may each be constituted by a diffraction grating element. More specifically, the diffraction grating element may be constituted by a reflective diffraction-grating element or a transmissive diffraction-grating element. Alternatively, one of the diffraction grating elements may be constituted by the reflective diffraction-grating element, and another one of the diffraction grating elements may be constituted by the transmissive diffraction-grating element. Note that, as the reflective diffraction-grating element, there may be mentioned a reflective volume-holographic diffraction grating. For the sake of convenience, the first deflecting means constituted by the reflective volume-holographic diffraction grating is sometimes referred to as a “first diffraction-grating member,” and for the sake of convenience, the second deflecting means constituted by the reflective volume-holographic diffraction grating is sometimes referred to as a “second diffraction-grating member.” In addition, for the sake of convenience, such an optical apparatus having the first structure is referred to as an “optical apparatus having a structure 1-B.”
[0144] The image display apparatus in the display apparatus or the like according to the present disclosure can display monochromatic (for example, green) images. Further, in this case, there may be employed a configuration in which a viewing angle is divided, for example, into two parts (more specifically, for example, bisected), and the first deflecting means is formed by laminating two diffraction-grating members corresponding respectively to the two viewing-angle groups formed by the division. Alternatively, there may be employed a configuration in which, at a time of displaying color images, the first diffraction-grating member or the second diffraction-grating member is formed by laminating P (for example, P=3, which corresponds to three types of red, green, and blue) diffraction-grating layers each formed of the reflective volume-holographic diffraction grating so as to adapt to diffraction of different P types of light beams in the P types of wavelength bands (or wavelengths). Interference fringes corresponding to one of the types of the wavelength bands (or wavelengths) are formed in each of the diffraction grating layers. Alternatively, in order to adapt to the diffraction of the different P types of the light beams in the P types of the wavelength bands (or wavelengths), there may be employed a configuration in which the P types of the interference fringes are formed in the first diffraction-grating member or the second diffraction-grating member that is formed of a single diffraction-grating layer. Still alternatively, there may be employed a structure in which, for example, a first light-guide plate, a second light-guide plate, and a third light-guide plate are laminated with clearances therebetween, the first light-guide plate being provided with a diffraction grating member constituted by the diffraction grating layer formed of the reflective volume-holographic diffraction grating that diffracts and reflects light beams in a red wavelength band (or wavelength), the second light-guide plate being provided with a diffraction grating member constituted by the diffraction grating layer formed of the reflective volume-holographic diffraction grating that diffracts light beams in a green wavelength band (or wavelength), the third light-guide plate being provided with a diffraction grating member constituted by the diffraction grating layer formed of the reflective volume-holographic diffraction grating that diffracts light beams in a blue wavelength band (or wavelength). Yet alternatively, there may be employed a configuration in which, for example, the viewing angle is trisected, and the first diffraction-grating member or the second diffraction-grating member is formed by laminating the diffraction grating layers corresponding respectively to the viewing angles. In this context, by employing such configurations, it is possible to achieve an increase in diffraction efficiency, an increase in diffraction receiving angle, and optimization of a diffraction angle at the time when the light beams in corresponding ones of the wavelength bands (or wavelengths) are diffracted by the first diffraction-grating member or the second diffraction-grating member. It is preferred to arrange a protective member such that the reflective volume-holographic diffraction grating is not directly exposed to the atmosphere. One of the first substrate and the second substrate constituting the dimming apparatus may double as this protective member.
[0145] As a material of the first diffraction-grating member and the second diffraction-grating member, there may be mentioned a photopolymer material. It is appropriate to use constituent materials or structures of related-art reflective volume-holographic diffraction gratings as they are as the constituent material or a basic structure of each of the first diffraction-grating member and the second diffraction-grating member each constituted by the reflective volume-holographic diffraction grating. The reflective volume-holographic diffraction grating refers to a holographic diffraction grating that diffracts only +first order diffracted light beams. The interference fringes are formed from an inside of the diffraction grating member to surfaces thereof. There are no problems even when these interference fringes themselves are formed by related-art forming methods. Specifically, it is appropriate, for example, to irradiate a member (such as a photopolymer material) constituting the diffraction grating member with object light beams in a first predetermined direction on one side, and at the same time, irradiate the member constituting the diffraction grating member with reference light beams in a second predetermined direction on another side such that the interference fringes that are formed by the object light and the reference light are recorded in the member constituting the diffraction grating member. By appropriately selecting the first predetermined direction, the second predetermined direction, a wavelength of the object light beams, and a wavelength of the reference light beams, it is possible to set a desired pitch of the interference fringes and a desired inclination angle (slant angle) of the interference fringes with respect to the surfaces of the diffraction grating member. The inclination angle of the interference fringes refers to an angle to be formed between the surfaces of the diffraction grating member (or diffraction grating layer) and each of the interference fringes. When the first diffraction-grating member and the second diffraction-grating member are constituted by a laminated structure of the P diffraction-grating layers each formed of the reflective volume-holographic diffraction grating, at a time of laminating such diffraction grating layers, it is appropriate to separately prepare the P diffraction-grating layers, and then to laminate (bond) the P diffraction-grating layers with use of, for example, a UV-curable adhesive. Alternatively, the P diffraction-grating layers may be prepared by preparing one of the diffraction grating layers with use of an adhesive photopolymer material, and then by sequentially applying the adhesive photopolymer materials thereon.
[0146] Alternatively, in the image display apparatus in the display apparatus or the like according to the present disclosure, there may be employed a configuration in which the optical apparatus is constituted by a transflective mirror to which the light beams emitted from the image forming apparatus are input, and from which the light beams are emitted toward the pupil of the observer. There may be employed a configuration in which the optical apparatus is constituted by a polarizing beam splitter (PBS). A virtual-image forming region in the optical apparatus is formed of the transflective mirror or the polarizing beam splitter. There may be employed a structure in which the light beams emitted from the image forming apparatus are propagated in the air, and then enter the transflective mirror or the polarizing beam splitter. There may be employed a structure in which the light beams are propagated, for example, in a transparent member (specifically, member made of a material similar to a material of the light guide plate described below) such as a glass plate or a plastic plate, and then enter the transflective mirror or the polarizing beam splitter. The transflective mirror or the polarizing beam splitter may be attached to the image forming apparatus via the transparent member, or the transflective mirror or the polarizing beam splitter may be attached to the image forming apparatus via a member other than the transparent member. Herein, for the sake of convenience, such an optical apparatus is referred to as an “optical apparatus having a second structure.” The transflective mirror may be constituted by the first deflecting means in the optical apparatus having the structure 1-A, specifically, by the light reflecting film (type of mirror) that is made, for example, of the metals including the alloys, and that reflects the light beams, or by the diffraction grating (such as holographic diffraction-grating film).
[0147] Alternatively, there may be employed a configuration in which the optical apparatus is constituted by a prism to which the light beams emitted from the image forming apparatus are input, and from which the light beams are emitted toward the pupil of the observer.
[0148] With regard to the image display apparatus in the display apparatus or the like according to the present disclosure, which includes the various preferred embodiments and the various preferred configurations described above, there may be employed a configuration in which the image forming apparatus includes a plurality of pixels arrayed in two-dimensional matrix. Note that, for the sake of convenience, such a configuration of the image forming apparatus is referred to as an “image forming apparatus having a first configuration.”
[0149] As examples of the image forming apparatus having the first configuration, there may be mentioned an image forming apparatus including a reflective spatial-light modulator and a light source; an image forming apparatus including a transmissive spatial-light modulator and a light source; and an image forming apparatus including light-emitting elements such as organic EL (electro luminescence) elements, inorganic EL elements, light emitting diodes (LEDs), or semiconductor laser elements. Of those, the image forming apparatus including the reflective spatial-light modulator and the light source, or the image forming apparatus including the organic EL elements is preferred. As the spatial light modulators, there may be mentioned light valves, for example, a transmissive or reflective liquid-crystal-display apparatus such as an LCOS (Liquid Crystal On Silicon), and a digital micromirror device (DMD). As the light source, the light emitting elements may be mentioned. Further, there may be employed a configuration in which the reflective spatial-light modulator is constituted by the polarizing beam splitter that reflects ones of the light beams from the liquid-crystal-display apparatus and the light source, guides the ones of the light beams to the liquid-crystal-display apparatus, allows other ones of the light beams to pass, which are reflected by the liquid-crystal-display apparatus, and guides the other ones of the light beams to the optical system. As the light-emitting elements constituting the light source, there may be mentioned a red-light-emitting element, a green-light-emitting element, a blue-light-emitting element, and a white-light-emitting element. Alternatively, a white light beam may be generated by mixing colors of a red light beam, a green light beam, and a blue light beam emitted from the red-light-emitting element, the green-light-emitting element, and the blue-light-emitting element, and by equalizing their luminances to each other with use of light pipes. As examples of the light-emitting elements, the semiconductor laser elements, solid-state laser, and the LEDs may be mentioned. It is appropriate to determine the number of the pixels on the basis of specifications required of the image display apparatus. As examples of a specific value of the number of the pixels, there may be mentioned 320.times.240, 432.times.240, 640.times.480, 1024.times.768, and 1920.times.1080.
[0150] Alternatively, with regard to the image display apparatus in the display apparatus or the like according to the present disclosure, which includes the preferred embodiments and the preferred configurations described above, there may be employed a configuration in which the image forming apparatus includes a light source and a scanning means that scans the parallel light beams emitted from the light source. Note that, for the sake of convenience, such a configuration of the image forming apparatus is referred to as an “image forming apparatus having a second configuration.”
[0151] As the light source in the image forming apparatus having the second configuration, the light-emitting elements may be mentioned. Specifically, the red-light-emitting element, the green-light-emitting element, the blue-light-emitting element, and the white-light-emitting element may be mentioned. Alternatively, the white light beam may be generated by mixing the colors of the red light beam, the green light beam, and the blue light beam emitted from the red-light-emitting element, the green-light-emitting element, and the blue-light-emitting element, and by equalizing their luminances to each other with use of the light pipes. As examples of the light-emitting elements, the semiconductor laser elements, the solid-state laser, and the LEDs may be mentioned. It is appropriate to determine the number of the pixels (virtual pixels) in the image forming apparatus having the second configuration on the basis of the specifications required of the image display apparatus. As examples of a specific value of the number of the pixels (virtual pixels), there may be mentioned 320.times.240, 432.times.240, 640.times.480, 1024.times.768, and 1920.times.1080. Further, in displaying the color images, when the light source includes the red-light-emitting element, the green-light-emitting element, and the blue-light-emitting element, it is preferred that the colors be mixed with each other with use of, for example, a cross prism. As examples of the scanning means, there may be mentioned MEMS (Micro Electro Mechanical Systems) and a mirror galvanometer each having a micromirror that horizontally and vertically scans the light beams emitted from the light source, the micromirror being rotatable in two-dimensional directions.
[0152] In the image forming apparatus having the first configuration or the image forming apparatus having the second configuration in the image display apparatus including the optical apparatus having the first structure, the optical system (optical system that converts the emitted light beams to the parallel light beams, sometimes referred to as a “parallel-light-emitting optical system,” specifically, for example, a collimating optical system or a relay optical system) allows the light beams as the plurality of parallel light beams to be input to the light guide plate. The parallel light beams need to be generated in this way because optical-wavefront information items at the time when the light beams enter the light guide plate need to be maintained even after the light beams are emitted from the light guide plate via the first deflecting means and the second deflecting means. Note that, in order to generate the plurality of parallel light beams, specifically, it is appropriate to locate, for example, a light-emitting portion of the image forming apparatus, for example, at a position (point) at a focal length of the parallel-light-emitting optical system. The parallel-light-emitting optical system has a function to convert position information items of the pixels to angle information items in the optical system of the optical apparatus. As an example of the parallel-light-emitting optical system, there may be mentioned an optical system having a positive optical power as a whole, which is formed of any of or any combination of a convex lens, a concave lens, a free-form-surface prism, and a holographic lens. A light blocking portion having an opening portion may be arranged between the parallel-light-emitting optical system and the light guide plate such that undesired ones of the light beams emitted from the parallel-light-emitting optical system do not enter the light guide plate.
[0153] The light guide plate has two parallel surfaces (first surface and second surface) extending parallel to an axial line (longitudinal direction and horizontal direction, which correspond to X-axis) of the light guide plate. Note that, a width direction (height direction and vertical direction) of the light guide plate corresponds to a Y-axis, and a thickness direction of the light guide plate corresponds to a Z-axis. When a surface of the light guide plate, which receives the light beams, is referred to as a light-guide-plate light incident surface, and another surface of the light guide plate, from which the light beams are emitted, is referred to as a light-guide-plate light emitting surface, both the light-guide-plate light incident surface and the light-guide-plate light emitting surface may be constituted by the first surface. Alternatively, the light-guide-plate light incident surface may be constituted by the first surface, and the light-guide-plate light emitting surface may be constituted by the second surface. The interference fringes of the diffraction grating member extend substantially parallel to the Y-axis. As materials of the light guide plate, there may be mentioned glasses including optical glasses such as a quartz glass and BK7, and plastic materials (such as PMMA, a polycarbonate resin, an acrylic resin, a non-crystalline polypropylene-based resin, and styrene resins including an AS resin). The shape of the light guide plate is not limited to a flat plate shape, and may be a curved shape.
[0154] In the display apparatus or the like according to the present disclosure, there may be employed a configuration in which, in a region in the optical apparatus, to which the light beams emitted from the image forming apparatus are input, a light blocking member that blocks entry of the external light beams to the optical apparatus is arranged. By arranging, in the region in the optical apparatus, to which the light beams emitted from the image forming apparatus are input, the light blocking member that blocks the entry of the external light beams to the optical apparatus, the external light beams do not enter the region in the optical apparatus, to which the light beams emitted from the image forming apparatus are input. Thus, even when light intensities of the external light beams vary due to the operation of the dimming apparatus, there are no problems such as degradation in quality of images to be displayed on the display apparatus due to generation of, for example, undesired stray-light beams. Note that, it is preferred to employ a configuration in which the region in the optical apparatus, to which the light beams emitted from the image forming apparatus are input, is located within a projection image of the light blocking member onto the optical apparatus.
[0155] There may be employed a configuration in which the light blocking member is arranged away from the optical apparatus on an opposite side in the optical apparatus, the opposite side being opposite to a side on which the image forming apparatus is arranged. In the display apparatus having such a configuration, it is appropriate to prepare the light blocking member from, for example, an opaque plastic material. In this configuration, such a light blocking member may extend integrally from a casing of the image display apparatus, be attached to the casing of the image display apparatus, extend integrally from the frame, or be attached to the frame. Alternatively, in this configuration, the light blocking member may be arranged on a part of the optical apparatus on the opposite side with respect to the side on which the image forming apparatus is arranged, or the light blocking member may be arranged in the dimming apparatus. Note that, the light blocking member made of the opaque material may be formed on the surface of the optical apparatus, for example, by the physical vapor deposition method (PVD method) or the chemical vapor deposition method (CVD method), or may be formed, for example, by a printing method. Alternatively, a film, a sheet, or a foil made of the opaque material (such as plastic material, a metal material, or an alloy material) may be applied. It is preferred to employ a configuration in which projection images of end portions of the dimming apparatus onto the optical apparatus are located within the projection image of the light blocking member onto the optical apparatus.
