Apple Patent | Focus-Based Debugging And Inspection For A Display System

Patent: Focus-Based Debugging And Inspection For A Display System

Publication Number: 20200004327

Publication Date: 20200102

Applicants: Apple

Abstract

A method for debugging includes determining an eye focus depth for a user, determining a virtual focus point relative to a virtual view location in a virtual environment based on the eye focus depth for the user, transitioning a first object from the virtual environment from a first rendering mode to a second rendering mode based on a location of the virtual focus point relative to the first object, wherein visibility of a second object from the virtual view location is occluded by the first object in the first rendering mode and visibility of the second object from the virtual view location is not occluded by the first object in the second rendering mode, and activating a function of a development interface relative to the second object while the first object is in the second rendering mode.

CROSS-REFERENCE TO RELATED APPLICATION

[0001] This application claims the benefit of U.S. Provisional Application No. 62/692,929, filed on Jul. 2, 2018, the content of which is incorporated herein by reference in its entirety for all purposes.

FIELD

[0002] The present disclosure relates generally to the field of display devices that are able to output content based on gaze direction.

BACKGROUND

[0003] Gaze-direction dependent displays are used in computer-generated reality systems, such as virtual reality systems, augmented reality systems, and mixed reality systems. As an example, head-mounted displays typically include optical assemblies that direct light from a display device, such as an LCD, LED, or OLED display panel, to the user’s eyes. Head-mounted displays are operable to present content to the user and may incorporate head tracking and/or hand tracking capabilities. Head-mounted displays can be used to present content to the user, such as a three-dimensional computer-generated reality environment. Such environments can include numerous objects, each with its own properties, settings, features, and/or other characteristics.

SUMMARY

[0004] One aspect of the disclosure is a method for debugging. The method includes determining an eye focus depth for a user, determining a virtual focus point relative to a virtual view location in a virtual environment based on the eye focus depth for the user, wherein the virtual environment includes a first object and a second object, transitioning a first object from the virtual environment from a first rendering mode to a second rendering mode based on a location of the virtual focus point relative to the first object, wherein visibility of the second object from the virtual view location is occluded by the first object in the first rendering mode and visibility of the second object from the virtual view location is not occluded by the first object in the second rendering mode, and activating a function of a development interface relative to the second object while the first object is in the second rendering mode.

[0005] Another aspect of the disclosure is a method for debugging. The method includes determining an eye focus depth for a user and determining a virtual focus point relative to a virtual view location in a virtual environment based on the eye focus depth for the user. The virtual environment includes an object. The method also includes selecting the object in response to determining that the virtual focus point is located within a threshold distance from the object; and activating a function of a development interface relative to the object dependent upon selection of the object.

[0006] Another aspect of the disclosure is a method for debugging. The method includes determining an eye focus depth for a user and determining a virtual focus point relative to a virtual view location in a virtual environment based on the eye focus depth for the user. The virtual environment includes an object. The method also includes defining a visibility plane that passes through the virtual focus point. A first portion of the object is located on a first side of the visibility plane and is rendered using a first rendering mode in which the first portion of the object is fully visible, and a second portion of the object is located on a second side of the visibility plane and is rendered using a second rendering mode in which the second portion of the object is not fully visible. The method also includes activating a function of a development interface relative to the first portion of the object while the second portion of the object is in the second rendering mode.

BRIEF DESCRIPTION OF THE DRAWINGS

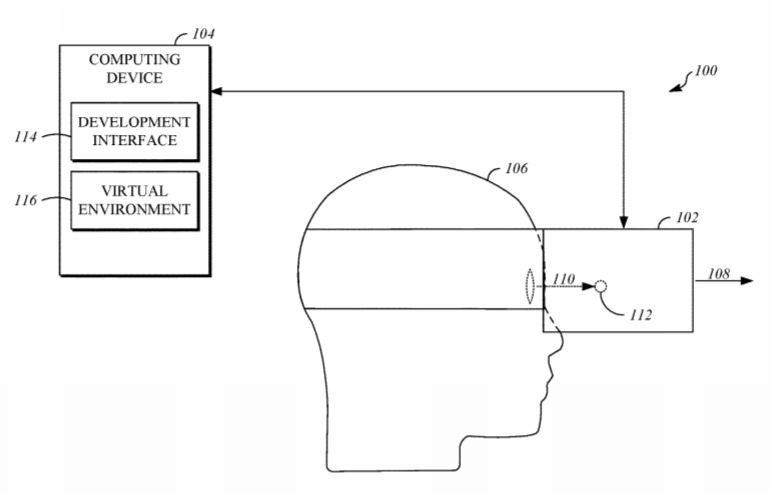

[0007] FIG. 1 is an illustration that shows a display system that includes a head-mounted display and a computing device.

[0008] FIG. 2 is a block diagram that shows the head-mounted display.

[0009] FIG. 3 is a block diagram that shows the computing device.

[0010] FIG. 4 is a perspective view illustration of a first scene showing an object in a first selection state.

[0011] FIG. 5 is a perspective view illustration of a scene showing the object in a second selection state.

[0012] FIG. 6 is a perspective view illustration of a scene showing the object in a third selection state.

[0013] FIG. 7 is a perspective view illustration of a scene showing a first object in a first rendering mode.

[0014] FIG. 8 is a perspective view illustration of the scene showing the first object in a second rendering mode in which a second object is visible.

[0015] FIG. 9 is a side view illustration of a scene showing an object in a fully visible rendering mode.

[0016] FIG. 10 is a side view illustration of the scene showing the object in a partially visible rendering mode.

[0017] FIG. 11 is a side view illustration showing a layered object in which all of the layers are visible.

[0018] FIG. 12 is a side view illustration showing the layered object in which some of the layers are not visible.

[0019] FIG. 13 is a side view illustration of a scene showing a first object and a second object with the first object in a fully visible rendering mode.

[0020] FIG. 14 is a side view illustration of a scene showing the first object and the second object with the first object in a modified visibility rendering mode.

[0021] FIG. 15 is a side view illustration of a scene showing a first object and a second object.

[0022] FIG. 16 is a side view illustration of a scene showing the first object, the second object, and an indicator regarding a position of the second object within the scene.

[0023] FIG. 17 is a flowchart that shows a process for focus-based debugging and inspection for a head-mounted display system according to a first example.

[0024] FIG. 18 is a flowchart that shows a process for focus-based debugging and inspection for a head-mounted display system according to a second example.

[0025] FIG. 19 is a flowchart that shows a process for focus-based debugging and inspection for a head-mounted display system according to a third example.

DETAILED DESCRIPTION

[0026] The disclosure herein relates to interaction with virtual environments particularly in development interfaces. Virtual environments can include a large number of objects and other assets and can define complex visual and functional relationships. The systems and methods described herein allow for debugging and inspection of virtual environments within a development interface, including use of focus-based interaction mechanisms to enhance and facilitate viewing and selection of the objects and other features in a scene.

[0027] FIG. 1 is a block diagram that shows a display system 100. In the example described herein, the display system 100 includes a head-mounted display 102 (herein, “HMD”), and a computing device 104. The HMD 102 is worn on the head of a user 106 and includes components that allow images to be shown to the user 106 as part of a computer-generated reality (herein, “CGR”) experience. The images shown to the user 106 may be dependent on gaze direction and/or gaze depth, which can be measured by components associated with the HMD 102 as will be explained herein. The systems and methods described herein may also be implemented in the form of devices that are operable to display content in dependence on gaze direction and/or gaze depth but are not head mounted or worn by the user 106. The computing device 104 is connected to the HMD 102 by a wired or wireless connection, and is operable to compute, render, and or otherwise provide content to the HMD 102.

[0028] In the illustrated example, the computing device 104 is shown as separate from the HMD, and can be, for example, a stand-alone computer, such as a laptop computer or a desktop computer. It should be understood, however, that some or all of the functions that are described herein as being performed by computing device 104 could be performed by equivalent hardware that is incorporated in the HMD 102. Furthermore, in some implementations, some of the functions that are described in connection with HMD 102 and/or the computing device 104 could be performed by a mobile computing device, such as a smart phone, that is removably connected to (i.e., movable between a connected position and a disconnected position) the HMD 102. As an example, computing, image display, and/or sensing functions could be performed by a smart phone that is removably connected to an enclosure of the HMD 102.

[0029] In addition to causing display of content to the user 106, the HMD 102 also incorporates sensing functionality that can be used to control how the content that is displayed to the user 106. As will be explained herein, head tracking information 108, eye gaze angle 110, and eye focus depth 112 can be detected by sensors associated with the HMD 102 and used as control inputs. The head tracking information 108 represents the angular orientation and/or three-dimensional position of the HMD 102, which varies in correspondence with the angular orientation and location of the head of the user 106. The head tracking information 108 may be an angle expressed in three dimensions and/or may be expressed as a vector in three-dimensional space. The eye gaze angle 110 represents the direction along which the eyes of the user 106 are pointed and viewing a scene and represents rotation of the eyes of the user 106 relative to the head of the user 106. The eye gaze angle 110 may be an angle expressed in three dimensions and/or may be expressed as a vector in three-dimensional space. The eye focus depth 112 represent the distance from the eyes of the user 106 at which the user’s eyes are attempting to focus and may be represented as a distance.

[0030] The computing device 104 is operable to execute software that provides various types of functionality to users. In the illustrated example, the computing device 104 provides functionality that corresponds to a development interface 114 and a virtual environment 116. The development interface 114 may be an integrated development environment (IDE) or another software tool that allows development of software applications, including defining scenes, objects, and parameters that define and/or are associated with the objects, and computer-executable code that is associated with the scenes and/or objects. The virtual environment 116 includes computer-executable program instructions and assets that define a three-dimensional scene that can be displayed and interacted with using the HMD 102 and associated input devices. Display and interaction with the virtual environment 116 is facilitated by the development interface 114, which allows the user to view, inspect, and modify aspects of the virtual environment and its constituent objects and assets. In the description herein, the development interface 114 and the virtual environment 116 are described as being implemented using software that is executed by the computing device 104. In an alternative implementation in which the HMD 102 is provided with on-board computing and rendering functionality, the software associated with the development interface 114 and the virtual environment 116 could be executed locally by the HMD 102, and the computing device 104 could be omitted or could be optional.

[0031] FIG. 2 is a block diagram that shows the HMD 102. The HMD 102 may include a housing 218, a headband 220, a display panel 222, optics 224, sensors 226, an eye camera 228, a processor(s) 230, a memory 232, storage 234, a data connection 236, and a battery 238. As examples, the HMD 102 may be configured as any type of CGR system, such as a virtual reality system, a mixed reality system, an optical see-through augmented reality system, or a video see-through augmented reality system.

[0032] The housing 218 is the physical structure that other components of the HMD 102 are connected to and supported by. Various configurations and materials can be used for the housing 218. The housing 218 is connected to the headband 220, which supports the housing 218 with respect to the user’s head. The headband 220 may be, as examples, a flexible strap, a rigid structure that extends around over part or all of the user’s head, or a multi-part structure that includes components of varying types (e.g., flexible, rigid, elastic, etc.). Common configurations that can be utilized for the headband 220 include, as examples, a “goggles” type configuration, a “halo” type configuration, or a “mohawk” type configuration.

[0033] The display panel 222 is a device that is operable to output images, such as still images or video images. As examples, the display panel 222 may be an LCD display panel, an LED display panel, or an OLED display panel.

[0034] The optics 224 are configured to direct light that is emitted from the computing device 104 to the user’s eyes and may also allow light from the external environment to reach the user’s eyes. The optics 224, may include, as examples, lenses, reflectors, polarizers, waveguides, and/or other components. In one implementation, the optics 224 may include a lens that is positioned between the display panel 222 and the user’s eyes. In another implementation the optics 224 may be configured as an optical combiner, such as an off-axis combiner, a polarized beam combiner, or a waveguide combiner.

[0035] The sensors 226 are devices that are incorporated in the HMD 102, such as by permanent connection to the housing 218 or the headband 220. The sensors 226 are able to output signals that represent a sensed condition. Examples of individual sensors that can be incorporated in the sensors 226 include an inertial measuring unit that utilizes accelerometers, gyroscopes, and magnetometers to output information that describes motion, visible spectrum cameras, infrared spectrum cameras, structured-light stereo devices, depth cameras, lidar devices, radar devices, ultrasonic devices, infrared detectors that measure signals from external infrared sources, infrared beacons that emit signals that can be measured by external infrared detectors, biometric sensors, capacitance sensors, temperature sensors, light sensors, and force sensors.

[0036] The eye camera 228 is a device that is operable to output images of the user’s eyes, such as a visible spectrum video camera or an infrared spectrum video camera. The eye camera 228 may be located in the housing 218 of the HMD 102 and directed toward the user’s eyes. The output from the eye camera 228 may be used to determine the eye gaze angle 110 and the eye focus depth 112 for the user 106. The eye gaze angle 110 and the eye focus depth 112 can be determined using known methods. As an example, the eye gaze angle 110 can be determined based on (e.g., as an average) of vectors constructed normal to the pupils of the eyes of the user 106. Identification, location, and angular orientation of the pupils can be determined using well-known machine vision techniques. The eye focus depth 112 may be determined based on the images obtained by the eye camera 228, for example, by determining a point of convergence for vectors constructed normal to the eyes of the user 106.

[0037] The processor(s) 230 is incorporated in the HMD 102, such as by location in the housing 218 of the HMD 102. The processor(s) 230 is operable to execute computer program instructions and perform operations described by the computer program instructions. As an example, the processor(s) 230 may be a conventional device such as a central processing unit.

[0038] The memory 232 may be a volatile, high-speed, short-term information storage device such as a random-access memory module. The storage 234 may be a non-volatile information storage device such as a flash memory module, a hard drive, or a solid-state drive.

[0039] The data connection 236 is communications connection that allows information to be exchanged between the HMD 102, the computing device 104, and/or other devices. The data connection 236 may be a wired connection or a wireless connection using any suitable communications protocol.

[0040] The battery 238 may be incorporated in implementations in which the HMD 102 is operated without a power-transmitting connection to an external computing device, such as the computing device 104, or to another power supply. For example, the HMD 102 may include the battery 238 in implementations that utilize wireless operation.

[0041] FIG. 3 is a block diagram that shows the computing device 104. The computing device 104 may include a processor 340, a memory 342, storage 344, one or more input devices 346, one or more output devices 348, a data connection 350, development interface software 352, and virtual environment software 354 that includes assets 356.

[0042] The processor 340 is operable to execute computer program instructions and perform operations described by the computer program instructions. As an example, the processor 340 may be a conventional device such as a central processing unit. The memory 342 may be a volatile, high-speed, short-term information storage device such as a random-access memory module. The storage 344 may be a non-volatile information storage device such as a flash memory module, a hard drive, or a solid-state drive. The input devices 346 may include, as examples, a keyboard, a touchscreen input device, a gestural input device, an audio input device (e.g., a microphone), a control stick, or a position-tracked controller. The output devices 348 may include, as examples, a display screen, a projected display, an audio output, or a haptic output. The data connection 350 is a wired or wireless communications connection that allows for communication with the HMD 102 using any type of protocol. For example, the computing device 104 may transfer pre-rendered content to the HMD 102 and receive information such as a sensor outputs from the HMD 102 using the data connection 350.

[0043] The development interface software 352 is executable by the computing device 104 and is operable to provide functionality that is associated with the development interface 114, which can be displayed and/or interacted with using the HMD 102 and/or the computing device 104 during execution of the development interface software 352. The virtual environment software 354 is executable by the computing device 104 and is operable to provide functionality that is associated with the virtual environment 116, which can be displayed and/or interacted with using the HMD 102 and/or the computing device 104 during execution of the virtual environment software 354. The assets 356 are associated with the virtual environment software 354 and includes content that is displayed to the user through the virtual environment 116 and information that controls how the content is displayed and how the user can interact with the content. Examples of the assets 356 include three-dimensional models, animation sequences, materials, textures, shaders, lighting objects, virtual camera objects, colliders, physics controllers, particle systems, interactive objects, and scripts.

[0044] FIG. 4 is a side-view illustration showing an example of a scene 460 that includes an object 462 in a first selection state. The scene 460 is a three-dimensional scene that is viewable by the user through the HMD 102. The scene 460 represents a portion of the virtual environment 116 and is rendered and displayed using the development interface 114, which allows a developer to debug the virtual environment 116, such as by reviewing, testing interactions with, and/or modifying the virtual environment 116. The object 462 is a virtual three-dimensional object that is present in the scene 460. The object 462 may be fixed or movable within the scene 460.

[0045] A virtual view position 464 (e.g., a virtual camera) is positioned relative to the scene 460 and represents the virtual location of the user’s eyes for purposes of rendering content that will be displayed to the user 106 through the HMD 102. The location of the virtual view position 464 relative to the scene 460 may be controlled by the tracking the HMD 102 and the eyes of the user 106, for example, using the head tracking information 108.

[0046] A virtual gaze ray 466 is defined relative to the virtual view position 464. The virtual gaze ray 466 can be defined as a vector in three-dimensional space relative to the scene 460 using the head tracking information and the eye gaze angle 110 to determine, relative to the scene, the view direction that corresponds the head angle and gaze direction of the user 106. A virtual focus point 468 is defined along the virtual gaze ray 466. The virtual focus point 468 is an estimated location represents the point in the scene that the eyes of the user 106 are attempting to focus on. The distance, in virtual space, of the virtual focus point 468 from the virtual view position 464 (which may also be referred to as virtual eye focus depth), is determined based on the eye focus depth 112. As previously described, the eye focus depth 112 can be determined using images obtained from the eye camera 228. As one example, the distance of the virtual focus point 468 from the virtual view position 464 can be determined by applying a scaling factor to the eye focus depth 112.

[0047] In FIG. 4, the first selection state corresponds to an absence of selection of any object based on the virtual focus point 468. In particular, the virtual gaze ray 466 is oriented toward the object 462, and the virtual focus point 468 is located between the virtual view position 464 and the object 462. In some implementations, presence or absence of a selection of the object 462 is determined based on presence of the virtual focus point 468 within a predetermined distance of the object 462, and in FIG. 4, the virtual focus point 468 is at a position that is greater than the threshold distance from the object 462. Accordingly, the object 462 is unselected in the first selection state.

[0048] FIG. 5 is a side-view illustration showing the scene 460 that includes with the object 462 in a second selection state. The virtual focus point 468 has moved relative to the position depicted in FIG. 4, in response to a change in the eye focus depth 112, as measured by the eye camera 228, or as measured otherwise.

[0049] The second selection state corresponds to selection of the object 462. In the illustrated example, the virtual focus point 468 is inside of the object 462, and the second selection state can be activated in response to the virtual focus point 468 being inside of the object 462. As another example, the second selection state can be activated in response to the virtual focus point being within a predetermined distance from the object 462, and this distance may be measured relative to a predetermined point relative to the object 462, a center point of the object 462, surfaces of the object 462, and/or a bounded area (e.g., a bounding rectangle, sphere, capsule, etc.) that is defined relative to the object 462.

[0050] While the second selection state is active, actions can be performed relative to the object 462, such as modifying the object 462 and/or properties associated with the object 462. As one example, activation of the second selection state can pause code execution that is associated with the object 462 (e.g., a script attached to the object 462) while code execution continues for other portions of the scene 460, such as other objects that are included in the scene 460. Pausing code execution can include triggering a break point that is included in the code that is associated with the object 462. Put another way, the gaze information is used to trigger a breakpoint in the execution of code associated with object 462. As another example activation of the second selection state can allow modification of one or more properties of the object 462 using an input device. One example of modifying properties using an input device includes changing a value associated with a property by a button press or using a control stick (e.g., a thumb stick that is included as part of a hand-held input device. If the object 462 is a viewable object that has a color, the color could be modified using a button press or using a control stick. If the object 462 is a lighting object, an intensity of light emitted by the lighting object could be modified using a button press or using a control stick. These are examples only, and other types of properties can be modified in a similar manner using the same or different input modalities.

[0051] FIG. 6 is a side-view illustration showing the scene 460 that includes with the object 462 in a third selection state. The virtual focus point 468 has moved relative to the position depicted in FIG. 4, in response to a change in the eye focus depth 112, as measured by the eye camera 228, or as measured otherwise. As explained relative to FIG. 6, in one implementation, the third selection state can be activated by the virtual focus point 468 being within the object 462 or within a predetermined distance from the object 462. In another implementation, the third selection state can be activated by the virtual focus point 468 being within the object 462 or within a predetermined distance from the object 462 for greater than a threshold time period.

[0052] The third selection state corresponds to display of additional information that is associated with the object 462. The additional information can be displayed by a user interface element that is part of the scene 460, by a user interface element that added to the scene 460 in response to activation of the third election state, or by a user interface element that is part of a heads-up-display that is presented to the user 106 as an overlay relative to the scene 460. In the illustrated example, the third selection state includes display of an inspector 670 as part of the scene 460. The inspector 670 can be, for example, a two-dimensional user interface that is displayed within the scene 460 (e.g., by projecting the user interface on a plane). The inspector 670 can, as examples, display values that correspond to properties of the object 462, and/or allow modification of values that correspond to properties of the object 462.

[0053] FIG. 7 is a perspective view illustration of a scene 760 showing a first object 762 in a first rendering mode. The scene 760 is depicted from a virtual view position and oriented along a virtual gaze ray (not shown in FIG. 7). In the illustrated example, the first object 762 is a virtual three-dimensional object which is rendered and output for display as part of the scene 760. The scene 760 may also include a ground plane 761, which may be a virtual object or may be a physical ground plane in implementations where the HMD 102 is configured as an augmented reality system or a mixed reality system. A virtual focus point 768, which is configured according to the description of the virtual focus point 468, is positioned either between the virtual view position and the first object 762 (i.e., on a “near side” or “first side” of the first object 762) or within the first object 762. In the first rendering mode, a nominal rendering mode may be applied, which shows the first object 762 in the scene in the manner in which it is intended to appear in the virtual environment 116 when viewed in final form, outside of the context of the development interface 114. As an example, the first object 762 may be rendered according to colors, materials, textures, and/or shaders associated with the first object 762.

[0054] FIG. 8 is a perspective view illustration of the scene 760 showing the first object 762 in a second rendering mode and a second object 863. The second rendering mode is activated in response to the virtual focus point 768 having moved past the first object 762 (i.e., to a “far side” or “second side” of the first object 762). A return to the first rendering mode can occur if this is no longer the case.

[0055] The first rendering mode is a rendering mode that causes the first object 762 to block visibility of the second object 863, and the second rendering mode is a rending state in which the first object does not block visibility of the second object 863, under circumstances that a virtual gaze ray associated with a current view of the scene 760 passes through the first object 762.

[0056] In the second rendering mode, the rendering settings for the first object 762 have changed in response to the changed position of the virtual focus point 768. The second rendering mode modifies the rendering settings for the first object 762 relative to the first rendering mode. Transition from the first rendering mode to the second rendering mode can include transition from rendering according to colors, materials, textures, and/or shaders associated with the first object 762, to rendering according to settings that are associated with the second rendering mode and which are configured to allow visibility of objects that are partially or fully occluded by the first object 762 when the first object 762 is in the first rendering mode. Thus, as in the illustrated example, the second object 863 is occluded when the first object 762 is in the first rendering mode (FIG. 7) and the second object 863 is visible when the first object 762 is in the second rendering mode, in which the first object 762 is rendered in a wireframe rendering mode. While in the second rendering mode, operations can be performed relative to the second object 863 using functionality associated with the development interface 114, such as, for example, inspecting properties for the second object 863, modifying properties for the second object 863, and/or pausing code execution for the second object 863.

[0057] The second rendering mode modifies the visibility of the first object 762 relative to the first rendering mode. As one example, the first object 762 can transition from visible in the first rendering mode to invisible in the second rendering mode. As another example, the first object 762 can transition from opaque in the first rendering mode to transparent in the second rendering mode. As another example, the first object 762 can transition from nominal rendering according to colors, materials, textures, and/or shaders that are associated with the first object 762, to rendering according to a wireframe rendering mode.

[0058] FIG. 9 is a side view illustration of a scene 960 showing an object 962 in a fully visible rendering mode. A virtual gaze ray 966 extends from a virtual view position 964 and is oriented toward the object 962, and a virtual focus point 968 is located between the virtual view position 964 and the object 962. The object 962, the virtual view position 964, the virtual gaze ray 966, and the virtual focus point 968 are configured in the manner previously described with respect to the object 462, the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468. In the fully visible rendering mode, the object 962 is fully visible and rendered according to nominal rendering settings using properties that are associated with the object 962.

[0059] FIG. 10 is a side view illustration of the scene 960 showing the object 962 in a partially visible rendering mode. In the partially visible rendering mode, the virtual focus point 968 is positioned within the object 962, and a visibility plane 1069 is defined at the virtual focus point 968. A first portion 1063a of the object 962 that is located between the virtual view position 964 and the visibility plane 1069 is either hidden from view (i.e., not visible in the scene 960 from the perspective of the user 106 or is rendered such that objects are visible through it, such as by translucent rendering or by wireframe rendering. A second portion 1063b of the object 962 that is located on a far side of the visibility plane 1069 relative to the virtual view position 964 is rendered normally and is visible in the scene 960 from the perspective of the user 106. Thus, the partially visible rendering mode allows viewing of internal portions, if present, of the object 962. By updating the location of the visibility plane 1069 as the location of the virtual focus point 968 changes, a cutaway view of the object 962 that adapts to the eye focus depth 112 of the user 106 is defined, allowing the user to control inspection of the internal portions of the object 962 in real time.

[0060] The visibility plane 1069 may be generated having a desired orientation with respect to the scene 960. As one example, the visibility plane 1069 may be generated in a desired orientation relative to the visibility plane, such as by orienting the visibility plane perpendicular to the virtual gaze ray 966. As another example, the visibility plane 1069 may be generated in a desired orientation relative to the world space of the scene 960, such as by orienting the visibility plane 1069 perpendicular to one of the X, Y, or Z axes of the world space of the scene 960. As another example, the visibility plane 1069 may be generated in a desired orientation relative to the local coordinate space of the object 962, such as by orienting the visibility plane 1069 perpendicular to one of the X, Y, or Z axes of the local coordinate space of the object 962.

[0061] While in the partial visibility state, the user 106 can access functionality associated with the development interface 114 to interact with and modify objects or portions of objects (e.g., internal surfaces of the object 962) that would otherwise be unviewable from the virtual view position 964, such as, for example, inspecting properties for the object 962, modifying properties for the object 962, and/or pausing code execution for the object 962.

[0062] FIG. 11 is a side view illustration of a scene 1160 showing a layered object 1162 in which all of all of multiple layers, such as first through third layers 1163a, 1163b, and 1163c of the layered object are visible. As an example, the layered object 1162 could be a user interface that includes layered two-dimensional portions and is displayed in three-dimensional space as part of the scene 1160.

[0063] A virtual gaze ray 1166 extends from a virtual view position 1164 and is oriented toward the layered object 1162, and a virtual focus point 1168 is located between the virtual view position 1164 and the layered object 1162. The layered object 1162, the virtual view position 1164, the virtual gaze ray 1166, and the virtual focus point 1168 are configured in the manner previously described with respect to the object 462, the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468. In the illustrated example shown in FIG. 111, all of the layers of the layered object 1162 are fully visible and rendered according to nominal rendering settings using properties that are associated with the layered object 1162.

[0064] FIG. 12 is a side view illustration showing the layered object 1162, in which some of the layers are not visible. In particular, the first and second layers 1163a, 1163b have been transitioned from the visible state, as in FIG. 11, to a non-visible state, in which the layers are not displayed, or are displayed using a translucent or wireframe rendering mode that allows the third layered to be viewed without occlusion by the first and second layers 1163a, 1163b. The first and second layers 1163a, 1163b have been transitioned to non-visible states in response to the virtual focus point 1168 moving past them (i.e. to a far side of the first and second layers 1163a, 1163b relative to the virtual view position 1164). As an alternative to transitioning to non-visible states, the first and second layers 1163a, 1163b could be moved so that they no longer occlude visibility of the third layer 1163c.

[0065] While the third layer 1163c is no longer occluded by the first layer 1163a and the second layer 1163b, the user 106 can access functionality associated with the development interface 114 to interact with and modify the third layer 1163c, such as, for example, inspecting properties for the third layer 1163c, modifying properties for the third layer 1163c, and/or pausing code execution for the third layer 1163c.

[0066] FIG. 13 is a side view illustration of a scene 1360 showing a first object 1362 and a second object. The scene 1360 is a CGR scene that includes virtual objects and physical objects. In the scene 1360, the first object 1362 is a virtual object that is presented in a fully visible rendering mode. The second object 1363 is a physical object that is part of the environment around the user 106. A virtual gaze ray 1366 extends from a virtual view position 1364 and is oriented toward the first object 1362, and a virtual focus point 1368 is located between the virtual view position 1364 and the first object 1362. The first object 1362, the virtual view position 1364, the virtual gaze ray 1366, and the virtual focus point 1368 are configured in the manner previously described with respect to the object 462, the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468. In the fully visible rendering mode, the first object 1362 is fully visible and rendered according to nominal rendering settings using properties that are associated with the first object 1362.

[0067] FIG. 14 is a side view illustration of the scene 1360 showing the first object 1362 in a modified visibility rendering mode, in which the first object is transparent, translucent, rendered in wireframe, or otherwise does not occlude visibility of the second object 1363. In the partially visible rendering mode, the virtual focus point 1368 is positioned on a far side of the first object 1362 relative to the virtual view position 1364. Thus, the modified visibility rendering mode allows viewing of the second object 1363 in response to the virtual focus point moving past the first object 1362.

[0068] While the second object 1363 is no longer occluded by the first object 1362, the user 106 can access functionality associated with the development interface 114 to inspect the second object 1363, such as, for example, inspecting properties, measured values, and or interpreted information (e.g., an estimated surface geometry and/or position) for the second object 1363.

[0069] FIG. 15 is a side view illustration of a scene 1560 showing a first object 1562 and a second object 1563. The scene 1560 is a CGR scene that includes physical objects and virtual objects. The in the scene 1560, the first object 1562 is a physical object that is part of the environment around the user 106. The second object 1563 is a virtual object that is positioned relative to the first object 1562 such that it does not appear as visible within the scene 1560 from a virtual view position 1564, and therefore is not output for display using the HMD 102 due to occlusion by the first object 1562. A virtual gaze ray 1566 extends from the virtual view position 1564 and is oriented toward the first object 1562, and a virtual focus point 1568 is located between the virtual view position 1564 and the first object 1562. The first object 1562, the virtual view position 1564, the virtual gaze ray 1566, and the virtual focus point 1568 are configured in the manner previously described with respect to the object 462, the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468.

[0070] FIG. 16 is a side view illustration of the scene 1560 showing the first object 1562, the second object 1563, and an indicator 1565 regarding a position of the second object within the scene 1560. For example, the indicator 1565 can be an opaque, translucent, or wireframe representation of the second object 1563 or a graphical symbol representative of the second object 1563. The virtual focus point 1568 is positioned on a far side of the first object 1562 relative to the virtual view position 1564. In response to the position of the virtual focus point 1568 moving past the first object 1562 in the scene 1560, the indicator 1565 is output in the scene 1560 such that is appears to be between the virtual view position 1564 and the first object 1562 such that the indicator 1565 is operable to indicate, to the user 106, that the second object 1563 is located behind and is occluded by the first object 1562.

[0071] While the indicator 1565 is displayed, the user 106 can interact with the indicator 1565 to access functionality associated with the development interface 114 to inspect modify and/or the second object 1563, such as by viewing and or modifying properties that are associated with the second object 1563.

[0072] FIG. 17 is a flowchart that shows a process 1780 for focus-based debugging and inspection for a display system 100. The process 1780 may be performed, for example, using the HMD 102 and the computing device 104. Portions of the process 1780 can be implemented as computer program instructions that are executed by a computing device, such as the processor 340 of the computing device 104.

[0073] In operation 1781, sensor outputs are obtained from a head-mounted display, such as the HMD 102. The sensor outputs can include or can be interpreted to determine the head tracking information 108, the eye gaze angle 110, and the eye focus depth 112. In operation 1782, a virtual view position, a virtual gaze ray, and a virtual focus point are determined, as described with respect to the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468. The virtual view position, the virtual gaze ray, and the virtual focus point are located within a scene in a virtual environment, as described with respect to the virtual environment 116, the scene 460, the scene 760, the scene 960, the scene 1160, the scene 1360, and the scene 1560.

[0074] The eye focus depth may be determined using output from a sensor that is associated with a head-mounted display, such as the eye camera 228 of the HMD 102. The virtual gaze ray may be determined based on an eye gaze angle 110 and head tracking information 108 from the HMD 102. The virtual focus point may be located along the virtual gaze ray.

[0075] In operation 1783, a first object that is located in the virtual environment is transitioned from a first rendering mode to a second rendering mode based on a location of the virtual focus point relative to the first object. As an example, the first object may be located along the virtual gaze ray. Transitioning between the first rendering mode and the second rendering mode can be performed in the manner described with respect to the scene 760 and FIGS. 7-8. For example, visibility of the second object from the virtual view location can be occluded by the first object in the first rendering mode and visibility of the second object from the virtual view location can be free from occlusion by the first object in the second rendering mode.

[0076] In some implementations, transitioning the first object from the first rendering mode to the second rendering mode in performed in response to determining that the virtual focus point is located on a far side of the first object relative to the virtual view location. The first rendering mode may utilize rendering settings that are associated with the first object. In some implementations of the second rendering mode, the first object is not visible in the second rendering mode. In some implementations of the second rendering mode, the first object is translucent in the second rendering mode. In some implementations of the second rendering mode, the first object is rendered as a wireframe in the second rendering mode.

[0077] In operation 1784, a function of a development interface is activated relative to the second object while the first object is in the second rendering mode, as described with respect to, for example, the development interface 114 and the inspector 670.

[0078] In some implementations, activating the function of the development interface causes display of information associated with the second object. In some implementations, activating the function of the development interface causes modification of information associated with the second object. In some implementations, activating the function of the development interface causes a pause of code execution that is associated with the second object.

[0079] FIG. 18 is a flowchart that shows a process 1880 for focus-based debugging and inspection for a display system 100. The process 1880 may be performed, for example, using the HMD 102 and the computing device 104. Portions of the process 1880 can be implemented as computer program instructions that are executed by a computing device, such as the processor 340 of the computing device 104.

[0080] In operation 1881, sensor outputs are obtained from a head-mounted display, such as the HMD 102. The sensor outputs can include or can be interpreted to determine the head tracking information 108, the eye gaze angle 110, and the eye focus depth 112. In operation 1882, a virtual view position, a virtual gaze ray, and a virtual focus point are determined, as described with respect to the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468. The virtual view position, the virtual gaze ray, and the virtual focus point are located within a scene in a virtual environment, as described with respect to the virtual environment 116, the scene 460, the scene 760, the scene 960, the scene 1160, the scene 1360, and the scene 1560.

[0081] The virtual environment includes an object. In operation 1883, the object is selected in response to determining that the virtual focus point is located within a threshold distance from the object.

[0082] In operation 1884, a function of a development interface is activated relative to the second object while the first object is in the second rendering mode, as described with respect to, for example, the development interface 114 and the inspector 670. In some implementations, activating the function of the development interface is performed in response to determining that the virtual focus point has been located within the threshold distance from the object for greater than a threshold time period.

[0083] FIG. 19 is a flowchart that shows a process 1980 for focus-based debugging and inspection for a display system 100. The process 1980 may be performed, for example, using the HMD 102 and the computing device 104. Portions of the process 1980 can be implemented as computer program instructions that are executed by a computing device, such as the processor 340 of the computing device 104.

[0084] In operation 1981, sensor outputs are obtained from a head-mounted display, such as the HMD 102. The sensor outputs can include or can be interpreted to determine the head tracking information 108, the eye gaze angle 110, and the eye focus depth 112. In operation 1982, a virtual view position, a virtual gaze ray, and a virtual focus point are determined, as described with respect to the virtual view position 464, the virtual gaze ray 466, and the virtual focus point 468. The virtual view position, the virtual gaze ray, and the virtual focus point are located within a scene in a virtual environment, as described with respect to the virtual environment 116, the scene 460, the scene 760, the scene 960, the scene 1160, the scene 1360, and the scene 1560.

[0085] The virtual environment includes an object. In operation 1983, a visibility plane is defined such that it passes through the virtual focus point. A first portion of the object is located on a first side of the visibility plane and is rendered using a first rendering mode in which the first portion of the object is fully visible, and a second portion of the object is located on a second side of the visibility plane and is rendered using a second rendering mode in which the second portion of the object is not fully visible.

[0086] In operation 1984, a function of a development interface is activated relative to the second object while the first object is in the second rendering mode, as described with respect to, for example, the development interface 114 and the inspector 670.
