Sony Patent | Drive mechanism and head-mounted display

小编 映维   |   分类：Sony   |

Patent: Drive mechanism and head-mounted display

Drawings: Click to check drawins

Publication Number: 20220035400

Publication Date: 20220203

Applicant: Sony

Abstract

A drive mechanism according to an embodiment of the present technology includes: a base part; an elastic member; and a movable part. The elastic member is provided in the base part. The movable part includes a latching portion that is latched onto the elastic member and is configured to be movable relative to the base part.

Claims

  1. A drive mechanism, comprising: a base part; an elastic member that is provided in the base part; and a movable part that includes a latching portion that is latched onto the elastic member and is movable relative to the base part.

  2. The drive mechanism according to claim 1, wherein the latching portion is a protrusion that protrudes toward the elastic member and deforms the elastic member.

  3. The drive mechanism according to claim 2, wherein the latching portion has an abutment surface that abuts the elastic member, and the abutment surface includes a rib that bites into the elastic member.

  4. The drive mechanism according to claim 2, wherein the latching portion has at least one of a triangular shape or a semicircular shape.

  5. The drive mechanism according to claim 2, wherein the movable part includes a plurality of the latching portions.

  6. The drive mechanism according to claim 2, wherein the elastic member includes a first elastic portion and a second elastic portion having a hardness higher than that of the first elastic portion.

  7. The drive mechanism according to claim 2, wherein the elastic member includes a first elastic portion and a second elastic portion having a width of the latching portion in a protruding direction larger than that of the first elastic portion.

  8. The drive mechanism according to claim 2, wherein the elastic member is formed in a columnar shape and has a sliding surface abutting the latching portion, and the latching portion causes the sliding surface to slide along a longitudinal direction of the elastic member.

  9. The drive mechanism according to claim 8, wherein the base part includes a holding portion that holds a pair of elastic members facing each other along a protruding direction of the latching portion, and the movable part is configured to be slidable on the base part while causing the latching portion to bite into the sliding surface along the longitudinal direction between one elastic member of the pair of elastic members and the other elastic member.

  10. The drive mechanism according to claim 9, wherein the base part includes a regulating portion that regulates sliding of the movable part along the longitudinal direction.

  11. The drive mechanism according to claim 2, wherein the drive mechanism is a rotating mechanism in which the movable part is configured to be rotatable relative to the base part.

  12. The drive mechanism according to claim 2, wherein the drive mechanism is a slide mechanism in which the movable part is configured to be movable relative to the base part along a direction perpendicular to a protruding direction of the latching portion.

  13. A head-mounted display, comprising: a display unit; a mounting part that is to be mounted on a head of a user; and a drive mechanism that includes a base part that is provided in the mounting part, an elastic member that is provided in the base part, and a movable part that connects the base part and the display unit to each other and includes a latching portion, the latching portion being latched onto the elastic member and being configured to be movable relative to the base part.

Description

TECHNICAL FIELD

[0001] The present technology relates to a drive mechanism and a head-mounted display (hereinafter, HMD). More particularly, the present technology relates to a drive mechanism using a highly-slidable elastic member and to an HMD including this drive mechanism.

BACKGROUND ART

[0002] In the past, a position adjusting mechanism that adjusts the relative position of a display unit relative to a mounting part to be mounted on a head of a user in a wearable device such as an HMD has been known.

[0003] For example, Patent Literature 1 describes a position adjusting mechanism in which a plurality of comb-leaf-shaped protrusions arranged on a locking member attached to a frame and a plurality of protrusions of a member to be locked attached to a display unit engage with each other in a locked condition to regulate relative movement between the frame and the display unit. The member to be locked in the position adjusting mechanism is connected to an unlocking member provided in the display unit, and sliding the unlocking member releases the engagement of the locking member and the member to be locked, making it possible to adjust the relative position of the display unit relative to the frame.

CITATION LIST

Patent Literature

[0004] Patent Literature 1: WO 2015/137165

DISCLOSURE OF INVENTION

Technical Problem

[0005] However, in the position adjusting mechanism as described in Patent Literature 1, the position adjustment of the display unit relative to the mounting part is not stepless, but is multi-step adjustment depending on the pitch of the protruding portions of the locking member. As a result, the relative position of the display unit relative to the mounting part cannot be a position desired by the user in some cases.

[0006] In this regard, the present disclosure proposes a drive mechanism that is capable of steplessly adjusting the relative position of the display unit relative to the mounting part and holding the display unit at the adjusted position.

Solution to Problem

[0007] In order to achieve the above-mentioned object, a drive mechanism according to an embodiment of the present technology includes: a base part; an elastic member; and a movable part.

[0008] The elastic member is provided in the base part.

[0009] The movable part includes a latching portion that is latched onto the elastic member and is configured to be movable relative to the base part.

[0010] The latching portion may be a protrusion that protrudes toward the elastic member and deforms the elastic member.

[0011] The latching portion may have an abutment surface that abuts the elastic member, and

[0012] the abutment surface may include a rib that bites into the elastic member.

[0013] The latching portion may have at least one of a triangular shape or a semicircular shape.

[0014] The movable part may include a plurality of the latching portions.

[0015] The elastic member may include a first elastic portion and a second elastic portion having a hardness higher than that of the first elastic portion.

[0016] The elastic member may include a first elastic portion and a second elastic portion having a width of the latching portion in a protruding direction larger than that of the first elastic portion.

[0017] The elastic member is formed in a columnar shape and has a sliding surface abutting the latching portion, and

[0018] the latching portion may cause the sliding surface to slide along a longitudinal direction of the elastic member.

[0019] The base part may include a holding portion that holds a pair of elastic members facing each other along a protruding direction of the latching portion, and

[0020] the movable part may be configured to be slidable on the base part while causing the latching portion to bite into the sliding surface along the longitudinal direction between one elastic member of the pair of elastic members and the other elastic member.

[0021] The base part may include a regulating portion that regulates sliding of the movable part along the longitudinal direction.

[0022] The drive mechanism may be a rotating mechanism in which the movable part is configured to be rotatable relative to the base part.

[0023] The drive mechanism may be a slide mechanism in which the movable part is configured to be movable relative to the base part along a direction perpendicular to a protruding direction of the latching portion.

[0024] In order to achieve the above-mentioned object, a head-mounted display according to an embodiment of the present technology includes: a display unit; a mounting part; and a drive mechanism.

[0025] The mounting part is to be mounted on a head of a user.

[0026] The drive mechanism includes a base part, an elastic member, and a movable part.

[0027] The base part is provided in the mounting part.

[0028] The elastic member is provided in the base part.

[0029] The movable part connects the base part and the display unit to each other.

[0030] The movable part includes a latching portion that is latched onto the elastic member and is configured to be movable relative to the base part.

BRIEF DESCRIPTION OF DRAWINGS

[0031] FIG. 1 is a diagram showing a configuration of an entire HMD.

[0032] FIG. 2 is a diagram showing a configuration example of a drive mechanism according to a first embodiment of the present technology.

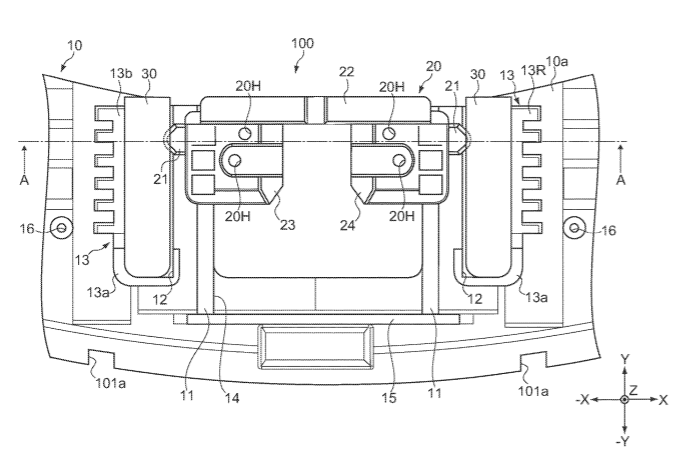

[0033] FIG. 3 is an enlarged top view showing a main part of the drive mechanism.

[0034] FIG. 4 is an enlarged perspective view showing the drive mechanism.

[0035] FIG. 5 is a cross-sectional view taken along the line A-A in FIG. 3.

[0036] FIG. 6 is a diagram showing variations of a protruding portion.

[0037] FIG. 7 is a diagram showing variations of the protruding portion.

[0038] FIG. 8 is a diagram showing variations of the protruding portion.

[0039] FIG. 9 is a diagram showing variations of the protruding portion.

[0040] FIG. 10 is a diagram showing variations of the protruding portion.

[0041] FIG. 11 is a perspective view showing a configuration example of an elastic member.

[0042] FIG. 12 is a perspective view showing a configuration example of the elastic member.

[0043] FIG. 13 is a diagram showing the drive mechanism.

[0044] FIG. 14 is a graph showing the relationship between the sliding weight and the displacement in the drive mechanism.

[0045] FIG. 15 is a graph showing the relationship between the sliding weight and the sliding velocity in the drive mechanism.

[0046] FIG. 16 is a schematic diagram showing a configuration example of an existing drive mechanism.

[0047] FIG. 17 is a graph showing the relationship between the sliding weight and the displacement of the existing drive mechanism.

[0048] FIG. 18 is a graph showing the relationship between the sliding weight and the sliding velocity of the existing drive mechanism.

[0049] FIG. 19 is a diagram showing a configuration example of a drive mechanism according to a second embodiment of the present technology.

[0050] FIG. 20 is a diagram showing a configuration example of a drive mechanism according to a third embodiment of the present technology.

[0051] FIG. 21 is a cross-sectional view taken along the line I-I in FIG. 20.

[0052] FIG. 22 is a diagram showing a configuration example of a drive mechanism according to a modified example of the present technology.

[0053] FIG. 23 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0054] FIG. 24 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0055] FIG. 25 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0056] FIG. 26 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0057] FIG. 27 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0058] FIG. 28 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0059] FIG. 29 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

[0060] FIG. 30 is a diagram showing a configuration example of the drive mechanism according to the modified example of the present technology.

MODE(S)* FOR CARRYING OUT THE INVENTION*

[0061] Hereinafter, embodiments of the present technology will be described with reference to the drawings. Note that the X-axis, the-Y axis, and the-Z axis represent three-axis directions perpendicular to each other, and are common in all drawings in this specification. Note that in this specification, the X direction is defined as the “right direction”, the -X direction is defined as the “left direction”, the Y direction is defined as “rear”, the -Y direction is defined as “front”, the Z direction is defined as the “upward direction”, and the -Z direction is defined as the “downward direction”. Further, the direction from the side of an elastic member 30 to the side of a housing space 14, which will be described below, is defined as “inside”, and the direction opposite thereto is defined as “outside”.

First Embodiment

[0062] FIG. 1 is a diagram showing a configuration of an entire HMD 1 to which a drive mechanism according to a first embodiment of the present technology is applied. The drive mechanism according to the first embodiment is provided, for example, between a mounting part 2 to be mounted on the head of a user and a display unit 3, and is a slide adjusting mechanism configured to be capable of adjusting the relative position of the display unit 3 relative to the mounting part 2.

Configuration of Entire Drive Mechanism

[0063] FIG. 2 is a diagram showing a configuration example of a drive mechanism 100 according to the first embodiment of the present technology. As shown in FIG. 2, the drive mechanism 100 includes a slide base part 10, a slider 20, and an elastic member 30.

[0064] FIG. 3 is an enlarged top view showing a main part of FIG. 2, and FIG. 4 is an enlarged perspective view showing the main part of FIG. 2. Further, FIG. 5 is a schematic cross-sectional view taken along the line A-A in FIG. 3.

[0065] (Slide Base Part)

[0066] As shown in FIG. 3 to FIG. 5, the slide base part 10 includes a slide base part body 10a, a guide-rail portion 11, a housing portion 12, a holding portion 13, a housing space 14, a first stopper 15, and a screw hole 16. Although there is no particular limitation on the material forming the slide base part 10, for example, a PC+ABS resin (polycarbonate/acrylonitrile/butadiene/styrene mixture) or the like can be employed. The slide base part 10 is an example of the “base part” in the claims.

[0067] The slide base part body 10a is formed in a flat plate shape curved to the front. As shown in FIG. 2, the slide base part body 10a includes a plurality of notches 101a opened to the front. A width D1 of the slide base part body 10a in the X-axis direction is not particularly limited, but is, for example, several tens to several hundred millimeters. The guide-rail portion 11, the housing portion 12, the holding portion 13, the housing space 14, the first stopper 15, and the screw hole 16 in this embodiment are provided integrally with the slide base part body 10a.

[0068] The guide-rail portion 11 includes a pair of columnar bodies having the longitudinal direction in the Y-axis direction and facing each other in the X-axis direction. The guide-rail portion 11 is located on the inside of the elastic member 30. The guide-rail portion 11 protrudes in the upward direction, and supports the slider 20 (first and second sliding portions 23 and 24). As a result, the guide-rail portion 11 has a function of guiding the slider 20 to move (slide) along the Y-axis direction. The guide-rail portion 11 is an example of the “regulating portion” in the claims.

[0069] The housing portion 12 is provided between a plate-like portion 13b and the guide-rail portion 11 and is a rectangular recessed portion that takes the longitudinal direction in the Y-axis direction. The housing portion 12 abuts the entire main surface of the elastic member 30 in the downward direction. As shown in FIG. 4, the housing portion 12 houses the end of the elastic member 30 in the downward direction.

[0070] As shown in FIG. 3 and FIG. 4, the holding portion 13 partially surrounds the housing portion 12. The holding portion 13 includes a U-shaped portion 13a and the plate-like portion 13b. The U-shaped portion 13a is opened to the rear and abuts the front end surface of the elastic member 30. The plate-like portion 13b is provided integrally with the U-shaped portion 13a, and abuts the main surface of the elastic member 30 in the right direction or the left direction.

[0071] Here, as shown in FIG. 4, the plate-like portion 13b is provided integrally with a plurality of reinforcing ribs 13R. The plurality of reinforcing ribs 13R is provided at predetermined intervals in the Y-axis direction, and connects the plate-like portion 13b and the slide base part body 10a to each other. With this configuration, the holding portion 13 is capable of positioning the elastic member 30 to which a weight is applied from the slider 20 in the X-axis direction at a predetermined position in the housing portion 12, and a drag on the weight is applied from the elastic member 30 to the slider 20.

[0072] The housing space 14 a rectangular space including the pair of guide-rail portions 11 and the first stopper 15. As shown in FIG. 5, the housing space 14 houses the end in the downward direction of a first sliding portion 23 located in the right direction from the guide-rail portions 11, the end in the downward direction of a second sliding portion 24 located in the left direction from the guide-rail portions 11, and a second stopper 25 of the slider 20.

[0073] The first stopper 15 is formed in a plate shape that takes the longitudinal direction in the X-axis direction, and faces the front end surfaces of the first and second sliding portions 23 and 24 in the Y-axis direction. As a result, the first stopper 15 abuts the front end surfaces of the first and second sliding portions 23 and 24 at the stopping position of the slider 20 (see Part (b) of FIG. 13), and functions as a stopper that regulates movement of the slider 20 in the Y-axis direction.

[0074] As shown in FIG. 3, a plurality of screw holes 16 is provided in the slide base part body 10a on the outside of the elastic member 30. A screw (not shown) to be screwed to the mounting part 2 is inserted through the screw hole 16. In this embodiment, a screw (not shown) is inserted through the screw hole 16 and screwed to the mounting part 2, thereby fastening the mounting part 2 and the slide base part 10 (slide base part body 10a).

[0075] (Slider)

[0076] As shown in FIG. 2 to FIG. 4, the slider 20 is located on the inside of the elastic member 30 and includes a connecting portion 22, the first and second sliding portions 23 and 24, and the second stopper 25. A width D2 of the slider 20 in the X-axis direction and a width D3 in the Y-axis direction are not particularly limited. For example, the width D2 may be on the order of tens to hundreds of millimeters, and the width D3 may be on the order of tens of millimeters. The slider 20 is an example of the “movable part” in the claims.

[0077] Further, although there is no particular limitation on the material forming the slider 20, for example, a polyacetal resin or the like can be employed. Alternatively, the slider 20 may be formed of a metallic material or the like.

[0078] The connecting portion 22 extends in the X-axis direction, and is formed in an L-shape protruding in the upward direction than the first and second sliding portions 23 and 24. In this embodiment, the display unit 3 is attached to the connecting portion 22, whereby the display unit 3 and the slide base part 10 are connected to each other via the slider 20.

[0079] The first and second sliding portions 23 and 24 face each other at a predetermined interval in the X-axis direction, and are supported by the connecting portion 22. Further, the first and second sliding portions 23 and 24 respectively include recessed portions 23a and 24a that lie across the guide-rail portion 11 and are opened in the downward direction. The recessed portions 23a and 24a abut the end surface in the upward direction of the guide-rail portion 11. As a result, the first and second sliding portions 23 and 24 are supported by the guide-rail portion 11.

[0080] As shown in FIG. 3, each of the first and second sliding portions 23 and 24 includes a plurality of screw holes 20H. In this embodiment, a screw (not shown) is inserted through the display unit 3 attached to the connecting portion 22 and screwed to the screw hole 20H, thereby fastening the slider 20 and the display unit 3.

[0081] As shown in FIG. 2 to FIG. 5, each of the first and second sliding portions 23 and 24 includes a protruding portion 21. As shown in the figures, the protruding portion 21 protrudes toward the outside, and is latched onto the side surface in the right or left direction of the elastic member 30. A pair of protruding portions 21 is provided in the slider 20, and faces each other in the X-axis direction via the first and second sliding portions 23 and 24. A width D5 of the protruding portion 21 in the X-axis direction is not particularly limited, but is, for example, approximately several millimeters.

[0082] As shown in FIG. 5, the protruding portion 21 according to this embodiment is latched onto the side surface of the elastic member 30 in the X-axis direction. At this time, a biting width D4 of the protruding portion 21 with respect to the elastic member 30 is not particularly limited, but is typically approximately several millimeters. The protruding portion 21 is an example of the “latching portion” in the claims.

[0083] Further, the protruding portions 21 are provided integrally with the first and second sliding portions 23 and 24, and are typically formed of the same material as those of the first and second sliding portions 23 and 24. However, the present technology is not limited thereto, and the protruding portions 21 may be formed of different materials. Further, the shapes and numbers of the protruding portions 21 are not particularly limited, and various forms can be taken. Variations of the protruding portion 21 will be described below.

[0084] Regarding Protruding Portion

[0085] FIG. 6 to FIG. 10 are each a diagram showing variations of the protruding portion 21, FIG. 6 is a top view of the slider 20, and FIG. 7 to FIG. 10 are each a perspective view. Further, Part (b) of FIG. 7 is a cross-sectional view taken along the line B-B in Part (a) of FIG. 7, and Part (c) of FIG. 7 is a cross-sectional view taken along the line C-C in Part (a) of FIG. 7. Further, Part (b) of FIG. 8 is a cross-sectional view taken along the line D-D of FIG. 8, and Part (c) of FIG. 8 is a cross-sectional view taken along the line E-E in Part (a) of FIG. 8. In addition, Part (b) of FIG. 9 is a cross-sectional view taken along the line F-F in Part (a) of FIG. 9, and Part (c) of FIG. 9 is a cross-sectional view taken along the line G-G in Part (a) of FIG. 9. Further, Part (a) of FIG. 10 is an enlarged perspective view of the protruding portion 21, and Part (b) of FIG. 10 is a cross-sectional view taken along the line H-H in Part (a) of FIG. 10.

[0086] The protruding portion 21 according to this embodiment may have a triangular shape as shown in Part (a) of FIG. 6. In this case, it is favorable that an inclination angle .theta. of an inclined surface 21a of the protruding portion 21 (the angle between the inclined surface 21a and the longitudinal direction of the slider 20 be 40 degrees or more and 65 degrees or less.

[0087] Further, as shown in Part (b) of FIG. 6, the shape of the protruding portion 21 may be a semicircular shape. In this embodiment, the shapes of the pair of protruding portions 21 are typically the same. However, the present technology is not limited thereto, and the pair of protruding portions 21 may have different shapes.

[0088] Further, as shown in Part (c) of FIG. 6, a plurality of the protruding portions 21 may be provided in each of the first and second sliding portions 23 and 24. In this case, the number of protruding portions 21 provided in the first sliding portion 23 and the number of protruding portions 21 provided in the second sliding portion 24 may be the same or different from each other.

[0089] As shown in FIG. 7, the protruding portion 21 may have a substantially pentagonal cross-section along the YX plane (Part (b) of FIG. 7) and a substantially rectangular cross-section along the ZX plane (Part (c) of FIG. 7). This configuration improves the sliding property when the protruding portion 21 slides while biting into the elastic member 30 (sliding surface 30s).

[0090] Further, as shown in FIG. 8, the protruding portion 21 may have a substantially pentagonal cross-section along the YX plane (Part (b) of FIG. 8) and a substantially pentagonal cross-section along the ZX plane (Part (c) of FIG. 8). With this configuration, the biting quantity when the protruding portion 21 bites into the elastic member 30 increases, and the rattling in the Z-axis direction is suppressed.

[0091] Further, as shown in Part (c) of FIG. 9, the protruding portion 21 may be configured such that a width D7 in the Z-axis direction is larger than a width D6 in the Z-axis direction of the elastic member 30. With this configuration, the abutment surface of the protruding portion 21 that abuts the elastic member 30 is limited to two surfaces, and the protruding portion 21 is prevented from biting into the elastic member 30 more than required. As a result, degradation of the elastic member 30 is suppressed.

[0092] In addition, as shown in FIG. 10, the protruding portion 21 may be configured such that ribs 21R are provided on an abutment surface 21b that abuts the elastic member 30. With this configuration, the protruding portion 21 is easily caught by the elastic member 30, and rattling in the Z-axis direction is suppressed.

[0093] The second stopper 25 is formed in a flat plate shape having the longitudinal direction in the X-axis direction and a predetermined thickness in the Y-axis direction. The second stopper 25 protrudes in the downward direction than the first and second sliding portions 23 and 24 and are integrally provided with the connecting portion 22. The second stopper 25 abuts a flat plate portion B1 on the side of the mounting part 2 housed in the housing space 14 at the stopping portion (see Part (b) of FIG. 13) of the slider 20.

[0094] (Elastic Member)

[0095] The elastic member 30 is a rectangular column having the longitudinal direction in the Y-axis direction, and is disposed in the housing portion 12. At this time, the elastic member 30 is held in the housing portion 12 by the holding portion 13 while being pressed in the X-axis direction by the protruding portion 21. This maintains the elastic member 30 constantly urged by the protruding portion 21. A pair of elastic members 30 is provided in the slide base part 10, and faces each other in the X-axis direction via the slider 20.

[0096] The shape of the elastic member 30 is typically a rectangular column, but is not limited thereto. For example, the shape of the elastic member 30 may be any shape such as a cylindrical, an elliptical column, and a triangular column.

[0097] FIG. 11 and FIG. 12 are each a perspective view showing a configuration example of the elastic member 30. There is no particular limitation on the material forming the elastic member 30. There is no limitation on the type of the material, and silicon rubber or the like may be used. That is, the elastic member 30 itself may be formed of a single material (Part (b) of FIG. 11). In this case, it is favorable that the material has a dynamic friction coefficient of 0.5 or less between the protruding portion 21 and the elastic member 30, and more favorably, the material has a dynamic friction coefficient of 0.3 or less. Further, the hardness of the elastic member 30 is favorably a durometer hardness A of approximately 30 degrees, for example.

[0098] Further, the elastic member 30 may be configured such that a film F is crimped on the surface to be pressed against the protruding portion 21 (Part (a) of FIG. 11). In this case, the film F is not particularly limited, but is, for example, a film formed of Teflon (registered trademark) or silicon. Alternatively, the elastic member 30 may be configured such that fluorine coating or silicon coating is applied to the surface to be pressed against the protruding portion 21.

[0099] Further, the elastic member 30 may be configured such that the width in the X-axis direction differs in part (Part (b) of FIG. 12). In this case, there may be a plurality of portions 30c (second elastic portions) having different widths in the X-axis direction, or the widths in the X-axis direction may be changed at a constant gradient.

[0100] In addition, the elastic member 30 may be configured to include a high-hardness member 30a (second elastic portion) and a low-hardness member 30b (first elastic portion). In this case, the high-hardness member 30a is formed of, for example, silicon having a durometer hardness A of approximately 50 degrees, and the low-hardness member 30b is formed of, for example, silicon having a durometer hardness A of approximately 30 degrees. The elastic member 30 including the high-hardness member 30a and the low-hardness member 30b is produced by, for example, two-color molding. Note that the elastic member 30 may be configured to include at least one or more of the high-hardness member 30a or the low-hardness member 30b.

[0101] [Operation of Drive Mechanism]

[0102] Next, the operation of the drive mechanism 100 according to this embodiment will be described. FIG. 13 is a diagram showing the operation of the drive mechanism 100, and FIG. 14 is a graph showing the relationship between the sliding weight (weight applied to the slider 20) and the displacement in the drive mechanism 100. Further, FIG. 15 is a graph showing the relationship between the sliding weight and the sliding velocity in the drive mechanism 100. Here, prior to describing the operation of the drive mechanism 100 in detail, some examples of the existing drive mechanism will be described. Note that FIG. 16 is a schematic diagram schematically showing a configuration example of the existing drive mechanism.

EXISTING EXAMPLE 1

[0103] Part (a) of FIG. 16 is a schematic diagram schematically showing a position adjusting mechanism, which is an example of the existing drive mechanism. As shown in the figure, the position adjusting mechanism is configured such that the position thereof is adjusted by a click peak (projecting and recessed portion) C and a click spring P. In this case, the position adjustment can be made by simply applying a sliding weight to a movable part M, but the position adjustment is not stepless but is multi-step adjustment depending on the pitch of the click peak C. As a result, the relative position of the movable part M relative to a base part B cannot be a position desired by a user.

EXISTING EXAMPLE 2

[0104] Part (b) of FIG. 16 is a schematic diagram schematically showing a screw feeding mechanism that is an example of the existing drive mechanism. The screw feeding mechanism is a complicated mechanism because it is configured to convert the rotational motion of the movable part M into linear motion. In addition, since the movable part M is slid in the axial direction by the rotational movement about the sliding direction of the movable part M, it is difficult to intuitively adjust the position of the movable part M.

EXISTING EXAMPLE 3

[0105] Part (c) of FIG. 16 is a schematic diagram schematically showing a slide mechanism that is an example of the existing drive mechanism, and FIG. 17 is a graph showing the relationship between the sliding weight and the displacement of the slide mechanism. The slide mechanism is configured such that a weight for deforming an elastic member O such as a spring and an O-ring is applied to the movable part M to generate a sliding resistance between the movable part M and the elastic member O. In this case, the movable part M can be adjusted steplessly by only applying a simple sliding weight. Since the sliding resistance is only frictional force (friction coefficient x perpendicular drag from the elastic member O, etc.) and the dynamic friction coefficient is smaller than the static friction coefficient, an activation weight F.sub.0 is larger than a motion weight F.sub.1. As a result, it becomes difficult to immediately stop the movable part M that has started to move, and make fine adjustment in adjusting the position of the movable part M.

EXISTING EXAMPLE 4

[0106] FIG. 18 is a graph showing the relationship between the sliding weight and the sliding velocity of a viscous damper, which is an example of the existing drive mechanism. While the viscous damper generates resistance by oil movement and is capable of exerting a large drag on a movable part (piston, etc.) when sliding, the weight applied to the movable part is 0 at rest, i.e., when the sliding velocity is 0, as shown in FIG. 18. Therefore, the movable part cannot be held at a position desired by a user.

[0107] In contrast to the existing drive mechanism described above, in the drive mechanism 100 according to this embodiment, when the slider 20 is subjected to external force in the Y-axis direction, the first and second sliding portions 23 and 24 supported by the guide-rail portion 11 slide on the guide-rail portion 11 steplessly along the Y-axis direction as shown in FIG. 13. At this time, since the protruding portion 21 of the slider 20 bites into the elastic member 30, the slider 20 moves along the Y-axis direction while constantly causing the protruding portion 21 to bite into the sliding surface 30s.

[0108] As a result, the slider 20 moves while constantly receiving the drag acting inward from the elastic member 30, and in particular, the drag applied to the inclined surface 21a at the time of moving becomes overwhelmingly large. Therefore, the activation weight F.sub.0 applied to the slider 20 when the slider 20 is activated and the motion weight F.sub.1 applied to the slider 20 when the slider 20 is caused to move can be made similar or equal to each other (see FIG. 14), so that the position of the slider 20 can be finely adjusted.

[0109] Further, in the drive mechanism 100 according to this embodiment, since the slider 20 constantly receives the drag acting inward from the elastic member 30, a constant holding weight F.sub.2 is applied to the slider 20 even when the slider 20 is at rest (see FIG. 15). As a result, the relative position of the slider 20 relative to the slide base part 10 can be a position desired by a user, and the slider 20 is held at a position desired by the user.

[0110] As a result, in the drive mechanism 100 according to this embodiment, the relative position of the display unit 3 relative to the mounting part 2 can be steplessly adjusted and the display unit 3 can be held at the adjusted position.

Second Embodiment

[0111] FIG. 19 is a diagram showing a configuration example of a drive mechanism 200 according to a second embodiment of the present technology, Part (a) of FIG. 19 is a perspective view, and Part (b) of FIG. 19 is a top view. The drive mechanism 200 according to the second embodiment is different from the drive mechanism according to the first embodiment in that it is a rotating mechanism.

[0112] The drive mechanism 200 includes a rotation shaft S1, a rotor 220 (movable part), an elastic member 230, and an outer housing member 210 (base part).

[0113] The rotation shaft S1 is a cylindrical shaft extending in the Z-axis direction and is configured to be rotatable around the Z-axis. The rotor 220 is formed in a cylindrical shape and is supported by the rotation shaft S1. As shown in Part (b) of FIG. 19, the rotor 220 includes a plurality of protruding portions 221 (latching portions) protruding radially outward about the Z-axis. The plurality of protruding portions 221 constantly bites into the elastic member 230. As a result, the rotor 220 is supported by the elastic member 230. Although there is no particular limitation on the material forming the rotor 220, for example, a synthetic resin such as plastic or a metallic material can be employed.

[0114] The elastic member 230 is formed in a cylindrical shape and disposed radially outward of the rotor 220, and faces the outer peripheral surface of the rotor 220 radially at a predetermined interval. Although there is no particular limitation on the material forming the elastic member 230, for example, silicone rubber may be employed.

[0115] The outer housing member 210 seals the rotor 220 and the elastic member 230, and includes a first outer housing portion 211 and a second outer housing portion 212. The first outer housing portion 211 houses the rotor 220 and the elastic member 230, and faces the entire outer peripheral surface of the elastic member 230.

[0116] The second outer housing portion 212 is placed on the main surface in the upward direction of the first outer housing portion 211, and covers the main surfaces in the upward direction of the rotor 220 and the elastic member 230. As shown in Part (a) of FIG. 19, the second outer housing portion 212 is inserted through the rotation shaft S1. Although there is no particular limitation on the material forming the outer housing member 210, for example, a synthetic resin such as plastic or a metallic material can be employed.

[0117] Here, in the case where the drive mechanism 200 is a rotating mechanism as shown in FIG. 19, as the rotation shaft S1 rotates around the Z-axis, the rotor 220 also rotates around the Z-axis. At this time, the protruding portion 221 projecting radially outward of the rotor 220 rotates while deforming the inner peripheral surface (sliding surface) of the elastic member 230. As a result, the same operation and effect as those in the above-mentioned first embodiment can be achieved.

Third Embodiment

[0118] FIG. 20 and FIG. 21 are each a diagram showing a configuration example of a drive mechanism 300 according to a third embodiment of the present technology, Part (a) of FIG. 20 is a perspective view, and Part (b) of FIG. 20 is a top view. Further, FIG. 21 is a cross-sectional view taken along the line I-I in Part (b) of FIG. 20.

[0119] The drive mechanism 300 according to the third embodiment is different from the drive mechanism according to the first embodiment in that it is a planar slide mechanism. The drive mechanism 300 includes a movable part 320, an elastic member 330, and an outer housing member 310 (base part).

[0120] The movable part 320 includes a movable part body 321, a shaft portion 323, and a protruding portion 322 (latching portion). The movable part body 321 is formed in a disk shape. The movable part body 321 abuts the main surface in the downward direction of the second outer housing portion 312, and faces the elastic member 330 and the first outer housing portion 311 at predetermined intervals in the downward direction.

[0121] In the drive mechanism 300 according to the third embodiment, a configuration in which the protruding portion 322 bites into the elastic member 330 while the movable part body 321 abuts the second outer casing 312 is adopted. That is, the movement of the movable part body 321 in the upward direction is regulated by the second outer casing 312, so that the elastic member 330 is constantly urged toward the protruding portion 322.

[0122] The shaft portion 323 is provided at the center of the main surface in the upward direction of the movable part body 321, and extends in the upward direction from the main surface. The shaft portion 323 is inserted through a through hole 312a provided in the second outer housing portion 312. The protruding portion 322 is provided coaxially with the shaft portion 323 and protrudes in the downward direction. The protruding portion 322 constantly bite into the elastic member 330.

[0123] The elastic member 330 is a cylinder having the longitudinal direction in the X-axis direction. Although there is no particular limitation on the material forming the elastic member 330, for example, silicone rubber may be employed.

[0124] The outer housing member 310 seals the movable part body 321 and the elastic member 330, and includes the first outer housing portion 311 and the second outer housing portion 312. The first outer housing portion 311 houses the movable part body 321 and the elastic member 330. The second outer housing portion 312 is placed on the first outer housing portion 311 and covers the main surface in the upward direction of the movable part body 321. As shown in FIG. 21, the second outer housing portion 312 is inserted through the shaft portion 323.

[0125] Although there is no particular limitation on the material forming the outer housing member 310, for example, a synthetic resin such as plastic or a metallic material can be employed.

[0126] Here, in the case where the drive mechanism 300 is a planar slide mechanism as shown in FIG. 21 and FIG. 22, as the movable part body 321 moves along the XY plane (direction perpendicular to the protruding direction of the protruding portion 322), the protruding portion 322 of the movable part 320, which protrudes in the downward direction, slides while deforming the main surface in the upward direction (sliding surface) of the elastic member 330. As a result, the same operation and effect as those in the above-mentioned first embodiment can be achieved.

MODIFIED EXAMPLE

[0127] It is needless to say that the present technology is not limited to the above-mentioned embodiments, and various modifications can be made.

[0128] FIG. 22 to FIG. 30 are each a diagram showing a configuration example of each of drive mechanisms 400, 500, and 600 according to modified examples of the present technology, FIG. 22, FIG. 25, and FIG. 28 are each an exploded perspective view, and FIG. 23, FIG. 26, and FIG. 29 are each a perspective view. Further, Part (a) of FIG. 24 is a cross-sectional view taken along the line J-J in FIG. 23, and Part (b) of FIG. 24 is a cross-sectional view taken along the line K-K in FIG. 23. Further, Part (a) of FIG. 27 is a cross-sectional view taken along the line L-L in FIG. 26, and Part (b) of FIG. 27 is a cross-sectional view taken along the line M-M in FIG. 26. In addition, FIG. 30 is a cross-sectional view taken along the line N-N in FIG. 29.

[0129] In the above-mentioned embodiments, the drive mechanism is a slide adjusting mechanism, a rotating mechanism, or a planar slide mechanism, but the present technology is not limited thereto. For example, the drive mechanism according to the present technology may be a rotating mechanism as shown in FIG. 22 to FIG. 24. In this case, a first cylindrical portion 420 (movable part) rotates relative to a first cylindrical portion 410 (base part) while a protruding portion 421 (latching portion) deforms an elastic member 430 housed in a housing portion 412.

[0130] Alternatively, the adjusting mechanism according to the present technology may be a slide mechanism as shown in FIG. 25 to FIG. 27. In this case, a first cylindrical portion 520 (movable part) moves relative to a first cylindrical portion 510 (base part) while a protruding portion 521 (latching portion) deforms an elastic member 530 housed in a housing portion 512.

[0131] Alternatively, the drive mechanism according to the present technology may be a ball joint lever as shown in FIG. 28 to FIG. 30. In this case, a movable part 620 rotates about the Z-axis relative to a casing 610 (base part) while a protruding portion 622 (latching portion) deforms an elastic member 630.

[0132] In addition, in the above-mentioned embodiment, although a movable part is configured to be movable relative to a base part, the present technology is not limited thereto, and the base part may be configured to be movable relative to the movable part.

[0133]

[0134] In addition, although the drive mechanism according to the present technology has been described on the assumption that it is typically applied to HMDs, the present technology is not limited thereto. For example, the drive mechanism may be applied to a clock band, a headband, a camera barrel, an eyewear other than HMDs, a torque hinge, a rotary knob, or the like, and its application is not particularly limited.

[0135] In addition, the effects described herein are illustrative or exemplary only and not restrictive. In other words, the present technology may have other effects apparent to those skilled in the art from the description herein together with the above-mentioned effects or in place of the above-mentioned effects.

[0136] While favorable embodiments of the present technology have been described in detail with reference to the accompanying drawings, the present technology is not limited to such examples. It will be apparent to those skilled in the art in the technological field of the present technology that various changes or modifications may be made within the scope of the technological ideas set forth in the appended claims, which are of course understood to fall within the technological scope of the present technology.

[0137] It should be noted that the present technology may also take the following configurations.

[0138] (1)

[0139] A drive mechanism, including:

[0140] a base part;

[0141] an elastic member that is provided in the base part; and

[0142] a movable part that includes a latching portion that is latched onto the elastic member and is movable relative to the base part.

[0143] (2)

[0144] The drive mechanism according to (1) above, in which

[0145] the latching portion is a protrusion that protrudes toward the elastic member and deforms the elastic member.

[0146] (3)

[0147] The drive mechanism according to (1) or (2) above, in which

[0148] the latching portion has an abutment surface that abuts the elastic member, and

[0149] the abutment surface includes a rib that bites into the elastic member.

[0150] (4)

[0151] The drive mechanism according to any one of (1) to (3) above, in which

[0152] the latching portion has at least one of a triangular shape or a semicircular shape.

[0153] (5)

[0154] The drive mechanism according to any one of (1) to (4) above, in which

[0155] the movable part includes a plurality of the latching portions.

[0156] (6)

[0157] The drive mechanism according to any one of (1) to (5) above, in which

[0158] the elastic member includes a first elastic portion and a second elastic portion having a hardness higher than that of the first elastic portion.

[0159] (7)

[0160] The drive mechanism according to any one of (1) to (6) above, in which

[0161] the elastic member includes a first elastic portion and a second elastic portion having a width of the latching portion in a protruding direction larger than that of the first elastic portion.

[0162] (8)

[0163] The drive mechanism according to any one of (1) to (7) above, in which

[0164] the elastic member is formed in a columnar shape and has a sliding surface abutting the latching portion, and

[0165] the latching portion causes the sliding surface to slide along a longitudinal direction of the elastic member.

[0166] (9)

[0167] The drive mechanism according to (8) above, in which

[0168] the base part includes a holding portion that holds a pair of elastic members facing each other along a protruding direction of the latching portion, and

[0169] the movable part is configured to be slidable on the base part while causing the latching portion to bite into the sliding surface along the longitudinal direction between one elastic member of the pair of elastic members and the other elastic member.

[0170] (10)

[0171] The drive mechanism according to (8) or (9) above, in which

[0172] the base part includes a regulating portion that regulates sliding of the movable part along the longitudinal direction.

[0173] (11)

[0174] The drive mechanism according to any one of (1) to (7) above, in which

[0175] the drive mechanism is a rotating mechanism in which the movable part is configured to be rotatable relative to the base part.

[0176] (12)

[0177] The drive mechanism according to any one of (1) to (7) above, in which

[0178] the drive mechanism is a slide mechanism in which the movable part is configured to be movable relative to the base part along a direction perpendicular to a protruding direction of the latching portion.

[0179] (13)

[0180] A head-mounted display, including:

[0181] a display unit;

[0182] a mounting part that is to be mounted on a head of a user; and

[0183] a drive mechanism that includes [0184] a base part that is provided in the mounting part, [0185] an elastic member that is provided in the base part, and [0186] a movable part that connects the base part and the display unit to each other and includes a latching portion, the latching portion being latched onto the elastic member and being configured to be movable relative to the base part.

REFERENE SIGNS LIST

[0187] 10 slide base part (base part)

[0188] 20 slider (movable part)

[0189] 21 protruding portion (latching portion)

[0190] 30 elastic member

[0191] 100, 200, 300, 400, 500, 600 drive mechanism

本文链接：https://patent.nweon.com/21921

您可能还喜欢...
