Patent: Polarization sensitive beam splitter

Drawings: Click to check drawins

Publication Number: 20220035158

Publication Date: 20220203

Applicant: Facebook

Abstract

An optical device includes a first polarization selective reflector; a second polarization selective reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs first light having a first nonplanar polarization toward the second polarization selective reflector and the second polarization selective reflector directs at least a portion of the first light toward the first polarization selective reflector as second light. The optical device includes a first reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs at least a portion of the second light having a second nonplanar polarization toward the first reflector as third light.

Claims

1. An optical device, comprising: a first polarization selective reflector positioned in a first orientation to: receive first light in a first direction; redirect a first portion, of the first light, having a first polarization to a second direction that is non-parallel to the first direction; and receive second light in a third direction and transmits at least a first portion, of the second light, having a second polarization orthogonal to the first polarization; a second polarization selective reflector positioned in a second orientation non-parallel to the first orientation to: receive third light in a fourth direction; redirect a first portion, of the third light, having the first polarization to a fifth direction that is non-parallel to the fourth direction; and receive fourth light in a sixth direction and transmits at least a first portion of the fourth light having the second polarization; and a third reflector positioned to receive from the second polarization selective reflector a second portion of the first light having the second polarization, transmitted by the first polarization selective reflector and the second polarization selective reflector, and redirect the second portion of the first light back to the second polarization selective reflector as the third light.

2. The optical device of claim 1, wherein: the first polarization selective reflector is configured to transmit the second portion, of the first light, having the second polarization toward the second polarization selective reflector; and the second polarization selective reflector is configured to receive, and transmit, the second portion of the first light having the second polarization toward the third reflector.

3. The optical device of claim 1, further comprising: a reflective spatial light modulator positioned to: receive, on a first region of the reflective spatial light modulator, the first portion of the first light from the first polarization selective reflector and reflect at least a portion of the first portion of the first light as the second light in the third direction toward the first polarization selective reflector; and receive, on a second region adjacent to the first region of the reflective spatial light modulator, the first portion of the third light from the second polarization selective reflector and reflect at least a portion of the first portion of the third light as the fourth light in the sixth direction toward the second polarization selective reflector.

4. The optical device of claim 3, wherein: the reflective spatial light modulator includes a reflective surface and a plurality of pixels, a respective pixel in the plurality of pixels having respective modulating elements; and reflecting the first portion of the first light as the second light and reflecting the first portion of the third light as the fourth light includes modulating, by the respective modulating elements, polarization of the first portion of the first light and the first portion of the third light.

5. The optical device of claim 3, wherein the reflective spatial light modulator includes a Liquid Crystal on Silicon (LCoS) display.

6. The optical device of claim 1, further comprising a waveplate disposed between the third reflector and the second polarization selective reflector.

7. The optical device of claim 1, further comprising: a light source configured to output light having the first polarization.

8. The optical device of claim 7, further comprising a Fresnel reflector optically coupled with the first polarization selective reflector, the Fresnel reflector configured to: receive the light output by the light source; and redirect the light toward the first polarization selective reflector as the first light.

9. The optical device of claim 7, further comprising a collimating lens for collimating the light from the light source.

10. The optical device of claim 1, wherein: the first polarization selective reflector is configured to reflect a second portion, of the second light, having the first polarization in a seventh direction distinct from the third direction; and the second polarization selective reflector is configured to reflect a second portion, of the fourth light, having the first polarization, in an eighth direction distinct from the sixth direction.

11. An optical device, comprising: a first reflector; a first polarization selective reflector; and a second polarization selective reflector, wherein: the first polarization selective reflector is positioned between the first reflector and the second polarization selective reflector and is oriented non-parallelly to the first reflector and the second polarization selective reflector; the second polarization selective reflector is positioned to receive first light from the first polarization selective reflector and redirect at least a portion of the first light toward the first polarization selective reflector as second light; and the first reflector is positioned to receive at least a portion of the second light from the first polarization selective reflector and redirect the at least a portion of the second light toward the first polarization selective reflector.

12. The optical device of claim 11, wherein the first light has a first nonplanar polarization and the at least a portion of the second light redirected toward the first polarization selective reflector includes a second nonplanar polarization that is distinct from the first nonplanar polarization.

13. The optical device of claim 11, wherein the first polarization selective reflector is a liquid crystal based polarization selective element.

14. The optical device of claim 13, wherein the liquid crystal based polarization selective element comprises a polarization volume hologram.

15. The optical device of claim 13, wherein the liquid crystal based polarization selective element comprises cholesteric liquid crystals.

16. The optical device of claim 11, further comprising: a first reflective assembly positioned relative to the first polarization selective reflector so that the first polarization selective reflector receives first imaging light from a spatial light modulator and directs at least a portion of the first imaging light having a third nonplanar polarization toward the first reflective assembly as second imaging light, and the first reflective assembly receives the second imaging light from the first polarization selective reflector and directs at least a portion of the second imaging light toward the first polarization selective reflector as third imaging light having a fourth nonplanar polarization, wherein the third nonplanar polarization is distinct from the fourth nonplanar polarization.

17. The optical device of claim 11, wherein the second polarization selective reflector is positioned in a first orientation that is substantially parallel to a plane that perpendicularly intersects an optical axis of the first reflector, and the second polarization selective reflector is configured to reflect light having a polarization different from a polarization of light reflected by the first polarization selective reflector.

18. The optical device of claim 11, wherein a first plane defined by the first polarization selective reflector intersects, at a first acute angle, with a second plane defined by the second polarization selective reflector, and intersects, at a second acute angle, with a third plane defined by the first reflector.

19. The optical device of claim 11, wherein the first reflector defines a first opening so that the first light received by the first polarization selective reflector has passed through the first opening.

20. An illumination system, comprising: the optical device of claim 11; a light source; a homogenizing device configured to condition light from the light source as output light; and a diverting optic positioned to direct the output light into the optical device through the first opening.

Description

RELATED APPLICATIONS

[0001] This application is a continuation application of U.S. patent application Ser. No. 16/874,134, filed May 14, 2020, which claims the benefit of, and priority to, U.S. Provisional Patent Application No. 62/850,473, filed May 20, 2019, both of which are incorporated by reference herein in their entireties. This application is related to U.S. patent application Ser. No. 16/874,099, entitled “Split Prism Illuminator For Spatial Light Modulator,” filed May 14, 2020, U.S. patent application Ser. No. 16/874,115, entitled “Compact Spatial Light Modulator Projection System,” filed May 14, 2020, U.S. patent application Ser. No. 16/874,259, entitled “Compact Spatial Light Modulator Illumination System,” filed May 14, 2020, and U.S. patent application Ser. No. 16/874,265, entitled “Polarizing Beam Splitter Assembly,” filed May 14, 2020. All of these applications are incorporated by reference herein in their entireties.

TECHNICAL FIELD

[0002] This relates generally to head-mounted display devices, and more specifically to optical components used in head-mounted display devices.

BACKGROUND

[0003] Head-mounted display devices (also called herein head-mounted displays) are gaining popularity as means for providing visual information to users.

[0004] However, the size and weight of conventional head-mounted display device have limited application of head-mounted display devices.

SUMMARY

[0005] Accordingly, there is a need for head-mounted display devices that are more compact and lightweight. Compact head-mounted display devices would also improve user satisfaction with such devices.

[0006] The deficiencies and other problems are reduced or eliminated by the disclosed devices, systems, and methods.

[0007] In accordance with some embodiments, an optical device includes a first polarization selective reflector positioned in a first orientation so that the first polarization selective reflector receives first light in a first direction, redirects a first portion, of the first light, having a first polarization to a second direction that is non-parallel to the first direction; and receives second light in a third direction and transmit a first portion, of the second light, having a second polarization orthogonal to the first polarization. The optical device includes a second polarization selective reflector positioned in a second orientation non-parallel to the first orientation, and adjacent to the first polarization selective reflector so that the second polarization selective reflector receives third light in a fourth direction; redirects a first portion, of the third light, having the first polarization to a fifth direction that is non-parallel to the fourth direction; and receives fourth light in a sixth direction and transmit a first portion, of the fourth light having the second polarization.

[0008] In some embodiments, the second direction is orthogonal to the first direction and the fifth direction is orthogonal to the third direction.

[0009] In some embodiments, the first polarization selective reflector is further configured to transmit a second portion, of the first light, having the second polarization; and the second polarization selective reflector is further configured to receive, and transmit, the second portion, of the first light having the second polarization.

[0010] In some embodiments, the optical device further includes a third reflector configured to receive from the second polarization selective reflector the second portion of the first light, and redirect the second portion of the first light back to the second polarization selective reflector as the second light.

[0011] In some embodiments, the optical device further includes a light source configured to output the first light having the first polarization.

[0012] In some embodiments, the optical device further includes an optical integrator configured receive the first light and redirect the first light such that the first light transmitted by the optical integrator has a smaller divergence than the first light incident on the optical integrator. In some embodiments, the optical device further includes a Fresnel reflector optically coupled with the first polarization selective reflector, the Fresnel reflector configured to receive the first light output by the light source and redirect the first light toward the first polarization selective reflector. In some embodiments, the Fresnel reflector is configured to expand a beam size of the first light.

[0013] In some embodiments, the optical device further includes a waveplate disposed between the third reflector and the second polarization selective reflector. In some embodiments, the waveplate is configured to convert linearly polarized light to circularly polarized light and to convert circularly polarized light to linearly polarized light (e.g., a quarter-wave plate).

[0014] In some embodiments, the first polarization selective reflector is further configured to reflect a second portion, of the second light, having the first polarization in a seventh direction distinct from the third direction; and the second polarization selective reflector is further configured to reflect a second portion, of the fourth light, having the first polarization, in an eighth direction distinct from the sixth direction.

[0015] In some embodiments, the optical device further includes a reflective spatial light modulator optically coupled with the first polarization selective reflector and the second polarization selective reflector, the reflective spatial light modulator configured to: receive, on a first region of the reflective spatial light modulator, the first portion of the first light having the first polarization and reflect the first portion of the first light as the second light. The reflective spatial light modulator is also configured to receive, on a second region adjacent to the first region of the reflective spatial light modulator, the first portion of the third light having the first polarization and reflect the first portion of the third light as the fourth light.

[0016] In some embodiments, the reflective spatial light modulator includes a reflective surface and a plurality of pixels, a respective pixel in the plurality of pixels having respective modulating elements. In some embodiments, reflecting the first portion of the first light as the second light and reflecting the first portion of the third light as the fourth light includes modulating, by the respective modulating elements, polarization of the first portion of the first light and the first portion of the third light.

[0017] In some embodiments, the reflective spatial light modulator is a Liquid Crystal on Silicon (LCoS) display.

[0018] In some embodiments, the first polarization selective reflector in the first orientation and the second polarization selective reflector in the second orientation define an angle that is approximately 90 degrees. In some embodiments, the angle is more or less than 90 degrees. The first polarization selective reflector and the second polarization selective reflector are coupled to each other.

[0019] In some embodiments, the optical device further includes a prism defining a first facet and a second facet. The first polarization selective reflector is disposed on the first facet and the second polarization selective reflector is disposed on the second facet. In some embodiments, the first polarization selective reflector and the second polarization selective reflector are selected from the group consisting of: a wire grid polarizer, a birefringent optical film reflective polarizer, a cholesteric reflective polarizer, and a MacNeille polarizer.

[0020] In some embodiments, the optical device further includes a first light source configured to output the first light having the first polarization; and a second light source configured to output the third light having the first polarization.

[0021] In some embodiments, the optical device further includes a first Fresnel reflector optically coupled with the first polarization selective reflector configured to receive the first light output by the first light source; and redirect the first light toward the first polarization selective reflector in the first direction. The optical device further includes a second Fresnel reflector optically coupled with the second polarization selective reflector configured to receive the third light output by the second light source and redirect the third light toward the second polarization selective reflector in the fourth direction.

[0022] In some embodiments, the fourth direction is substantially parallel to the first direction. In some embodiments, the fifth direction is substantially parallel to the second direction. In some embodiments, the fifth direction is non-parallel to the second direction.

[0023] In accordance with some embodiments, a method includes, with a first polarization selective reflector positioned in a first orientation, receiving first light in a first direction; redirecting a first portion, of the first light, having a first polarization to a second direction that is non-parallel to the first direction. The method includes receiving second light in a third direction, transmit a first portion, of the second light having a second polarization orthogonal to the first polarization. The method also includes, with a second polarization selective reflector positioned in a second orientation non-parallel to the first orientation, and adjacent to the first polarization selective reflector, receiving third light in a fourth direction; redirecting a first portion, of the third light, having the first polarization to a fifth direction that is non-parallel to the fourth direction; and receiving fourth light in a sixth direction, transmit a first portion, of the fourth light having the second polarization.

[0024] In accordance with some embodiments, a method of making an optical assembly includes placing a first polarization selective reflector in a first orientation; and placing a second polarization selective reflector in a second orientation non-parallel, and adjacent, to the first orientation. In some embodiments, the optical assembly includes a polarization beam splitter.

[0025] In accordance with some embodiments, an optical device includes a first polarization selective reflector, a second polarization selective reflector; and a third reflector. The first polarization selective reflector is configured to receive first light and redirect a first portion, of the first light, having a first polarization and transmit a second portion, of the first light, having a second polarization orthogonal to the first polarization. The second polarization selective reflector is configured to receive from the first polarization selective reflector, and transmit to the third reflector, the second portion of the first light. The third reflector is configured to receive from the second polarization selective reflector, and redirect back to the second polarization selective reflector, the second portion of the first light; and the second polarization selective reflector is further configured to receive light from the third reflector and redirect at least a portion of light, the redirected portion having the first polarization.

[0026] In accordance with some embodiments, an optical device includes a first polarization selective reflector positioned relative to a spatial light modulator; and a first reflective assembly positioned relative to the first polarization selective reflector so that the first polarization selective reflector receives first light from the spatial light modulator and directs at least a portion of the first light having a first polarization toward the first reflective assembly as second light. The first reflective assembly receives the second light from the first polarization selective reflector and directs at least a portion of the second light toward the first polarization selective reflector as third light having a second polarization. The second polarization is distinct from the first polarization.

[0027] In some embodiments, the spatial light modulator is positioned in a first direction from the first polarization selective reflector, and the first reflective assembly is positioned in a second direction from the first polarization selective reflector. In some embodiments, illumination light enters the optical device in a third direction from the first polarization selective reflector; and a waveguide is positioned in a fourth direction from the first polarization selective reflector. The first direction and the second direction are distinct from each other.

[0028] In some embodiments, the first direction is perpendicular to the third direction; and the second direction is perpendicular to the fourth direction. In some embodiments, the spatial light modulator and the first reflective assembly are located in opposite directions from the first polarization selective reflector. In some embodiments, the second direction is perpendicular to the third direction; and the first direction is perpendicular to the fourth direction. In some embodiments, the waveguide and the first reflective assembly are located in opposite directions from the first polarization selective reflector.

[0029] In some embodiments, the optical device further includes a first reflector. The first reflector defines an opening, and the first reflector is positioned relative to the spatial light modulator so that the spatial light modulator receives light that has (i) passed through the opening of the first reflector and (ii) subsequently reflected off the first reflector. In some embodiments, a second polarization selective reflector is disposed adjacent to the waveguide. The second polarization selective reflector is configured (e.g., by orienting a polarization axis of the second polarization selective reflector) to reflect light having a polarization different (e.g., orthogonal) from a polarization of light reflected by the first polarization selective reflector.

[0030] In some embodiments, the optical device further includes a second polarization selective reflector disposed adjacent to the waveguide. The second polarization selective reflector is configured (e.g., by orienting a polarization axis of the second polarization selective reflector) to reflect light having a polarization identical to a polarization of light reflected by the first polarization selective reflector.

[0031] In some embodiments, a first plane defined by (e.g., containing) the first polarization selective reflector intersects a second plane defined by (e.g., containing) the spatial light modulator at a first acute angle.

[0032] In some embodiments, the first reflective assembly includes a polarization retarder and a reflective lens.

[0033] In some embodiments, a projection of the first polarization selective reflector on a plane defined by the spatial light modulator has a rectangular shape. In some embodiments, a height of the projection is greater than a width of the projection so that a field of view of the spatial light modulator along the height dimension is larger than a field of view along the width dimension.

[0034] In some embodiments, the first polarization selective reflector is at substantially 45-degree angle relative to the plane defined by the spatial light modulator. the optical device comprises a first prism and a second prism.

[0035] In some embodiments, at least a portion of the first prism has a trapezoidal cross-section having a first edge, a second edge, a third edge, a fourth edge. The first edge is perpendicular to the second edge; the second prism is a right-angle prism having a hypotenuse; and the first polarization selective reflector is disposed between the first prism and the second prism, parallel to the hypotenuse of the second prism and the fourth edge of the first prism. In some embodiments, a length of the hypotenuse is equal to a length of the third edge.

[0036] In some embodiments, the first reflective assembly is positioned relative to the spatial light modulator so that the first polarization selective reflector directs the second light toward the first reflective assembly by transmitting the second light.

[0037] In some embodiments, the first reflective assembly is positioned relative to the spatial light modulator so that the first polarization selective reflector directs the second light having the first polarization toward the first reflective assembly by reflecting the second light.

[0038] In some embodiments, the first reflective assembly includes a reflector and a polarization retarder disposed adjacent to the reflector.

[0039] In some embodiments, the polarization retarder includes a quarter-wave plate. In some embodiments, the polarization retarder is disposed on a first surface of a lens and the reflector includes a reflective coating disposed on an opposing second surface of the lens.

[0040] In accordance to some embodiments, a method includes directing, using a first polarization selective reflector, first light from a spatial light modulator toward a first reflector assembly. The method includes receiving, using the first reflector assembly, the first light and directing at least a portion of the first light toward the first polarization selective reflector as second light. The method also includes receiving, using the first polarization selective reflector, the second light and directing at least a portion of the second light toward a waveguide (e.g., as third light). The first light has a first polarization, and the second light has a second polarization distinct from the first polarization (e.g., the second polarization is orthogonal to the first polarization).

[0041] In some embodiments, the first polarization selective reflector transmits the first light toward the first reflector assembly. In some embodiments, the first polarization selective reflector reflects the first light toward the first reflector assembly.

[0042] In accordance to some embodiments, an optical device includes a first polarization selective reflector, a second polarization selective reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs first light (e.g., impinging on the first polarization selective reflector and having a first polarization) toward the second polarization selective reflector and the second polarization selective reflector directs at least a portion of the first light toward the first polarization selective reflector as second light. The optical device includes a first reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs at least a portion of the second light received from the second polarization selective reflector toward the first reflector as third light and the first reflector directs at least a portion of third light (e.g., back) toward the first polarization selective reflector.

[0043] In some embodiments, the first reflector is aspherical.

[0044] In some embodiments, the first reflector is aspherical to provide uniform illumination at the spatial light modulator.

[0045] In some embodiments, the first polarization selective reflector is configured to direct the portion of the third light from the first reflector toward a spatial light modulator. In some embodiments, the optical device further includes a second reflector positioned relative to the first polarization selective reflector so that light from the spatial light modulator is directed by the first polarization selective reflector toward the second reflector and the second reflector directs at least a portion of the light from the spatial light modulator towards the first polarization selective reflector. In some embodiments, the second reflector projects at least a portion of the light from the spatial light modulator.

[0046] In some embodiments, the second polarization selective reflector is positioned in a first orientation substantially parallel to a plane that perpendicularly intersects an optical axis of the first reflector. The second polarization selective reflector is configured (e.g., by orienting a polarization axis of the second polarization selective reflector) to reflect light having a polarization different from (e.g., orthogonal to) a polarization of light reflected by the first polarization selective reflector.

[0047] In some embodiments, the first polarization selective reflector directs the first light (having the first polarization) toward the second polarization selective reflector by transmitting the first light. In some embodiments, the second light directed toward the first polarization selective reflector by the second polarization selective reflector is transmitted through the first polarization selective reflector. In some embodiments, the first polarization selective reflector directs the portion of the third light from the first reflector toward a spatial light modulator by reflecting the portion of the third light.

[0048] In some embodiments, the first polarization selective reflector has a first surface and an opposing second surface, the first reflector faces the first surface, and the second polarization selective reflector faces the second surface.

[0049] In some embodiments, the second polarization selective reflector is positioned in a second orientation substantially orthogonal to a plane that perpendicularly intersects an optical axis of the first reflector. In some embodiments, the second polarization selective reflector is configured (e.g., by orienting a polarization axis of the second polarization selective reflector) to reflect light having an identical polarization as light reflected by the first polarization selective reflector. In some embodiments, (e.g., FIG. 14E) the first polarization selective reflector has a first surface and an opposite second surface, both the first reflector and the second polarization selective reflector face the first surface.

[0050] In some embodiments, the first polarization selective reflector directs the first light (having the first polarization) toward the second polarization selective reflector by reflecting the first light toward the second polarization selective reflector.

[0051] In some embodiments, the portion of the second light directed toward the first polarization selective reflector by the second polarization selective reflector is reflected by the first polarization selective reflector toward the first reflector.

[0052] In some embodiments, the first polarization selective reflector directs the portion of the third light from the first reflector toward the spatial light modulator by transmitting the portion of the third light.

[0053] In some embodiments, the first polarization selective reflector has a first surface and an opposing second surface, and the first surface of the first polarization selective reflector faces both the first reflector and the second polarization selective reflector.

[0054] In some embodiments, the first reflector includes structures configured to scatter the portion of the third light directed toward the first polarization selective reflector.

[0055] In some embodiments, a first plane defined by (e.g., containing) the first polarization selective reflector intersects, at a first acute angle, with a second plane defined by (e.g., containing) the second polarization selective reflector, and intersects, at a second acute angle, with a third plane defined by (e.g., containing) the first reflector.

[0056] In some embodiments, the optical device further includes a first polarization retarder disposed adjacent to the first reflector.

[0057] In some embodiments, the first reflector defines a first opening so that the first light received by the first polarization selective reflector has passed through the first opening.

[0058] In some embodiments, an illumination system includes any optical device described herein, a light source, a homogenizing device configured to condition light from the light source as output light. The illumination system includes a diverting optic positioned to direct the output light into the optical device through the first opening.

[0059] In some embodiments, the first polarization retarder defines a second opening aligned with the first opening of the first reflector.

[0060] In accordance to some embodiments, a method includes directing, using a first polarization selective reflector, first light toward a second polarization selective reflector. The method includes receiving, using the second polarization selective reflector, the first light and directing at least a portion of the first light toward the first polarization selective reflector as second light. The method includes receiving, using the first polarization selective reflector, the second light and directing at least a portion of the second light toward a first reflector as third light. The method also includes receiving, using the first reflector, the third light and directing at least a portion of the third light toward the first polarization selective reflector as fourth light. The method includes receiving, using the first polarization selective reflector, the fourth light and directing at least a portion of the fourth light to illuminate a spatial light modulator.

[0061] In accordance to some embodiments, an optical device includes a first polarization selective reflector; a second polarization selective reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs first light having a first nonplanar polarization (e.g., a circular polarization or an elliptical polarization) toward the second polarization selective reflector and the second polarization selective reflector directs at least a portion of the first light toward the first polarization selective reflector as second light. The optical device also includes a first reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs at least a portion of the second light (received from the second polarization selective reflector) having a second nonplanar polarization toward the first reflector as third light. In some embodiments, the first reflector directs at least a portion of third light toward the first polarization selective reflector.

[0062] In some embodiments, the first polarization selective reflector or the second polarization selective reflector is a polarization element that includes a metasurface, resonant structures, a chiral layer, or a birefringent material.

[0063] In some embodiments, the first reflector directs at least a portion of third light having the first nonplanar polarization toward the first polarization selective reflector, and the first polarization selective reflector is configured to direct the portion of the third light from the first reflector toward a spatial light modulator as illumination light.

[0064] In some embodiments, the first polarization selective reflector is a liquid crystal based polarization selective element. In some embodiments, the liquid crystal based polarization selective element includes a polarization volume hologram (described with respect to FIGS. 16A-16D). In some embodiments, the liquid crystal based polarization selective element includes cholesteric liquid crystals.

[0065] In some embodiments, the optical device further includes a first reflective assembly positioned relative to the first polarization selective reflector so that the first polarization selective reflector receives first imaging light from a spatial light modulator and directs at least a portion of the first imaging light having a third nonplanar polarization toward the first reflective assembly as second imaging light. The first reflective assembly receives the second imaging light from the first polarization selective reflector and directs at least a portion of the second imaging light toward the first polarization selective reflector as third imaging light having a fourth nonplanar polarization. The third nonplanar polarization is distinct from the fourth nonplanar polarization.

[0066] In some embodiments, the second polarization selective reflector is positioned in a first orientation that is substantially parallel to a plane that perpendicularly intersects an optical axis of the first reflector, and the second polarization selective reflector is configured (e.g., by orienting a polarization axis of the second polarization selective reflector) to reflect light having a polarization different from a polarization of light reflected by the first polarization selective reflector.

[0067] In some embodiments, a first plane defined by the first polarization selective reflector intersects, at a first acute angle, with a second plane defined by the second polarization selective reflector, and intersects, at a second acute angle, with a third plane defined by the first reflector.

[0068] In some embodiments, the first reflector defines a first opening so that the first light received by the first polarization selective reflector has passed through the first opening.

[0069] In some embodiments, an illumination system includes any optical device described herein, a light source; a homogenizing device configured to condition light from the light source as output light; and a diverting optic positioned to direct the output light into the optical device through the first opening.

[0070] In accordance to some embodiments, an optical device includes a first polarization selective reflector positioned relative to a spatial light modulator; and a first reflective assembly positioned relative to the first polarization selective reflector so that the first polarization selective reflector receives first light from the spatial light modulator and directs at least a portion of the first light having a first nonplanar polarization toward the first reflective assembly as second light. The first reflective assembly receives the second light from the first polarization selective reflector and directs at least a portion of the second light having a second nonplanar polarization toward the first polarization selective reflector as third light. The second nonplanar polarization is distinct from the first nonplanar polarization.

[0071] In some embodiments, the first polarization selective reflector is a polarization element that includes a metasurface, resonant structures, a chiral layer, or a birefringent material.

[0072] In some embodiments, the first polarization selective reflector is a liquid crystal based polarization selective element.

[0073] In some embodiments, the optical device further includes a first reflector. In some embodiments, the first reflector defines an opening. The first reflector is positioned relative to the spatial light modulator so that the spatial light modulator receives light that has (i) passed through the opening of the first reflector and (ii) subsequently reflected off the first reflector.

[0074] In some embodiments, the optical device further includes a second polarization selective reflector disposed adjacent to a waveguide. The second polarization selective reflector is configured to reflect light having a polarization different from a polarization of light reflected by the first polarization selective reflector.

[0075] In some embodiments, the optical device further includes a second polarization selective reflector disposed adjacent to a waveguide. The second polarization selective reflector is configured (e.g., by orienting a polarization axis of the second polarization selective reflector) to reflect light having a polarization identical to a polarization of light reflected by the first polarization selective reflector.

[0076] In some embodiments, a projection of the first polarization selective reflector on a plane defined by the spatial light modulator has a rectangular shape.

[0077] In accordance with some embodiments, an optical device includes a first polarization selective reflector positioned in a first orientation so that the first polarization selective reflector receives first light in a first direction; redirects a first portion, of the first light, having a first nonplanar polarization to a second direction that is non-parallel to the first direction. The first polarization selective reflector receives second light in a third direction and transmit a first portion, of the second light, having a second nonplanar polarization orthogonal to the first nonplanar polarization. The optical device includes a second polarization selective reflector positioned in a second orientation non-parallel to the first orientation so that the second polarization selective reflector receives third light in a fourth direction; redirects a first portion, of the third light, having the first nonplanar polarization to a fifth direction that is non-parallel to the fourth direction; and receives fourth light in a sixth direction and transmit a first portion, of the fourth light having the second nonplanar polarization. In some embodiments, the first orientation is adjacent to the first polarization selective reflector.

[0078] In some embodiments, the optical device further includes a third reflector configured to receive from the second polarization selective reflector a second portion of the first light transmitted by the first polarization selective reflector, and redirect the second portion of the first light back to the second polarization selective reflector as the second light.

[0079] In some embodiments, the optical device further includes a Fresnel reflector optically coupled with the first polarization selective reflector, the Fresnel reflector configured to receive the first light output by a first light source; and redirect the first light toward the first polarization selective reflector.

[0080] In accordance to some embodiments, an optical device includes a first polarization selective reflector; and a second polarization selective reflector positioned relative to the first polarization selective reflector so that the first polarization selective reflector directs first light having a first polarization toward the second polarization selective reflector and the second polarization selective reflector directs second light having a second polarization toward the first polarization selective reflector. A first plane defined by the first polarization selective reflector intersects a second plane defined by the second polarization selective reflector at a first angle.

[0081] In some embodiments, the second light is a portion of the first light.

[0082] In some embodiments, the first angle is an acute angle, and the first angle is measured from a portion of the first plane that directs the first light to a portion of the second plane that directs the second light.

[0083] In some embodiments, the first angle is approximately 45.degree..

[0084] In some embodiments, the optical device further comprises a prism assembly. The first polarization selective reflector is disposed along a diagonal (e.g., an inner diagonal) of the prism assembly. In some embodiments, the diagonal is an inner diagonal of the prism assembly.

[0085] In some embodiments, the first polarization selective reflector is configured (e.g., by orienting a polarization axis of the first polarization selective reflector) to reflect light having a polarization different from a polarization of light reflected by the second polarization selective reflector.

[0086] In some embodiments, the optical device further includes a first prism, the second polarization selective reflector is disposed on a first surface of the first prism, and light enters the optical device at a second surface parallel to the first surface.

[0087] In some embodiments, the first polarization selective reflector is configured (e.g., by orienting a polarization axis of the first polarization selective reflector) to reflect light having a polarization identical to a polarization of light reflected by the second polarization selective reflector.

[0088] In some embodiments, the optical device further includes a first prism. The second polarization selective reflector is disposed on a first surface of the first prism, and light enters the first prism at a second surface perpendicular to the first surface.

[0089] In some embodiments, a projection of the first polarization selective reflector on a plane defined by a spatial light modulator is rectangular.

[0090] In some embodiments, the first polarization selective reflector is positioned relative to a spatial light modulator to direct third light having a third polarization, distinct from the first polarization, along a first direction to the spatial light modulator and the second polarization selective reflector is positioned relative to the first polarization selective reflector to direct fourth light having the third polarization along the first direction to the spatial light modulator.

[0091] In some embodiments, a projection of the first polarization selective reflector on a plane defined by a spatial light modulator has a first width. In some embodiments, a height of the first polarization selective reflector is larger than the first width, and the height is orthogonal to the first width.

[0092] In some embodiments, the first angle is approximately 90 degrees. In some embodiments, the angle is more or less than 90 degrees.

[0093] In some embodiments, the optical device further includes a first prism. The first polarization selective reflector is disposed on a first surface of the first prism and the second polarization selective reflector is disposed on a second surface of the first prism.

[0094] In some embodiments, the optical device further includes a second prism and a third prism. The second prism is in contact with the second polarization selective reflector, and the third prism is in contact with the first polarization selective reflector.

[0095] In some embodiments, the first polarization selective reflector is configured to direct first light having a first nonplanar polarization (e.g., a circular polarization or an elliptical polarization) toward the second polarization selective reflector and the second polarization selective reflector is configured to direct second light having a second nonplanar polarization toward the first polarization selective reflector.

[0096] In some embodiments, the first polarization selective reflector is configured to direct first light having a first nonplanar polarization (e.g., a circular polarization or an elliptical polarization) toward the second polarization selective reflector and the second polarization selective reflector is configured to direct second light having a second nonplanar polarization toward the first polarization selective reflector.

[0097] In some embodiments, at least one of the first polarization selective reflector or the second polarization selective reflector is either (i) a liquid crystal based polarization selective element, or (ii) a polarization selective element that includes a metasurface, resonant structures, a chiral layer, or a birefringent material.

[0098] In some embodiments, the first angle is an acute angle, the first angle is measured from a portion of the first plane that directs the first light to a portion of the second plane that directs the second light, and the first polarization selective reflector is disposed along a diagonal of the optical device.

[0099] In accordance to some embodiments, a method includes coupling a first polarization selective reflector to a second polarization selective reflector so that a first plane defined by the first polarization selective reflector intersects, at a first angle, a second plane defined by the second polarization selective reflector so that the first polarization selective reflector is configured to direct first light having a first polarization toward the second polarization selective reflector and the second polarization selective reflector is configured to direct second light having a second polarization toward the first polarization selective reflector.

[0100] In some embodiments, coupling the first polarization selective reflector to the second polarization selective reflector includes disposing the second polarization selective reflector on a first surface of a prism and disposing the second polarization selective reflector on a second surface of the prism. In some embodiments, the first angle is approximately 90 degrees; and the first polarization is identical to the second polarization. In some embodiments, the angle is more or less than 90 degrees.

[0101] In some embodiments, coupling the first polarization selective reflector to the second polarization selective reflector includes disposing the first polarization selective reflector on a first surface of a first prism and disposing the second polarization selective reflector on a second surface of the first prism. The first angle is an acute angle, and the method also includes attaching a second prism to the first surface of the first prism so that the first polarization selective reflector is disposed along a diagonal of a prism assembly that includes the first prism and the second prism.

[0102] In some embodiments, the first polarization selective reflector includes an element selected from the group consisting of a wire grid polarizer, a MacNeille polarizer, a liquid crystal based polarization selective element, and a polarization element that includes a metasurface, resonant structures, or a chiral layer.

[0103] Thus, the disclosed embodiments provide devices and methods that provide more compact and lightweight head-mounted display devices.

BRIEF DESCRIPTION OF THE DRAWINGS

[0104] For a better understanding of the various described embodiments, reference should be made to the Description of Embodiments below, in conjunction with the following drawings in which like reference numerals refer to corresponding parts throughout the figures.

[0105] FIG. 1 is a perspective view of a display device in accordance with some embodiments.

[0106] FIG. 2 is a block diagram of a system including a display device in accordance with some embodiments.

[0107] FIG. 3 is an isometric view of a display device in accordance with some embodiments.

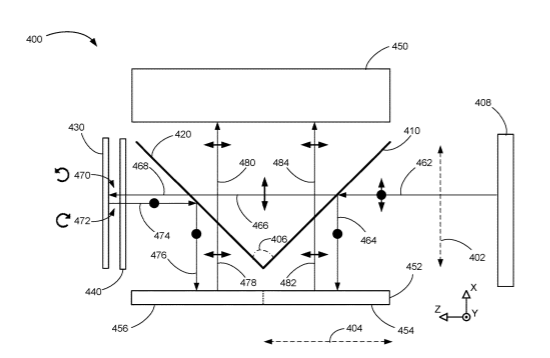

[0108] FIG. 4A is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0109] FIG. 4B is a schematic diagram illustrating optical paths of light from a spatial light modulator in the illumination system of FIG. 4A.

[0110] FIG. 4C is a schematic diagram of an illumination system in accordance with some embodiments.

[0111] FIG. 4D is a schematic diagram comparing dimensions of polarization selective reflectors in accordance with some embodiments.

[0112] FIG. 5 is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0113] FIG. 6 is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0114] FIGS. 7A-7C illustrates methods for forming a first polarization selective reflector and a second polarization selective reflector in accordance with some embodiments.

[0115] FIG. 8A is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0116] FIG. 8B is a schematic diagram illustrating a perspective view of the illumination system of FIG. 8A.

[0117] FIG. 9 is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0118] FIG. 10A is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0119] FIG. 10B is a schematic diagram illustrating an illumination system in accordance with some embodiments.

[0120] FIG. 11A is a schematic diagram illustrating a projection system in accordance with some embodiments.

[0121] FIG. 11B is a schematic diagram illustrating a projection system in accordance with some embodiments.

[0122] FIG. 12 is a schematic diagram illustrating a projection system in accordance with some embodiments.

[0123] FIG. 13A is a schematic diagram illustrating a projection system in accordance with some embodiments.

[0124] FIG. 13B is a schematic diagram comparing side views and top views of different projection systems in accordance with some embodiments.

[0125] FIG. 14A is a schematic diagram illustrating a compact spatial light modulator having an illumination system in accordance with some embodiments.

[0126] FIG. 14B is a schematic diagram illustrating an optical path of illumination light traversing a first polarization selective reflector and a second polarization selective reflector in accordance with some embodiments.

[0127] FIG. 14C is a schematic diagram illustrating an optical path of illumination light traversing a first polarization selective reflector and a second polarization selective reflector in accordance with some embodiments.

[0128] FIG. 14D is a schematic diagram illustrating an optical path of illumination light to a spatial light modulator in accordance with some embodiments.

[0129] FIG. 14E is a schematic diagram illustrating an optical path of illumination light to a spatial light modulator in accordance with some embodiments.

[0130] FIG. 15A is a schematic diagram illustrating a compact spatial light modulator having an illumination system in accordance with some embodiments.

[0131] FIG. 15B is a schematic diagram illustrating a compact spatial light modulator having an illumination system in accordance with some embodiments.

[0132] FIGS. 16A-16D are schematic diagrams illustrating a polarization volume holographic grating in accordance with some embodiments.

[0133] These figures are not drawn to scale unless indicated otherwise.

DETAILED DESCRIPTION

[0134] Reference will now be made to embodiments, examples of which are illustrated in the accompanying drawings. In the following description, numerous specific details are set forth in order to provide an understanding of the various described embodiments. However, it will be apparent to one of ordinary skill in the art that the various described embodiments may be practiced without these specific details. In other instances, well-known methods, procedures, components, circuits, and networks have not been described in detail so as not to unnecessarily obscure aspects of the embodiments.

[0135] It will also be understood that, although the terms first, second, etc. are, in some instances, used herein to describe various elements, these elements should not be limited by these terms. These terms are used only to distinguish one element from another. For example, a first region could be termed a second region, and, similarly, a second region could be termed a first region, without departing from the scope of the various described embodiments. The first region and the second region are both regions, but they are not the same region.

[0136] The terminology used in the description of the various described embodiments herein is for the purpose of describing particular embodiments only and is not intended to be limiting. As used in the description of the various described embodiments and the appended claims, the singular forms “a,” “an,” and “the” are intended to include the plural forms as well, unless the context clearly indicates otherwise. It will also be understood that the term “and/or” as used herein refers to and encompasses any and all possible combinations of one or more of the associated listed items. It will be further understood that the terms “includes,” “including,” “comprises,” and/or “comprising,” when used in this specification, specify the presence of stated features, integers, steps, operations, elements, and/or components, but do not preclude the presence or addition of one or more other features, integers, steps, operations, elements, components, and/or groups thereof. The term “exemplary” is used herein in the sense of “serving as an example, instance, or illustration” and not in the sense of “representing the best of its kind.”

[0137] Embodiments described herein may include or be implemented in conjunction with an artificial reality system. Artificial reality is a form of reality that has been adjusted in some manner before presentation to a user, which may include, e.g., a virtual reality (VR), an augmented reality (AR), a mixed reality (MR), a hybrid reality, or some combination and/or derivatives thereof. Artificial reality content may include completely generated content or generated content combined with captured (e.g., real-world) content. The artificial reality content may include video, audio, haptic feedback, or some combination thereof, and any of which may be presented in a single channel or in multiple channels (such as stereo video that produces a three-dimensional effect to the viewer). Additionally, in some embodiments, artificial reality may also be associated with applications, products, accessories, services, or some combination thereof, that are used to, e.g., create content in an artificial reality and/or are otherwise used in (e.g., perform activities in) an artificial reality. The artificial reality system that provides the artificial reality content may be implemented on various platforms, including a head-mounted display (HMD) connected to a host computer system, a standalone HMD, a mobile device or computing system, or any other hardware platform capable of providing artificial reality content to one or more viewers.

[0138] FIG. 1 illustrates display device 100 in accordance with some embodiments. In some embodiments, display device 100 is configured to be worn on the head of a user (e.g., by having the form of spectacles or eyeglasses, as shown in FIG. 1) or to be included as part of a helmet that is to be worn by the user. When display device 100 is configured to be worn on a head of a user or to be included as part of a helmet or headset, display device 100 is called a head-mounted display. Alternatively, display device 100 is configured for placement in proximity of an eye or eyes of the user at a fixed location, without being head-mounted (e.g., display device 100 is mounted in a vehicle, such as a car or an airplane, for placement in front of an eye or eyes of the user). As shown in FIG. 1, display device 100 includes display 110. Display 110 is configured for presenting visual content (e.g., augmented reality content, virtual reality content, mixed reality content, or any combination thereof) to a user.

[0139] In some embodiments, display device 100 includes one or more components described below with respect to FIG. 2. In some embodiments, display device 100 includes additional components not shown in FIG. 2.

[0140] FIG. 2 is a block diagram of system 200 in accordance with some embodiments. The system 200 shown in FIG. 2 includes display device 205 (which corresponds to display device 100 shown in FIG. 1), imaging device 235, and input interface 240 that are each coupled to console 210. While FIG. 2 shows an example of system 200 including one display device 205, imaging device 235, and input interface 240, in other embodiments, any number of these components may be included in system 200. For example, there may be multiple display devices 205 each having an associated input interface 240 and being monitored by one or more imaging devices 235, with each display device 205, input interface 240, and imaging device 235 communicating with console 210. In alternative configurations, different and/or additional components may be included in system 200. For example, in some embodiments, console 210 is connected via a network (e.g., the Internet) to system 200 or is self-contained as part of display device 205 (e.g., physically located inside display device 205). In some embodiments, display device 205 is used to create mixed reality by adding in a view of the real surroundings. Thus, display device 205 and system 200 described here can deliver virtual reality, mixed reality, and/or augmented reality.

[0141] In some embodiments, as shown in FIG. 1, display device 205 is a head-mounted display that presents media to a user. Examples of media presented by display device 205 include one or more images, video, audio, haptics, or some combination thereof. In some embodiments, audio is presented via an external device (e.g., speakers and/or headphones) that receives audio information from display device 205, console 210, or both, and presents audio data based on the audio information. In some embodiments, display device 205 immerses a user in a virtual environment.

[0142] In some embodiments, display device 205 also acts as an augmented reality (AR) headset. In these embodiments, display device 205 can augment views of a physical, real-world environment with computer-generated elements (e.g., images, video, sound, haptics, etc.). Moreover, in some embodiments, display device 205 is able to cycle between different types of operation. Thus, display device 205 operate as a virtual reality (VR) device, an AR device, as glasses or some combination thereof (e.g., glasses with no optical correction, glasses optically corrected for the user, sunglasses, or some combination thereof) based on instructions from application engine 255.

[0143] Display device 205 includes electronic display 215, one or more processors 216, eye tracking module 217, adjustment module 218, one or more locators 220, one or more position sensors 225, one or more position cameras 222, memory 228, inertial measurement unit (IMU) 230, or a subset or superset thereof (e.g., display device 205 with electronic display 215, one or more processors 216, and memory 228, without any other listed components). Some embodiments of display device 205 have different modules than those described here. Similarly, the functions can be distributed among the modules in a different manner than is described here.

[0144] One or more processors 216 (e.g., processing units or cores) execute instructions stored in memory 228. Memory 228 includes high-speed random access memory, such as DRAM, SRAM, DDR RAM, or other random access solid state memory devices; and may include non-volatile memory, such as one or more magnetic disk storage devices, optical disk storage devices, flash memory devices, or other non-volatile solid state storage devices. Memory 228, or alternately the non-volatile memory device(s) within memory 228, includes a non-transitory computer readable storage medium. In some embodiments, memory 228 or the computer readable storage medium of memory 228 stores programs, modules and data structures, and/or instructions for displaying one or more images on electronic display 215.

[0145] Electronic display 215 displays images to the user in accordance with data received from console 210 and/or processor(s) 216. In various embodiments, electronic display 215 may comprise a single adjustable electronic display element or multiple adjustable electronic displays elements (e.g., a display for each eye of a user).

[0146] In some embodiments, the display element includes one or more light emission devices and a corresponding array of emission intensity array. An emission intensity array is an array of electro-optic pixels, opto-electronic pixels, some other array of devices that dynamically adjust the amount of light transmitted by each device, or some combination thereof. These pixels are placed behind one or more lenses. In some embodiments, the emission intensity array is an array of liquid crystal based pixels in an LCD (a Liquid Crystal Display). Examples of the light emission devices include: an organic light emitting diode, an active-matrix organic light-emitting diode, a light emitting diode, some type of device capable of being placed in a flexible display, or some combination thereof. The light emission devices include devices that are capable of generating visible light (e.g., red, green, blue, etc.) used for image generation. The emission intensity array is configured to selectively attenuate individual light emission devices, groups of light emission devices, or some combination thereof. Alternatively, when the light emission devices are configured to selectively attenuate individual emission devices and/or groups of light emission devices, the display element includes an array of such light emission devices without a separate emission intensity array.

[0147] One or more lenses direct light from the arrays of light emission devices (optionally through the emission intensity arrays) to locations within each eyebox and ultimately to the back of the user’s retina(s). An eyebox is a region that is occupied by an eye of a user located proximite to display device 205 (e.g., a user wearing display device 205) for viewing images from display device 205. In some cases, the eyebox is represented as a 10 mm.times.10 mm square. In some embodiments, the one or more lenses include one or more coatings, such as anti-reflective coatings.

[0148] In some embodiments, the display element includes an infrared (IR) detector array that detects IR light that is retro-reflected from the retinas of a viewing user, from the surface of the corneas, lenses of the eyes, or some combination thereof. The IR detector array includes an IR sensor or a plurality of IR sensors that each correspond to a different position of a pupil of the viewing user’s eye. In alternate embodiments, other eye tracking systems may also be employed.

[0149] Eye tracking module 217 determines locations of each pupil of a user’s eyes. In some embodiments, eye tracking module 217 instructs electronic display 215 to illuminate the eyebox with IR light (e.g., via IR emission devices in the display element).

[0150] A portion of the emitted IR light will pass through the viewing user’s pupil and be retro-reflected from the retina toward the IR detector array, which is used for determining the location of the pupil. Alternatively, the reflection off of the surfaces of the eye is also used to determine the location of the pupil. The IR detector array scans for retro-reflection and identifies which IR emission devices are active when retro-reflection is detected. Eye tracking module 217 may use a tracking lookup table and the identified IR emission devices to determine the pupil locations for each eye. The tracking lookup table maps received signals on the IR detector array to locations (corresponding to pupil locations) in each eyebox. In some embodiments, the tracking lookup table is generated via a calibration procedure (e.g., user looks at various known reference points in an image and eye tracking module 217 maps the locations of the user’s pupil while looking at the reference points to corresponding signals received on the IR tracking array). As mentioned above, in some embodiments, system 200 may use other eye tracking systems than the embedded IR one described above.

[0151] Adjustment module 218 generates an image frame based on the determined locations of the pupils. In some embodiments, this sends a discrete image to the display such that will tile subimages together thus a coherent stitched image will appear on the back of the retina. Adjustment module 218 adjusts an output (i.e. the generated image frame) of electronic display 215 based on the detected locations of the pupils. Adjustment module 218 instructs portions of electronic display 215 to pass image light to the determined locations of the pupils. In some embodiments, adjustment module 218 also instructs the electronic display not to pass image light to positions other than the determined locations of the pupils. Adjustment module 218 may, for example, block and/or stop light emission devices whose image light falls outside of the determined pupil locations, allow other light emission devices to emit image light that falls within the determined pupil locations, translate and/or rotate one or more display elements, dynamically adjust curvature and/or refractive power of one or more active lenses in the lens (e.g., microlens) arrays, or some combination thereof.

[0152] Optional locators 220 are objects located in specific positions on display device 205 relative to one another and relative to a specific reference point on display device 205. A locator 220 may be a light emitting diode (LED), a corner cube reflector, a reflective marker, a type of light source that contrasts with an environment in which display device 205 operates, or some combination thereof. In embodiments where locators 220 are active (i.e., an LED or other type of light emitting device), locators 220 may emit light in the visible band (e.g., about 400 nm to 750 nm), in the infrared band (e.g., about 750 nm to 1 mm), in the ultraviolet band (about 100 nm to 400 nm), some other portion of the electromagnetic spectrum, or some combination thereof.

[0153] In some embodiments, locators 220 are located beneath an outer surface of display device 205, which is transparent to the wavelengths of light emitted or reflected by locators 220 or is thin enough to not substantially attenuate the wavelengths of light emitted or reflected by locators 220. Additionally, in some embodiments, the outer surface or other portions of display device 205 are opaque in the visible band of wavelengths of light. Thus, locators 220 may emit light in the IR band under an outer surface that is transparent in the IR band but opaque in the visible band.

[0154] IMU 230 is an electronic device that generates calibration data based on measurement signals received from one or more position sensors 225. Position sensor 225 generates one or more measurement signals in response to motion of display device 205. Examples of position sensors 225 include: one or more accelerometers, one or more gyroscopes, one or more magnetometers, another suitable type of sensor that detects motion, a type of sensor used for error correction of IMU 230, or some combination thereof. Position sensors 225 may be located external to IMU 230, internal to IMU 230, or some combination thereof.

[0155] Based on the one or more measurement signals from one or more position sensors 225, IMU 230 generates first calibration data indicating an estimated position of display device 205 relative to an initial position of display device 205. For example, position sensors 225 include multiple accelerometers to measure translational motion (forward/back, up/down, left/right) and multiple gyroscopes to measure rotational motion (e.g., pitch, yaw, roll). In some embodiments, IMU 230 rapidly samples the measurement signals and calculates the estimated position of display device 205 from the sampled data. For example, IMU 230 integrates the measurement signals received from the accelerometers over time to estimate a velocity vector and integrates the velocity vector over time to determine an estimated position of a reference point on display device 205. Alternatively, IMU 230 provides the sampled measurement signals to console 210, which determines the first calibration data. The reference point is a point that may be used to describe the position of display device 205. While the reference point may generally be defined as a point in space; however, in practice the reference point is defined as a point within display device 205 (e.g., a center of IMU 230).

[0156] In some embodiments, IMU 230 receives one or more calibration parameters from console 210. As further discussed below, the one or more calibration parameters are used to maintain tracking of display device 205. Based on a received calibration parameter, IMU 230 may adjust one or more IMU parameters (e.g., sample rate). In some embodiments, certain calibration parameters cause IMU 230 to update an initial position of the reference point so it corresponds to a next calibrated position of the reference point. Updating the initial position of the reference point as the next calibrated position of the reference point helps reduce accumulated error associated with the determined estimated position. The accumulated error, also referred to as drift error, causes the estimated position of the reference point to “drift” away from the actual position of the reference point over time.

[0157] Imaging device 235 generates calibration data in accordance with calibration parameters received from console 210. Calibration data includes one or more images showing observed positions of locators 220 that are detectable by imaging device 235. In some embodiments, imaging device 235 includes one or more still cameras, one or more video cameras, any other device capable of capturing images including one or more locators 220, or some combination thereof. Additionally, imaging device 235 may include one or more filters (e.g., used to increase signal to noise ratio). Imaging device 235 is optionally configured to detect light emitted or reflected from locators 220 in a field of view of imaging device 235. In embodiments where locators 220 include passive elements (e.g., a retroreflector), imaging device 235 may include a light source that illuminates some or all of locators 220, which retro-reflect the light towards the light source in imaging device 235. Second calibration data is communicated from imaging device 235 to console 210, and imaging device 235 receives one or more calibration parameters from console 210 to adjust one or more imaging parameters (e.g., focal length, focus, frame rate, ISO, sensor temperature, shutter speed, aperture, etc.).

[0158] Input interface 240 is a device that allows a user to send action requests to console 210. An action request is a request to perform a particular action. For example, an action request may be to start or end an application or to perform a particular action within the application. Input interface 240 may include one or more input devices. Example input devices include: a keyboard, a mouse, a game controller, data from brain signals, data from other parts of the human body, or any other suitable device for receiving action requests and communicating the received action requests to console 210. An action request received by input interface 240 is communicated to console 210, which performs an action corresponding to the action request. In some embodiments, input interface 240 may provide haptic feedback to the user in accordance with instructions received from console 210. For example, haptic feedback is provided when an action request is received, or console 210 communicates instructions to input interface 240 causing input interface 240 to generate haptic feedback when console 210 performs an action.

[0159] Console 210 provides media to display device 205 for presentation to the user in accordance with information received from one or more of: imaging device 235, display device 205, and input interface 240. In the example shown in FIG. 2, console 210 includes application store 245, tracking module 250, and application engine 255. Some embodiments of console 210 have different modules than those described in conjunction with FIG. 2. Similarly, the functions further described below may be distributed among components of console 210 in a different manner than is described here.

[0160] When application store 245 is included in console 210, application store 245 stores one or more applications for execution by console 210. An application is a group of instructions, that when executed by a processor, is used for generating content for presentation to the user. Content generated by the processor based on an application may be in response to inputs received from the user via movement of display device 205 or input interface 240. Examples of applications include: gaming applications, conferencing applications, video playback application, or other suitable applications.

[0161] When tracking module 250 is included in console 210, tracking module 250 calibrates system 200 using one or more calibration parameters and may adjust one or more calibration parameters to reduce error in determination of the position of display device 205. For example, tracking module 250 adjusts the focus of imaging device 235 to obtain a more accurate position for observed locators on display device 205. Moreover, calibration performed by tracking module 250 also accounts for information received from IMU 230. Additionally, if tracking of display device 205 is lost (e.g., imaging device 235 loses line of sight of at least a threshold number of locators 220), tracking module 250 re-calibrates some or all of system 200.

[0162] In some embodiments, tracking module 250 tracks movements of display device 205 using second calibration data from imaging device 235. For example, tracking module 250 determines positions of a reference point of display device 205 using observed locators from the second calibration data and a model of display device 205. In some embodiments, tracking module 250 also determines positions of a reference point of display device 205 using position information from the first calibration data. Additionally, in some embodiments, tracking module 250 may use portions of the first calibration data, the second calibration data, or some combination thereof, to predict a future location of display device 205. Tracking module 250 provides the estimated or predicted future position of display device 205 to application engine 255.

[0163] Application engine 255 executes applications within system 200 and receives position information, acceleration information, velocity information, predicted future positions, or some combination thereof of display device 205 from tracking module 250. Based on the received information, application engine 255 determines content to provide to display device 205 for presentation to the user. For example, if the received information indicates that the user has looked to the left, application engine 255 generates content for display device 205 that mirrors the user’s movement in a virtual environment. Additionally, application engine 255 performs an action within an application executing on console 210 in response to an action request received from input interface 240 and provides feedback to the user that the action was performed. The provided feedback may be visual or audible feedback via display device 205 or haptic feedback via input interface 240.

[0164] FIG. 3 is an isometric view of display device 300 in accordance with some embodiments. In some other embodiments, display device 300 is part of some other electronic display (e.g., digital microscope, etc.). In some embodiments, display device 300 includes light emission device array 310 and one or more lenses 330. In some embodiments, display device 300 also includes an emission intensity array and an IR detector array.

[0165] Light emission device array 310 emits image light and optional IR light toward the viewing user. Light emission device array 310 may be, e.g., an array of LEDs, an array of microLEDs, an array of OLEDs, or some combination thereof. Light emission device array 310 includes light emission devices 320 that emit light in the visible light (and optionally includes devices that emit light in the IR). In some embodiments, a microLED includes an LED with an emission area characterized by a representative dimension (e.g., a diameter, a width, a height, etc.) of 100 .mu.m or less (e.g., 50 .mu.m, 20 .mu.m, etc.). In some embodiments, a microLED has an emission area having a shape of a circle or a rectangle.

[0166] The emission intensity array is configured to selectively attenuate light emitted from light emission device array 310. In some embodiments, the emission intensity array is composed of a plurality of liquid crystal cells or pixels, groups of light emission devices, or some combination thereof. Each of the liquid crystal cells is, or in some embodiments, groups of liquid crystal cells are, addressable to have specific levels of attenuation. For example, at a given time, some of the liquid crystal cells may be set to no attenuation, while other liquid crystal cells may be set to maximum attenuation. In this manner the emission intensity array is able to control what portion of the image light emitted from light emission device array 310 is passed to the one or more lenses 330. In some embodiments, display device 300 uses the emission intensity array to facilitate providing image light to a location of pupil 350 of eye 340 of a user, and minimize the amount of image light provided to other areas in the eyebox.

[0167] One or more lenses 330 receive the modified image light (e.g., attenuated light) from the emission intensity array (or directly from light emission device array 310), and shifted by one or more beam shifters 360, and direct the shifted image light to a location of pupil 350.

[0168] An optional IR detector array detects IR light that has been retro-reflected from the retina of eye 340, a cornea of eye 340, a crystalline lens of eye 340, or some combination thereof. The IR detector array includes either a single IR sensor or a plurality of IR sensitive detectors (e.g., photodiodes). In some embodiments, the IR detector array is separate from light emission device array 310. In some embodiments, the IR detector array is integrated into light emission device array 310.

[0169] In some embodiments, light emission device array 310 and the emission intensity array make up a display element. Alternatively, the display element includes light emission device array 310 (e.g., when light emission device array 310 includes individually adjustable pixels) without the emission intensity array. In some embodiments, the display element additionally includes the IR array. In some embodiments, in response to a determined location of pupil 350, the display element adjusts the emitted image light such that the light output by the display element is refracted by one or more lenses 330 toward the determined location of pupil 350, and not toward other locations in the eyebox.

[0170] FIG. 4A is a schematic diagram illustrating an illumination system 400 in accordance with some embodiments. In some embodiments, the illumination system 400 is included in a head-mounted display device.

[0171] In FIG. 4A, the illumination system 400 includes a first polarization selective reflector 410, a second polarization selective reflector 420, a mirror 430 (e.g., a retroreflector), and a phase retarder 440 (e.g., a polarization retarder or a waveplate, such as a quarter-wave plate). The illumination system 400 is optically coupled with (e.g., positioned relative to) a spatial light modulator 452 that has a first portion 454 and a second portion 456 so that the illumination system 400 illuminates the spatial light modulator 452. In some embodiments, the illumination system 400 is positioned to receive light from one or more light sources 408. In some embodiments, the illumination system 400 includes the one or more light sources 408.

[0172] In some embodiments, the illumination system 400 is optically coupled with (e.g., positioned relative to) a projection system 450 (e.g., a projection lens, a projection lens assembly) so that the projection system 450 receives light (e.g., image light) output from the illumination system 400 and projects the light (e.g., to an eyebox of a user of the head-mounted display device). In some embodiments, coupling optics (e.g., waveguides, lenses, etc.) are used to couple an output of the projection system 450 to the eyebox.

[0173] In some embodiments, one or more of polarization selective reflectors 410 and 420 are partial reflectors. “Partial reflectors” include optical elements that fully reflect (e.g., with a reflectivity greater than 90%, 95%, or 99%) light of one polarization (e.g., a reflective polarizer) while transmitting at least a portion (e.g., at least 10%, 20%, 50%, 70%, 80%, or 90%) of light having an orthogonal polarization. In some embodiments, the one or more light sources 408 provide light 462 having orthogonally polarized components (e.g., a combination of an s-polarization component and a p-polarization component). For example, the light 462 may be diagonally polarized, circularly polarized, elliptically polarized, or unpolarized.

[0174] In FIG. 4A, the light 462 includes a first polarization component in which the electric field lies in the x-z plane (which is called herein “vertically polarized” or “having vertical polarization” for ease of reference), and a second polarization component in which the electric field lies in the z-y plane (which is called herein “horizontally polarized” or “having horizontal polarization for ease of reference).

[0175] The first polarization selective reflector 410 is positioned in a first orientation (e.g., making an acute angle with respect to the z-y plane, such as a 45.degree. angle with respect to the z-y plane) and receives the light 462 in a first direction (e.g., along the +z direction). In some embodiments, the first polarization selective reflector 410 is configured to reflect light that is horizontally polarized and transmit light that is vertically polarized. In some embodiments, the first polarization selective reflector 410 includes a wire grid polarizer. In some embodiments, the first polarization selective reflector 410 includes a MacNeille polarizer. In some embodiments, the first polarization selective reflector 410 includes a liquid crystal based polarization selective element. In some embodiments, a polarization element includes a metasurface, resonant structures, or a chiral layer.

[0176] In some embodiments, the first polarization selective reflector 410 redirects the first portion (e.g., light 464) of the light 462, having a first polarization (e.g., horizontal polarization) to a second direction (e.g., -x direction), that is non-parallel to the first direction (e.g., +z direction). For example, the first polarization selective reflector 410 is positioned to reflect the first portion (e.g., the portion that is horizontally polarized) of the light 462 as light 464, toward the spatial light modulator 452. In some embodiments, the second direction (e.g., -x direction) is orthogonal to the first direction (e.g., +z direction).

[0177] In some embodiments, the spatial light modulator 452 receives the light 464 and depending on the setting for a particular location (e.g., pixel) of the spatial light modulator 452, modifies the light 464 (or at least a portion of the light 464 that impinges on the particular location of the spatial light modulator 452), and provides (e.g., reflects) the modified light as light 482 having a polarization different from the polarization of the light 464 towards the first polarization selective reflector 410. For example, the light 464, which is horizontally polarized, is modified by the spatial light modulator 452 to become light 482 that is vertically polarized. Although the light 482 reflects from the spatial light modulator 452 at or close to a location where the light 464 strikes the spatial light modulator 452, in FIG. 4A, the light 482 is shown offset from the light 464 in the z-direction for ease of reference. The first polarization selective reflector 410 receives second light (e.g., light 482) in a third direction (e.g., +x direction) and transmits at least a first portion (e.g., light 484) of the second light, having a second polarization (e.g., vertical polarization) orthogonal to the first polarization (e.g., horizontal polarization). The vertically polarized light 482 directed toward the first polarization selective reflector 410 is transmitted through the first polarization selective reflector 410 as light 484 because of its polarization. The light 484, having a vertical polarization, then enters the projection system 450.

[0178] In some embodiments, the first polarization selective reflector 410 is further configured to transmit a second portion (e.g., light 466), of the first light, having the second polarization (e.g., vertically polarized). In some embodiments, the first polarization selective reflector 410 transmits a second portion (e.g., the portion that is vertically polarized) of the light 462 as the light 466, toward the second polarization selective reflector 420. In some embodiments, the second polarization selective reflector 420 is configured (e.g., positioned) to receive the second portion (e.g., the light 466) of the first light having the second polarization (e.g., vertically polarized).

[0179] In some embodiments, the first polarization selective reflector 410 and the second polarization selective reflector 420 both reflect light having horizontal polarization and transmit light having vertical polarization. In some embodiments, the second polarization selective reflector 420 is configured (e.g., positioned) to transmit the second portion (e.g., the light 466) of the first light having the second polarization (e.g., vertically polarized). For example, the second polarization selective reflector 420 may include one or more of: a wire grid polarizer, a MacNeille polarizer, a liquid crystal based polarization selective element, or a polarization element including a metasurface, resonant structures, or a chiral layer. In some embodiments, the vertically polarized light 466 is transmitted through the second polarization selective reflector 420 and maintains its vertical polarization as light 468.

[0180] In some embodiments, the light 468 (e.g., linearly polarized light, such as vertically polarized light) is incident on the phase retarder 440 at a particular incident angle (e.g., 0.degree.). In some embodiments, the phase retarder 440 is a quarter-wave plate configured to convert the linearly polarized light 468 to circularly polarized light 470 (e.g., left-circularly polarized light) and transmits the circularly polarized light 470 toward the mirror 430. In general, phase retarders can include different types of waveplates, but hereinafter, a quarter-wave plate is used as an example of the phase retarder 440. The quarter-wave plate 440 has its fast axis oriented such that a first portion of the vertically polarized light 468 accumulates a phase shift of 90.degree. with respect to a second portion of the vertically polarized light 468, creating the circularly polarized light 470.

[0181] In some embodiments, the illumination system 400 includes a third reflector (e.g., the mirror 430) configured to receive from the second polarization selective reflector 420 the second portion (e.g., the light 468) of the first light, and redirect the second portion of the first light back to the second polarization selective reflector 420 as the second light (e.g., light 474). For example, in configurations with the phase retarder 440 (e.g., a quarter-wave plate), the mirror 430 reflects the circularly polarized light 470 toward the phase retarder 440 as light 472. When the circularly polarized light 470 is reflected by the mirror 430, a direction in which the electric field vector of the circularly polarized light 470 rotates is reversed. Thus, the circularly polarized light 472 (e.g., left-circularly polarized light) has a handedness opposite to the circularly polarized light 470 (e.g., right-circularly polarized light). As the circularly polarized light 472 passes through the phase retarder 440, the phase retarder 440 converts the circularly polarized light 472 to linearly polarized light 474 and transmit the linearly polarized light 474 toward the second polarization selective reflector 420. In some embodiments, a plane of vibration of the linearly polarized light 474 (e.g., horizontally polarized) is perpendicular to a plane of vibration of the linearly polarized light 466 (e.g., vertically polarized), and the second polarization selective reflector 420 reflects the linearly polarized light 474 toward the spatial light modulator 452 as light 476.

[0182] In some embodiments, the second polarization selective reflector 420 is positioned in a second orientation (e.g., making an acute angle with respect to the z-y plane, such as a 45.degree. angle with respect to the z-y plane) non-parallel to the first orientation, and adjacent to the first polarization selective reflector 410 (e.g., one end of the second polarization selective reflector 420 is in contact with one end of the first polarization selective reflector 410). The second polarization selective reflector 420 receives third light (e.g., light 474) in a fourth direction (e.g., -z direction), redirects a first portion (e.g., light 476) of the third light having the first polarization (e.g., horizontally polarized light) to a fifth direction (e.g., -x direction) that is non-parallel to the fourth direction (-z direction).

[0183] The spatial light modulator 452 modifies a polarization of the horizontally polarized light 476 to provide light 478 that is vertically polarized, and directs the light 478 toward the second polarization selective reflector 420. The second polarization selective reflector 420 receives fourth light (e.g., light 478) in a sixth direction (e.g., +x direction) and transmits at least a first portion (e.g., light 480) of the fourth light having the second polarization (e.g., vertical polarization). The light 480, having the same polarization (e.g., a vertical polarization) as the light 484, then enters the projection system 450.

[0184] Light that reflects off the first polarization selective reflector 410 (e.g., light 464) is incident on the first portion 454 of the spatial light modulator 452. In contrast, at least a portion of the light that transmits through the first polarization selective reflector 410 (e.g., light 476) is incident on the second portion 456 of the spatial light modulator 452. Thus, in some embodiments, the first portion 454 of the spatial light modulator 452 is configured to modify or manipulate a component of the light 462 having a first polarization (e.g., horizontal polarization) only, while the second portion 456 of the spatial light modulator 452 is configured to modify or manipulate a component of the light 462 having a second polarization (e.g., vertical polarization) only. In some embodiments, the light 462 is selectively encoded with certain proportions of vertically polarized light and horizontally polarized light (e.g., a vertically polarized component and a horizontally polarized component have a certain intensity ratio).

[0185] In some embodiment, the spatial light modulator 452 modifies a polarization state of at least a portion of light reflected by the spatial light modulator 452, and at least a portion of the reflected light is transmitted by first polarization selective reflector 410 and the second polarization selective reflector 420 (e.g., as light 484 and light 480, respectively), and is imaged by the projection system 450. In some embodiments, the projection lens 450 directs the light (e.g., light 480 and light 484) to an image combiner, such as a partially reflective surface, a reflective polarizer, a polarization volume hologram (described with respect to FIGS. 16A-16D), or a holographic optical element.

[0186] In some embodiments, the spatial light modulator 452 is a Liquid Crystal on Silicon (LCoS) spatial light modulator. In some embodiments, LCoS is based on liquid crystal. In some embodiments, LCoS is based on ferroelectric liquid crystal.

[0187] In some embodiments, at least a portion of light reflected by first polarization selective reflector 410 and the second polarization selective reflector 420 is redirected back to the illumination source. In some embodiments, the redirected light is recycled to improve the efficiency of the illumination system 400.

[0188] In some cases, non-uniformity of an illumination pattern (e.g., non-uniformity in illumination intensities across the spatial light modulator 452) contributes to non-uniformity (or irregularity) in an image provided by the spatial light modulator 452. In some embodiments, the non-uniformity in the image is reduced by adjusting operations (e.g., reflectivities or magnitudes of phase retardation) of the spatial light modulator 452 based on, for example, a look-up pattern for the image created by the spatial light modulator 452 to compensate for variations in illumination intensities.

[0189] Although FIG. 4A shows the light 462 as a single ray of light so as not to obscure other aspects of FIG. 4A, in some embodiments, the light 462 has a beam height that is equal to or smaller than a height 402 of the first polarization selective reflector 410, along the x-direction. A beam having a beam height in the x-direction that corresponds to the height 402 may substantially fill a first portion 454 of the spatial light modulator 452. In some embodiments, instead of a single beam having a beam height corresponding to height 402, the one or more light sources 408 provide one or more beams offset along the x-direction toward the first polarization selective reflector 410. In some embodiments, the one or more beams are substantially parallel to one another. In some embodiments, the light 462 has a beam width that is equal to or smaller than a width of the first polarization selective reflector 410, along the y-direction. A beam having a beam width in the y-direction that corresponds to the width of the first polarization selective reflector 410 may substantially fill a first portion 454 of the spatial light modulator 452. In some embodiments, instead of a single beam having a beam width corresponding to the width of the first polarization selective reflector 410, the one or more light sources 408 provide one or more beams offset along the y-direction toward the first polarization selective reflector 410.

[0190] In some embodiments, the first and second polarization selective reflectors 410 and 420 are included in two beam splitter blocks (e.g., the first polarization selective reflector 410 is included in a first beam splitter block and the second polarization selective reflector 420 is included in a second beam splitter block).

[0191] In some embodiments, each beam splitter block has a shape of a rectangular prism (e.g., a cuboid). In some embodiments, the rectangular prism has a square cross section. In some embodiments, a polarization selective reflector is embedded diagonally in each rectangular prism.

[0192] In some embodiments, each beam splitter block has a shape of a triangular prism. In some embodiments, the triangular prism has a right triangle cross section. In some embodiments, a polarization selective reflector is located on a slope facet of each triangular prism (corresponding to the hypotenuse of the right triangle cross section).

[0193] In some embodiments, the two beam splitter blocks are bonded together using an optical coupling layer with a refractive index that is less than 0.05 (e.g., less than 0.05, less than 0.04, less than 0.03, less than 0.02, or less than 0.01) of the material (e.g., glass) of the beam splitters.

[0194] In some embodiments, the first and second polarization selective reflectors 410 and 420 are located on slopes of a beam splitter block having a shape of a triangular prism, as shown in FIG. 8B. In some embodiments, the triangular prism has an isosceles cross section.

[0195] In some embodiments, the first polarization selective reflector 410 and the second polarization selective reflector 420 (or the beam splitter blocks) have an effectively uniform refractive index. In some cases, effectively uniform refractive index means that refractive indices of the first and second polarization selective reflectors 410 and 420 differ by less than 0.05 (e.g., less than 0.04, less than 0.03, less than 0.02, or less than 0.01). In particular, the term includes a case where there is no difference in refractive indices of the first and second polarization selective reflectors 410 and 420 (or the beam splitter blocks) so that the first polarization selective reflector 410 or the second polarization selective reflector 420 do not cause refraction or total internal reflection for light impinging on the first polarization selective reflector 410 or the second polarization selective reflector 420 (e.g., at an angle of about 45.degree. to the first polarization selective reflector 410 or the second polarization selective reflector 420).

[0196] FIG. 4B is a schematic diagram illustrating optical paths of light from a spatial light modulator in the illumination system of FIG. 4A. As described with respect to FIG. 4A, when the reflective spatial light modulator 452 is illuminated, the spatial light modulator 452 modifies a polarization of the light incident thereon and provides (e.g., reflects) light having the modified polarization toward the first polarization selective reflector 410 and the second polarization selective reflector 420. In some embodiments, when the light provided by the spatial light modulator 452 (e.g., light 483 and 479) has components of orthogonal polarizations, the first and second polarization selective reflectors 410 and 420 transmit portions of light incident thereon and reflect portions of light incident thereon.

[0197] For example, the first portion 454 of the spatial light modulator 452 directs the light 483 having a mixture of vertically polarized light and horizontally polarized light to the first polarization selective reflector 410 (unlike the light 482 in FIG. 4A, which is vertically polarized). The first polarization selective reflector 410 reflects the horizontally polarized component of the light 483 as light 486 toward the one or more light sources 408 to recycle the light and improve an efficiency of the illumination system. The vertically polarized component of the light 483 is transmitted through the first polarization selective reflector 410 as light 485, and enters the projection system 450 as vertically polarized light. The second portion 456 of the spatial light modulator 452 directs the light 479 having a mixture of vertically polarized light and horizontally polarized light to the second polarization selective reflector 420 (unlike the light 478 in FIG. 4A, which is vertically polarized). The vertically polarized component of the light 479 is transmitted through the second polarization selective reflector 420 as light 481, and enters the projection system 450 as vertically polarized light. The second polarization selective reflector 420 reflects the horizontally polarized component of the light 479 as light 488 toward the phase retarder 440. The light 488 maintains its horizontal polarization as it reflects off the second polarization selective reflector 420. The phase retarder 440, which is a quarter-wave plate in some embodiments, converts the linearly polarized light 488 into circularly polarized light 489 and transmit the light 489 toward the mirror 430. The mirror 430 reflects the circularly polarized light 489 back toward the phase retarder 440 as light 491. When the circularly polarized light 489 is reflected by the mirror 430, a direction in which the electric field vector of the circularly polarized light 489 rotates is reversed. Thus, the circularly polarized light 491 transmitted toward the phase retarder 440 has a handedness (e.g., right-circularly polarized light) opposite to the circularly polarized light 489 (e.g., left-circularly polarized light). As the circularly polarized light 491 passes through the phase retarder 440, the phase retarder 440 converts the circularly polarized light 491 to linearly polarized light 490 (e.g., having vertical polarization) and transmits light 490 toward the second polarization selective reflector 420. In some embodiments, a plane of vibration of the linearly polarized light 490 (e.g., vertically polarized) is perpendicular to a plane of vibration of the linearly polarized light 488 (e.g., horizontally polarized), and the second polarization selective reflector 420 transmits the linearly polarized light 490 toward the first polarization selective reflector 410 as light 492. The first polarization selective reflector 410 transmits the light 492 as vertically polarized light 494 toward the one or more light sources 408 for recycling of the light.

[0198] In some embodiments, as shown in FIG. 4A, a first plane defined by the first polarization selective reflector 410 and a second plane defined by the second polarization selective reflector 420 intersect at an angle 406. In some embodiments, the angle 406 is substantially 90.degree. (e.g., between 80.degree. and 100.degree., between 85.degree. and 95.degree., between 87.degree. and 93.degree., or between 89.degree. and 91.degree.). In some embodiments, the angle 406 is 90.degree..

[0199] FIG. 4C shows a first polarization selective reflector 412 positioned at an angle 407 with respect to a second polarization selective reflector 422, where the angle 407 is different from the angle 406 shown in FIG. 4A. In some embodiments, an angle 407 is greater than 90.degree.. In some embodiments, an angle 407 is less than 90.degree..

[0200] Even though FIG. 4A shows the light 464 having a 45.degree. incident angle, light from the one or more light sources 408 may have an incident angle other than 45.degree.. In FIG. 4C, the light 462 is incident on the first polarization selective reflector 412 at an incident angle that is larger than 45.degree., and the light 464 is incident on the spatial light modulator 452 at an angle that differs from normal incidence (e.g., the light 464 has an incident angle that is different from 0.degree., which is normal incidence). Similarly, light 476, reflected by the second polarization selective reflector 422 is incident on the spatial light modulator 452 at an angle that differs from normal incidence.

[0201] In some embodiments, the first polarization selective reflector 412 is not in direct contact with the second polarization selective reflector 422. In some embodiments, the first polarization selective reflector 412 is mechanically supported independently from the second polarization selective reflector 422.

[0202] FIG. 4D illustrates how a combination of the first polarization selective reflector (e.g., 410) and the second polarization selective reflector (e.g., 420) enables a more compact illumination system by reducing a volume and a height of optical components (e.g., polarizing beam splitter(s)) compared to illumination systems that use a single polarization selective reflector. When the first polarization selective reflector 410 and the second polarization selective reflector 420 (having 90.degree. between the two while each polarization selective reflector tilted 45.degree. relative to the spatial light modulator 452) are used to illuminate the spatial light modulator 452 having a length 404 along the z-direction, the first polarization selective reflector 410 and the second polarization selective reflector 420 have a height 402. In comparison, when a single polarization selective reflector 490 (tilted 45.degree. relative to the spatial light modulator 452) is used to illuminate the spatial light modulator 452 having the same length 404, the single polarization selective reflector 490 needs to have a height 493 greater than the height 402. In fact, the height 493 is twice the height 402, regardless of the magnitude of the angle, as long as the single polarization selective reflector and the pair of polarization selective reflectors are tilted relative to the spatial light modulator 452 by a same angle (e.g., when the first and second polarization selective reflectors 410 and 420 form a 120.degree. angle, and each of the single polarization selective reflector 490 and the first and second polarization selective reflectors 410 and 420 is tilted by 30.degree. relative to the spatial light modulator 452). Thus, replacing the single polarization selective reflector 490 with the pair of the first polarization selective reflector 410 and the second polarization selective reflector 420 allows reducing the height of the optical components by half.

[0203] In addition, in configurations, in which a respective polarization selective reflector is sandwiched and supported by a pair of right angle triangular prisms, a total volume of the right angle triangular prisms embedding the single polarization selective reflector 490 would be two time greater than a total volume of triangular prisms embedding the first polarization selective reflector 410 and the second polarization selective reflector 420. Thus, replacing the single polarization selective reflector 490 with the pair of the first polarization selective reflector 410 and the second polarization selective reflector 420 also allows reducing the total weight of the optical components by half.

[0204] FIG. 5 shows an illumination system 500, which is similar to the illumination system 400 except that the illumination system 500 includes a first polarization selective reflector 414 and a second polarization selective reflector 424 instead of the first polarization selective reflector 410 and the second polarization selective reflector 420. The first polarization selective reflector 414 reflects vertically polarized light, and transmits horizontally polarized light, unlike the first polarization selective reflector 410, which reflects horizontally polarized light and transmits vertically polarized light.

[0205] As explained above with respect to FIG. 4A, the light 462 contains orthogonally polarized components. For example, the light 462 may be diagonally polarized, circularly polarized, elliptically polarized, or unpolarized.

[0206] The first polarization selective reflector 414 reflects a first portion (e.g., the portion that is vertically polarized) of the light 462 incident on the first polarization selective reflector 414 as light 502, toward the spatial light modulator 452. The spatial light modulator 452 receives the light 502, and depending on a setting for a particular location (e.g., pixel) of the spatial light modulator 452, modifies the light 502 (or a portion of the light 502 that impinges on the particular location of the spatial light modulator 452), and provides (e.g., reflects) the modified light as light 504 having a polarization different from the polarization of the light 502 towards the first polarization selective reflector 414. For example, the light 502, which is vertically polarized is modified by the spatial light modulator 452 to become the light 504 that is horizontally polarized. Similar to FIG. 4A, in FIG. 5, the light 502 is shown offset from the light 504 along the z-direction, even though the light 504 reflects from the spatial light modulator 452 at or close to a location where the light 502 strikes the spatial light modulator 452. The horizontally polarized light 504 directed toward the first polarization selective reflector 414 is transmitted through the first polarization selective reflector 414 as light 506 (as the first polarization selective reflector 414 is configured to transmit horizontally polarized light). The light 506 then enters the projection system 450.

[0207] The first polarization selective reflector 414 transmits a second portion (e.g., the portion that is horizontally polarized) of the light 462 as light 508, toward the second polarization selective reflector 424. In some embodiments, the first polarization selective reflector 414 and the second polarization selective reflector 424 both reflect light having vertical polarization and transmit light having horizontal polarization. The horizontally polarized light 508 is transmitted through the second polarization selective reflector 424 and maintains its horizontal polarization as light 510. In some embodiments, the linearly polarized light 510 is incident on the phase retarder 440 at a particular incident angle (e.g., less than 10.degree. or 5.degree., such as 0.degree.). In some embodiments, the phase retarder 440 is a quarter-wave plate configured to convert the linearly polarized light 510 to circularly polarized light 512 (e.g., right-circularly polarized light) and transmit the circularly polarized light 512 toward the mirror 430. For example, the quarter-wave plate may have its fast axis oriented such that a first portion of the vertically polarized light 510 accumulates a phase shift of 90.degree. with respect to a second portion of the vertically polarized light 510, creating the circularly polarized light 512.

[0208] The mirror 430 reflects the circularly polarized light 512 toward the phase retarder 440 as light 514. When the circularly polarized light 512 is reflected by the mirror 430, a direction in which the electric field vector of the circularly polarized light 514 rotates is reversed. Thus, the circularly polarized light 514 transmitted toward the phase retarder 440 has a handedness (e.g., left-circular polarization) opposite to the circularly polarized light 512 (e.g., right-circular polarization). As the circularly polarized light 514 passes through the phase retarder 440, the phase retarder 440 converts the circularly polarized light 514 to linearly polarized light 516 and transmit the linearly polarized light 516 toward the second polarization selective reflector 424. In some embodiments, a plane of vibration of the linearly polarized light 516 (e.g., vertically polarized) is perpendicular to a plane of vibration of the linearly polarized light 510 (e.g., horizontally polarized) and the second polarization selective reflector 424 reflects the linearly polarized light 516 toward the spatial light modulator 452 as light 518. The spatial light modulator 452 modifies a polarization of the vertically polarized light 518 to form light 520 that is horizontally polarized, and directs the light 520 toward the second polarization selective reflector 424. The horizontally polarized light 520 is transmitted through the second polarization selective reflector 424 as light 522, which maintains its horizontal polarization. The light 522, which is horizontally polarized, then enters the projection system 450.

[0209] In addition to plane-polarized light (e.g., linearly polarized light, light having planar polarizations), in some embodiments, the first and second polarization selective reflectors transmit and reflect circularly polarized light.

[0210] FIG. 6 show an illumination system 600 of a head-mounted display device that include similar components as illumination system 400 except that a first polarization selective reflector 416 and a second polarization selective reflector 426 are included instead of the first polarization selective reflector 412 and the second polarization selective reflector 422, and that the phase retarder 440 is not included.

[0211] In some embodiments, one or more light sources provide light 662 having a polarization which may be represented as a combination of two circularly polarized components (e.g., linearly polarized, elliptically polarized, or unpolarized).

[0212] Light having circular polarization states refers to light that has two orthogonal constituent waves (e.g., a first constituent wave oscillating in the y-z plane, and a second constituent wave oscillating in the x-z plane) having equal magnitude and a relative phase difference that differs by multiples of 90.degree.. In such cases, a scalar amplitude of the light wave is constant but the electric-field vector of the light wave rotates in either a clockwise (e.g., right-circularly polarized light) or counter-clockwise (e.g., left-circularly polarized light) manner.

[0213] In FIG. 6, the light 662 include a first circular polarization component (e.g., right-circularly polarized component), and a second circular polarization component (e.g., left-circularly polarized component).

[0214] The light 662 is incident on the first polarization selective reflector 416. In some embodiments, the first polarization selective reflector 416 reflects a first portion (e.g., the portion that is right-circularly polarized) of the light 662 as light 664, toward the spatial light modulator 452, and transmits a second portion (e.g., the portion that is left-circularly polarized) of the light 662 as light 667. The spatial light modulator 452 receives the light 664 and depending on the setting for a particular location (e.g., pixel) of the spatial light modulator 452, modifies the light 664 (or a portion of the light 664 that impinges on the particular location of the spatial light modulator 452), and provides (e.g., reflects) light 682 having a polarization different from the polarization of the light 664 towards the first polarization selective reflector 416. For example, the light 664, which is right-circularly polarized, is modified by the spatial light modulator 452 to become light 682 that is left-circularly polarized. While In FIG. 6, the light 664 is shown offset from the light 682 along the z-direction for clarity, the light 682 reflects from the spatial light modulator 452 at or close to a location where the light 664 strikes the spatial light modulator 452. The left-circularly polarized light 682 directed toward the first polarization selective reflector 416 is transmitted through the first polarization selective reflector 416 as light 684, while maintaining its left-circular polarization. The light 684 then enters the projection system 450.

[0215] As explained above, the first polarization selective reflector 416 transmits the second portion (e.g., the portion that is left-circularly polarized) of the light 662 as light 667, toward the second polarization selective reflector 426. In some embodiments, the first polarization selective reflector 416 and the second polarization selective reflector 426 both reflect light having right-circular polarization and transmit light having left-circular polarization. The left-circularly polarized light 667 is transmitted through the second polarization selective reflector 426 and maintains its left-circular polarization as light 668. In some embodiments, the left-circularly polarized light 668 is incident on the mirror 430 at a particular incident angle (e.g., at an incident angle less than 10.degree. or 5.degree., such as 0.degree.).

[0216] The mirror 430 reflects (e.g., retroreflect) the circularly polarized light 668 toward the second polarization selective reflector 426 as light 674. When the circularly polarized light 668 is reflected by the mirror 430, a direction in which the electric field vector of the circularly polarized light 668 rotates is reversed. Thus, the circularly polarized light 674 reflected toward second polarization selective reflector 426 has a handedness (e.g., right-circularly polarized light) opposite to the circularly polarized light 668 (e.g., left-circularly polarized light). The second polarization selective reflector 426 reflects the right-circularly polarized light 674 toward the spatial light modulator 452 as light 676, while maintaining its right-circular polarization.

[0217] The spatial light modulator 452 modifies a polarization of the right-circularly polarized light 676 to form light 678 that is left-circularly polarized, and directs the light 678 toward the second polarization selective reflector 426. The left-circularly polarized light 678 is transmitted through the second polarization selective reflector 426 as light 680, while maintaining its left-circular polarization. The light 680, which is left-circularly polarized, then enters the projection system 450.

[0218] Although the first polarization selective reflector 416 and the second polarization selective reflector 426 in FIG. 6 are described as capable of reflecting the right-circularly polarized light and transmitting the left-circularly polarized light, in some embodiments, the first polarization selective reflector 416 and the second polarization selective reflector 426 configured to reflect the left-circularly polarized light and transmit the right-circularly polarized light are used.

[0219] Although FIGS. 4A, 4C, 5, and 6 illustrate illumination systems in which both the first polarization selective reflector and the second polarization selective reflector are configured to reflect light having a first polarization and transmit light having a second polarization different from the first polarization, an illumination system may be configured with two polarization selective reflectors that are configured to reflect light having different polarizations (and transmit light having different polarizations). Thus, in some embodiments, an illumination system includes (i) a first polarization selective reflector configured (e.g., positioned and/or oriented) to reflect light having a first polarization and transmit light having a second polarization and (ii) a second polarization selective reflector configured (e.g., positioned and/or oriented) to reflect light having the second polarization and transmit light having the first polarization. For example, the first polarization selective reflector may reflect light having horizontal polarization and transmit light having vertical polarization and the second polarization selective reflector may reflect light having vertical polarization and reflect light having horizontal polarization. In another example, the first polarization selective reflector may reflect light having vertical polarization and transmit light having horizontal polarization and the second polarization selective reflector may reflect light having horizontal polarization and reflect light having vertical polarization. In such embodiments, the illumination system includes a polarization retarder (e.g., a half-wave plate). In some embodiments, the polarization retarder is located between the first polarization selective reflector and the second polarization selective reflector. In some embodiments, the polarization retarder is located on the first polarization selective reflector or the second polarization selective reflector (e.g., the polarization retarder is integrated with the first polarization selective reflector). In some embodiments, the polarization retarder converts a vertically polarized light from the first polarization selective reflector to a horizontally polarized light, or vice versa.

[0220] FIGS. 7A-7C show a method 700 of forming a first polarization selective reflector and a second polarization selective reflector into an integral optical component.

[0221] In some embodiments, a prism 702 is used to form the integral optical component. In some embodiments, the prism 702 is a right-angle prism. In some embodiments, the prism 702 has a base that has a shape of an isosceles triangle. In some embodiments, the prism 702 is a right-angle prism having a base that is an isosceles right-angle triangle. In some embodiments, the prism 702 is made of glass, including glasses with a high index of refraction. In some embodiments, the prism 702 is made of polymers, for example, polymers with a low birefringence. In some embodiments, glasses with a high index of refraction has an index of refraction greater than 1.52.

[0222] Suitable polymers include polydimethyl siloxane, polymethylmethacrylate, cyclic polyolefins, polymers made from oligomers, and other polymers that can form optical components having low birefringence.

[0223] In some embodiments, a polarization selective film 704 is used to form the integral optical component. In some embodiments, the polarization selective film 704 is a wire grid polarizer film, a birefringent optical film, a cholesteric polarization selective film, or any combination thereof.

[0224] In some embodiments, the prism 702 and/or the polarization selective film 704 are coated with an adhesive and/or a primer. In some embodiments, two lateral surfaces of the prism 702 are coated with an adhesive and/or a primer. In some embodiments, the primer is an undercoat that is a preparatory coating put on the prism 702 or the polarization selective film 704. In some embodiments, priming allows better adhesion to a surface of the prism 702. In some embodiments, priming allows better adhesion to a surface of the polarization selective film 704. Better adhesion increases durability, and provides additional protection for the prism 702 and/or the polarization selective film 704. In some embodiments, the adhesive and the primer are optically transparent (e.g., at least for visible light).

[0225] In some embodiments, the integral optical components includes a first prism, and the first polarization selective reflector 710 is disposed on a first surface of the first prism 702 and the second polarization selective reflector 720 is disposed on a second surface of the first prism 702.

[0226] In some embodiments, a method of manufacturing the polarization selective reflector includes bonding two polarizing beam splitters together with an adhesive. In some embodiments, the adhesive has a similar refractive index to the prism 702 or the polarization selective reflector film 704 over the wavelengths of interest. In some embodiments, the wavelengths of interest span between 350 nm to 900 nm. In some embodiments, the wavelengths of interest span one or more shorter ranges at each of red, green, or blue (e.g., 564-580 nm for red; 534-545 nm for green; and 420-440 nm for blue) spectra.

[0227] In some embodiments, instead of using adhesive or primer, the polarization selective film 704 is simply conformed to the prism 702. In some embodiments, conforming the film 704 includes slightly stretching or heating the film 704, which allows some of the electrons on the surface to be removed from the film 704, creating patches of positive and negative electrostatic charge. When the film 704 is a good insulator, this charge persists for a sufficient period of time to induce an opposite charge in the other surface (e.g., the prism 702) to cause the film 704 to conform to the prism 702.

[0228] After the film 704 and the prism 702 are joined adhesively or conformally such that the film 704 covers two surfaces of the prism 702, the first surface of the prism 702 serves as a first polarization selective reflector 710, while the second surface of the prism 702 serves as a second polarization selective reflector 720. The first polarization selective reflector 710 and the second polarization selective reflector 720 define an angle 714 between them. In some embodiments, the angle 714 is a right angle.

[0229] FIG. 7C shows the prism 702 coupled with mating prisms 730 and 740.

[0230] In some embodiments, the mating prisms 730 and 740 are attached to the first polarization selective reflector 710 and the second polarization selective reflector 720, respectively. In some embodiments, the mating prisms 730 and 740 are cast and cured using a suitable resin. Suitable resins include polymers with a low birefringence, such as, for example, polydimethyl siloxane, polymethylmethacrylate, cyclic polyolefins, polymers made from oligomers, and other polymers that form optical components having low birefringence. In some embodiments, the mating prims 730 and 740 integrated with polarization selective reflectors (e.g., the mating prism 730 is coupled with the first polarization selective reflector 710 and the mating prism 740 is coupled with the second polarization selective reflector 720) are attached to the prism 702 to form the integral optical component.

[0231] In some embodiments, a beam splitter assembly includes a second prism (e.g., a mating prism 740) and a third prism (e.g., a mating prism 730). The second prism is in contact with the second polarization selective reflector (e.g., a second polarization selective reflector 720), and the third prism is in contact with the first polarization selective reflector (e.g., a first polarization selective reflector 710).

[0232] In some embodiments, a method of manufacturing a polarizing beam splitter includes providing a prism with an isosceles right angle triangular profile (e.g., the prism 702), applying a reflective polarizer to the two isosceles angle faces (e.g., polarization selective film 704), and immersing the prism into material to form an approximately rectangular profile (e.g., molding a rectangular prism with the embedded polarization selective reflectors 710 and 720).

[0233] FIG. 8A shows a plan view of an illumination system 800 in accordance with some embodiments. In FIG. 8A, the illumination system 800 includes light source 810, a tapered integrator 820, a first mirror 822, a Fresnel reflector 830, a first polarization selective reflector 840 and a second polarization selective reflector 850. In some embodiments, the Fresnel reflector includes a series of long, narrow, shallow-curvature (or even flat) mirrors to direct (e.g., focus, collimate) light toward the first polarization selective reflector 840. In some embodiments, the first polarization selective reflector 840 is a polarizing beam splitter. In some embodiments, the second polarization selective reflector 850 is a polarizing beam splitter. In FIG. 8A, the illumination system 800 also includes the phase retarder 440 (when the light source 80 emits light having planar polarization(s)) and the mirror 430.

[0234] In some embodiments, light 812 emitted by the light source 810 is partially collimated and homogenized by the tapered integrator 820. The light 812 reflects off the first mirror 822 at a wider end of the tapered integrator 820. In some embodiments, the first mirror 822 includes a reflective coating disposed on a surface of the wider end of the tapered integrator 820. The light 812 reflects at the first mirror 822 as light 814 and the light 814 is reflected again at a surface 832 of the Fresnel reflector 830 as light 816. In some embodiments, the light 814 makes a right angle with respect to the light 812. In some embodiments, the light 816 makes a right angle with respect to the light 814 such that the light 816 propagates in a direction counter to a propagation direction of the light 812 (e.g., the light 816 is anti-parallel to the light 812). In some embodiments, the light 812, 814 and 816 lie in the same y-z plane.

[0235] In some embodiments, the light source 810 has a divergence and emits light 813 that is not parallel to the light 812 upon emission from the light source 810. After reflecting off a side surface of the integrator 820, the light 813 is substantially parallel to the light 812. Thus, the integrator 820 collimates the light emitted from the light source 810. After the light 813 is reflected by the first mirror 822 as light 815, the light 815 is substantially parallel to the light 814. The light 815 after reflecting off a surface 834 of the Fresnel reflector 830 becomes light 817, which is substantially parallel to the light 816.

[0236] In some embodiments, the light 816 follows a similar optical path as the vertically polarized light 466 shown in FIG. 4A.

[0237] In some embodiments, light 825 follows the optical path of the vertically polarized light 494 or the light 486 described in FIG. 4B. The light 825 is directed back toward the light source 810 for recycling of the illumination light. The intermediate paths of the light (e.g., reflection of the light by the reflector 430, the first polarization selective reflector 840, or the second polarization selective reflector 850, before the light is directed as light 825) are not shown in FIG. 8A so as not to obscure other aspects of the illumination system 800.

[0238] In some embodiments, the illumination system 800 is optically coupled with the spatial light modulator 452 (not shown in FIG. 8A). When the illumination system 800 is optically coupled with the spatial light modulator 452, the spatial light modulator 452 may be positioned to lie on a y-z plane below the plane of the drawing of FIG. 8A, as shown in, for example, FIG. 4A.

[0239] In some embodiments, the first polarization selective reflector 840 and the second polarization selective reflector 850 are not disposed on the same right-angle prism as shown in FIG. 7B. Instead, the first polarization selective reflector 840 is disposed on a first prism (e.g., mating prism 730 of FIG. 7C) and the second polarization selective reflector 850 is disposed on a second prism (e.g., mating prism 740 of FIG. 7C) that is separate from the first prism.

[0240] In some embodiments, the light not reflected by the first polarization selective reflector 840 toward the spatial light modulator (e.g., the light 466 in FIG. 4A that is transmitted toward the second polarization selective reflector 420) will propagate in free space instead of through a prism (e.g., prism 702 in FIG. 7B). In some embodiments, light that is reflected by the first polarization selective reflector 840 travels through the first prism (e.g., mating prism 730) before it illuminates the spatial light modulator 452.

[0241] FIG. 8B shows the illumination system 800 in a perspective view. The light source 810 emits the light 812, which propagates through the tapered integrator 820. The light 812 reflects off the first mirror 822 as light 814. The light 814 is reflected again at the surface 832 of the Fresnel reflector 830 as the light 816.

[0242] In some embodiments, the light 816 includes two orthogonal planar polarization components (e.g., vertically polarized light and horizontally polarized light). The first polarization selective reflector 840 transmits vertically polarized light 818 toward the second polarization selective reflector 850, and reflects horizontally polarized light 821 along the -x direction, toward a spatial light modulator (not shown).

[0243] The vertically polarized light 818 transmits through the second polarization selective reflector 850, and impinges on the phase retarder 440, which is a quarter-wave plate configured to convert the linearly (e.g., vertically) polarized light 818 to circularly polarized light (e.g., left-circularly polarized light) and transmit the circularly polarized light toward the mirror 430. The mirror 430 reflects the circularly polarized light and reverses the handedness of the circularly polarized light. As the circularly polarized light passes through the phase retarder 440, the phase retarder 440 converts the circularly polarized light to linearly polarized light 823 and transmit the linearly polarized light 823 toward the second polarization selective reflector 850. In some embodiments, a plane of vibration of the linearly polarized light 823 (e.g., horizontally polarization) is perpendicular to a plane of vibration of the linearly polarized light 818 (e.g., vertically polarization), and the second polarization selective reflector 850 reflects the linearly polarized light 823 toward the spatial light modulator (not shown), along the -x direction as light 824.

[0244] In some embodiments, as shown in FIG. 9, an illumination system 900 includes two light sources 810 and 910. Light 912 emitted by the light source 910 follows a similar path as the light 812 emitted by the light source 810. The light 912 enters a second integrator 920, reflects off a second Fresnel reflector 930 and is first incident on the second polarization selective reflector 850, instead of the first polarization selective reflector 840. This configuration eliminates the need for a reflector and a phase retarder shown in FIG. 8A.

[0245] In some embodiments, directional backlights or other means provide suitable illumination to the first polarization selective reflector 840 and the second polarization selective reflector 850. In some embodiments, the light sources emit polarized light (e.g., the light source is a laser configured to provide a polarized light). In some embodiments, the light sources emit unpolarized light, and light having a polarization that is transmitted by the two polarization selective reflectors is recycled by the opposing light source. In some embodiments, a reflective or absorbing polarizer is placed in the path of the light between the light sources and the first or second polarization selective reflector to modify the polarization of the light. In some embodiments, additional mirror coatings and optional quarter wave retarders are used, which may further increase an efficiency of the system 900.

[0246] In some embodiments, at least 25% of light reflected by the spatial light modulator 452 (e.g., LCoS) is recycled by the illumination system.

[0247] FIG. 10A shows a system 1000 in accordance with some embodiments. The system 1000 includes light source 1002. In some embodiments, the light source 1002 emits light having two orthogonal polarization components. In some embodiments, the light source 1002 emits unpolarized light. In some embodiments, the light source is an LED. Light 1022 represents an example ray having horizontal polarization, and light 1020 represents an example ray having vertical polarization. In FIG. 10A, the light 1020 and 1022 are illustrated as traveling in different directions from the light source 1002 for clarity. The light 1020 and the light 1022 pass through a lens 1004 that collimates and/or homogenizes the light. Both the light 1020 and the light 1022 impinge upon a first polarization selective reflector 1006. In some embodiments, the first polarization selective reflector 1006 selectively reflects the horizontally polarized light toward a spatial light modulator 1012, while the vertically polarized light 1020 is transmitted through the first polarization selective reflector 1006 toward a second polarization selective reflector 1008. A mirror and quarter-wave plate combination 1010 receives the light 1020 from the second polarization selective reflector 1008 and reflects a horizontally polarized light back toward the second polarization selective reflector 1008. The second polarization selective reflector 1008 reflects the horizontally polarized light toward the spatial light modulator 1012.

……
……
……
