Patent: Manufacturing a graded index profile for waveguide display applications

Drawings: Click to check drawins

Publication Number: 20210231870

Publication Date: 20210729

Applicant: Facebook

Abstract

A manufacturing system for fabricating optical waveguides includes a diffusion channel with a plurality of inlets at a first end and an outlet at a second end opposite to the first end and separated from the inlets by a channel length. Each of the plurality of inlets includes a central inlet flowing a first resin into the diffusion channel such that the first resin flows along the channel length of the diffusion channel toward the outlet, and an outer inlet flowing a second resin along a periphery of the first resin. The second resin may have an index of refraction different than the first resin. The diffusion may occur between portions of the first resin and portions of the second resin over the channel length to form a composite resin having a profile with a plurality of indices of refraction in at least one dimension.

Claims

  1. A system comprising: a diffusion channel comprising a plurality of inlets at a first end and an outlet at a second end opposite to the first end and separated from the plurality inlets by a channel length, the plurality of inlets comprising: a central inlet configured to input a first resin into the diffusion channel such that the first resin flows along the channel length of the diffusion channel toward the outlet, and an outer inlet configured to input a second resin along a periphery of the first resin, the second resin having a refractive index different from a refractive index of the first resin; wherein diffusion occurs between portions of the first resin and portions of the second resin over the channel length to form a composite resin having a substantially graded refractive index profile with a refractive index spatially varying along a thickness dimension of the composite resin.

  2. The system of claim 1, further comprising: a diffusion system for applying the composite resin onto a substrate; and a rotating assembly configured to move the substrate along a length dimension orthogonal to the thickness dimension.

  3. The system of claim 1, further comprising an irradiation system configured to cure at least a portion of the composite resin.

  4. The system of claim 1, wherein the substantially graded refractive index profile substantially does not vary along width and length dimensions of the composite resin, wherein the width, length, and thickness dimensions are orthogonal to one another.

  5. The system of claim 1, wherein the spatially varying value of the refractive index comprises a parabolic index profile.

  6. The system of claim 1, wherein the first resin and the second resin comprise at least one of polyacrylate, polyurethane, polysilicone, polyester, polyolefin, polyamide, or polycarbonate.

  7. The system of claim 1, wherein the substantially graded refractive index profile is achieved by selecting at least one of: a flow rate of the first resin and the second resin; a time allowed for the occurrence of diffusion; a proportion of the first resin with respect to the second resin; or a gradient of temperature across the diffusion channel.

  8. The system of claim 1, wherein the substantially graded refractive index profile is rotationally symmetric.

  9. The system of claim 1, further comprising a second outer inlet configured to input the second resin along the periphery of the first resin.

  10. The system of claim 1, wherein the diffusion channel is substantially flat, and wherein the center inlet and the outer inlet are disposed to provide the composite resin with the refractive index varying along a thickness dimension of the diffusion channel and not varying along a length and width dimension of the diffusion channel.

  11. A system comprising: a substantially flat diffusion channel having mutually perpendicular thickness, length, and width dimensions; a central inlet configured to input a first resin into the diffusion channel for flowing the first resin in the diffusion channel along the length dimension towards an outlet of the diffusion channel; a first outer inlet configured to input a second resin into the diffusion channel for co-flowing the second resin with the first resin in the diffusion channel along its length dimension towards the outlet; wherein diffusion occurs between portions of the first and second resins as the first and second resins co-flow in the diffusion channel, to form a composite resin having a substantially graded refractive index profile with a refractive index varying along the thickness dimension of the diffusion channel.

  12. The system of claim 11, further comprising a second outer inlet disposed on an opposite side of the central inlet from the first outer inlet, wherein the second outer inlet is configured to input a third resin into the diffusion channel for co-flowing the third resin with the first and second resins in the diffusion channel along the length dimension towards the outlet.

  13. The system of claim 12, wherein the second and third resins comprise a same resin.

  14. The system of claim 11, wherein the first resin and the second resin comprise at least one of polyacrylate, polyurethane, polysilicone, polyester, polyolefin, polyamide, or polycarbonate.

  15. The system of claim 11, wherein the substantially graded refractive index profile is achieved by selecting at least one of: a flow rate of the first resin and the second resin, a time allowed for the occurrence of diffusion, a proportion of the first resin with respect to the second resin, or a gradient of temperature across the diffusion channel.

  16. The system of claim 11, wherein the substantially graded refractive index profile is symmetric.

  17. The system of claim 11, further comprising a curing unit for curing the composite resin by at least one of: heating the composite resin; or irradiating the composite resin with an actinic radiation.

  18. A waveguide comprising: a solid composite resin waveguide body comprising: a first surface; a second surface parallel to the first surface; and a central layer in between the first surface and the second surface; wherein the solid composite resin has a substantially graded refractive index profile with a refractive index varying along a first dimension orthogonal to the first and second surfaces, wherein the refractive index is substantially not varying along second and third dimensions parallel to the first and second surfaces, wherein the first, second, and third dimensions are orthogonal to each other; and wherein the solid composite resin includes a cured inter-diffused mixture of first and second resins, wherein a refractive index of the first resin is different from a refractive index of the second resin.

  19. The waveguide of claim 18, wherein the solid complex resin is manufactured by a process comprising: flowing the first resin into a central flat inlet of a plurality of inlets at a first end of the diffusion channel-including an outlet at a second end opposite to the first end and separated from the plurality of inlets by a channel length; and flowing the second resin into an outer flat inlet of the plurality of inlets along a periphery of the first resin; wherein at least a portion of the second resin diffuses into at least a portion of the first resin in the diffusion channel over the channel length to form a mixture of the first resin and the second resin.

  20. The waveguide of claim 19, wherein the process further comprises controlling at least one of: a first flow rate of the first resin, a second flow rate of the second resin, a time allowed for the diffusion, a proportion of the first resin to the second resin, or a gradient of temperature across the diffusion channel.

Description

REFERENCE TO RELATED APPLICATION

[0001] The present invention is a continuation of U.S. patent application Ser. No. 15/695,466 filed on Sep. 5, 2017 and incorporated herein by reference in its entirety.

BACKGROUND

[0002] The present disclosure generally relates to waveguide displays, and specifically to a method of manufacturing a planar waveguide with a graded index profile in waveguide displays.

[0003] Graded index lenses (GRIN) create optical power within an optical material. Such GRIN lenses are widely used for collimating and imaging light in optical devices. Most GRIN lenses are in the form of a round lens or fiber with a gradient in refractive index present along two dimensions. Conventional GRIN lenses are manufactured by processes such as ion exchange, chemical vapor deposition, ion stuffing, partial polymerization, non-uniform distribution of high index molecules in a polymer matrix, neutron irradiation, and polymer layer coextrusion of polymers with a relatively high and low index of refraction, etc. In such processes, the GRIN lenses include layers that are significantly thinner than the wavelength of light, and the effective refractive index of the GRIN lenses is controlled by the ratio of the total amount of high and low index polymers.

[0004] Unfortunately, current methods for making GRIN lenses have several problems. For example, waveguides made by layer coextrusion produces optics with much less scatter for light propagating at near-normal angles to the surface of the waveguide, but can have very high scatter for light propagating parallel to the surface of the waveguide. Accordingly, conventional processes are not suitable for making GRIN waveguides with better durability and compactness.

SUMMARY

[0005] A system for fabricating optical waveguides includes a diffusion channel with a plurality of inlets at a first end and an outlet at a second end opposite to the first end and separated from the plurality of inlets by a channel length. The plurality of inlets includes a central inlet that flows a first resin into the diffusion channel such that the first resin flows along the channel length of the diffusion channel toward the outlet, and at least one outer inlet that flows a second resin along a periphery of the first resin. The second resin may have an index of refraction different than the first resin. The diffusion may occur between portions of the first resin and portions of the second resin over the channel length to form a composite resin having a profile with a plurality of indices of refractions in at least one dimension. In one example, the plurality of indices of refraction in the profile is achieved by at least one of: a flow rate of the first resin and the second resin, a time allowed for the occurrence of diffusion, a proportion of the first resin with respect to the second resin, a gradient of temperature across the diffusion channel, and some combination thereof. In some configurations, the composite resin has a substantially parabolic profile with a plurality of index of refractions along a first dimension and a fixed value of index of refraction along a second dimension and a third dimension that are orthogonal to the first dimension. The composite resin may form, e.g., a waveguide having a graded index of refraction. The graded index of refraction includes a plurality of indices of refraction in at least one dimension. In some embodiments, the plurality of indices of refraction may have a substantially parabolic distribution.

[0006] In some embodiments, the system includes a diffusion system that combine portions of the first resin and the second resin. The diffusion system may apply the combined first resin and the second resin onto a substrate. The system may also include a rotating assembly that adjusts a portion of the substrate along a second dimension orthogonal to the first dimension. The system may also include an irradiation system that cures at least a portion of the combined first resin and second resin.

BRIEF DESCRIPTION OF THE DRAWINGS

[0007] FIG. 1 is a block diagram of a manufacturing system, in accordance with one embodiment.

[0008] FIG. 2A illustrates an isometric view of a waveguide with graded index profile, in accordance with an embodiment.

[0009] FIG. 2B illustrates a cross-sectional view of the waveguide of FIG. 2A with graded index profile, in accordance with an embodiment.

[0010] FIG. 3 illustrates an isometric view of a system for manufacturing the waveguide of FIG. 2A, in accordance with an embodiment.

[0011] FIG. 4A illustrates a cross-sectional view of a portion of the system of FIG. 3 showing the diffusion of one or more resins, in accordance with an embodiment.

[0012] FIG. 4B illustrates a cross-sectional view showing a composite resin formed near an outlet of the system of FIG. 3, in accordance with an embodiment.

[0013] FIG. 5 illustrates an isometric view of a system for manufacturing the waveguide of FIG. 2A, in accordance with an embodiment.

[0014] FIG. 6 is a flowchart illustrating a process performed by the manufacturing system of FIG. 1, in accordance with one embodiment.

[0015] The figures depict various embodiments of the present invention for purposes of illustration only. One skilled in the art will readily recognize from the following discussion that alternative embodiments of the structures and methods illustrated herein may be employed without departing from the principles of the invention described herein.

DETAILED DESCRIPTION

Overview

[0016] A manufacturing system is described for manufacturing optical waveguides with graded index profile having a substantially parabolic profile with a plurality of index of refractions along a first dimension and a fixed value of index of refraction along a second dimension and a third dimension, where the second dimension and the third dimension are orthogonal to the first dimension. In some configurations, the plurality of index of refractions in the profile is achieved by at least one of: a flow rate of a first resin and a second resin, a time allowed for the occurrence of diffusion of the first resin with the second resin, a proportion of the first resin with respect to the second resin, a gradient of temperature across the diffusion channel, and some combination thereof.

[0017] In some embodiments, the index of refraction varies according to the formula n=n.sub.0(1-AZ.sup.2/2), where A is a positive coefficient, Z is the displacement from a mid-plane between the front and back surface of the optical waveguide, n is the refractive index along the direction of the displacement, and n.sub.0 is the index of refraction at the mid-plane. The graded index profile may be parabolic or hyperbolic. The graded index profile may be symmetric from the mid-plane to the front and back surfaces of the waveguide, or may have different profiles. For example, the refractive index coefficient A may be different for positive and negative values of Z. The mid-plane is generally located at a mid-point between the front and back surfaces of the optical waveguide, but may also be proximate to either the front and/or back surfaces of the optical waveguide. The first resin and the second resin are associated with a polydispersity index determined by the ratio of the average molecular weight by weight (M.sub.w) to the average molecular weight by number (M.sub.n) of each resin. In some configurations, the average molecular weight by weight and the average molecular weight by number are determined by size exclusion chromatography. In a different configuration, an image created by the optical waveguide has a modulation transfer function (MTF) of at least 100 line pairs per millimeter (mm) corresponding to a 50% contrast ratio of the image. In some examples, the MTF of the optical waveguide ranges from 5 to 50 lines pairs per mm corresponding to the 50% contrast ratio of the image.

[0018] FIG. 1 is a block diagram of a manufacturing system 100, in accordance with one embodiment. The manufacturing system 100 is a group of devices that produce an optical waveguide with a graded index of refraction. The manufacturing system 100 includes a resin flow system 110, a diffusion system 120, a curing system 130, or some combination thereof. In some embodiments, the manufacturing system 100 includes a controller (not shown here) that controls each system in the manufacturing system 100.

[0019] The resin flow system 110 is a system that performs a flow of a substance on a substrate creating a change in thickness of the substrate. The resin flow system 110 includes a central inlet, one or more outer inlets, a diffusion channel, and an outlet, as described below in conjunction with FIG. 3. In one example, the resin flow system 110 flows a first resin into the central inlet at a first end of the diffusion channel with the outlet at a second end separated from the inlets by a channel length. The resin flow system 110 flows a second resin into the outer inlet along a periphery of the first resin.

[0020] In some configurations, the resins entering the resin flow system 110 may include a set of resins with a high refractive index (e.g. above 1.5) and a low refractive index (e.g. below 1.5). The desired refractive index profile of the optical waveguide may be achieved by controlling flow rates, mixing of resins provided to the resin flow system 110, time allowed for diffusion before curing, and a gradient of temperature across the resin flow system 110. The flow rate and volume of the resin flow system 110 determines the residence time of the first resin. In some examples, the average residence time of the first resin is in the range of 1 to 1000 seconds. In alternate examples, the average residence time of the first resin is in the range of 1 and 20 seconds. In some examples, the average temperature of the first resin is in the range of 0 to 250.degree. C. In alternate examples, the average temperature of the first resin is in the range of 20 to 100.degree. C. In some configurations, the first resin may be heated to a uniform temperature. In alternate configurations, the first resin may have a temperature gradient. For example, one or more resins may be heated to a plurality of temperatures before combining the one or more resins in the resin flow system 110. The temperature of the one or more resins may differ by 10, 20, 50, or more than 100.degree. C. In some applications, it may be desired to have the majority of the diffusion occurring after the deposition of layers of resin on a substrate, and before the resin is cured.

[0021] The diffusion system 120 is a system that performs a diffusion of an additional material into a resin. In some configurations, the additional material is one or more resins with molecules that are responsible for the characteristic chemical reactions of the resins. In one example, the diffusion system 120 performs a diffusion of portions of a first resin and a second resin over a channel length to form a composite resin having a profile with a plurality of index of refractions in at least one dimension. For example, the channel length may range from about 1 to 100 cm, the channel width may range from about 1 to 100 cm, and the channel height may range from about 0.1 to 10 cm.

[0022] The curing system 130 is a system that performs a curing of a substrate to vary the index of refraction of the substrate. The curing system 130 cures the substrate to stop the diffusion of one or more additional layers formed on the substrate. In some embodiments, the curing system 130 includes a convection oven, a hotplate, a rapid thermal processing system, a UV irradiation system, or some combination thereof. The diffusion furnace is a furnace that drives the resins on the patterned substrate at a range of temperatures and/or pressures in environments such as vacuum, nitrogen, dry air, etc. In some embodiments, the curing system 130 performs a heating process including, but not restricted to, an adiabatic process, a thermal flux process, and an isothermal process. The rapid thermal processing system is a single wafer hot processing system that minimizes the thermal budget of a process by reducing the time at a given temperature in addition to, or instead of, reducing the temperature. The UV irradiation system is an illumination system that illuminates ultra-violet radiation on the resins to initiate curing.

[0023] In some configurations, the curing system 130 performs the curing on one or more initiators in the resins through actinic radiation (e.g. blue light, UV, or electron beams), thermal curing, or some combination thereof. The resins may be cured through a combination of, for example, thermally activated initiators in part or all of the resins, and photoinitiated curing in part or all of the resins. In some configurations, the curing system 130 may partially cure the optical waveguide while traveling through the resin flow system 110, and curing may be completed after the partially cured waveguide exits the resin flow system 110. Such an approach allows the curing system 130 to determine the shape of the optical waveguide without the risk of the partially cured resin sticking to the walls of the resin flow system 110.

[0024] In some embodiments, the manufacturing system 100 includes a plurality of resin flow systems 110 and a controller (not shown here) that controls each of the resin flow systems 110. For example, the manufacturing system 100 includes a first resin flow system 110 that flows a first resin at a first flow rate, and a second resin flow system 110 that flows the first resin at a second flow rate based on a processing instruction from the controller.

[0025] FIG. 2A illustrates an isometric view of a waveguide 200 with graded index profile fabricated using the manufacturing system 100 of FIG. 1, in accordance with an embodiment. The waveguide 200 is an optical device that receives a beam of light at a first end and transmits the received beam of light to a second end different from the first end. For example, the optical device is an optical waveguide, lens, mirror, etc. The waveguide 200 includes a front surface 210, a back surface 220, a face 230A, and a face 230B. In the embodiment of FIG. 2A, the waveguide 200 receives the ray 240 and the ray 250 at the face 230A and transmits the ray 260 and the ray 270 from the face 230B.

[0026] As shown in FIG. 2A, the waveguide 200 has a substantially parabolic index profile along the Z-dimension, and a fixed value of index of refraction along the X-dimension and Y-dimension. In some configurations, there may be some variation of index of refraction along the X-dimension and Y-dimension. For example, the index of refraction of the waveguide 200 may be modulated or formed into a desired profile, depending on the application. In general, the index of refraction of the waveguide 200 in both the X-dimension and the Y-dimension may be constant for planes parallel to the front surface 210, and the back surface 220. In one example, the ratio of the length of the waveguide 200 along the Y-axis to the thickness along the Z-axis, and the length of the waveguide 200 along the X-axis to the thickness along the Z-axis are both at least 10. The waveguide 200 is made of polymers including, but not restricted to, polyacrylate, polyurethane, polysilicone, polyester, polyolefin, polyamide, polycarbonate, any other optically transparent polymers and/or copolymers, and some combination thereof. In one example, the waveguide 200 is made of a first resin and a second resin associated with a polydispersity index of at most 10.

[0027] In some embodiments, the waveguide 200 is a transparent, planar waveguide having a graded index profile along the Z-dimension with a variation of less than 0.1 per micron, and a constant index of refraction along the X-dimension and the Y-dimension. The waveguide 200 includes a central layer (not shown) located at a midpoint between the front surface 210 and the back surface 220, where the index of refraction of the central layer is at least 0.01 higher than the index of refraction of areas adjacent to the front surface 210 and the back surface 220. In some configurations, an image created by the waveguide 200 has a modulation transfer function of at least 100 line pairs per mm corresponding to a 50% contrast ratio of the image.

[0028] FIG. 2B illustrates a cross-sectional view of the waveguide 200 with graded index profile fabricated using the manufacturing system 100 of FIG. 1, in accordance with an embodiment. In the embodiment of FIG. 2B, the waveguide 200 has a graded index of refraction in the Z-dimension. The ray 240 and the ray 250 propagate through the waveguide 200, and are focused at the focal point 265 and the focal point 275 as the rays 240 and 250 propagate through the waveguide 200. The focal points 265 and 275 form images of the rays 240 and 250, and allow a one-dimensional image of sources to be relayed along the waveguide 200.

[0029] FIG. 3 illustrates an isometric view of a system 300 for manufacturing the waveguide 200 of FIG. 2A, in accordance with an embodiment. The system 300 includes a central inlet 310, an outer inlet 320A, an outer inlet 320B, a channel 340, and an outlet 350. In one example, the central inlet 310 flows a first resin (e.g. methymethacrylate), and the outer inlet 320A and 320B flow a second resin (e.g. hexafluorisopropylacrylate). The first and the second resins are brought in contact with each other in region 330, and may partially diffuse into each other along the channel 340. The combination of the first resin and the second resin exit the system 300 at the outlet 350.

[0030] In alternate embodiments, the system 300 includes the central inlet 310, and the outer inlet 320A. The central inlet 310 inputs the first resin into the channel 340 such that the first resin flows along the channel length 360 of the channel 340 toward the outlet 350. The outer inlet inputs a second resin along a periphery of the first resin, where diffusion occurs between portions of the first resin and portions of the second resin over the channel length to form a composite resin having a profile with a plurality of index of refractions in at least one dimension.

[0031] FIG. 4A illustrates a cross-sectional view of a portion 400 of the system 300 of FIG. 3 showing the diffusion of one or more resins, in accordance with an embodiment. The portion 400 shows the occurrence of diffusion in the system 300, where the first resin 420 mixes with the second resin 430A and 430B, come in contact in the region 440, and show significant diffusion in the region 450. The first resin 420 and the second resin 430A and 430B diffuse into each other in the channel 340 and after being deposited on a substrate, up to the point where each of the resins is cured. The combination of diffusion occurring in the channel 340 and on the substrate creates the desired refractive index profile. If a major portion of a desired diffusion occurs in the channel 340, preferably, the channel 340 is no wider than about 100 cm, more preferably less than 10 cm, and most preferably less than about 1 cm. The average flow rates may be less than 100 cm/min, more preferably less than 20 cm/min, and most preferably less than 10 cm/min.

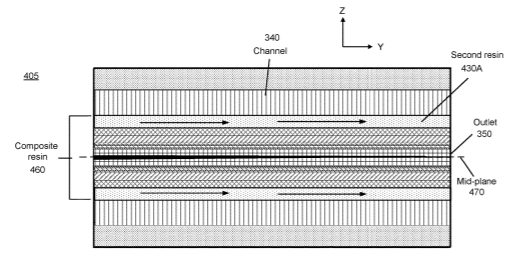

[0032] FIG. 4B illustrates a cross-sectional view of a portion 405 of the system 300 of FIG. 3 with a composite resin 460 formed near the outlet 350, in accordance with an embodiment. The portion 405 shows the occurrence of diffusion in the system 300, where the channel 340 directs a composite resin 460 formed from portions of the first resin 420, the second resin 430A, and the second resin 430B to the outlet 350. In some embodiments, the composite resin 460 may have gradient in the index profile that is substantially curved (e.g., parabolic) from a mid-plane 470 located at a mid-point between the front surface 210 and the back surface 220 of the waveguide 200 of FIG. 2A. In alternate embodiments, the composite resin 460 has a rotationally symmetrical profile with reference to the Y-dimension. The refractive index of the composite resin 460 will preferably have a refractive index of at least 1.55 in the center, and at most 1.50 at the sides.

[0033] FIG. 5 illustrates an isometric view of a system 500 for manufacturing the waveguide 200 of FIG. 2A, in accordance with an embodiment. The system 500 includes a resin flow system 510, a substrate 520, a rotating assembly 530, and an irradiation system 540. The resin flow system 510 is an embodiment of the resin flow system 110 of FIG. 1. The substrate 520 is a body that mounts the waveguide 200 of FIG. 2A. For example, the substrate 520 can be a thin layer of plastic sheet. Suitable substrates include, but are not limited to, polyethylene terephthalate, polyethylene, and polyimide. Substrate thickness is preferably between 10 and 100 microns. The rotating assembly 530 performs a rotation of the substrate 520 about a first dimension (e.g., rotate around the X-dimension) such that the substrate 520 moves along a second dimension and a third dimension (e.g. Y-dimension and Z-dimension). The irradiation system 540 is an illumination system that performs a curing of at least a portion of a mixture of one or more resins. Movement of the substrate 520 may be accomplished by other means as well, including sliding the substrate 520 over the outlet of the resin flow system 510, or using a translation stage. Alternately, the resin may be allowed to flow out of the resin flow system 510 forming a freely suspended resin stream, the resins may then be cured to form a waveguide.

[0034] In the embodiment of FIG. 5, the resin flow system 510 applies one or more resins to the substrate 520 supported by the rotating assembly 530, and the resins flow from the resin flow system 510 to the substrate 520 forming a region 550, where there is little mixing in the transition. In some configurations, UV light may be applied to a UV photoinitiated resin flow system 510 using one or more UV emitting lamps inside the irradiation system 540.

[0035] In some configurations, the irradiation system 540 cures the resins through an actinic radiation (e.g. blue light, UV, or electron beams), thermal curing, or a combination of both. The two or more resins may use different initiation or curing approaches. For example, one way of forming the substrate 520 is to use a thermal initiator in the resins near the center of the resin flow system 510, and a photoinitiator near or against the walls of the resin flow system 510. The substrate 520 may be partially cured while traveling through the resin flow system 510, and curing may be completed after the partially cured substrate 520 exits the outlet of the resin flow system 510. This approach allows the curing system 130 of FIG. 1 to determine the shape of the substrate 520 without the risk of the partially cured resin sticking to the walls of the resin flow system 510.

[0036] In some embodiments, the resins entering the resin flow system 510 may be a set of resins with a range of refractive indices. For example, if there are five inlets in the resin flow system 510, with one of them being the center inlet (e.g. inlet 3), two inlets (e.g. inlet 1 and 5) flowing the resins that form the outermost surfaces of the waveguide 200, and the remaining two inlets (e.g. inlet 2 and 4) may be provided with a mixture of resins with a high and low index of refraction. High index resins may have a refractive index of at least 1.55. Low index resins may have a refractive index of at most 1.5. The desired refractive index profile of the waveguide 200 may be achieved by controlling process parameters, including, but not restricted to, flow rates, mixing of resins provided to the resin flow system 510, time allowed for diffusion before curing, and a gradient of temperature across the resin flow system 510.

[0037] In an alternate embodiment, the substrate 520 supports at least a first and a second polymer coextruded to form a stack of at least three alternating layers of polymer sheets heated at or above the glass transition temperature of the first and second polymer. The stack of polymers may be allowed to diffuse into each other, and the substrate 520 may be heated until the stack reaches the desired refractive index profile. The first and second polymer may have substantially similar solubility parameters. In some configurations, the Relative Energy Difference (RED) of the resins are at most 1, based on the Hansen solubility parameters.

[0038] In a different embodiment, a low molecular weight solvent or plasticizer may be added to the first and second resin to promote diffusion. For example, the stack of resins may be heated in the presence of an organic or inorganic material that is absorbed into the stack. The solvent or plasticizer may be removed from the stack after the diffusion is complete. In one example, the first and second polymer include polyacrylates (e.g. polymethylmethacrylate and poly(2,2,2-trifluoroethyl methacrylate)), polyesters (e.g. polyethylene terephthalate and poly(2,6-ethylene naphthalate), isophthalate copolymers), and some other miscible polymer resins from the families of polycarbonates, polysilicones, polyolefins, polystyrenes, polyfluorocarbons, and some combination thereof. In an alternate embodiment, different polymer sheets or films may be stacked on each other and annealed by the curing system 130 of FIG. 1. In some configurations, one or more of the polymer layers may contain a low molecular weight refractive index modifier that diffuses through the polymer resins, and create the desired refractive index profile.

[0039] FIG. 6 is a flowchart illustrating the process 600 performed by the manufacturing system 100 of FIG. 1, in accordance with one embodiment. The process 600 of FIG. 6 may be performed by the manufacturing system 100. Other entities may perform some or all of the steps of the process in other embodiments. Likewise, embodiments may include different and/or additional steps, or perform the steps in different orders.

[0040] As described above with reference to FIG. 1, the resin flow system 110 flows 610 a first resin into a central inlet at a first end of the diffusion channel with an outlet at a second end separated from the inlets by a channel length. The resin flow system 110 flows 620 a second resin into an outer inlet along a periphery of the first resin. The diffusion system 120 performs 630 a diffusion of portions of the first resin and the second resin over the channel length to form a composite resin having a profile with a plurality of index of refractions in at least one dimension. In some configurations, the manufacturing system 100 achieves the plurality of index of refractions in the profile by at least one of: a flow rate of the first resin and the second resin, a time allowed for the occurrence of diffusion, a proportion of the first resin with respect to the second resin, a gradient of temperature across the diffusion channel, and some combination thereof.

Additional Configurations

[0041] The foregoing description of the embodiments of the invention has been presented for the purpose of illustration; it is not intended to be exhaustive or to limit the invention to the precise forms disclosed. Persons skilled in the relevant art can appreciate that many modifications and variations are possible in light of the above disclosure.

[0042] Some portions of this description describe the embodiments of the invention in terms of algorithms and symbolic representations of operations on information. These algorithmic descriptions and representations are commonly used by those skilled in the data processing arts to convey the substance of their work effectively to others skilled in the art. These operations, while described functionally, computationally, or logically, are understood to be implemented by computer programs or equivalent electrical circuits, microcode, or the like. Furthermore, it has also proven convenient at times, to refer to these arrangements of operations as modules, without loss of generality. The described operations and their associated modules may be embodied in software, firmware, hardware, or any combinations thereof.

[0043] Any of the steps, operations, or processes described herein may be performed or implemented with one or more hardware or software modules, alone or in combination with other devices. In one embodiment, a software module is implemented with a computer program product comprising a computer-readable medium containing computer program code, which can be executed by a computer processor for performing any or all of the steps, operations, or processes described.

[0044] Embodiments of the invention may also relate to an apparatus for performing the operations herein. This apparatus may be specially constructed for the required purposes, and/or it may comprise a general-purpose computing device selectively activated or reconfigured by a computer program stored in the computer. Such a computer program may be stored in a non-transitory, tangible computer readable storage medium, or any type of media suitable for storing electronic instructions, which may be coupled to a computer system bus. Furthermore, any computing systems referred to in the specification may include a single processor or may be architectures employing multiple processor designs for increased computing capability.

[0045] Embodiments of the invention may also relate to a product that is produced by a computing process described herein. Such a product may comprise information resulting from a computing process, where the information is stored on a non-transitory, tangible computer readable storage medium and may include any embodiment of a computer program product or other data combination described herein.

[0046] Finally, the language used in the specification has been principally selected for readability and instructional purposes, and it may not have been selected to delineate or circumscribe the inventive subject matter. It is therefore intended that the scope of the invention be limited not by this detailed description, but rather by any claims that issue on an application based hereon. Accordingly, the disclosure of the embodiments of the invention is intended to be illustrative, but not limiting, of the scope of the invention, which is set forth in the following claims.
