Apple Patent | Model with multiple concurrent timescales

小编 映维   |   分类：Apple   |

Patent: Model with multiple concurrent timescales

Drawings: Click to check drawins

Publication Number: 20210201108

Publication Date: 20210701

Applicant: Apple

Abstract

In one implementation, a method of generating an environment state is performed by a device including one or more processors and non-transitory memory. The method includes obtaining a first environment state of an environment, wherein the first environment state indicates the inclusion in the environment of a first asset associated with a first timescale value and a second asset associated with a second timescale value, wherein the first environment state further indicates that the first asset has a first state of the first asset and the second asset has a first state of the second asset. The method includes determining a second state of the first asset and the second asset based on the first and second timescale value. The method includes determining a second environment state that indicates that the first asset has the second state and the second asset has the second state.

Claims

  1. A method comprising: at an electronic device including a processor and non-transitory memory: obtaining a first environment state of an environment, wherein the first environment state indicates the inclusion in the environment of a first asset associated with a first timescale value and a second asset associated with a second timescale value, wherein the first environment state further indicates that the first asset has a first state of the first asset and the second asset has a first state of the second asset; determining a second state of the first asset based on the first timescale value; determining a second state of the second asset based on the second timescale value; and determining a second environment state of the environment indicating the inclusion of the first asset and the second asset, wherein the second environment state further indicates that the first asset has the second state of the first asset and the second asset has the second state of the second asset.

  2. The method of claim 1, wherein the second timescale value is different than the first timescale value.

  3. The method of claim 1, wherein determining the second state of the first asset is further based on the first state of the first asset.

  4. The method of claim 1, wherein the first environment state includes an XML file.

  5. The method of claim 1, wherein the first environment state includes data indicating: a type of the first asset; a location of the first asset in the environment; and an age of the first asset.

  6. The method of claim 1, further comprising: displaying the environment having the first environment state at a first time; and displaying the environment having the second environment state at a second time.

  7. The method of claim 1, wherein the first state of the first asset is a first age of the first asset and the second state of the first asset is a second age of the first asset, wherein determining the second state of the first asset includes determining the second age of the first asset by adding, to the first age of the first asset, a first age-step value equal to the first timescale value multiplied by a constant.

  8. The method of claim 7, wherein the first state of the second asset is a first age of the second asset and the second state of the second asset is a second age of the second asset, wherein determining the second state of the second asset includes determining the second age of the second asset by adding, to the first age of the second asset, a second age-step value equal to the second timescale value multiplied by the constant.

  9. The method of claim 1, wherein the first state of the first asset is a first location of the first asset and the second state of the first asset is a second location of the first asset, wherein determining the second state of the first asset includes determining the second location of the first asset by adding, to the first location of the first asset, a first location-step value equal to a motion vector of the first asset multiplied by the first timescale value multiplied by a constant.

  10. The method of claim 9, wherein the first state of the second asset is a first location of the second asset and the second state of the second asset is a second location of the second asset, wherein determining the second state of the second asset includes determining the second location of the second asset by adding, to the first location of the second asset, a second location-step value equal to a motion vector of the second asset multiplied by the second timescale value multiplied by the constant.

  11. The method of claim 1, wherein the first environment state is associated with a first environment time and the second environment state is associated with a second environment time a timestep later than the first environment time, wherein determining the second state of the first asset is based on the timestep and determining the second state of the second asset is based on the timestep.

  12. A device comprising: a non-transitory memory; and one or more processors to: obtain a first environment state of an environment, wherein the first environment state indicates the inclusion in the environment of a first asset associated with a first timescale value and a second asset associated with a second timescale value, wherein the first environment state further indicates that the first asset has a first state of the first asset and the second asset has a first state of the second asset; determine a second state of the first asset based on the first timescale value; determine a second state of the second asset based on the second timescale value; and determine a second environment state of the environment indicating the inclusion of the first asset and the second asset, wherein the second environment state further indicates that the first asset has the second state of the first asset and the second asset has the second state of the second asset.

  13. The device of claim 12, wherein the second timescale value is different than the first timescale value.

  14. The device of claim 12, wherein the one or more processors are to determine the second state of the first asset further based on the first state of the first asset.

  15. The device of claim 12, wherein the first state of the first asset is a first age of the first asset and the second state of the first asset is a second age of the first asset, wherein the one or more processors are to determine the second state of the first asset by determining the second age of the first asset by adding, to the first age of the first asset, a first age-step value equal to the first timescale value multiplied by a constant.

  16. The device of claim 15, wherein the first state of the second asset is a first age of the second asset and the second state of the second asset is a second age of the second asset, wherein the one or more processors are to determine the second state of the second asset by determining the second age of the second asset by adding, to the first age of the second asset, a second age-step value equal to the second timescale value multiplied by the constant.

  17. The device of claim 12, wherein the first state of the first asset is a first location of the first asset and the second state of the first asset is a second location of the first asset, wherein the one or more processors are to determine the second state of the first asset by determining the second location of the first asset by adding, to the first location of the first asset, a first location-step value equal to a motion vector of the first asset multiplied by the first timescale value multiplied by a constant.

  18. The device of claim 17, wherein the first state of the second asset is a first location of the second asset and the second state of the second asset is a second location of the second asset, wherein the one or more processors are to determine the second state of the second asset by determining the second location of the second asset by adding, to the first location of the second asset, a second location-step value equal to a motion vector of the second asset multiplied by the second timescale value multiplied by the constant.

  19. The device of claim 12, wherein the first environment state is associated with a first environment time and the second environment state is associated with a second environment time a timestep later than the first environment time, wherein the one or more processors are to determine the second state of the first asset based on the timestep and the one or more processors are to determine the second state of the second asset based on the timestep.

  20. A non-transitory memory storing one or more programs, which, when executed by one or more processors of a device, cause the device to: obtain a first environment state of an environment, wherein the first environment state indicates the inclusion in the environment of a first asset associated with a first timescale value and a second asset associated with a second timescale value, wherein the first environment state further indicates that the first asset has a first state of the first asset and the second asset has a first state of the second asset; determine a second state of the first asset based on the first timescale value; determine a second state of the second asset based on the second timescale value; and determine a second environment state of the environment indicating the inclusion of the first asset and the second asset, wherein the second environment state further indicates that the first asset has the second state of the first asset and the second asset has the second state of the second asset.

Description

CROSS-REFERENCES TO RELATED APPLICATIONS

[0001] This application is a continuation of Intl. Patent App. No. PCT/US2019/052586, filed on Sep. 24, 2019, which claims priority to U.S. Provisional Patent App. No. 62/738,097, filed on Sep. 28, 2019, which are both hereby incorporated by reference in their entirety.

TECHNICAL FIELD

[0002] The present disclosure generally relates to generating an extended reality (XR) environment, and in particular, to systems, methods, and devices for determining environment states for an XR environment at multiple concurrent timescales.

BACKGROUND

[0003] While presenting an XR environment that includes assets that evolve over time according to one or more models, certain assets may evolve at different rates than other assets.

BRIEF DESCRIPTION OF THE DRAWINGS

[0004] So that the present disclosure can be understood by those of ordinary skill in the art, a more detailed description may be had by reference to aspects of some illustrative implementations, some of which are shown in the accompanying drawings.

[0005] FIG. 1 is a block diagram of an example operating architecture in accordance with some implementations.

[0006] FIG. 2 is a block diagram of an example controller in accordance with some implementations.

[0007] FIG. 3 is a block diagram of an example electronic device in accordance with some implementations.

[0008] FIG. 4 illustrates a scene with an electronic device surveying the scene.

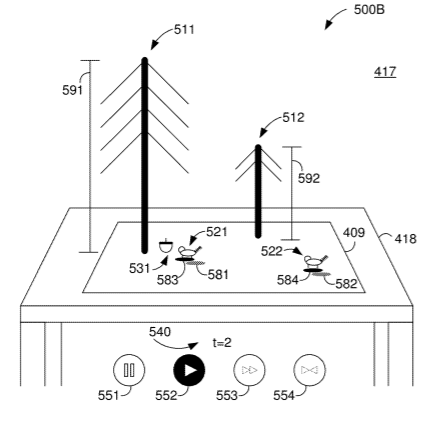

[0009] FIGS. 5A-5G illustrates a portion of the display of the electronic device of FIG. 4 displaying images of a representation of the scene including an XR environment.

[0010] FIG. 6 illustrates an environment state in accordance with some implementations.

[0011] FIG. 7 is a flowchart representation of a method of generating an environment state of an environment in accordance with some implementations.

[0012] In accordance with common practice the various features illustrated in the drawings may not be drawn to scale. Accordingly, the dimensions of the various features may be arbitrarily expanded or reduced for clarity. In addition, some of the drawings may not depict all of the components of a given system, method or device. Finally, like reference numerals may be used to denote like features throughout the specification and figures.

SUMMARY

[0013] Various implementations disclosed herein include devices, systems, and methods for generating an environment state of an environment. In various implementations, the method is performed at a device including one or more processors and non-transitory memory. The method includes obtaining a first environment state of an environment, wherein the first environment state indicates the inclusion in the environment of a first asset associated with a first timescale value and a second asset associated with a second timescale value, wherein the first environment state further indicates that the first asset has a first state of the first asset and the second asset has a first state of the second asset. The method includes determining a second state of the first asset based on the first timescale value and determining a second state of the second asset based on the second timescale value. The method includes determining a second environment state of the environment indicating the inclusion of the first asset and the second asset, wherein the second environment state further indicates that the first asset has the second state of the first asset and the second asset has the second state of the second asset.

[0014] In accordance with some implementations, a device includes one or more processors, a non-transitory memory, and one or more programs; the one or more programs are stored in the non-transitory memory and configured to be executed by the one or more processors and the one or more programs include instructions for performing or causing performance of any of the methods described herein. In accordance with some implementations, a non-transitory computer readable storage medium has stored therein instructions, which, when executed by one or more processors of a device, cause the device to perform or cause performance of any of the methods described herein. In accordance with some implementations, a device includes: one or more processors, a non-transitory memory, and means for performing or causing performance of any of the methods described herein.

DESCRIPTION

[0015] A physical environment refers to a physical place that people can sense and/or interact with without aid of electronic devices. The physical environment may include physical features such as a physical surface or a physical object. For example, the physical environment corresponds to a physical park that includes physical trees, physical buildings, and physical people. People can directly sense and/or interact with the physical environment such as through sight, touch, hearing, taste, and smell. In contrast, an extended reality (XR) environment refers to a wholly or partially simulated environment that people sense and/or interact with via an electronic device. For example, the XR environment may include augmented reality (AR) content, mixed reality (MR) content, virtual reality (VR) content, and/or the like. With an XR system, a subset of a person’s physical motions, or representations thereof, are tracked, and, in response, one or more characteristics of one or more virtual objects simulated in the XR environment are adjusted in a manner that comports with at least one law of physics. As an example, the XR system may detect movement of the electronic device presenting the XR environment (e.g., a mobile phone, a tablet, a laptop, a head-mounted device, and/or the like) and, in response, adjust graphical content and an acoustic field presented by the electronic device to the person in a manner similar to how such views and sounds would change in a physical environment. In some situations (e.g., for accessibility reasons), the XR system may adjust characteristic(s) of graphical content in the XR environment in response to representations of physical motions (e.g., vocal commands).

[0016] There are many different types of electronic systems that enable a person to sense and/or interact with various XR environments. Examples include head-mountable systems, projection-based systems, heads-up displays (HUDs), vehicle windshields having integrated display capability, windows having integrated display capability, displays formed as lenses designed to be placed on a person’s eyes (e.g., similar to contact lenses), headphones/earphones, speaker arrays, input systems (e.g., wearable or handheld controllers with or without haptic feedback), smartphones, tablets, and desktop/laptop computers. A head-mountable system may have one or more speaker(s) and an integrated opaque display. Alternatively, a head-mountable system may be configured to accept an external opaque display (e.g., a smartphone). The head-mountable system may incorporate one or more imaging sensors to capture images or video of the physical environment, and/or one or more microphones to capture audio of the physical environment. Rather than an opaque display, a head-mountable system may have a transparent or translucent display. The transparent or translucent display may have a medium through which light representative of images is directed to a person’s eyes. The display may utilize digital light projection, OLEDs, LEDs, uLEDs, liquid crystal on silicon, laser scanning light sources, or any combination of these technologies. The medium may be an optical waveguide, a hologram medium, an optical combiner, an optical reflector, or any combination thereof. In some implementations, the transparent or translucent display may be configured to become opaque selectively. Projection-based systems may employ retinal projection technology that projects graphical images onto a person’s retina. Projection systems also may be configured to project virtual objects into the physical environment, for example, as a hologram or on a physical surface.

[0017] Numerous details are described in order to provide a thorough understanding of the example implementations shown in the drawings. However, the drawings merely show some example aspects of the present disclosure and are therefore not to be considered limiting. Those of ordinary skill in the art will appreciate that other effective aspects and/or variants do not include all of the specific details described herein. Moreover, well-known systems, methods, components, devices and circuits have not been described in exhaustive detail so as not to obscure more pertinent aspects of the example implementations described herein.

[0018] In various implementations, a device surveys a scene and presents, within the scene, an XR environment including one or more assets that evolve over time (e.g., change location or age). However, over a period of real time, certain types of assets evolve more than other types of assets. Thus, in various circumstances, a user being presented the XR environment will not fully experience the evolution of the assets. Accordingly, in various implementations, different assets are concurrently modeled at different timescales to allow a user to simultaneously experience the evolution of different assets.

[0019] FIG. 1 is a block diagram of an example operating environment 100 in accordance with some implementations. While pertinent features are shown, those of ordinary skill in the art will appreciate from the present disclosure that various other features have not been illustrated for the sake of brevity and so as not to obscure more pertinent aspects of the example implementations disclosed herein. To that end, as a non-limiting example, the operating environment 100 includes a controller 110 and an electronic device 120.

[0020] In some implementations, the controller 110 is configured to manage and coordinate an XR experience for the user. In some implementations, the controller 110 includes a suitable combination of software, firmware, and/or hardware. The controller 110 is described in greater detail below with respect to FIG. 2. In some implementations, the controller 110 is a computing device that is local or remote relative to the physical environment 105. For example, the controller 110 is a local server located within the physical environment 105. In another example, the controller 110 is a remote server located outside of the physical environment 105 (e.g., a cloud server, central server, etc.). In some implementations, the controller 110 is communicatively coupled with the electronic device 120 via one or more wired or wireless communication channels 144 (e.g., BLUETOOTH, IEEE 802.11x, IEEE 802.16x, IEEE 802.3x, etc.). In another example, the controller 110 is included within the enclosure of the electronic device 120. In some implementations, the functionalities of the controller 110 are provided by and/or combined with the electronic device 120.

[0021] In some implementations, the electronic device 120 is configured to provide the XR experience to the user. In some implementations, the electronic device 120 includes a suitable combination of software, firmware, and/or hardware. According to some implementations, the electronic device 120 presents, via a display 122, XR content to the user while the user is physically present within the physical environment 105 that includes a table 107 within the field-of-view 111 of the electronic device 120. As such, in some implementations, the user holds the electronic device 120 in his/her hand(s). In some implementations, while providing XR content, the electronic device 120 is configured to display an XR object (e.g., an XR cylinder 109) and to enable video pass-through of the physical environment 105 (e.g., including a representation 117 of the table 107) on a display 122. The electronic device 120 is described in greater detail below with respect to FIG. 3.

[0022] According to some implementations, the electronic device 120 provides an XR experience to the user while the user is virtually and/or physically present within the physical environment 105.

[0023] In some implementations, the user wears the electronic device 120 on his/her head. For example, in some implementations, the electronic device includes a head-mounted system (HMS), head-mounted device (HMD), or head-mounted enclosure (HME). As such, the electronic device 120 includes one or more XR displays provided to display the XR content. For example, in various implementations, the electronic device 120 encloses the field-of-view of the user. In some implementations, the electronic device 120 is a handheld device (such as a smartphone or tablet) configured to present XR content, and rather than wearing the electronic device 120, the user holds the device with a display directed towards the field-of-view of the user and a camera directed towards the physical environment 105. In some implementations, the handheld device can be placed within an enclosure that can be worn on the head of the user. In some implementations, the electronic device 120 is replaced with an XR chamber, enclosure, or room configured to present XR content in which the user does not wear or hold the electronic device 120.

[0024] FIG. 2 is a block diagram of an example of the controller 110 in accordance with some implementations. While certain specific features are illustrated, those skilled in the art will appreciate from the present disclosure that various other features have not been illustrated for the sake of brevity, and so as not to obscure more pertinent aspects of the implementations disclosed herein. To that end, as a non-limiting example, in some implementations the controller 110 includes one or more processing units 202 (e.g., microprocessors, application-specific integrated-circuits (ASICs), field-programmable gate arrays (FPGAs), graphics processing units (GPUs), central processing units (CPUs), processing cores, and/or the like), one or more input/output (I/O) devices 206, one or more communication interfaces 208 (e.g., universal serial bus (USB), FIREWIRE, THUNDERBOLT, IEEE 802.3x, IEEE 802.11x, IEEE 802.16x, global system for mobile communications (GSM), code division multiple access (CDMA), time division multiple access (TDMA), global positioning system (GPS), infrared (IR), BLUETOOTH, ZIGBEE, and/or the like type interface), one or more programming (e.g., I/O) interfaces 210, a memory 220, and one or more communication buses 204 for interconnecting these and various other components.

[0025] In some implementations, the one or more communication buses 204 include circuitry that interconnects and controls communications between system components. In some implementations, the one or more I/O devices 206 include at least one of a keyboard, a mouse, a touchpad, a joystick, one or more microphones, one or more speakers, one or more image sensors, one or more displays, and/or the like.

[0026] The memory 220 includes high-speed random-access memory, such as dynamic random-access memory (DRAM), static random-access memory (SRAM), double-data-rate random-access memory (DDR RAM), or other random-access solid-state memory devices. In some implementations, the memory 220 includes non-volatile memory, such as one or more magnetic disk storage devices, optical disk storage devices, flash memory devices, or other non-volatile solid-state storage devices. The memory 220 optionally includes one or more storage devices remotely located from the one or more processing units 202. The memory 220 comprises a non-transitory computer readable storage medium. In some implementations, the memory 220 or the non-transitory computer readable storage medium of the memory 220 stores the following programs, modules and data structures, or a subset thereof including an optional operating system 230 and an XR experience module 240.

[0027] The operating system 230 includes procedures for handling various basic system services and for performing hardware dependent tasks. In some implementations, the XR experience module 240 is configured to manage and coordinate one or more XR experiences for one or more users (e.g., a single XR experience for one or more users, or multiple XR experiences for respective groups of one or more users). To that end, in various implementations, the XR experience module 240 includes a data obtaining unit 242, a tracking unit 244, a coordination unit 246, and a data transmitting unit 248.

[0028] In some implementations, the data obtaining unit 242 is configured to obtain data (e.g., presentation data, interaction data, sensor data, location data, etc.) from at least the electronic device 120 of FIG. 1. To that end, in various implementations, the data obtaining unit 242 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0029] In some implementations, the tracking unit 244 is configured to map the physical environment 105 and to track the position/location of at least the electronic device 120 with respect to the physical environment 105 of FIG. 1. To that end, in various implementations, the tracking unit 244 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0030] In some implementations, the coordination unit 246 is configured to manage and coordinate the XR experience presented to the user by the electronic device 120. To that end, in various implementations, the coordination unit 246 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0031] In some implementations, the data transmitting unit 248 is configured to transmit data (e.g., presentation data, location data, etc.) to at least the electronic device 120. To that end, in various implementations, the data transmitting unit 248 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0032] Although the data obtaining unit 242, the tracking unit 244, the coordination unit 246, and the data transmitting unit 248 are shown as residing on a single device (e.g., the controller 110), it should be understood that in other implementations, any combination of the data obtaining unit 242, the tracking unit 244, the coordination unit 246, and the data transmitting unit 248 may be located in separate computing devices.

[0033] Moreover, FIG. 2 is intended more as functional description of the various features that may be present in a particular implementation as opposed to a structural schematic of the implementations described herein. As recognized by those of ordinary skill in the art, items shown separately could be combined and some items could be separated. For example, some functional modules shown separately in FIG. 2 could be implemented in a single module and the various functions of single functional blocks could be implemented by one or more functional blocks in various implementations. The actual number of modules and the division of particular functions and how features are allocated among them will vary from one implementation to another and, in some implementations, depends in part on the particular combination of hardware, software, and/or firmware chosen for a particular implementation.

[0034] FIG. 3 is a block diagram of an example of the electronic device 120 in accordance with some implementations. While certain specific features are illustrated, those skilled in the art will appreciate from the present disclosure that various other features have not been illustrated for the sake of brevity, and so as not to obscure more pertinent aspects of the implementations disclosed herein. To that end, as a non-limiting example, in some implementations the electronic device 120 includes one or more processing units 302 (e.g., microprocessors, ASICs, FPGAs, GPUs, CPUs, processing cores, and/or the like), one or more input/output (I/O) devices and sensors 306, one or more communication interfaces 308 (e.g., USB, FIREWIRE, THUNDERBOLT, IEEE 802.3x, IEEE 802.11x, IEEE 802.16x, GSM, CDMA, TDMA, GPS, IR, BLUETOOTH, ZIGBEE, and/or the like type interface), one or more programming (e.g., I/O) interfaces 310, one or more XR displays 312, one or more optional interior- and/or exterior-facing image sensors 314, a memory 320, and one or more communication buses 304 for interconnecting these and various other components.

[0035] In some implementations, the one or more communication buses 304 include circuitry that interconnects and controls communications between system components. In some implementations, the one or more I/O devices and sensors 306 include at least one of an inertial measurement unit (IMU), an accelerometer, a gyroscope, a thermometer, one or more physiological sensors (e.g., blood pressure monitor, heart rate monitor, blood oxygen sensor, blood glucose sensor, etc.), one or more microphones, one or more speakers, a haptics engine, one or more depth sensors (e.g., a structured light, a time-of-flight, or the like), and/or the like.

[0036] In some implementations, the one or more XR displays 312 are configured to provide the XR experience to the user. In some implementations, the one or more XR displays 312 correspond to holographic, digital light processing (DLP), liquid-crystal display (LCD), liquid-crystal on silicon (LCoS), organic light-emitting field-effect transitory (OLET), organic light-emitting diode (OLED), surface-conduction electron-emitter display (SED), field-emission display (FED), quantum-dot light-emitting diode (QD-LED), micro-electro-mechanical system (MEMS), and/or the like display types. In some implementations, the one or more XR displays 312 correspond to diffractive, reflective, polarized, holographic, etc. waveguide displays. For example, the electronic device 120 includes a single XR display. In another example, the electronic device includes an XR display for each eye of the user. In some implementations, the one or more XR displays 312 are capable of presenting MR and VR content.

[0037] In some implementations, the one or more image sensors 314 are configured to obtain image data that corresponds to at least a portion of the face of the user that includes the eyes of the user (any may be referred to as an eye-tracking camera). In some implementations, the one or more image sensors 314 are configured to be forward-facing so as to obtain image data that corresponds to the scene as would be viewed by the user if the electronic device 120 was not present (and may be referred to as a scene camera). The one or more optional image sensors 314 can include one or more RGB cameras (e.g., with a complimentary metal-oxide-semiconductor (CMOS) image sensor or a charge-coupled device (CCD) image sensor), one or more infrared (IR) cameras, one or more event-based cameras, and/or the like.

[0038] The memory 320 includes high-speed random-access memory, such as DRAM, SRAM, DDR RAM, or other random-access solid-state memory devices. In some implementations, the memory 320 includes non-volatile memory, such as one or more magnetic disk storage devices, optical disk storage devices, flash memory devices, or other non-volatile solid-state storage devices. The memory 320 optionally includes one or more storage devices remotely located from the one or more processing units 302. The memory 320 comprises a non-transitory computer readable storage medium. In some implementations, the memory 320 or the non-transitory computer readable storage medium of the memory 320 stores the following programs, modules and data structures, or a subset thereof including an optional operating system 330 and an XR presentation module 340.

[0039] The operating system 330 includes procedures for handling various basic system services and for performing hardware dependent tasks. In some implementations, the XR presentation module 340 is configured to present XR content to the user via the one or more XR displays 312. To that end, in various implementations, the XR presentation module 340 includes a data obtaining unit 342, an XR presenting unit 344, an XR environment unit 346, and a data transmitting unit 348.

[0040] In some implementations, the data obtaining unit 342 is configured to obtain data (e.g., presentation data, interaction data, sensor data, location data, etc.) from at least the controller 110 of FIG. 1. To that end, in various implementations, the data obtaining unit 342 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0041] In some implementations, the XR presenting unit 344 is configured to present XR content via the one or more XR displays 312. To that end, in various implementations, the XR presenting unit 344 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0042] In some implementations, the XR environment unit 346 is configured to generate one or more environment states of an XR environment. To that end, in various implementations, the XR environment unit 346 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0043] In some implementations, the data transmitting unit 348 is configured to transmit data (e.g., presentation data, location data, etc.) to at least the controller 110. In some implementations, the data transmitting unit 348 is configured to transmit the request for a content rendering. To that end, in various implementations, the data transmitting unit 348 includes instructions and/or logic therefor, and heuristics and metadata therefor.

[0044] Although the data obtaining unit 342, the XR presenting unit 344, the XR environment unit 346, and the data transmitting unit 348 are shown as residing on a single device (e.g., the electronic device 120), it should be understood that in other implementations, any combination of the data obtaining unit 342, the XR presenting unit 344, the XR environment unit 346, and the data transmitting unit 348 may be located in separate computing devices.

[0045] Moreover, FIG. 3 is intended more as a functional description of the various features that could be present in a particular implementation as opposed to a structural schematic of the implementations described herein. As recognized by those of ordinary skill in the art, items shown separately could be combined and some items could be separated. For example, some functional modules shown separately in FIG. 3 could be implemented in a single module and the various functions of single functional blocks could be implemented by one or more functional blocks in various implementations. The actual number of modules and the division of particular functions and how features are allocated among them will vary from one implementation to another and, in some implementations, depends in part on the particular combination of hardware, software, and/or firmware chosen for a particular implementation.

[0046] FIG. 4 illustrates a scene 405 with an electronic device 410 surveying the scene 405. The scene 405 includes a table 408 and a wall 407.

[0047] The electronic device 410 displays, on a display, a representation of the scene 415 including a representation of the table 418 and a representation of the wall 417. In various implementations, the representation of the scene 415 is generated based on an image of the scene captured with a scene camera of the electronic device 410 having a field-of-view directed toward the scene 405. The representation of the scene 415 further includes an XR environment 409 displayed on the representation of the table 418.

[0048] As the electronic device 410 moves about the scene 405, the representation of the scene 415 changes in accordance with the change in perspective of the electronic device 410. Further, the XR environment 409 correspondingly changes in accordance with the change in perspective of the electronic device 410. Accordingly, as the electronic device 410 moves, the XR environment 409 appears in a fixed relationship with respect to the representation of the table 418.

[0049] FIG. 5A illustrates a portion of the display of the electronic device 410 displaying a first image 500A of the representation of the scene 415 including the XR environment 409. In FIG. 5A, the XR environment 409 is defined by a first environment state and is associated with a first environment time (e.g., 1). The first environment state indicates the inclusion in the XR environment 409 of one or more assets and further indicates one or more states of the one or more assets. In various implementations, the environment state is a data object, such as an XML file.

[0050] Accordingly, the XR environment 409 displayed in the first image 500A includes a plurality of assets as defined by the first environment state. In FIG. 5A, the XR environment 409 includes a first tree 511 having a first height 591 and a second tree 512 having a second height 592. The XR environment 409 includes a first squirrel 521 at first location 581 and a second squirrel 522 at a second location. The XR environment 409 includes a first acorn 531.

……
……
……
