Samsung Patent | Projection Display Apparatus Including Eye Tracker

Patent: Projection Display Apparatus Including Eye Tracker

Publication Number: 20190025685

Publication Date: 2019-01-24

Applicants: Samsung

Abstract

Provided is a projection display apparatus that tracks a user’s eye with an eye tracker and displays a high-resolution image at a position of the user’s eye. The projection display apparatus includes an eye tracker configured to track an eye of a user; a projector configured to project an image; and a controller configured to control the projector, based on a position of the eye of the user obtained from the eye tracker, to perform a first operation to project a first portion of the image at a first resolution onto a first region with respect to the position of the eye of the user, and to perform one of a second operation to project a second portion of the image at a second resolution lower than the first resolution onto a second region excluding the first region, and a third operation to refrain from projecting the image in the second region.

Background

1. Field

[0002] The present disclosure relates to a projection display apparatus, and more particularly, to a projection display apparatus that tracks a user’s eye with an eye tracker and displays a high-resolution image at a position of the user’s eye.

2. Description of the Related Art

[0003] Projection display apparatuses are used in various fields because they have an advantage in that they may be used to realize a large-sized screen with a relatively inexpensive and simple structure. For example, projection display apparatuses have been applied in fields such as outdoor shows, digital signage, head-up displays, home micro-projectors, mobile apparatus type projectors, and eyeglass type projectors. In particular, in recent years, interest in augmented reality (AR), head-up displays (HUDs) for automobiles, etc., is increasing and studies are being conducted to increase image resolution while further miniaturizing projection display apparatuses.

Summary

According to an aspect of an exemplary embodiment, there is provided a projection display apparatus comprising: an eye tracker configured to track an eye of a user; a projector configured to project an image; and a controller configured to control the projector, based on a position of the eye of the user obtained from the eye tracker, to perform a first operation to project a first portion of the image at a first resolution onto a first region with respect to the position of the eye of the user, and to perform one of a second operation to project a second portion of the image at a second resolution lower than the first resolution onto a second region excluding the first region, and a third operation to refrain from projecting the image in the second region.

The projector may comprises: a laser light source configured to emit a laser beam; a light source driver configured to drive the laser light source; a scanner configured to scan the laser beam; and a projection optical system configured to project the image based on the laser beam scanned by the scanner.

The scanner may be a microelectromechanical systems (MEMS) scanner.

The controller may be further configured to control the light source driver based on the position of the eye of the user obtained from the eye tracker.

The controller may be further configured to reduce a size of a pixel in the first region by controlling the light source driver to increase a driving speed of the laser light source while the first portion of the image is projected onto the first region.

The controller may be further configured to increase a size of a pixel in the second region by controlling the light source driver to reduce a driving speed of the laser light source while the second portion of the image is projected onto the second region.

The pixel size of the second region may be an integral multiple of a size of a pixel of the first region.

The projection display apparatus may further comprise: an image capturing apparatus configured to obtain an electrical signal; and an image processor configured to process the electrical signal obtained by the imaging apparatus to generate image data.

The controller may be further configured to control the image processor to generate the first portion of the image having the first resolution corresponding to the first region and the second portion of the image having the second resolution corresponding to the second region.

The projection display apparatus may be configured to display the image in real time based on the image data.

The controller may be further configured to control the image capturing apparatus to capture only the first portion of the image corresponding to the first region.

The projector may comprise: a first projector configured to project the first portion of the image having the first resolution onto the first region; a second projector configured to project the second portion of the image having the second resolution to both the first region and the second region or only to the second region; and an image steering apparatus configured to adjust a direction of the portion of the image projected from the first projector.

The controller may be further configured to control the image steering apparatus to project the first portion of the image onto the first region with respect to the position of the eye of the user in response to the position of the eye of the user obtained from the eye tracker.

The image steering apparatus may comprise one of: a galvanometer mirror configured to reflect the projected image in a desired direction; a refracting optical system configured to refract the projected image to adjust a traveling direction of the projected image; an actuator configured to adjust an angle of the first projector; a linear motor configured to adjust the angle of the first projector, and a rotation type motor configured to adjust the angle of the first projector.

The projection display apparatus may further comprise: an image capturing apparatus configured to obtain an electrical signal; and an image processor configured to process the electrical signal obtained by the image capturing apparatus to generate image data.

The controller may be further configured to control the image processor to generate first image data corresponding to the first portion of the image having the first resolution to be provided to the first projector and second image data corresponding to the second portion of the image having the second resolution to be provided to the second projector.

The first and second projectors may comprise one of digital light processing (DLP), liquid crystal on silicon (LCoS), and microelectromechanical systems (MEMS) scanner type projectors.

The controller may be further configured to control the first projector based on the first image data and control the second projector based on the second image data.

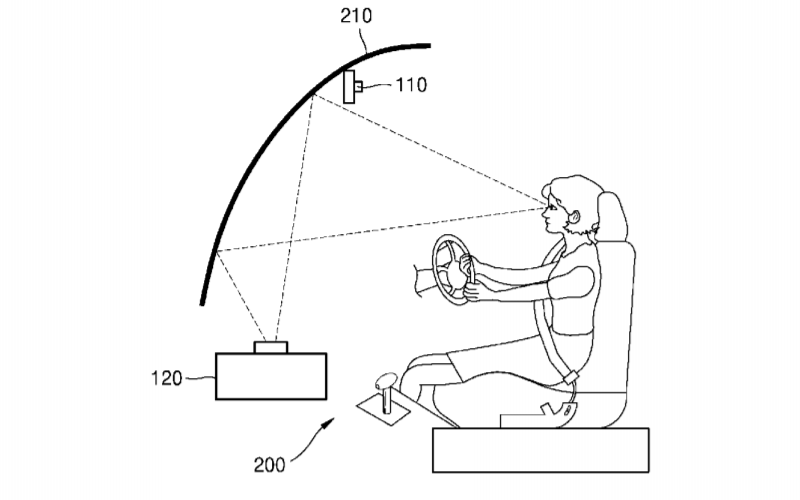

According to an aspect of another exemplary embodiment there is provided a head-up display apparatus comprising: a projection display apparatus comprising: an eye tracker configured to track an eye of a user; a projector configured to project an image; and a controller configured to control the projector based on a position of the eye of the user obtained from the eye tracker, to perform a first operation to project a first portion of the image at a first resolution onto a first region with respect to the position of the eye of the user and to perform one of a second operation to project a second portion of the image at a second resolution lower than the first resolution onto a second region excluding the first region and an a third operation to refrain from projecting the image in the second region.

According to an aspect of another exemplary embodiment there is provided an augmented reality apparatus comprising: a projection display apparatus comprising: an eye tracker configured to track an eye of a user; a projector configured to project an image; and a controller configured to control the projector based on a position of the eye of the user obtained from the eye tracker, to perform a first operation to project a first portion of the image at a first resolution onto a first region with respect to the position of the eye of the user and to perform one of a second operation to project a second portion of the image at a second resolution lower than the first resolution onto a second region excluding the first region and a third operation to refrain from projecting the image in the second region.

According to an aspect of another exemplary embodiment there is provided a projection display apparatus comprising: a projector comprising: a laser light source configured to emit a laser beam; a scanner configured to scan the laser beam; and a projection optical system configured to project an image based on the laser beam scanned by the scanner; and a controller configured to: receive eye tracking information on an eye of a user; control the laser light source to operate at a first driving speed while projecting a first portion of the image to a first region corresponding to a position of the eye of the user in the eye tracking information; and control the laser light source to operate at a second driving speed while projecting a second portion of the image to a second region, wherein the first driving speed is higher than the second driving speed.

The scanner may be further configured to: divide at least a pixel of the first portion of the image projected to the first region based on the first driving speed; and merge two or more of the pixels of the second portion of the image projected to the second region based on the second driving speed.

The second portion of the image may include the first portion of the image.
