Patent: Display device with holographic diffuser display and see-through lens assembly

Drawings: Click to check drawins

Publication Number: 20210080725

Publication Date: 20210318

Applicant: Facebook

Abstract

A display device includes an optical diffuser configured to, in response to receiving image light, output diffused image light having a same polarization as the image light. The optical diffuser is also configured to transmit ambient light. The display device also includes an optical assembly that includes a substrate, a reflector coupled to the substrate, and a beam splitter coupled to the substrate. The optical assembly is configured to transmit the diffused image light at a first optical power by reflecting the diffused image light at the reflector and at the beam splitter and to transmit the transmitted ambient light at a second optical power that is less than the first optical power without reflection at the reflector or the beam splitter. A method for transmitting light through the display device is also disclosed.

Claims

1. A display device comprising: an optical diffuser configured to: receive image light; diffuse the image light in response to receiving the image light; output diffused image light having a same polarization as the received image light; and receive ambient light and output at least a first portion of the ambient light without diffusing the first portion of the ambient light; and an optical assembly comprising: a substrate having a first surface and a second surface opposite to and substantially parallel with the first surface; a reflector coupled to the substrate; and a beam splitter coupled to the substrate, wherein the optical assembly is configured to: transmit the diffused image light at a first optical power by reflecting the diffused image light at the reflector and at the beam splitter; and transmit a second portion of the ambient light out of the first portion of the ambient light through the optical assembly without reflection at the reflector or the beam splitter such that the second portion of the ambient light is transmitted through the optical assembly at a second optical power that is less than the first optical power.

2. The display device of claim 1, further comprising a projector configured to project the image light toward the optical diffuser.

3. The display device of claim 1, wherein: the image light is incident upon the optical diffuser at an incident angle within a certain incident angle range; and the ambient light is incident upon the optical diffuser at an incident angle outside the certain incident angle range.

4. The display device of claim 1, wherein the first surface and the second surface are planar surfaces.

5. The display device of claim 1, wherein the first surface has a first curved profile and the second surface has a second curved profile.

6. The display device of claim 5, wherein the first curved profile and the second curved profile have a same radius of curvature and the first optical power is dependent on the radius of curvature.

7. The display device of claim 6, wherein the first curved profile and the second curved profile are concentric spherical profiles.

8. The display device of claim 1, wherein the second optical power is zero.

9. The display device of claim 1, wherein the optical assembly is configured to transmit the second portion of the ambient light without significant optical aberration.

10. The display device of claim 1, wherein the substrate has a substantially uniform thickness.

11. The display device of claim 1, wherein the reflector includes a reflective polarizer and an optical retarder.

12. The display device of claim 1, wherein the reflector includes a polarization sensitive hologram that is configured to: reflect the diffused image light such that the diffused image light is output with the first optical power; and transmit the second portion of the ambient light such that the second portion of the ambient light is output at the second optical power.

13. A method comprising: receiving image light at an optical diffuser; in response to receiving the image light, outputting diffused image light from the optical diffuser; transmitting the diffused image light through an optical assembly at a first optical power, the diffused image light having a same polarization as the received image light; receiving ambient light at the optical diffuser; outputting, from the optical diffuser, at least a first portion of the ambient light; and transmitting a second portion of the ambient light through the optical assembly at a second optical power that is less than the first optical power; wherein the optical assembly includes: a substrate having a first surface and a second surface opposite to and substantially parallel with the first surface; a reflector coupled to the substrate; and a beam splitter coupled to the substrate; wherein transmitting the diffused image light through the optical assembly at the first optical power includes reflecting the diffused image light at the reflector and at the beam splitter; and wherein the second portion of the ambient light is transmitted through the optical assembly without reflection at the reflector or the beam splitter such that the second portion of the ambient light is transmitted through the optical assembly at the second optical power.

14. The method of claim 13, further comprising: projecting the image light from a projector towards the optical diffuser; receiving the image light at the optical diffuser; and diffusing the image light at the optical diffuser such that the diffused image light is output from the optical diffuser.

15. The method of claim 14, wherein: the image light is received at a surface of the optical diffuser; and the diffused image light is output from the surface of the optical diffuser.

16. The method of claim 13, wherein: the image light is incident upon the optical diffuser at an incident angle within a certain incident angle range; and the ambient light is incident upon the optical diffuser at an incident angle outside the certain incident angle range.

17. The method of claim 13, wherein: the first portion of the ambient light is transmitted through the optical diffuser concurrent to the diffused image light being output from the optical diffuser; and the second portion of the ambient light and diffused image light are concurrently transmitted through the optical assembly.

18. The method of claim 13, wherein the second optical power is zero.

19. The method of claim 13, wherein the second portion of the ambient light is transmitted through the optical assembly without significant optical aberration.

20. The method of claim 13, wherein the substrate has a substantially uniform thickness.

Description

RELATED APPLICATIONS

[0001] This application claims the benefit of, and priority to, U.S. Provisional Application Ser. No. 62/901,706, filed Sep. 17, 2019, which is incorporated by reference herein in its entirety.

[0002] This application is related to (1) U.S. patent application Ser. No. _, filed concurrently herewith, entitled “Thin See-Through Pancake Lens Assembly and Display Device Including the Same” (Attorney Docket Number 010235-01-5278-US), (2) U.S. patent application Ser. No. _, filed concurrently herewith, entitled “Curved See-Through Pancake Lens Assembly and Display Device Including the Same” (Attorney Docket Number 010235-01-5279-US), (3) U.S. patent application Ser. No. _, filed concurrently herewith, entitled “Lens Assembly Including a Volume Bragg Grating and Display Device Including the Same” (Attorney Docket Number 010235-01-5280-US), (4) U.S. patent application Ser. No. _, filed concurrently herewith, entitled “Display Device with Transparent Emissive Display and See-Through Lens Assembly” (Attorney Docket Number 010235-01-5281-US), (5) U.S. patent application Ser. No. _, filed concurrently herewith, entitled “Display Device with Switchable Diffusive Display and See-Through Lens Assembly” (Attorney Docket Number 010235-01-5283-US), and (6) U.S. patent application Ser. No. _, filed concurrently herewith, entitled “Display Device with Diffusive Display and See-Through Lens Assembly” (Attorney Docket Number 010235-01-5284-US), all of which are incorporated by reference herein in their entireties.

TECHNICAL FIELD

[0003] This relates generally to display devices, and more specifically to head-mounted display devices.

BACKGROUND

[0004] Head-mounted display devices (also called herein head-mounted displays) are gaining popularity as means for providing visual information to a user. For example, some head-mounted display devices are used for virtual reality and augmented reality operations.

[0005] When using head-mounted display devices for AR applications, it may be desirable for the display device to seamlessly transmit ambient light to a user’s eyes while projecting one or more images to the user’s eyes.

SUMMARY

[0006] Accordingly, there is a need for a head-mounted display device that can project image light to a user’s eyes and transmit ambient light to a user’s eyes with reduced optical aberrations. In optical systems, optical aberrations are deviations from perfect or ideal optical performance of the optical elements in the optical system. These deviations can lead to reduced image quality, resulting in, for example, blurry or distorted images. Fortunately, with careful lens design, many optical aberrations can be corrected, allowing a perfect or near-perfect optical system to produce images with reduced optical aberrations (in the ideal case, minimal or no optical aberrations).

[0007] Thus, the above deficiencies and other problems associated with conventional head-mounted display devices are reduced or eliminated by the disclosed display devices.

[0008] In accordance with some embodiments, an optical assembly includes a substrate that has a first surface and a second surface opposite to and substantially parallel with the first surface. The optical assembly also includes a reflector and a beam splitter, each of which are coupled to the substrate. The optical assembly is also configured to transmit first light received at the first surface in an optical path that includes reflection at the reflector and at the beam splitter before the first light is output from the second surface. The optical assembly is also configured to transmit second light received at the first surface such that the second light is output from the second surface without undergoing reflection at either the reflector or the beam splitter.

[0009] In accordance with some embodiments, a display device includes a display and an optical assembly. The display is configured to output image light and to transmit ambient light. The optical assembly includes a substrate that has a first surface and a second surface opposite to and substantially parallel with the first surface. The optical assembly also includes a reflector and a beam splitter, each of which are coupled to the substrate. The optical assembly is also configured to transmit first light received at the first surface in an optical path that includes reflection at the reflector and at the beam splitter before the first light is output from the second surface. The optical assembly is also configured to transmit second light received at the first surface such that the second light is output from the second surface without undergoing reflection at either the reflector or the beam splitter.

[0010] In accordance with some embodiments, a method of transmitting light through an optical assembly includes transmitting image light in a first optical path and transmitting ambient light in a second optical path that is different from the first optical path. Transmitting the image light includes receiving the image light at a first surface of a substrate that includes a second surface that is opposite to and substantially parallel with the first surface, a reflector coupled to the substrate, and a beam splitter coupled to the substrate. Transmitting the image light also includes outputting the image light from the second surface such that the first optical path includes reflection at the reflector and at the beam splitter. Transmitting the ambient light includes receiving the ambient light at the first surface and outputting the ambient light from the second surface without undergoing reflection at either the reflector or the beam splitter.

[0011] In accordance with some embodiments, an optical assembly includes a substrate that has a first surface that has a has a first curved profile and a second surface has a second curved profile and is opposite and parallel with the first surface. The optical assembly also includes a beam splitter that is disposed on the first surface and conforms with the first curved profile of the first surface. The optical assembly further includes a reflector that is disposed on the second surface and conforms with the second curved profile of the second surface. The optical assembly is configured to receive first light at the first surface and to reflect the first light at the reflector and subsequently at the beam splitter before outputting the first light from the reflector. The first light is transmitted through the optical assembly at a first optical power. The optical assembly is also configured to transmit second light through the optical assembly without reflection at the reflector. The second light is transmitted through the optical assembly at a second optical power that is less than the first optical power.

[0012] In accordance with some embodiments, a display device includes a display that is configured to output image light and is configurable to transmit ambient light. The display device also includes an optical assembly that includes a first surface having a first curved profile and a second surface having a second curved profile and being parallel with the first surface. The optical assembly also includes a beam splitter that is disposed on the first surface and conforms with the first curved profile of the first surface. The optical assembly also includes a reflector that is disposed on second surface and conforms with the second curved profile of the second surface. The optical assembly is configured to receive the image light at the first surface and reflect the image light at the reflector and subsequently at the beam splitter before outputting the image light from the reflector. The image light is transmitted through the optical assembly at a first non-zero optical power. The optical assembly is also configured to transmit the ambient light through the optical assembly without reflection at the reflector. The ambient light is transmitted through the optical assembly at a second optical power that is less than the first optical power.

[0013] In accordance with some embodiments, a method of transmitting light through an optical assembly includes transmitting image light in a first optical path and transmitting ambient light in a second optical path that is different from the first optical path. Transmitting image light includes receiving the image light at a first surface of a substrate that has a first curved profile. Transmitting the image light also includes reflecting the image light at a that has a second curved profile and is substantially parallel to the first surface of the substrate, reflecting the image light at a beam splitter that is disposed on the first substrate and conforms with the first curved profile of the first surface, and outputting the image light from the reflector at a first optical power. Transmitting the ambient light, includes receiving the ambient light at the first surface, transmitting the ambient light through the optical assembly without reflection at the reflector, and outputting the ambient light from the optical assembly at a second optical power that is less than the first optical power.

[0014] In accordance with some embodiments, an optical assembly includes a substrate that has a first surface and a second surface that is opposite to and substantially parallel with the first surface. The optical assembly also includes a reflector coupled to the substrate and a volume Bragg grating coupled to the substrate. The volume Bragg grating is configured to transmit light that is incident upon the volume Bragg grating at an incident angle that is within a first predetermined angular range and to reflect light that is incident upon the volume Bragg grating at an incident angle that is within a second predetermined angular range distinct from the first angular range. The optical assembly is configured to transmit first light received at the first surface in an optical path that includes reflection at the reflector and at the volume Bragg grating before the first light is output from the second surface. The optical assembly is also configured to transmit second light received at the first surface such that the second light is output from the second surface without undergoing reflection at either the reflector or the volume Bragg grating.

[0015] In accordance with some embodiments, a display device includes a display and an optical assembly. The display is configured to output image light and to transmit ambient light. The optical assembly includes a substrate that has a first surface and a second surface that is opposite to and substantially parallel with the first surface. The optical assembly also includes a reflector coupled to the substrate and a volume Bragg grating coupled to the substrate. The volume Bragg grating is configured to transmit image incident upon the volume Bragg grating at an incident angle that is within a first predetermined angular range, reflect image light incident upon the volume Bragg grating at an incident angle that is within a second predetermined angular range distinct from the first angular range, and to transmit the ambient light. The optical assembly is configured to transmit the image light at the first surface in an optical path that includes reflection at the reflector and at the volume Bragg grating before the image light is output from the second surface. The optical assembly is also configured to transmit the ambient light such that the ambient light is output from the second surface without undergoing reflection at either the reflector or the volume Bragg grating.

[0016] In accordance with some embodiments, a method of transmitting light through an optical assembly includes transmitting image light in a first optical path and transmitting ambient light in a second optical path that is different from the first optical path. Transmitting the image light includes receiving the image light at a first surface of a substrate. The substrate includes a second surface that is opposite to and substantially parallel with the first surface, a reflector coupled to the substrate, and a volume Bragg grating coupled to the substrate. The volume Bragg grating is configured to transmit the image light incident upon the volume Bragg grating at an incident angle that is within a first predetermined angular range and to reflect the image light incident upon the volume Bragg grating at an incident angle that is within a second predetermined angular range distinct from the first angular range. The method of transmitting the image light also includes outputting the image light from the second surface at a first optical power via an optical path that includes reflection at the reflector and at the volume Bragg grating. Transmitting the ambient light includes receiving the ambient light at the first surface and outputting the ambient light from the second surface at a second optical power via an optical path that does not include reflection at either the reflector or the volume Bragg grating. The second optical power is less than the first optical power.

[0017] In accordance with some embodiments, a display device includes a display and an optical assembly. The display has a front surface and an opposing back surface. The display is configured to output image light from the front surface and to transmit ambient light from the back surface to the front surface. The optical assembly includes a substrate that has a substantially uniform thickness, a beam splitter coupled to the substrate, and a reflector coupled to the substrate. The optical assembly is configured to receive the image light and transmit a portion of the image light output from the front surface of the display at a first non-zero optical power via an optical path that includes reflections at the reflector and at the beam splitter. The optical assembly is also configured to receive the ambient light and transmit a portion of the ambient light through the optical assembly at a second optical power without reflection at the reflector. The second optical power is less than the first optical power.

[0018] In accordance with some embodiments, a method of displaying one or more images includes outputting image light from a front surface of a display. The display also includes a back surface opposite to the front surface. The method also includes transmitting ambient light from the back surface to the front surface, receiving the image light output from the front surface at an optical assembly, and transmitting a portion of the image light at a first optical power. The method further includes receiving the ambient light output from the front surface at the optical assembly and transmitting a portion of the ambient light at a second optical power that is different from the first optical power.

[0019] In accordance with some embodiments, a display device includes an optical diffuser configured to output diffuse image in response to receiving image light. The diffused image light output from the optical diffuser has a same polarization as the received image light. The optical diffuser is also configured to receive ambient and to output at least a first portion of the ambient light without changing its polarization. The display device also includes an optical assembly that includes a substrate having a first surface and a second surface opposite to and substantially parallel with the first surface, a reflector coupled to the substrate, and a beam splitter coupled to the substrate. The optical assembly is configured to transmit the diffused image light at a first non-zero optical power by reflecting the diffused image light at the reflector and at the beam splitter. The optical assembly is also configured to transmit a second portion of the ambient light through the optical assembly without reflection at the reflector or the beam splitter such that the second portion of the ambient light is transmitted through the optical assembly at a second optical power that is less than the first optical power.

[0020] In accordance with some embodiments, a method includes receiving image light at an optical diffuser, outputting diffused image light from the optical diffuser, and transmitting the diffused image light through an optical assembly at a first non-zero optical power. The diffused image light output from the optical diffuser has a same polarization as the received image light. The method also includes receiving ambient light at the optical diffuser and outputting, from the optical diffuser, at least a first portion of the ambient light. The method further includes transmitting a second portion of the ambient light through the optical assembly at a second optical power that is less than the first optical power. The optical assembly includes a substrate having a first surface and a second surface opposite to and substantially parallel with the first surface, a reflector coupled to the substrate, and a beam splitter coupled to the substrate. Transmitting the diffused image light through the optical assembly at the first non-zero optical power includes reflecting the diffused image light at the reflector and at the beam splitter. The second portion of the ambient light is transmitted through the optical assembly without reflection at the reflector or the beam splitter such that the second portion of the ambient light is transmitted through the optical assembly at the second optical power.

[0021] In accordance with some embodiments, a display device includes a display that has a front surface, a back surface that is opposite to the front surface, and optically anisotropic molecules that are disposed between the front surface and the back surface. The display is configurable to either receive image light at the front surface and diffuse the image light to output diffused image light from the front surface or receive ambient light at the back surface and output the ambient light from the front surface. The display device also includes an optical assembly that has an optical assembly substrate with substantially uniform thickness, a reflector coupled to the optical assembly substrate, and a beam splitter coupled to the optical assembly substrate. The optical assembly is configurable to transmit a portion of the diffused image light at a first optical power via an optical path including reflections at the reflector and at the beam splitter and to transmit a portion of the ambient light output from the front surface of the display at a second optical power without reflection at the reflector. The second optical power is less than the first optical power.

[0022] In accordance with some embodiments, a method for operating a display device includes operating the display device in a first mode. Operating the display device in the first mode includes receiving image light at a front surface of a display, diffusing the image light to output diffused image light from the front surface, and transmitting a portion of the diffused image light through an optical assembly at a first optical power via a first optical path that includes at least one fold. The method for operating the display device also includes operating the display device in a second mode. Operating the display device in the second mode includes receiving ambient light at a back surface opposite to the front surface of the display, transmitting the ambient light through the display, and transmitting a portion of the ambient light through the optical assembly at a second optical power via a second optical path. The second optical power is less than the first optical power and the second optical path does not include any folds.

[0023] In accordance with some embodiments, a display device includes one or more projectors configured to project image light, and a display having a first surface and a second surface. The display is configured to: receive the image light from the one or more projectors, output diffused image light from the first surface, receive ambient light at the second surface, and output the ambient light from the first surface. The display device also includes an optical assembly that has a substrate having a substantially uniform thickness, a beam splitter coupled to the substrate, and a reflector coupled to the substrate. The optical assembly is configured to receive the diffused image light output from the first surface of the display and transmit a portion of the diffused image light at a first optical power via an optical path including reflections at the reflector and at the beam splitter. The optical assembly is also configured to receive the ambient light output from the first surface of the display and transmit a portion of the ambient light through the optical assembly at a second optical power without reflection at the reflector. The second optical power is less than the first optical power.

[0024] In accordance with some embodiments, a method of displaying one or more images includes: projecting image light from one or more projectors; receiving, at a display, the image light projected from the one or more projectors; diffusing the image light at the display; and outputting diffused image light from a first surface of the display. The method also includes receiving ambient light at a second surface of the display and outputting the ambient light from the first surface of the display. The second surface is opposite to the first surface. The method further includes receiving, at an optical assembly, the diffused image light and the ambient light output from the first surface of the display, transmitting the diffused image light in a first optical path that includes one or more folds, and transmitting the ambient light in a second optical path that is different from the first optical path.

[0025] Thus, the disclosed embodiments provide a display device that includes an optical assembly that can direct image light having a first polarization and is capable of transmitting ambient light that has a polarization different from the first polarization without adding significant aberration or distortion.

BRIEF DESCRIPTION OF THE DRAWINGS

[0026] For a better understanding of the various described embodiments, reference should be made to the Description of Embodiments below, in conjunction with the following drawings in which like reference numerals refer to corresponding parts throughout the figures.

[0027] FIG. 1 is a perspective view of a display device in accordance with some embodiments.

[0028] FIG. 2 is a block diagram of a system including a display device in accordance with some embodiments.

[0029] FIG. 3 is an isometric view of a display device in accordance with some embodiments.

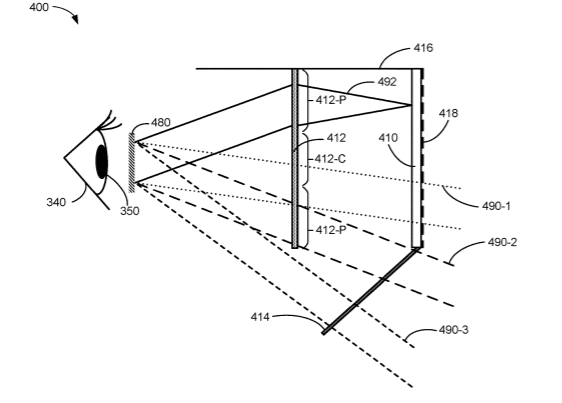

[0030] FIGS. 4A-4B are schematic diagrams illustrating a display device in accordance with some embodiments.

[0031] FIG. 4C is a schematic diagram illustrating a transparent emissive display in accordance with some embodiments.

[0032] FIG. 4D is a schematic diagram illustrating a transparent non-emissive display in accordance with some embodiments.

[0033] FIGS. 5A-5E are schematic diagrams illustrating an optical assembly including Fresnel structures in accordance with some embodiments.

[0034] FIGS. 5F-5H are schematic diagrams illustrating an optical assembly including Fresnel structures in accordance with some embodiments.

[0035] FIGS. 5I-5K are schematic diagrams illustrating an optical assembly including Fresnel structures in accordance with some embodiments.

[0036] FIGS. 5L-5M are schematic diagrams illustrating an optical assembly including a polarization sensitive hologram in accordance with some embodiments.

[0037] FIG. 5N-5O are schematic diagrams illustrating an optical assembly including a polarization sensitive hologram in accordance with some embodiments.

[0038] FIG. 6A-6C are schematic diagrams illustrating an optical assembly including curved surfaces in accordance with some embodiments.

[0039] FIG. 7A is a schematic diagram illustrating an optical assembly including a volume Bragg grating in accordance with some embodiments.

[0040] FIGS. 7B and 7C are schematic diagrams illustrating a volume Bragg grating in accordance with some embodiments.

[0041] FIG. 7D is a schematic diagram illustrating a hybrid optical element in accordance with some embodiments.

[0042] FIG. 7E is a schematic diagram illustrating an optical assembly including a volume Bragg grating in accordance with some embodiments.

[0043] FIGS. 8A-8B are schematic diagrams illustrating time-simultaneous operation of a display device in accordance with some embodiments.

[0044] FIGS. 9A-9D are schematic diagrams illustrating time-sequential operation of a display device in accordance with some embodiments.

[0045] FIG. 10 is a schematic diagrams illustrating a display device including an optical diffuser display in accordance with some embodiments.

[0046] FIG. 11A is a schematic diagram illustrating a display device that includes a switchable display and a shutter assembly in accordance with some embodiments.

[0047] FIG. 11B is a schematic diagram illustrating a shutter assembly that includes a two-dimensional array of shutters accordance with some embodiments.

[0048] FIGS. 11C-11D are schematic diagrams illustrating operation of a display device that includes a switchable display and a shutter assembly in accordance with some embodiments.

[0049] FIG. 11E-11F are schematic diagrams illustrating a switchable display with polymer dispersed liquid crystals in accordance with some embodiments.

[0050] FIG. 11G-11H are schematic diagrams illustrating a switchable display with polymer stabilized liquid crystals in accordance with some embodiments.

[0051] FIG. 11I-11J are schematic diagrams illustrating a shutter assembly with liquid crystals and dye in accordance with some embodiments.

[0052] FIG. 11K-11L are schematic diagrams illustrating a shutter assembly with twisted nematic liquid crystals in accordance with some embodiments.

[0053] FIG. 11M-11N are schematic diagrams illustrating a shutter assembly with polymer dispersed liquid crystals in accordance with some embodiments.

[0054] FIG. 11O-11P are schematic diagrams illustrating a shutter assembly with polymer stabilized liquid crystals in accordance with some embodiments.

[0055] FIGS. 12A-12B are schematic diagrams illustrating a display device in accordance with some embodiments.

[0056] FIGS. 12C and 12D are schematic diagrams illustrating a display device that includes an nanoparticle display in accordance with some embodiments.

[0057] FIGS. 13A-13B are schematic diagrams illustrating a display device that includes an immersed diffusive reflector display in accordance with some embodiments.

[0058] FIG. 14A is a schematic diagram illustrating a display device that includes wedge waveguide in accordance with some embodiments.

[0059] FIG. 14B is a schematic diagram illustrating examples of optical paths in an wedge waveguide in accordance with some embodiments.

[0060] FIG. 15 is a flowchart illustrating a method of transmitting light through an optical assembly in accordance with some embodiments.

[0061] FIG. 16 is a flowchart illustrating a method of transmitting light through an optical assembly in accordance with some embodiments.

[0062] FIG. 17 is a flowchart illustrating a method of transmitting light through an optical assembly that includes a volume Bragg grating in accordance with some embodiments.

[0063] FIG. 18 is a flowchart illustrating a method of operating a display device for augmented reality applications in accordance with some embodiments.

[0064] FIG. 19 is a flowchart illustrating a method of transmitting light in a display device that includes an optical diffuser display in accordance with some embodiments.

[0065] FIGS. 20A-20C are flowcharts illustrating a method of operating a switchable display device in accordance with some embodiments.

[0066] FIGS. 21A-21D are flowcharts illustrating a method of displaying one or more images in accordance with some embodiments.

[0067] These figures are not drawn to scale unless indicated otherwise.

DETAILED DESCRIPTION

[0068] The present disclosure provides a head-mounted display device (or display device) that projects image light as well as transmits ambient light towards a user’s eyes. The ambient light is transmitted to the viewer without significant optical aberrations from the optical components of the display device, in order to allow the user of the display device to accurately perceive and interact with objects in the outside environment.

[0069] Reference will now be made to embodiments, examples of which are illustrated in the accompanying drawings. In the following description, numerous specific details are set forth in order to provide an understanding of the various described embodiments. However, it will be apparent to one of ordinary skill in the art that the various described embodiments may be practiced without these specific details. In other instances, well-known methods, procedures, components, circuits, and networks have not been described in detail so as not to unnecessarily obscure aspects of the embodiments.

[0070] It will also be understood that, although the terms first, second, etc. are, in some instances, used herein to describe various elements, these elements should not be limited by these terms. These terms are used only to distinguish one element from another. For example, a first light projector could be termed a second light projector, and, similarly, a second light projector could be termed a first light projector, without departing from the scope of the various described embodiments. The first light projector and the second light projector are both light projectors, but they are not the same light projector.

[0071] The terminology used in the description of the various described embodiments herein is for the purpose of describing particular embodiments only and is not intended to be limiting. As used in the description of the various described embodiments and the appended claims, the singular forms “a,” “an,” and “the” are intended to include the plural forms as well, unless the context clearly indicates otherwise. It will also be understood that the term “and/or” as used herein refers to and encompasses any and all possible combinations of one or more of the associated listed items. It will be further understood that the terms “includes,” “including,” “comprises,” and/or “comprising,” when used in this specification, specify the presence of stated features, integers, steps, operations, elements, and/or components, but do not preclude the presence or addition of one or more other features, integers, steps, operations, elements, components, and/or groups thereof. The term “exemplary” is used herein in the sense of “serving as an example, instance, or illustration” and not in the sense of “representing the best of its kind.”

[0072] FIG. 1 illustrates a perspective view of display device 100 in accordance with some embodiments. In some embodiments, display device 100 is configured to be worn on a head of a user (e.g., by having the form of spectacles or eyeglasses, as shown in FIG. 1, or to be included as part of a helmet that is to be worn by the user). When display device 100 is configured to be worn on a head of a user, display device 100 is called a head-mounted display. Alternatively, display device 100 is configured for placement in proximity of an eye or eyes of the user at a fixed location, without being head-mounted (e.g., display device 100 is mounted in a vehicle, such as a car or an airplane, for placement in front of an eye or eyes of the user). As shown in FIG. 1, display device 100 includes display 110. Display 110 is configured for presenting visual contents (e.g., augmented reality contents, virtual reality contents, mixed-reality contents, or any combination thereof) to a user.

[0073] In some embodiments, display device 100 includes one or more components described herein with respect to FIG. 2. In some embodiments, display device 100 includes additional components not shown in FIG. 2.

[0074] FIG. 2 is a block diagram of system 200 in accordance with some embodiments. The system 200 shown in FIG. 2 includes display device 205 (which corresponds to display device 100 shown in FIG. 1), imaging device 235, and input interface 240 that are each coupled to console 210. While FIG. 2 shows an example of system 200 including display device 205, imaging device 235, and input interface 240, in other embodiments, any number of these components may be included in system 200. For example, there may be multiple display devices 205 each having associated input interface 240 and being monitored by one or more imaging devices 235, with each display device 205, input interface 240, and imaging devices 235 communicating with console 210. In alternative configurations, different and/or additional components may be included in system 200. For example, in some embodiments, console 210 is connected via a network (e.g., the Internet) to system 200 or is self-contained as part of display device 205 (e.g., physically located inside display device 205). In some embodiments, display device 205 is used to create mixed-reality by adding in a view of the real surroundings. Thus, display device 205 and system 200 described here can deliver augmented reality, virtual reality, and mixed-reality.

[0075] In some embodiments, as shown in FIG. 1, display device 205 is a head-mounted display that presents media to a user. Examples of media presented by display device 205 include one or more images, video, audio, or some combination thereof. In some embodiments, audio is presented via an external device (e.g., speakers and/or headphones) that receives audio information from display device 205, console 210, or both, and presents audio data based on the audio information. In some embodiments, display device 205 immerses a user in an augmented environment.

[0076] In some embodiments, display device 205 also acts as an augmented reality (AR) headset. In these embodiments, display device 205 augments views of a physical, real-world environment with computer-generated elements (e.g., images, video, sound, etc.). Moreover, in some embodiments, display device 205 is able to cycle between different types of operation. Thus, display device 205 operate as a virtual reality (VR) device, an augmented reality (AR) device, as glasses or some combination thereof (e.g., glasses with no optical correction, glasses optically corrected for the user, sunglasses, or some combination thereof) based on instructions from application engine 255.

[0077] Display device 205 includes electronic display 215, one or more processors 216, eye tracking module 217, adjustment module 218, one or more locators 220, one or more position sensors 225, one or more position cameras 222, memory 228, inertial measurement unit (IMU) 230, one or more optical assemblies 260, or a subset or superset thereof (e.g., display device 205 with electronic display 215, optical assembly 260, without any other listed components). Some embodiments of display device 205 have different modules than those described here. Similarly, the functions can be distributed among the modules in a different manner than is described here.

[0078] One or more processors 216 (e.g., processing units or cores) execute instructions stored in memory 228. Memory 228 includes high-speed random access memory, such as DRAM, SRAM, DDR RAM or other random access solid state memory devices; and may include non-volatile memory, such as one or more magnetic disk storage devices, optical disk storage devices, flash memory devices, or other non-volatile solid state storage devices. Memory 228, or alternately the non-volatile memory device(s) within memory 228, includes a non-transitory computer readable storage medium. In some embodiments, memory 228 or the computer readable storage medium of memory 228 stores programs, modules and data structures, and/or instructions for displaying one or more images on electronic display 215.

[0079] Electronic display 215 displays images to the user in accordance with data received from console 210 and/or processor(s) 216. In various embodiments, electronic display 215 may comprise a single adjustable display element or multiple adjustable display elements (e.g., a display for each eye of a user). In some embodiments, electronic display 215 is configured to project images to the user through one or more optical assemblies 260.

[0080] In some embodiments, the display element includes one or more light emission devices and a corresponding array of spatial light modulators. A spatial light modulator is an array of electro-optic pixels, opto-electronic pixels, some other array of devices that dynamically adjust the amount of light transmitted by each device, or some combination thereof. These pixels are placed behind one or more lenses. In some embodiments, the spatial light modulator is an array of liquid crystal based pixels in an LCD (a Liquid Crystal Display). Examples of the light emission devices include: an organic light emitting diode, an active-matrix organic light-emitting diode, a light emitting diode, some type of device capable of being placed in a flexible display, or some combination thereof. The light emission devices include devices that are capable of generating visible light (e.g., red, green, blue, etc.) used for image generation. The spatial light modulator is configured to selectively attenuate individual light emission devices, groups of light emission devices, or some combination thereof. Alternatively, when the light emission devices are configured to selectively attenuate individual emission devices and/or groups of light emission devices, the display element includes an array of such light emission devices without a separate emission intensity array.

[0081] One or more optical components in the one or more optical assemblies 260 direct light from the arrays of light emission devices (optionally through the emission intensity arrays) to locations within each eyebox. An eyebox is a region that is occupied by an eye of a user of display device 205 (e.g., a user wearing display device 205) who is viewing images from display device 205. In some embodiments, the eyebox is represented as a 10 mm.times.10 mm square. In some embodiments, the one or more optical components include one or more coatings, such as anti-reflective coatings.

[0082] In some embodiments, the display element includes an infrared (IR) detector array that detects IR light that is retro-reflected from the retinas of a viewing user, from the surface of the corneas, lenses of the eyes, or some combination thereof. The IR detector array includes an IR sensor or a plurality of IR sensors that each correspond to a different position of a pupil of the viewing user’s eye. In alternate embodiments, other eye tracking systems may also be employed.

[0083] Eye tracking module 217 determines locations of each pupil of a user’s eyes. In some embodiments, eye tracking module 217 instructs electronic display 215 to illuminate the eyebox with IR light (e.g., via IR emission devices in the display element).

[0084] A portion of the emitted IR light will pass through the viewing user’s pupil and be retro-reflected from the retina toward the IR detector array, which is used for determining the location of the pupil. Alternatively, the reflection off of the surfaces of the eye is used to also determine location of the pupil. The IR detector array scans for retro-reflection and identifies which IR emission devices are active when retro-reflection is detected. Eye tracking module 217 may use a tracking lookup table and the identified IR emission devices to determine the pupil locations for each eye. The tracking lookup table maps received signals on the IR detector array to locations (corresponding to pupil locations) in each eyebox. In some embodiments, the tracking lookup table is generated via a calibration procedure (e.g., user looks at various known reference points in an image and eye tracking module 217 maps the locations of the user’s pupil while looking at the reference points to corresponding signals received on the IR tracking array). As mentioned above, in some embodiments, system 200 may use other eye tracking systems than the embedded IR one described herein.

[0085] Adjustment module 218 generates an image frame based on the determined locations of the pupils. In some embodiments, this sends a discrete image to the display that will tile sub-images together thus a coherent stitched image will appear on the back of the retina. Adjustment module 218 adjusts an output (i.e. the generated image frame) of electronic display 215 based on the detected locations of the pupils. Adjustment module 218 instructs portions of electronic display 215 to pass image light to the determined locations of the pupils. In some embodiments, adjustment module 218 also instructs the electronic display to not pass image light to positions other than the determined locations of the pupils. Adjustment module 218 may, for example, block and/or stop light emission devices whose image light falls outside of the determined pupil locations, allow other light emission devices to emit image light that falls within the determined pupil locations, translate and/or rotate one or more display elements, dynamically adjust curvature and/or refractive power of one or more active lenses in the lens (e.g., microlens) arrays, or some combination thereof.

[0086] Optional locators 220 are objects located in specific positions on display device 205 relative to one another and relative to a specific reference point on display device 205. A locator 220 may be a light emitting diode (LED), a corner cube reflector, a reflective marker, a type of light source that contrasts with an environment in which display device 205 operates, or some combination thereof. In embodiments where locators 220 are active (i.e., an LED or other type of light emitting device), locators 220 may emit light in the visible band (e.g., about 400 nm to 750 nm), in the infrared band (e.g., about 750 nm to 1 mm), in the ultraviolet band (about 100 nm to 400 nm), some other portion of the electromagnetic spectrum, or some combination thereof.

[0087] In some embodiments, locators 220 are located beneath an outer surface of display device 205, which is transparent to the wavelengths of light emitted or reflected by locators 220 or is thin enough to not substantially attenuate the light emitted or reflected by locators 220. Additionally, in some embodiments, the outer surface or other portions of display device 205 are opaque in the visible band of wavelengths of light. Thus, locators 220 may emit light in the IR band under an outer surface that is transparent in the IR band but opaque in the visible band.

[0088] IMU 230 is an electronic device that generates calibration data based on measurement signals received from one or more position sensors 225. Position sensor 225 generates one or more measurement signals in response to motion of display device 205. Examples of position sensors 225 include: one or more accelerometers, one or more gyroscopes, one or more magnetometers, another suitable type of sensor that detects motion, a type of sensor used for error correction of IMU 230, or some combination thereof. Position sensors 225 may be located external to IMU 230, internal to IMU 230, or some combination thereof.

[0089] Based on the one or more measurement signals from one or more position sensors 225, IMU 230 generates first calibration data indicating an estimated position of display device 205 relative to an initial position of display device 205. For example, position sensors 225 include multiple accelerometers to measure translational motion (forward/back, up/down, left/right) and multiple gyroscopes to measure rotational motion (e.g., pitch, yaw, roll). In some embodiments, IMU 230 rapidly samples the measurement signals and calculates the estimated position of display device 205 from the sampled data. For example, IMU 230 integrates the measurement signals received from the accelerometers over time to estimate a velocity vector and integrates the velocity vector over time to determine an estimated position of a reference point on display device 205. Alternatively, IMU 230 provides the sampled measurement signals to console 210, which determines the first calibration data. The reference point is a point that may be used to describe the position of display device 205. While the reference point may generally be defined as a point in space; however, in practice the reference point is defined as a point within display device 205 (e.g., a center of IMU 230).

[0090] In some embodiments, IMU 230 receives one or more calibration parameters from console 210. As further discussed below, the one or more calibration parameters are used to maintain tracking of display device 205. Based on a received calibration parameter, IMU 230 may adjust one or more IMU parameters (e.g., sample rate). In some embodiments, certain calibration parameters cause IMU 230 to update an initial position of the reference point so it corresponds to a next calibrated position of the reference point. Updating the initial position of the reference point as the next calibrated position of the reference point helps reduce accumulated error associated with the determined estimated position. The accumulated error, also referred to as drift error, causes the estimated position of the reference point to “drift” away from the actual position of the reference point over time.

[0091] Imaging device 235 generates calibration data in accordance with calibration parameters received from console 210. Calibration data includes one or more images showing observed positions of locators 220 that are detectable by imaging device 235. In some embodiments, imaging device 235 includes one or more still cameras, one or more video cameras, any other device capable of capturing images including one or more locators 220, or some combination thereof. Additionally, imaging device 235 may include one or more filters (e.g., used to increase signal to noise ratio). Imaging device 235 is configured to optionally detect light emitted or reflected from locators 220 in a field of view of imaging device 235. In embodiments where locators 220 include passive elements (e.g., a retroreflector), imaging device 235 may include a light source that illuminates some or all of locators 220, which retro-reflect the light toward the light source in imaging device 235. Second calibration data is communicated from imaging device 235 to console 210, and imaging device 235 receives one or more calibration parameters from console 210 to adjust one or more imaging parameters (e.g., focal length, focus, frame rate, ISO, sensor temperature, shutter speed, aperture, etc.).

[0092] In some embodiments, display device 205 includes one or more optical assemblies 260, which can include a single optical assembly 260 or multiple optical assemblies 260 (e.g., an optical assembly 260 for each eye of a user). In some embodiments, the one or more optical assemblies 260 receive image light for the computer generated images from the electronic display 215 and direct the image light toward an eye or eyes of a user. The computer-generated images include still images, animated images, and/or a combination thereof. The computer-generated images include objects that appear to be two-dimensional and/or three-dimensional objects.

[0093] In some embodiments, electronic display 215 projects computer-generated images to one or more reflective elements (not shown), and the one or more optical assemblies 260 receive the image light from the one or more reflective elements and direct the image light to the eye(s) of the user. In some embodiments, the one or more reflective elements are partially transparent (e.g., the one or more reflective elements have a transmittance of at least 15%, 20%, 25%, 30%, 35%, 40%, 45%, or 50%), which allows transmission of ambient light. In such embodiments, computer-generated images projected by electronic display 215 are superimposed with the transmitted ambient light (e.g., transmitted ambient image) to provide augmented reality images.

……
……
……
