Patent: Spatially multiplexed volume bragg gratings with varied thicknesses for waveguide display

Drawings: Click to check drawins

Publication Number: 20210055555

Publication Date: 20210225

Applicant: Facebook

Abstract

A waveguide display includes a waveguide and a grating coupler configured to couple display light into or out of the waveguide. The grating coupler includes at least a first grating layer and a second grating layer arranged in a stack. The first grating layer is characterized by a first thickness and includes a first transmission VBG configured to diffract display light of a first wavelength from a first field of view. The second grating layer is characterized by a second thickness greater than the first thickness and includes a second transmission VBG configured to diffract display light of the first wavelength from a second field of view greater than the first field of view.

Claims

1. A waveguide display, comprising: a waveguide; and a grating coupler configured to couple display light into or out of the waveguide, the grating coupler comprising at least a first grating layer and a second grating layer arranged in a stack, wherein the first grating layer is characterized by a first thickness and includes a first transmission volume Bragg grating (VBG) configured to diffract display light of a first wavelength from a first field of view; and where the second grating layer is characterized by a second thickness greater than the first thickness and includes a second transmission VBG configured to diffract display light of the first wavelength from a second field of view greater than the first field of view.

2. The waveguide display of claim 1, wherein: the first transmission VBG is further configured to diffract display light of a second wavelength longer than the first wavelength and from a third field of view smaller than the first field of view; and the second transmission VBG is further configured to diffract display light of the second wavelength and from a fourth field of view smaller than the second field of view.

3. The waveguide display of claim 1, wherein the first grating layer and the second grating layer each include a holographic material layer.

4. The waveguide display of claim 1, wherein: the first grating layer includes a first multiplexed VBG that includes a first plurality of transmission VBGs recorded in a first plurality of holographic recording exposures; and the second grating layer includes a second multiplexed VBG that includes a second plurality of transmission VBGs recorded in a second plurality of holographic recording exposures.

5. The waveguide display of claim 1, further comprising a substrate between the first grating layer and the second grating layer, the substrate transparent to visible light.

6. The waveguide display of claim 1, wherein the grating coupler further comprises a third grating layer in the stack, the third grating layer characterized by a third thickness greater than the second thickness and including a third transmission VBG configured to diffract display light of the first wavelength from a third field of view greater than the second field of view.

7. The waveguide display of claim 6, wherein the third thickness is less than 100 .mu.m.

8. The waveguide display of claim 1, wherein: the waveguide is transparent to visible light; and the grating coupler is transparent to visible light from an ambient environment.

9. The waveguide display of claim 1, further comprising a second grating coupler configured to: couple the display light into or out of the waveguide; or change a propagation direction of the display light within the waveguide.

10. A waveguide display comprising: a waveguide; and a grating coupler configured to couple display light into or out of the waveguide, the grating coupler comprising a grating layer that is characterized by a non-uniform thickness and includes at least a first region and a second region, wherein the first region of the grating layer is characterized by a first thickness and includes a first transmission volume Bragg grating (VBG) configured to diffract display light of a first wavelength from a first field of view; and where the second region of the grating layer is characterized by a second thickness greater than the first thickness and includes a second transmission VBG configured to diffract display light of the first wavelength from a second field of view greater than the first field of view.

11. The waveguide display of claim 10, wherein: the first transmission VBG is further configured to diffract display light of a second wavelength longer than the first wavelength and from a third field of view smaller than the first field of view; and the second transmission VBG is further configured to diffract display light of the second wavelength and from a fourth field of view smaller than the second field of view.

12. The waveguide display of claim 10, wherein: the first region includes a first multiplexed VBG that includes a first plurality of transmission VBGs recorded in a first plurality of holographic recording exposures; and the second region includes a second multiplexed VBG that includes a second plurality of transmission VBGs recorded in a second plurality of holographic recording exposures.

13. The waveguide display of claim 10, further comprising a substrate having a second non-uniform thickness, wherein: the grating layer is formed on the substrate; and the substrate has a third thickness at the first region of the grating layer and a fourth thickness at the second region of the grating layer, the third thickness greater than the fourth thickness.

14. The waveguide display of claim 13, wherein the substrate and the grating layer form a combined layer characterized by a uniform thickness.

15. The waveguide display of claim 10, further comprising a polymer layer having a second non-uniform thickness that is complementary to the non-uniform thickness of the grating layer such that the polymer layer and the grating layer form a combined layer characterized by a uniform thickness.

16. The waveguide display of claim 15, wherein: the polymer layer having the second non-uniform thickness is formed by selectively desensitizing, using a non-uniform light pattern, a holographic material layer characterized by the uniform thickness; and the grating layer is formed in light sensitive portions of the holographic material layer.

17. The waveguide display of claim 10, wherein a maximum thickness of the grating layer is less than 100 .mu.m.

18. The waveguide display of claim 10, wherein: the waveguide is transparent to visible light; and the grating coupler is transparent to visible light from an ambient environment.

19. The waveguide display of claim 10, further comprising a second grating coupler configured to: couple the display light into or out of the waveguide; or change a propagation direction of the display light within the waveguide.

20. A waveguide display, comprising: a waveguide; and a grating coupler configured to couple display light into or out of the waveguide, the grating coupler comprising: a plurality of grating layers arranged in a stack and characterized by different respective thicknesses, the plurality of grating layers including at least a first grating layer and a second grating layer, and a plurality of substrates interleaved with the plurality of grating layer, the plurality of substrates transparent to visible light, wherein the first grating layer is characterized by a first thickness and includes a first multiplexed transmission volume Bragg grating (VBG) that includes a first transmission VBG configured to diffract display light of a first wavelength from a first field of view; and wherein the second grating layer is characterized by a second thickness greater than the first thickness and includes a second multiplexed transmission VBG that includes a second transmission VBG configured to diffract visible light of the first wavelength from a second field of view greater than the first field of view.

Description

CROSS-REFERENCE TO RELATED APPLICATION

[0001] This patent application claims priority to U.S. Provisional Patent Application Ser. No. 62/891,167, filed Aug. 23, 2019, entitled “Volume Bragg Grating-Based Waveguide Display,” the disclosure of which is hereby incorporated by reference in its entirety for all purposes.

BACKGROUND

[0002] An artificial reality system, such as a head-mounted display (HMD) or heads-up display (HUD) system, generally includes a near-eye display (e.g., in the form of a headset or a pair of glasses) configured to present content to a user via an electronic or optic display within, for example, about 10-20 mm in front of the user’s eyes. The near-eye display may display virtual objects or combine images of real objects with virtual objects, as in virtual reality (VR), augmented reality (AR), or mixed reality (MR) applications. For example, in an AR system, a user may view both images of virtual objects (e.g., computer-generated images (CGIs)) and the surrounding environment by, for example, seeing through transparent display glasses or lenses (often referred to as optical see-through).

[0003] One example of an optical see-through AR system may use a waveguide-based optical display, where light of projected images may be coupled into a waveguide (e.g., a transparent substrate), propagate within the waveguide, and be coupled out of the waveguide at different locations. In some implementations, the light of the projected images may be coupled into or out of the waveguide using a diffractive optical element, such as a grating. Light from the surrounding environment may pass through a see-through region of the waveguide and reach the user’s eyes as well.

SUMMARY

[0004] This disclosure relates generally to volume Bragg grating-based waveguide displays for near-eye display. More specifically, disclosed herein are techniques for expanding the eyebox, reducing display haze, reducing physical size, improving optical efficiency, reducing optical artifacts, and increasing field of view of optical see-through near-eye display systems using volume Bragg grating (VBG) couplers. Various inventive embodiments are described herein, including devices, systems, methods, and the like.

[0005] According to some embodiments, a waveguide display may include a waveguide and a grating coupler configured to couple display light into or out of the waveguide. The grating coupler may include at least a first grating layer and a second grating layer arranged in a stack. The first grating layer may be characterized by a first thickness and may include a first transmission VBG configured to diffract display light of a first wavelength from a first field of view. The second grating layer may be characterized by a second thickness greater than the first thickness and may include a second transmission VBG configured to diffract display light of the first wavelength from a second field of view greater than the first field of view.

[0006] In some embodiments of the waveguide display, the first transmission VBG may be further configured to diffract display light of a second wavelength longer than the first wavelength and from a third field of view smaller than the first field of view. The second transmission VBG may be further configured to diffract display light of the second wavelength and from a fourth field of view smaller than the second field of view. The first grating layer and the second grating layer may each include a holographic material layer. The first grating layer may include a first multiplexed VBG that includes a first plurality of transmission VBGs recorded in a first plurality of holographic recording exposures. The second grating layer may include a second multiplexed VBG that includes a second plurality of transmission VBGs recorded in a second plurality of holographic recording exposures. The waveguide display may further include a substrate between the first grating layer and the second grating layer, where the substrate may be transparent to visible light.

[0007] In some embodiments of the waveguide display, the grating coupler may further include a third grating layer in the stack, where the third grating layer may be characterized by a third thickness greater than the second thickness and may include a third transmission VBG configured to diffract display light of the first wavelength from a third field of view greater than the second field of view. In some embodiments, the third thickness may be less than 100 .mu.m.

[0008] In some embodiments, the waveguide may be transparent to visible light, and the grating coupler may be transparent to visible light from an ambient environment. In some embodiments, the waveguide display may include a second grating coupler configured to couple the display light into or out of the waveguide or change a propagation direction of the display light within the waveguide.

[0009] According to some embodiments, a waveguide display may include a waveguide and a grating coupler configured to couple display light into or out of the waveguide. The grating coupler may include a grating layer that is characterized by a non-uniform thickness and includes at least a first region and a second region. The first region of the grating layer may be characterized by a first thickness and may include a first transmission VBG configured to diffract display light of a first wavelength from a first field of view. The second region of the grating layer may be characterized by a second thickness greater than the first thickness and may include a second transmission VBG configured to diffract display light of the first wavelength from a second field of view greater than the first field of view.

[0010] In some embodiments of the waveguide display, the first transmission VBG may further be configured to diffract display light of a second wavelength longer than the first wavelength and from a third field of view smaller than the first field of view. The second transmission VBG may further be configured to diffract display light of the second wavelength and from a fourth field of view smaller than the second field of view. In some embodiments, the first region may include a first multiplexed VBG that includes a first plurality of transmission VBGs recorded in a first plurality of holographic recording exposures, and the second region may include a second multiplexed VBG that includes a second plurality of transmission VBGs recorded in a second plurality of holographic recording exposures.

[0011] In some embodiments, the waveguide display may further include a substrate having a second non-uniform thickness, where the grating layer may be formed on the substrate, and the substrate may have a third thickness at the first region of the grating layer and a fourth thickness at the second region of the grating layer. The third thickness may be greater than the fourth thickness. The substrate and the grating layer may form a combined layer characterized by a uniform thickness.

[0012] In some embodiments, the waveguide display may further include a polymer layer having a second non-uniform thickness that is complementary to the non-uniform thickness of the grating layer such that the polymer layer and the grating layer may form a combined layer characterized by a uniform thickness. The polymer layer having the second non-uniform thickness may be formed by selectively desensitizing, using a non-uniform light pattern, a holographic material layer characterized by the uniform thickness. The grating layer may be formed in light sensitive portions of the holographic material layer.

[0013] In some embodiments of the waveguide display, a maximum thickness of the grating layer may be less than 100 .mu.m. In some embodiments, the waveguide may be transparent to visible light, and the grating coupler may be transparent to visible light from an ambient environment. In some embodiments, the waveguide display may further include a second grating coupler configured to couple the display light into or out of the waveguide or change a propagation direction of the display light within the waveguide.

[0014] According to some embodiments, a waveguide display may include a waveguide and a grating coupler configured to couple display light into or out of the waveguide. The grating coupler may include a plurality of grating layers arranged in a stack and characterized by different respective thicknesses, and a plurality of substrates interleaved with the plurality of grating layer. The plurality of substrates may be transparent to visible light. The plurality of grating layers may include at least a first grating layer and a second grating layer. The first grating layer may be characterized by a first thickness and may include a first multiplexed transmission VBG that includes a first transmission VBG configured to diffract display light of a first wavelength from a first field of view. The second grating layer may be characterized by a second thickness greater than the first thickness and may include a second multiplexed transmission VBG that includes a second transmission VBG configured to diffract visible light of the first wavelength from a second field of view greater than the first field of view.

[0015] This summary is neither intended to identify key or essential features of the claimed subject matter, nor is it intended to be used in isolation to determine the scope of the claimed subject matter. The subject matter should be understood by reference to appropriate portions of the entire specification of this disclosure, any or all drawings, and each claim. The foregoing, together with other features and examples, will be described in more detail below in the following specification, claims, and accompanying drawings.

BRIEF DESCRIPTION OF THE DRAWINGS

[0016] Illustrative embodiments are described in detail below with reference to the following figures.

[0017] FIG. 1 is a simplified block diagram of an example of an artificial reality system environment including a near-eye display system according to certain embodiments.

[0018] FIG. 2 is a perspective view of an example of a near-eye display system in the form of a head-mounted display (HMD) device for implementing some of the examples disclosed herein.

[0019] FIG. 3 is a perspective view of an example of a near-eye display system in the form of a pair of glasses for implementing some of the examples disclosed herein.

[0020] FIG. 4 is a simplified diagram illustrating an example of an optical system in a near-eye display system.

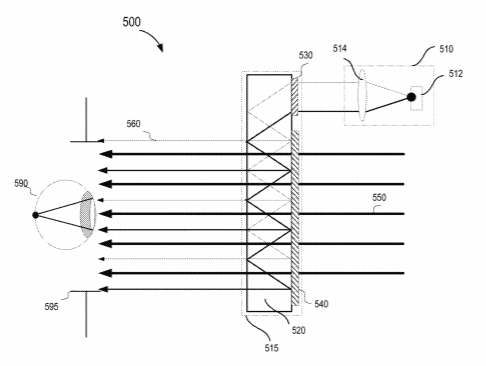

[0021] FIG. 5 illustrates an example of an optical see-through augmented reality system including a waveguide display for exit pupil expansion according to certain embodiments.

[0022] FIG. 6 illustrates an example of an optical see-through augmented reality system including a waveguide display for exit pupil expansion according to certain embodiments.

[0023] FIG. 7A illustrates the spectral bandwidth of an example of a reflection volume Bragg grating (VBG) and the spectral bandwidth of an example of a transmissive surface-relief grating (SRG). FIG. 7B illustrates the angular bandwidth of an example of a reflection VBG and the angular bandwidth of an example of a transmissive SRG.

[0024] FIG. 8A illustrates an example of an optical see-through augmented reality system including a waveguide display and surface-relief gratings for exit pupil expansion according to certain embodiments. FIG. 8B illustrates an example of an eye box including two-dimensional replicated exit pupils according to certain embodiments.

[0025] FIG. 9A illustrates wave vectors of light diffracted by examples of surface-relief gratings for exit pupil expansion in a waveguide display and exit pupils for multiple colors.

[0026] FIG. 9B illustrates the field-of-view clipping by the examples of surface-relief gratings for exit pupil expansion in the waveguide display.

[0027] FIG. 10A illustrates an example of a volume Bragg grating-based waveguide display according to certain embodiments. FIG. 10B illustrates a top view of the example of the volume Bragg grating-based waveguide display shown in FIG. 10A. FIG. 10C illustrates a side view of the example of the volume Bragg grating-based waveguide display shown in FIG. 10A.

[0028] FIG. 11 illustrates light dispersion in an example of a volume Bragg grating-based waveguide display according to certain embodiments.

[0029] FIG. 12A illustrates an example of a volume Bragg grating (VBG). FIG. 12B illustrates the Bragg condition for the volume Bragg grating shown in FIG. 12A.

[0030] FIG. 13A illustrates a front view of an example of a volume Bragg grating-based waveguide display with exit pupil expansion and dispersion reduction according to certain embodiments. FIG. 13B illustrates a side view of the example of the volume Bragg grating-based waveguide display shown in FIG. 13A.

[0031] FIG. 14A illustrates the propagation of light from different fields of view in a reflection volume Bragg grating-based waveguide display according to certain embodiments. FIG. 14B illustrates the propagation of light from different fields of view in a transmission volume Bragg grating-based waveguide display according to certain embodiments.

[0032] FIG. 15 illustrates an example of a reflection volume Bragg grating-based waveguide display with exit pupil expansion and dispersion reduction according to certain embodiments.

[0033] FIG. 16 illustrates an example of a transmission volume Bragg grating-based waveguide display with exit pupil expansion and form-factor reduction according to certain embodiments.

[0034] FIG. 17A illustrates an example of a transmission volume Bragg grating in a waveguide display according to certain embodiments. FIG. 17B illustrates an example of a transmission VBG in a waveguide display where light diffracted by the reflection VBG is not totally reflected and guided in the waveguide. FIG. 17C illustrates an example of a reflection volume Bragg grating in a waveguide display according to certain embodiments. FIG. 17D illustrates an example of a reflection VBG in a waveguide display where light diffracted by the transmission VBG is not totally reflected and guided in the waveguide.

[0035] FIG. 18A illustrates the light dispersion by an example of a reflection volume Bragg grating in a waveguide display according to certain embodiments. FIG. 18B illustrates the light dispersion by an example of a transmission volume Bragg grating in a waveguide display according to certain embodiments.

[0036] FIG. 19A is a front view of an example of a volume Bragg grating-based waveguide display with exit pupil expansion and dispersion reduction according to certain embodiments.

[0037] FIG. 19B is a side view of the example of the volume Bragg grating-based waveguide display including an image projector and multiple polymer layers according to certain embodiments.

[0038] FIG. 20A illustrates another example of a volume Bragg grating-based waveguide display with exit pupil expansion, dispersion reduction, form-factor reduction, and power efficiency improvement according to certain embodiments. FIG. 20B illustrates examples of replicated exit pupils at an eyebox of the volume Bragg grating-based waveguide display shown in FIG. 20A.

[0039] FIG. 21A illustrates an example of a volume Bragg grating-based waveguide display with exit pupil expansion, dispersion reduction, and form-factor reduction according to certain embodiments. FIG. 21B illustrates an example of a volume Bragg grating-based waveguide display with exit pupil expansion, dispersion reduction, form-factor reduction, and efficiency improvement according to certain embodiments.

[0040] FIG. 22A is a front view of an example of a volume Bragg grating-based waveguide display including two image projectors according to certain embodiments. FIG. 22B is a side view of the example of volume Bragg grating-based waveguide display including two image projectors according to certain embodiments.

[0041] FIG. 23A is a front view of an example of a volume Bragg grating-based waveguide display including a single image projector and gratings for field-of-view stitching according to certain embodiments. FIG. 23B is a side view of the example of the volume Bragg grating-based waveguide display with the single image projector and the gratings for field-of-view stitching according to certain embodiments.

[0042] FIG. 24 illustrates an example of a volume Bragg grating-based waveguide display including multiple grating layers for different fields of view and/or light wavelengths according to certain embodiments.

[0043] FIG. 25 illustrates the fields of view of multiple gratings in an example of a volume Bragg grating-based waveguide display according to certain embodiments.

[0044] FIG. 26A illustrates the diffraction of light of different colors from different corresponding fields of view by an example of a volume Bragg grating. FIG. 26B illustrates the relationship between grating periods of volume Bragg gratings and the corresponding fields of view for incident light of different colors.

[0045] FIG. 27A illustrates the diffraction efficiencies of examples of transmission volume Bragg gratings with the same thickness but different refractive index modulations. FIG. 27B illustrates the diffraction efficiencies of examples of reflection volume Bragg gratings with the same thickness but different refractive index modulations.

[0046] FIG. 28A illustrates the diffraction efficiency of an example of a transmission volume Bragg grating with a first refractive index modulation as a function of the deviation of the incident angle from the Bragg condition. FIG. 28B illustrates the diffraction efficiency of an example of a transmission volume Bragg grating with a second refractive index modulation as a function of the deviation of the incident angle from the Bragg condition. FIG. 28C illustrates the diffraction efficiency of an example of a transmission volume Bragg grating with a third refractive index modulation as a function of the deviation of the incident angle from the Bragg condition. FIG. 28D illustrates the diffraction efficiency of an example of a transmission volume Bragg grating with a fourth refractive index modulation as a function of the deviation of the incident angle from the Bragg condition.

[0047] FIG. 29A illustrates the diffraction efficiency of an example of a reflection volume Bragg grating with a first refractive index modulation as a function of the deviation of the incident angle from the Bragg condition. FIG. 29B illustrates the diffraction efficiency of an example of a reflection volume Bragg grating with a second refractive index modulation as a function of the deviation of the incident angle from the Bragg condition. FIG. 29C illustrates the diffraction efficiency of an example of a reflection volume Bragg grating with a third refractive index modulation as a function of the deviation of the incident angle from the Bragg condition.

[0048] FIG. 29D illustrates the diffraction efficiency of an example of a reflection volume Bragg grating with a fourth refractive index modulation as a function of the deviation of the incident angle from the Bragg condition.

[0049] FIG. 30A illustrates diffraction efficiencies of an example of a transmission VBG with a first refractive index modulation for blue light from different fields of view. FIG. 30B illustrates diffraction efficiencies of the example of transmission VBG with the first refractive index modulation for green light from different fields of view. FIG. 30C illustrates diffraction efficiencies of the example of transmission VBG with the first refractive index modulation for red light from different fields of view. FIG. 30D illustrates diffraction efficiencies of an example of a transmission VBG with a second refractive index modulation for blue light from different fields of view. FIG. 30E illustrates diffraction efficiencies of the example of transmission VBG with the second refractive index modulation for green light from different fields of view. FIG. 30F illustrates diffraction efficiencies of the example of transmission VBG with the second refractive index modulation for red light from different fields of view. FIG. 30G illustrates diffraction efficiencies of an example of a transmission VBG with a third refractive index modulation for blue light from different fields of view. FIG. 30H illustrates diffraction efficiencies of the example of transmission VBG with the third refractive index modulation for green light from different fields of view. FIG. 30I illustrates diffraction efficiencies of the example of transmission VBG with the third refractive index modulation for red light from different fields of view.

[0050] FIG. 31A illustrates the minimum refractive index modulations of transmission volume Bragg gratings with different grating periods in order to achieve diffraction saturation for light of different colors. FIG. 31B shows the maximum refractive index modulations of transmission gratings having different grating periods in order to avoid refractive index modulation saturation for blue, green, and red light. FIG. 31C illustrates an example of a grating layer including multiplexed VBGs of different pitches and refractive index modulations for optimized diffraction efficiency and uniformity according to certain embodiments.

[0051] FIG. 32A illustrates FOV crosstalk caused by examples of multiplexed volume Bragg gratings. FIG. 32B illustrates the relationship between grating periods of volume Bragg gratings and the corresponding fields of view for incident light of different colors.

[0052] FIG. 33A illustrates linewidths of Bragg peaks of transmission volume Bragg gratings and reflection volume Bragg gratings for different fields of view. FIG. 33B illustrates examples of Bragg peaks of transmission volume Bragg gratings for different fields of view. FIG. 33C illustrates examples of Bragg peaks of reflection volume Bragg gratings for different fields of view.

[0053] FIG. 34A illustrates trade-off between crosstalk and efficiency in an example of a multiplexed volume Bragg grating. FIG. 34B illustrates trade-off between crosstalk and efficiency in an example of a multiplexed volume Bragg grating.

[0054] FIG. 35A illustrates the relationship between the minimum diffraction efficiency and the total refractive index modulation and the corresponding crosstalk in multiplexed transmission volume Bragg gratings. FIG. 35B illustrates the relationship between the minimum diffraction efficiency and the total refractive index modulation and the corresponding crosstalk in multiplexed reflection volume Bragg gratings.

[0055] FIG. 36A illustrates an example of a waveguide display including spatially multiplexed volume Bragg gratings having different thicknesses according to certain embodiments. FIG. 36B illustrates another example of a waveguide display including a multiplexed volume Bragg grating having a non-uniform thickness according to certain embodiments. FIG. 36C illustrates another example of a waveguide display including a multiplexed volume Bragg grating having a non-uniform thicknesses according to certain embodiments.

[0056] FIG. 37 illustrates an example of a waveguide display including two multiplexed volume Bragg gratings and a polarization convertor between the two multiplexed volume Bragg gratings according to certain embodiments.

[0057] FIG. 38 illustrates an example of a waveguide display including an anti-reflection layer and an angular-selective transmissive layer according to certain embodiments.

[0058] FIG. 39 is a simplified block diagram of an example of an electronic system in an example of a near-eye display according to certain embodiments.

[0059] The figures depict embodiments of the present disclosure for purposes of illustration only. One skilled in the art will readily recognize from the following description that alternative embodiments of the structures and methods illustrated may be employed without departing from the principles, or benefits touted, of this disclosure.

[0060] In the appended figures, similar components and/or features may have the same reference label. Further, various components of the same type may be distinguished by following the reference label by a dash and a second label that distinguishes among the similar components. If only the first reference label is used in the specification, the description is applicable to any one of the similar components having the same first reference label irrespective of the second reference label.

DETAILED DESCRIPTION

[0061] This disclosure relates generally to volume Bragg grating (VBG)-based waveguide display for near-eye display systems. In a near-eye display system, it is generally desirable to expand the eyebox, reduce display haze, improve image quality (e.g., resolution and contrast), reduce physical size, increase power efficiency, and increase the field of view. In a waveguide-based near-eye display system, light of projected images may be coupled into a waveguide (e.g., a transparent substrate), propagate within the waveguide, and be coupled out of the waveguide at different locations to replicate exit pupils and expand the eyebox. Two or more gratings may be used to expand the exit pupil in two dimensions. In a waveguide-based near-eye display system for augmented reality applications, light from the surrounding environment may pass through at least a see-through region of the waveguide display (e.g., the transparent substrate) and reach the user’s eyes. In some implementations, the light of the projected images may be coupled into or out of the waveguide using diffractive optical elements, such as gratings.

[0062] Optical couplers implemented using diffractive optical elements may have a limited field of view due to the angular dependence of grating efficiency. Therefore, light incident on the couplers from multiple incident angles (e.g., from different fields of view) may not be diffracted at equivalent or similar efficiency. In addition, couplers implemented using diffractive optical elements may cause dispersion between light of different colors and may have different diffraction angles for light of different colors. Therefore, different color components in a color image may not overlap with each other. Thus, the quality of the displayed image (e.g., color reproduction neutrality) may be reduced. Furthermore, the fields of view for light of different colors may be reduced or partially clipped due to the light dispersion and the limited range of wave vectors of light that can be guided by the waveguide display. To reduce the dispersion and improve the field of view (FOV) range and diffraction efficiency, thick transmission and/or reflection VBG gratings that include many multiplexed gratings to cover different fields of view for different color components may be used, which may be impractical in many cases and/or may cause significant display and see-through haze due to the thickness of the gratings and the large number of exposures to record the multiplexed VBG gratings. For example, in some cases, transmission VBG gratings with a thickness of greater than 1 mm may be needed in order to reduce the dispersion and achieve a desired FOV range and diffraction efficiency. Reflection VBG gratings with a relatively lower thickness may be used to achieve the desired performance. However, with reflection gratings, the gratings for two-dimensional pupil expansion may not overlap and thus the physical size of the waveguide display may be large and the display haze may still be significant.

[0063] According to certain embodiments, two VBG gratings (or two portions of a same grating) with matching grating vectors (e.g., having the same grating vector in a plane perpendicular to a surface normal direction of the transparent substrate) may be used to diffract display light and expand the exit pupil in one dimension. The two VBG gratings may compensate for the dispersion of display light caused by each other to reduce the overall dispersion, due to the opposite Bragg conditions (e.g., +1 order and -1 order diffractions) at the two VBG gratings. Therefore, thin VBG gratings may be used and may still achieve the desired resolution. Because of the dispersion compensation, thin transmission VBG gratings may be used to achieve the desired resolution, and the gratings for the two-dimensional pupil expansion may at least partially overlap to reduce the physical size of the waveguide display.

[0064] In some embodiments, to achieve the desired FOV, coupling efficiency, and coupling efficiency uniformity across the full FOV and color spectrum, multiple VBG layers including multiplexed VBGs may be formed on one or more waveguide plates. Each VBG layer may be used to couple light in a certain FOV and/or color range at a relatively high efficiency, and the combination of the multiple VBG layers may provide full coverage of the desired FOV and color range at relatively high and uniform coupling efficiencies.

[0065] In some embodiments, a first pair of VBG gratings (or two portions of a grating) may be used to expand the exit pupil in one dimension and compensate for the dispersion caused by each other, and a second pair of VBG gratings (or two portions of a grating) may be used to expand the exit pupil in another dimension and may compensate for the dispersion caused by each other. Thus, the exit pupil may be replicated in two dimensions and the resolution of the displayed images may be high in both dimensions.

[0066] The full-width-half-magnitude (FWHM) angular range of the Bragg peak and the sidelobes for a transmission VBG may increase with the corresponding field of view. A VBG may also diffract light of different colors from different respective fields of view. Therefore, a VBG may have different FWHM angular ranges for light of different colors. For example, a VBG may diffract both blue light from a larger field of view and red light from a smaller field of view, and thus may have a wider FWHM angular range for blue light than for red light. When the diffraction efficiency curve of one VBG partially overlaps with the diffraction efficiency curve of another VBG, some display light may be undesirably diffracted by a grating at an undesired diffraction angle due to the crosstalk, causing ghost images or other optical artifacts. In order to avoid crosstalk for blue light from large (e.g., positive) fields of view, transmission VBGs may be loosely multiplexed in a multiplexed grating, which may reduce the coverage and the overall diffraction efficiency for red light from small (e.g., negative) fields of view. Thus, the overall efficiency of transmission VBG-based waveguide display may be limited by the crosstalk.

[0067] According to certain embodiments, to improve the diffraction efficiency of transmission gratings without increasing the crosstalk while providing the desired FOV, a grating coupler may include transmission VBGs with different thicknesses. For example, to diffract blue light from large (e.g., positive) fields of view, a holographic material layer may have a higher thickness to reduce the linewidths of the gratings recorded therein, such that more gratings may be multiplexed in the holographic material layer without increasing the crosstalk. For red light from small (e.g., negative) fields of view, increasing the thickness of the holographic material layer may also reduce the linewidth but at a lower rate than for blue light from large fields of view. Thus, a thicker holographic material layer with relatively densely multiplexed gratings recorded therein may have the desired crosstalk performance for blue light from large fields of view and also have high diffraction efficiencies for red light from small fields of view. The linewidths of transmission VBGs for red, green, and blue light from small fields of view may be relatively close to each other. Thus, a thinner holographic material layer may be used to record transmission gratings therein to diffract the display light from smaller fields of view. The transmission VBGs can be multiplexed to achieve high efficiencies for display light from smaller fields of view, without causing diffraction crosstalk between the multiplexed VBGs that may cause ghost images or other optical artifacts.

[0068] In one example, a waveguide display may include a waveguide and at least one grating coupler configured to couple display light into or out of the waveguide. The grating coupler may include a plurality of grating layers arranged in a stack. Each grating layer in the plurality of grating layers may have a different respective thickness and may include transmission VBGs for diffracting display light of a certain wavelength from different respective fields of view. A grating layer having a higher thickness may be used to diffract display light of certain wavelengths from larger fields of view. A grating layer having a lower thickness may be used to diffract display light of the certain wavelengths from smaller fields of view.

[0069] For example, the grating layer may include at least a first grating layer and a second grating layer in the stack. The first grating layer may be characterized by a first thickness and may include a first transmission VBG configured to diffract display light of a first wavelength (e.g., blue light) from a first (e.g., negative) field of view. The second grating layer may be characterized by a second thickness greater than the first thickness and may include a second transmission VBG configured to diffract display light of the first wavelength from a second (e.g., positive) field of view greater than the first field of view. The first transmission VBG may be further configured to diffract display light (e.g., red light) of a second wavelength longer than the first wavelength and from a third field of view smaller than the first field of view. The second transmission VBG may be further configured to diffract display light of the second wavelength and from a fourth field of view smaller than the second field of view. The first grating layer may include a first multiplexed VBG that includes a first plurality of transmission VBGs recorded in a first plurality of holographic recording exposures. The second grating layer may include a second multiplexed VBG that includes a second plurality of transmission VBGs recorded in a second plurality of holographic recording exposures. The first grating layer and the second grating layer may be separated by a substrate transparent to visible light.

[0070] According to certain embodiments, a waveguide display may include a waveguide and at least one grating coupler configured to couple display light into or out of the waveguide. The grating coupler may include a grating layer that is characterized by a non-uniform thickness. Transmission VBGs may be recorded in different regions of the grating layer having different thicknesses to diffract display light from different fields of view as described above. The grating layer with the non-uniform thickness may be formed by coating a holography material layer on a substrate with a non-uniform thickness, or by coating a holography material layer on a substrate with a uniform thickness and selectively desensitizing portions of the holography material layer using a non-uniform light pattern.

[0071] In the following description, various inventive embodiments are described, including devices, systems, methods, and the like. For the purposes of explanation, specific details are set forth in order to provide a thorough understanding of examples of the disclosure. However, it will be apparent that various examples may be practiced without these specific details. For example, devices, systems, structures, assemblies, methods, and other components may be shown as components in block diagram form in order not to obscure the examples in unnecessary detail. In other instances, well-known devices, processes, systems, structures, and techniques may be shown without necessary detail in order to avoid obscuring the examples. The figures and description are not intended to be restrictive. The terms and expressions that have been employed in this disclosure are used as terms of description and not of limitation, and there is no intention in the use of such terms and expressions of excluding any equivalents of the features shown and described or portions thereof. The word “example” is used herein to mean “serving as an example, instance, or illustration.” Any embodiment or design described herein as “example” is not necessarily to be construed as preferred or advantageous over other embodiments or designs.

[0072] FIG. 1 is a simplified block diagram of an example of an artificial reality system environment 100 including a near-eye display 120 in accordance with certain embodiments. Artificial reality system environment 100 shown in FIG. 1 may include near-eye display 120, an optional external imaging device 150, and an optional input/output interface 140, each of which may be coupled to an optional console 110. While FIG. 1 shows an example of artificial reality system environment 100 including one near-eye display 120, one external imaging device 150, and one input/output interface 140, any number of these components may be included in artificial reality system environment 100, or any of the components may be omitted. For example, there may be multiple near-eye displays 120 monitored by one or more external imaging devices 150 in communication with console 110. In some configurations, artificial reality system environment 100 may not include external imaging device 150, optional input/output interface 140, and optional console 110. In alternative configurations, different or additional components may be included in artificial reality system environment 100.

[0073] Near-eye display 120 may be a head-mounted display that presents content to a user. Examples of content presented by near-eye display 120 include one or more of images, videos, audio, or any combination thereof. In some embodiments, audio may be presented via an external device (e.g., speakers and/or headphones) that receives audio information from near-eye display 120, console 110, or both, and presents audio data based on the audio information. Near-eye display 120 may include one or more rigid bodies, which may be rigidly or non-rigidly coupled to each other. A rigid coupling between rigid bodies may cause the coupled rigid bodies to act as a single rigid entity. A non-rigid coupling between rigid bodies may allow the rigid bodies to move relative to each other. In various embodiments, near-eye display 120 may be implemented in any suitable form-factor, including a pair of glasses. Some embodiments of near-eye display 120 are further described below with respect to FIGS. 2 and 3. Additionally, in various embodiments, the functionality described herein may be used in a headset that combines images of an environment external to near-eye display 120 and artificial reality content (e.g., computer-generated images). Therefore, near-eye display 120 may augment images of a physical, real-world environment external to near-eye display 120 with generated content (e.g., images, video, sound, etc.) to present an augmented reality to a user.

[0074] In various embodiments, near-eye display 120 may include one or more of display electronics 122, display optics 124, and an eye-tracking unit 130. In some embodiments, near-eye display 120 may also include one or more locators 126, one or more position sensors 128, and an inertial measurement unit (IMU) 132. Near-eye display 120 may omit any of eye-tracking unit 130, locators 126, position sensors 128, and IMU 132, or include additional elements in various embodiments. Additionally, in some embodiments, near-eye display 120 may include elements combining the function of various elements described in conjunction with FIG. 1.

[0075] Display electronics 122 may display or facilitate the display of images to the user according to data received from, for example, console 110. In various embodiments, display electronics 122 may include one or more display panels, such as a liquid crystal display (LCD), an organic light emitting diode (OLED) display, an inorganic light emitting diode (ILED) display, a micro light emitting diode (.mu.LED) display, an active-matrix OLED display (AMOLED), a transparent OLED display (TOLED), or some other display. For example, in one implementation of near-eye display 120, display electronics 122 may include a front TOLED panel, a rear display panel, and an optical component (e.g., an attenuator, polarizer, or diffractive or spectral film) between the front and rear display panels. Display electronics 122 may include pixels to emit light of a predominant color such as red, green, blue, white, or yellow. In some implementations, display electronics 122 may display a three-dimensional (3D) image through stereoscopic effects produced by two-dimensional panels to create a subjective perception of image depth. For example, display electronics 122 may include a left display and a right display positioned in front of a user’s left eye and right eye, respectively. The left and right displays may present copies of an image shifted horizontally relative to each other to create a stereoscopic effect (e.g., a perception of image depth by a user viewing the image).

[0076] In certain embodiments, display optics 124 may display image content optically (e.g., using optical waveguides and couplers) or magnify image light received from display electronics 122, correct optical errors associated with the image light, and present the corrected image light to a user of near-eye display 120. In various embodiments, display optics 124 may include one or more optical elements, such as, for example, a substrate, optical waveguides, an aperture, a Fresnel lens, a convex lens, a concave lens, a filter, input/output couplers, or any other suitable optical elements that may affect image light emitted from display electronics 122. Display optics 124 may include a combination of different optical elements as well as mechanical couplings to maintain relative spacing and orientation of the optical elements in the combination. One or more optical elements in display optics 124 may have an optical coating, such as an anti-reflective coating, a reflective coating, a filtering coating, or a combination of different optical coatings.

[0077] Magnification of the image light by display optics 124 may allow display electronics 122 to be physically smaller, weigh less, and consume less power than larger displays. Additionally, magnification may increase a field of view of the displayed content. The amount of magnification of image light by display optics 124 may be changed by adjusting, adding, or removing optical elements from display optics 124. In some embodiments, display optics 124 may project displayed images to one or more image planes that may be further away from the user’s eyes than near-eye display 120.

[0078] Display optics 124 may also be designed to correct one or more types of optical errors, such as two-dimensional optical errors, three-dimensional optical errors, or any combination thereof. Two-dimensional errors may include optical aberrations that occur in two dimensions. Example types of two-dimensional errors may include barrel distortion, pincushion distortion, longitudinal chromatic aberration, and transverse chromatic aberration. Three-dimensional errors may include optical errors that occur in three dimensions. Example types of three-dimensional errors may include spherical aberration, comatic aberration, field curvature, and astigmatism.

[0079] Locators 126 may be objects located in specific positions on near-eye display 120 relative to one another and relative to a reference point on near-eye display 120. In some implementations, console 110 may identify locators 126 in images captured by external imaging device 150 to determine the artificial reality headset’s position, orientation, or both. A locator 126 may be an LED, a corner cube reflector, a reflective marker, a type of light source that contrasts with an environment in which near-eye display 120 operates, or any combination thereof. In embodiments where locators 126 are active components (e.g., LEDs or other types of light emitting devices), locators 126 may emit light in the visible band (e.g., about 380 nm to 750 nm), in the infrared (IR) band (e.g., about 750 nm to 1 mm), in the ultraviolet band (e.g., about 10 nm to about 380 nm), in another portion of the electromagnetic spectrum, or in any combination of portions of the electromagnetic spectrum.

[0080] External imaging device 150 may include one or more cameras, one or more video cameras, any other device capable of capturing images including one or more of locators 126, or any combination thereof. Additionally, external imaging device 150 may include one or more filters (e.g., to increase signal to noise ratio). External imaging device 150 may be configured to detect light emitted or reflected from locators 126 in a field of view of external imaging device 150. In embodiments where locators 126 include passive elements (e.g., retroreflectors), external imaging device 150 may include a light source that illuminates some or all of locators 126, which may retro-reflect the light to the light source in external imaging device 150. Slow calibration data may be communicated from external imaging device 150 to console 110, and external imaging device 150 may receive one or more calibration parameters from console 110 to adjust one or more imaging parameters (e.g., focal length, focus, frame rate, sensor temperature, shutter speed, aperture, etc.).

[0081] Position sensors 128 may generate one or more measurement signals in response to motion of near-eye display 120. Examples of position sensors 128 may include accelerometers, gyroscopes, magnetometers, other motion-detecting or error-correcting sensors, or any combination thereof. For example, in some embodiments, position sensors 128 may include multiple accelerometers to measure translational motion (e.g., forward/back, up/down, or left/right) and multiple gyroscopes to measure rotational motion (e.g., pitch, yaw, or roll). In some embodiments, various position sensors may be oriented orthogonally to each other.

[0082] IMU 132 may be an electronic device that generates fast calibration data based on measurement signals received from one or more of position sensors 128. Position sensors 128 may be located external to IMU 132, internal to IMU 132, or any combination thereof. Based on the one or more measurement signals from one or more position sensors 128, IMU 132 may generate fast calibration data indicating an estimated position of near-eye display 120 relative to an initial position of near-eye display 120. For example, IMU 132 may integrate measurement signals received from accelerometers over time to estimate a velocity vector and integrate the velocity vector over time to determine an estimated position of a reference point on near-eye display 120. Alternatively, IMU 132 may provide the sampled measurement signals to console 110, which may determine the fast calibration data. While the reference point may generally be defined as a point in space, in various embodiments, the reference point may also be defined as a point within near-eye display 120 (e.g., a center of IMU 132).

[0083] Eye-tracking unit 130 may include one or more eye-tracking systems. Eye tracking may refer to determining an eye’s position, including orientation and location of the eye, relative to near-eye display 120. An eye-tracking system may include an imaging system to image one or more eyes and may optionally include a light emitter, which may generate light that is directed to an eye such that light reflected by the eye may be captured by the imaging system. For example, eye-tracking unit 130 may include a non-coherent or coherent light source (e.g., a laser diode) emitting light in the visible spectrum or infrared spectrum, and a camera capturing the light reflected by the user’s eye. As another example, eye-tracking unit 130 may capture reflected radio waves emitted by a miniature radar unit. Eye-tracking unit 130 may use low-power light emitters that emit light at frequencies and intensities that would not injure the eye or cause physical discomfort. Eye-tracking unit 130 may be arranged to increase contrast in images of an eye captured by eye-tracking unit 130 while reducing the overall power consumed by eye-tracking unit 130 (e.g., reducing power consumed by a light emitter and an imaging system included in eye-tracking unit 130). For example, in some implementations, eye-tracking unit 130 may consume less than 100 milliwatts of power.

[0084] Near-eye display 120 may use the orientation of the eye to, e.g., determine an inter-pupillary distance (IPD) of the user, determine gaze direction, introduce depth cues (e.g., blur image outside of the user’s main line of sight), collect heuristics on the user interaction in the VR media (e.g., time spent on any particular subject, object, or frame as a function of exposed stimuli), some other functions that are based in part on the orientation of at least one of the user’s eyes, or any combination thereof. Because the orientation may be determined for both eyes of the user, eye-tracking unit 130 may be able to determine where the user is looking. For example, determining a direction of a user’s gaze may include determining a point of convergence based on the determined orientations of the user’s left and right eyes. A point of convergence may be the point where the two foveal axes of the user’s eyes intersect. The direction of the user’s gaze may be the direction of a line passing through the point of convergence and the mid-point between the pupils of the user’s eyes.

[0085] Input/output interface 140 may be a device that allows a user to send action requests to console 110. An action request may be a request to perform a particular action. For example, an action request may be to start or to end an application or to perform a particular action within the application. Input/output interface 140 may include one or more input devices. Example input devices may include a keyboard, a mouse, a game controller, a glove, a button, a touch screen, or any other suitable device for receiving action requests and communicating the received action requests to console 110. An action request received by the input/output interface 140 may be communicated to console 110, which may perform an action corresponding to the requested action. In some embodiments, input/output interface 140 may provide haptic feedback to the user in accordance with instructions received from console 110. For example, input/output interface 140 may provide haptic feedback when an action request is received, or when console 110 has performed a requested action and communicates instructions to input/output interface 140. In some embodiments, external imaging device 150 may be used to track input/output interface 140, such as tracking the location or position of a controller (which may include, for example, an IR light source) or a hand of the user to determine the motion of the user. In some embodiments, near-eye display 120 may include one or more imaging devices to track input/output interface 140, such as tracking the location or position of a controller or a hand of the user to determine the motion of the user.

[0086] Console 110 may provide content to near-eye display 120 for presentation to the user in accordance with information received from one or more of external imaging device 150, near-eye display 120, and input/output interface 140. In the example shown in FIG. 1, console 110 may include an application store 112, a headset tracking module 114, an artificial reality engine 116, and an eye-tracking module 118. Some embodiments of console 110 may include different or additional modules than those described in conjunction with FIG. 1. Functions further described below may be distributed among components of console 110 in a different manner than is described here.

[0087] In some embodiments, console 110 may include a processor and a non-transitory computer-readable storage medium storing instructions executable by the processor. The processor may include multiple processing units executing instructions in parallel. The non-transitory computer-readable storage medium may be any memory, such as a hard disk drive, a removable memory, or a solid-state drive (e.g., flash memory or dynamic random access memory (DRAM)). In various embodiments, the modules of console 110 described in conjunction with FIG. 1 may be encoded as instructions in the non-transitory computer-readable storage medium that, when executed by the processor, cause the processor to perform the functions further described below.

[0088] Application store 112 may store one or more applications for execution by console 110. An application may include a group of instructions that, when executed by a processor, generates content for presentation to the user. Content generated by an application may be in response to inputs received from the user via movement of the user’s eyes or inputs received from the input/output interface 140. Examples of the applications may include gaming applications, conferencing applications, video playback application, or other suitable applications.

[0089] Headset tracking module 114 may track movements of near-eye display 120 using slow calibration information from external imaging device 150. For example, headset tracking module 114 may determine positions of a reference point of near-eye display 120 using observed locators from the slow calibration information and a model of near-eye display 120. Headset tracking module 114 may also determine positions of a reference point of near-eye display 120 using position information from the fast calibration information. Additionally, in some embodiments, headset tracking module 114 may use portions of the fast calibration information, the slow calibration information, or any combination thereof, to predict a future location of near-eye display 120. Headset tracking module 114 may provide the estimated or predicted future position of near-eye display 120 to artificial reality engine 116.

[0090] Artificial reality engine 116 may execute applications within artificial reality system environment 100 and receive position information of near-eye display 120, acceleration information of near-eye display 120, velocity information of near-eye display 120, predicted future positions of near-eye display 120, or any combination thereof from headset tracking module 114. Artificial reality engine 116 may also receive estimated eye position and orientation information from eye-tracking module 118. Based on the received information, artificial reality engine 116 may determine content to provide to near-eye display 120 for presentation to the user. For example, if the received information indicates that the user has looked to the left, artificial reality engine 116 may generate content for near-eye display 120 that mirrors the user’s eye movement in a virtual environment. Additionally, artificial reality engine 116 may perform an action within an application executing on console 110 in response to an action request received from input/output interface 140, and provide feedback to the user indicating that the action has been performed. The feedback may be visual or audible feedback via near-eye display 120 or haptic feedback via input/output interface 140.

[0091] Eye-tracking module 118 may receive eye-tracking data from eye-tracking unit 130 and determine the position of the user’s eye based on the eye tracking data. The position of the eye may include an eye’s orientation, location, or both relative to near-eye display 120 or any element thereof. Because the eye’s axes of rotation change as a function of the eye’s location in its socket, determining the eye’s location in its socket may allow eye-tracking module 118 to more accurately determine the eye’s orientation.

[0092] FIG. 2 is a perspective view of an example of a near-eye display in the form of an HMD device 200 for implementing some of the examples disclosed herein. HMD device 200 may be a part of, e.g., a VR system, an AR system, an MR system, or any combination thereof. HMD device 200 may include a body 220 and a head strap 230. FIG. 2 shows a bottom side 223, a front side 225, and a left side 227 of body 220 in the perspective view. Head strap 230 may have an adjustable or extendible length. There may be a sufficient space between body 220 and head strap 230 of HMD device 200 for allowing a user to mount HMD device 200 onto the user’s head. In various embodiments, HMD device 200 may include additional, fewer, or different components. For example, in some embodiments, HMD device 200 may include eyeglass temples and temple tips as shown in, for example, FIG. 3 below, rather than head strap 230.

[0093] HMD device 200 may present to a user media including virtual and/or augmented views of a physical, real-world environment with computer-generated elements. Examples of the media presented by HMD device 200 may include images (e.g., two-dimensional (2D) or three-dimensional (3D) images), videos (e.g., 2D or 3D videos), audio, or any combination thereof. The images and videos may be presented to each eye of the user by one or more display assemblies (not shown in FIG. 2) enclosed in body 220 of HMD device 200. In various embodiments, the one or more display assemblies may include a single electronic display panel or multiple electronic display panels (e.g., one display panel for each eye of the user). Examples of the electronic display panel(s) may include, for example, an LCD, an OLED display, an ILED display, a .mu.LED display, an AMOLED, a TOLED, some other display, or any combination thereof. HMD device 200 may include two eyebox regions.

[0094] In some implementations, HMD device 200 may include various sensors (not shown), such as depth sensors, motion sensors, position sensors, and eye tracking sensors. Some of these sensors may use a structured light pattern for sensing. In some implementations, HMD device 200 may include an input/output interface for communicating with a console. In some implementations, HMD device 200 may include a virtual reality engine (not shown) that can execute applications within HMD device 200 and receive depth information, position information, acceleration information, velocity information, predicted future positions, or any combination thereof of HMD device 200 from the various sensors. In some implementations, the information received by the virtual reality engine may be used for producing a signal (e.g., display instructions) to the one or more display assemblies. In some implementations, HMD device 200 may include locators (not shown, such as locators 126) located in fixed positions on body 220 relative to one another and relative to a reference point. Each of the locators may emit light that is detectable by an external imaging device.

[0095] FIG. 3 is a perspective view of an example of a near-eye display 300 in the form of a pair of glasses for implementing some of the examples disclosed herein. Near-eye display 300 may be a specific implementation of near-eye display 120 of FIG. 1, and may be configured to operate as a virtual reality display, an augmented reality display, and/or a mixed reality display.

[0096] Near-eye display 300 may include a frame 305 and a display 310. Display 310 may be configured to present content to a user. In some embodiments, display 310 may include display electronics and/or display optics. For example, as described above with respect to near-eye display 120 of FIG. 1, display 310 may include an LCD display panel, an LED display panel, or an optical display panel (e.g., a waveguide display assembly).

[0097] Near-eye display 300 may further include various sensors 350a, 350b, 350c, 350d, and 350e on or within frame 305. In some embodiments, sensors 350a-350e may include one or more depth sensors, motion sensors, position sensors, inertial sensors, or ambient light sensors. In some embodiments, sensors 350a-350e may include one or more image sensors configured to generate image data representing different fields of views in different directions. In some embodiments, sensors 350a-350e may be used as input devices to control or influence the displayed content of near-eye display 300, and/or to provide an interactive VR/AR/MR experience to a user of near-eye display 300. In some embodiments, sensors 350a-350e may also be used for stereoscopic imaging.

[0098] In some embodiments, near-eye display 300 may further include one or more illuminators 330 to project light into the physical environment. The projected light may be associated with different frequency bands (e.g., visible light, infra-red light, ultra-violet light, etc.), and may serve various purposes. For example, illuminator(s) 330 may project light in a dark environment (or in an environment with low intensity of infra-red light, ultra-violet light, etc.) to assist sensors 350a-350e in capturing images of different objects within the dark environment. In some embodiments, illuminator(s) 330 may be used to project certain light pattern onto the objects within the environment. In some embodiments, illuminator(s) 330 may be used as locators, such as locators 126 described above with respect to FIG. 1.

[0099] In some embodiments, near-eye display 300 may also include a high-resolution camera 340. Camera 340 may capture images of the physical environment in the field of view. The captured images may be processed, for example, by a virtual reality engine (e.g., artificial reality engine 116 of FIG. 1) to add virtual objects to the captured images or modify physical objects in the captured images, and the processed images may be displayed to the user by display 310 for AR or MR applications.

……
……
……
