Patent: Augmented Reality Based Community Review for Automobile Drivers

Publication Number: 20190020844

Publication Date: 2019-01-17

Applicants: Microsoft

Abstract

Disclosed is an infrastructure to support an augmented reality (AR) based community for drivers. Each driver’s view (e.g., using an AR device) of other vehicles on the road can be augmented with virtual information about other drivers in the community. Drivers in the community can express their opinions on the driving behavior of other drivers in the community. Drivers’ opinions can be accumulated and tallied to produce a cumulative assessment of a particular behavior for a particular driver. A driver’s view through their AR device and be further augmented with the community’s assessment of that driver’s driving behavior, which can influence the driver’s future behavior.

Background

Augmented reality is a technology that superimposes a computer-generated image on a user’s view of the real-world, thus providing a composite (augmented) view of their real-world surroundings. The augmentation is usually done by adding extra data (e.g., holograms) to the real-world objects around the user. Consider, for example, a user who is traveling abroad. Suppose the user is interested in the history of the nearby buildings. The user can launch a history app enhanced with augmented reality capability on their smartphone and connect to the Internet. The app looks through the smartphone’s camera and shows the real-world surroundings to the user. The user can point the smartphone at a building and in response the app can show a graphical callout (e.g., hologram) that provides some historical information next to the building, thus augmenting the real-world object (i.e., the building) with virtually generated information.

Augmented reality (AR) devices can come in a wearable form factor. The wearable AR device can be Internet enabled. The AR device can include a semi-transparent display that allows the user to view their real-world surroundings. The user can provide input (e.g., spoken commands) to the AR device to call up information about their real-world surroundings. In response, the AR device can display virtual information on the display, thus superimposing the information over the user’s view of their real-world surroundings.

Summary

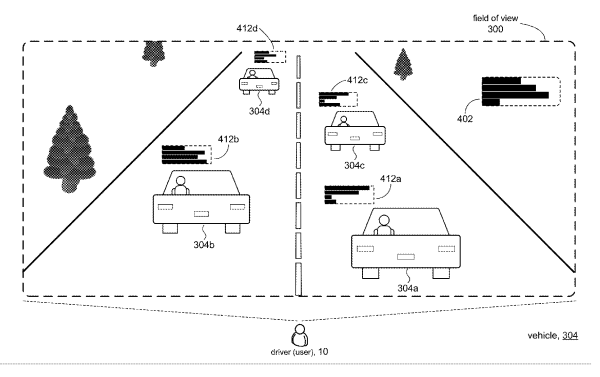

The present disclosure describes a system for an augmented reality (AR) based social community for drivers. In various embodiments, a driver’s vehicle can be configured to provide an AR experience while driving. The system can provide the driver’s vehicle telemetry that provides information about nearby community members and their vehicles on the road. The system can augment the driver’s view of their real-world surrounding, as seen through a wearable augmented device for example, with virtual objects that represent information obtained from the received telemetry. In some embodiments, for example, the information can include assessments of those drivers (e.g., their driving behavior) as voted on or otherwise rated by members of the driving community. In some embodiments, the system can provide the AR experience using a heads up display configured with an AR display system.

In accordance with the present disclosure, the received telemetry can include information that represents the community’s assessment of the driver’s own driving behavior. The system can further augment the driver’s view of their real-world surrounding with virtual objects that represent such information.

In accordance with the present disclosure, the system can allow a driver to assess another driver’s behavior on the road, for example, by describing that other driver’s vehicle and speaking words or phrases that indicate a particular behavior and a positive or negative assessment of the behavior. The system can tally up these “votes” for all behaviors of all drivers, and present the resulting cumulative assessments to drivers in the community.

The following detailed description and accompanying drawings provide further understanding of the nature and advantages of the present disclosure.
