Magic Leap Patent | Sensory Eyewear

Patent: Sensory Eyewear

Publication Number: 20180075659

Publication Date: 20180315

Applicants: Magic Leap

Abstract

A sensory eyewear system for a mixed reality device can facilitate user’s interactions with the other people or with the environment. As one example, the sensory eyewear system can recognize and interpret a sign language, and present the translated information to a user of the mixed reality device. The wearable system can also recognize text in the user’s environment, modify the text (e.g., by changing the content or display characteristics of the text), and render the modified text to occlude the original text.

CROSS-REFERENCE TO RELATED APPLICATIONS

[0001] This application claims the benefit of priority under 35 U.S.C. .sctn. 119(e) to U.S. Provisional Application No. 62/394,013, filed on Sep. 13, 2016, entitled “SENSORY EYEWEAR,” and U.S. Provisional Application No. 62/440,320 filed on Dec. 29, 2016, entitled “SYSTEMS AND METHODS FOR AUGMENTED REALITY,” the disclosures of which are hereby incorporated by reference herein in their entireties.

FIELD

[0002] The present disclosure relates to virtual reality and augmented reality imaging and visualization systems and more particularly to recognizing sign language or text in an environment and rendering virtual content based on the recognized sign language or text.

BACKGROUND

[0003] Modern computing and display technologies have facilitated the development of systems for so called “virtual reality”, “augmented reality”, or “mixed reality” experiences, wherein digitally reproduced images or portions thereof are presented to a user in a manner wherein they seem to be, or may be perceived as, real. A virtual reality, or “VR”, scenario typically involves presentation of digital or virtual image information without transparency to other actual real-world visual input; an augmented reality, or “AR”, scenario typically involves presentation of digital or virtual image information as an augmentation to visualization of the actual world around the user; a mixed reality, or “MR”, related to merging real and virtual worlds to produce new environments where physical and virtual objects co-exist and interact in real time. As it turns out, the human visual perception system is very complex, and producing a VR, AR, or MR technology that facilitates a comfortable, natural-feeling, rich presentation of virtual image elements amongst other virtual or real-world imagery elements is challenging. Systems and methods disclosed herein address various challenges related to VR, AR and MR technology.

SUMMARY

[0004] Various embodiments of a mixed reality system for recognizing sign language and text in an environment are disclosed. These embodiments advantageously may permit greater interaction among differently-abled persons.

[0005] A sensory eyewear system for a mixed reality device can facilitate user’s interactions with the other people or with the environment. As one example, the sensory eyewear system can recognize and interpret a sign language, and present the translated information to a user of the mixed reality device. The wearable system can also recognize text in the user’s environment, modify the text (e.g., by changing the content or display characteristics of the text), and render the modified text to occlude the original text.

[0006] Details of one or more implementations of the subject matter described in this specification are set forth in the accompanying drawings and the description below. Other features, aspects, and advantages will become apparent from the description, the drawings, and the claims. Neither this summary nor the following detailed description purports to define or limit the scope of the inventive subject matter.

BRIEF DESCRIPTION OF THE DRAWINGS

[0007] FIG. 1 depicts an illustration of a mixed reality scenario with certain virtual reality objects, and certain physical objects viewed by a person.

[0008] FIG. 2A schematically illustrates an example of a wearable system which can implement a sensory eyewear system.

[0009] FIG. 2B schematically illustrates various example components of a wearable system.

[0010] FIG. 3 schematically illustrates aspects of an approach for simulating three-dimensional imagery using multiple depth planes.

[0011] FIG. 4 schematically illustrates an example of a waveguide stack for outputting image information to a user.

[0012] FIG. 5 shows example exit beams that may be outputted by a waveguide.

[0013] FIG. 6 is a schematic diagram showing an optical system including a waveguide apparatus, an optical coupler subsystem to optically couple light to or from the waveguide apparatus, and a control subsystem, used in the generation of a multi-focal volumetric display, image, or light field.

[0014] FIG. 7 is a block diagram of an example of a wearable system.

[0015] FIG. 8 is a process flow diagram of an example of a method of rendering virtual content in relation to recognized objects.

[0016] FIG. 9 is a block diagram of another example of a wearable system that includes a sensory eyewear system.

[0017] FIG. 10 is a process flow diagram of an example of a method for determining user input to a wearable system.

[0018] FIG. 11 is a process flow diagram of an example of a method for interacting with a virtual user interface.

[0019] FIG. 12 schematically illustrates an overall system view depicting multiple wearable systems interacting with each other.

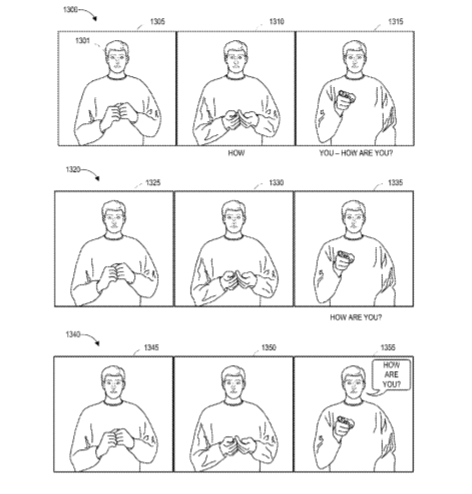

[0020] FIG. 13A shows an example user experience of a sensory eyewear system where the sensory eyewear system can interpret a sign language (e.g., gestured by a signer).

[0021] FIG. 13B shows another example user experience of a sensory eyewear system, where target speech and auxiliary information are both presented.

[0022] FIG. 13C shows an example user experience of a sensory eyewear system in a telepresence session.

[0023] FIG. 13D illustrates an example virtual user interface for interpreting a sign language.

[0024] FIGS. 14A and 14B illustrate example processes for facilitating interpersonal communications with a sensory eyewear system.

[0025] FIG. 14C is a process flow diagram of an example method for determining auxiliary information and presenting the auxiliary information associated with converted text.

[0026] FIG. 15 illustrates another example process for facilitating interpersonal communications with a sensory eyewear system.

[0027] FIGS. 16A-16E illustrate example user experiences for a sensory eyewear system which is configured to recognize text in the environment, modify the display characteristics of the text, and render the modified text.

[0028] FIG. 17 illustrates an example process of a sensory eyewear for facilitating a user’s interactions with the environment.

[0029] FIG. 18 illustrates an example of assisting a user in understanding signage in a physical environment by modifying the content of the signage.

[0030] FIG. 19 illustrates an example process of assisting a user in understanding signage in a physical environment.

[0031] Throughout the drawings, reference numbers may be re-used to indicate correspondence between referenced elements. The drawings are provided to illustrate example embodiments described herein and are not intended to limit the scope of the disclosure.

DETAILED DESCRIPTION

Overview

[0032] A wearable system which is configured to present AR/VR/MR content can implement an sensory eyewear system to enhance the user’s interaction with other people or the environment. An example wearable system can comprise a head-mounted display, various imaging sensors, and one or more hardware processors. The display can be a see-through display worn in front of the eye or eyes.

[0033] To enhance the user’s interaction experience with other people, the wearable system can be configured to capture and interpret a sign language. A sign language primarily uses visual gestures (e.g., hand shapes; hand orientations; hand, arm, or body movements; or facial expressions) to communicate. There are hundreds of sign languages used around the world. Some sign languages may be used more often than others. For example, American sign language (ASL) is widely used in the U.S. and Canada.

[0034] Many people do not know any sign languages. A speech- or hearing-challenged person and a conversation partner may not be familiar with the same sign language. This can impede conversation with the hearing-challenged or the speech-challenged persons. Accordingly, the wearable system that can image signs (e.g., gestures) being made by a conversation partner, convert the signs to text or graphics (e.g., graphics of sign language gestures in a sign language the system user understands), and then display information associated with the sign (e.g., a translation of the signs into a language understood by the user) would greatly help improve the communication between the user and the conversation partner. Further, it may be desirable to have a wearable system which can provide textual or graphical conversion of a sign language in (or near) real-time with a minimal level of distraction to, and an insignificant level of effort by, a user of the wearable system.

[0035] The present disclosure discloses examples of such desirable systems in the context of a wearable device. The wearable device may include a head-mounted component (such as, e.g., a head-mounted display). Such a device can allow a user to visually receive information which is provided by a computing device in such a manner that the information is simultaneously viewable alongside (or on top of) the normally viewable real world. Such a system can be used to display any form of information that can be displayed on a traditional computer screen such as characters, image effects, text, graphics, or video of any kind.

[0036] The wearable system described herein can combine sign language recognition (SLR) and display capability of a wearable device to provide a user with information based on a detected sign language. For example, an outward-facing camera on the wearable device can image gestures being made, identify signs among the gestures, translate the signs to a language the user understands, and display the translation to the user. A transcript (e.g., a caption or a text bubble) of the detected sign language can be displayed to the user by the wearable system. A machine learning algorithm (e.g., a deep neural network) can receive the images and perform the identification and translation of the signs. When prompted by the user, the meaning of a word in the transcript or relevant information from an appropriate source can be displayed. The kinds of auxiliary information that the wearable system can provide can be as unlimited as the vast array of available information resources, e.g., on the Internet.

[0037] In addition to or in alternative to enhancing the user’s interaction experience with other people, the sensory eyewear system can also improve the user’s experience with the environment. As an example of improving user interactions with the environment, a wearable system implementing the sensory eyewear system can recognize text (e.g., text on signage such as, e.g., commercial or public display signs) in an environment, modify the display characteristics of the text (e.g., by increasing the size of the text) or modify the content of the text (e.g., by translating the text to another language), and render the modified text over the physical text in the environment.

[0038] As further described herein, a wearable system can receive an image of the user’s environment. The image may be acquired by the outward-facing imaging system of a wearable device or a totem associated with the wearable device. The wearable system can determine whether the image comprises one or more letters or characters and convert the one or more letters or characters into text. The wearable system may determine whether the image comprises letters or characters using a variety of techniques, such as, for example, machine learning algorithms or optical character recognition (OCR) algorithms. The wearable system may use object recognizers (e.g., described in FIG. 7) to identify the letters and characters and convert them into text.

[0039] In certain embodiments, the text can be displayed for the user differently than the user would see without the wearable device. For example, the wearable system can cause a head-mounted display to display the text in a font size that is different from a font size associated with the letters or characters associated with the original image. The wearable system can also improve the display quality of the text. For example, various environmental factors, such as fog, haze, rain, bright light, low light, low light or color contrast between the letters and the surrounding image, etc., can impede a user’s clear view of text in the environment without the wearable system. The wearable system may present a sign (e.g., with increased contrast ratio or larger font) that will increase the clarity of the text.

[0040] The wearable system can also translate the text (e.g., the text on signage) from its original language to a target language. For example, the text may be translated from a language that the user does not understand to a language that the user understands. The translated text may be rendered over the original text such that the user can readily view the text in a language that the user is able to understand.

Examples of 3D Display of a Wearable System

[0041] A wearable system (also referred to herein as an augmented reality (AR) system) can be configured to present 2D or 3D virtual images to a user. The images may be still images, frames of a video, or a video, in combination or the like. At least a portion of the wearable system can be implemented on a wearable device that can present a VR, AR, or MR environment, alone or in combination, for user interaction. The wearable device can be a head-mounted device (HMD) which is used interchangeably as an AR device (ARD). Further, for the purpose of the present disclosure, the term “AR” is used interchangeably with the term “MR”.

[0042] FIG. 1 depicts an illustration of a mixed reality scenario with certain virtual reality objects, and certain physical objects viewed by a person. In FIG. 1, an MR scene 100 is depicted wherein a user of an MR technology sees a real-world park-like setting 110 featuring people, trees, buildings in the background, and a concrete platform 120. In addition to these items, the user of the MR technology also perceives that he “sees” a robot statue 130 standing upon the real-world platform 120, and a cartoon-like avatar character 140 flying by which seems to be a personification of a bumble bee, even though these elements do not exist in the real world.

[0043] In order for the 3D display to produce a true sensation of depth, and more specifically, a simulated sensation of surface depth, it may be desirable for each point in the display’s visual field to generate an accommodative response corresponding to its virtual depth. If the accommodative response to a display point does not correspond to the virtual depth of that point, as determined by the binocular depth cues of convergence and stereopsis, the human eye may experience an accommodation conflict, resulting in unstable imaging, harmful eye strain, headaches, and, in the absence of accommodation information, almost a complete lack of surface depth.

[0044] VR, AR, and MR experiences can be provided by display systems having displays in which images corresponding to a plurality of depth planes are provided to a viewer. The images may be different for each depth plane (e.g., provide slightly different presentations of a scene or object) and may be separately focused by the viewer’s eyes, thereby helping to provide the user with depth cues based on the accommodation of the eye required to bring into focus different image features for the scene located on different depth plane or based on observing different image features on different depth planes being out of focus. As discussed elsewhere herein, such depth cues provide credible perceptions of depth.

[0045] FIG. 2A illustrates an example of wearable system 200 which can be configured to provide an AR/VR/MR scene. The wearable system 200 can also be referred to as the AR system 200. The wearable system 200 includes a display 220, and various mechanical and electronic modules and systems to support the functioning of display 220. The display 220 may be coupled to a frame 230, which is wearable by a user, wearer, or viewer 210. The display 220 can be positioned in front of the eyes of the user 210. The display 220 can present AR/VR/MR content to a user. The display 220 can comprise a head mounted display that is worn on the head of the user. In some embodiments, a speaker 240 is coupled to the frame 230 and positioned adjacent the ear canal of the user (in some embodiments, another speaker, not shown, is positioned adjacent the other ear canal of the user to provide for stereo/shapeable sound control). The display 220 can include an audio sensor (e.g., a microphone) 232 for detecting an audio stream from the environment and capture ambient sound. In some embodiments, one or more other audio sensors, not shown, are positioned to provide stereo sound reception. Stereo sound reception can be used to determine the location of a sound source. The wearable system 200 can perform voice or speech recognition on the audio stream.

[0046] The wearable system 200 can include an outward-facing imaging system 464 (shown in FIG. 4) which observes the world in the environment around the user. The wearable system 200 can also include an inward-facing imaging system 462 (shown in FIG. 4) which can track the eye movements of the user. The inward-facing imaging system may track either one eye’s movements or both eyes’ movements. The inward-facing imaging system 462 may be attached to the frame 230 and may be in electrical communication with the processing modules 260 or 270, which may process image information acquired by the inward-facing imaging system to determine, e.g., the pupil diameters or orientations of the eyes, eye movements or eye pose of the user 210.

[0047] As an example, the wearable system 200 can use the outward-facing imaging system 464 or the inward-facing imaging system 462 to acquire images of a pose of the user. The images may be still images, frames of a video, or a video.

[0048] The display 220 can be operatively coupled 250, such as by a wired lead or wireless connectivity, to a local data processing module 260 which may be mounted in a variety of configurations, such as fixedly attached to the frame 230, fixedly attached to a helmet or hat worn by the user, embedded in headphones, or otherwise removably attached to the user 210 (e.g., in a backpack-style configuration, in a belt-coupling style configuration).

[0049] The local processing and data module 260 may comprise a hardware processor, as well as digital memory, such as non-volatile memory (e.g., flash memory), both of which may be utilized to assist in the processing, caching, and storage of data. The data may include data a) captured from sensors (which may be, e.g., operatively coupled to the frame 230 or otherwise attached to the user 210), such as image capture devices (e.g., cameras in the inward-facing imaging system or the outward-facing imaging system), audio sensors (e.g., microphones), inertial measurement units (IMUs), accelerometers, compasses, global positioning system (GPS) units, radio devices, or gyroscopes; or b) acquired or processed using remote processing module 270 or remote data repository 280, possibly for passage to the display 220 after such processing or retrieval. The local processing and data module 260 may be operatively coupled by communication links 262 or 264, such as via wired or wireless communication links, to the remote processing module 270 or remote data repository 280 such that these remote modules are available as resources to the local processing and data module 260. In addition, remote processing module 280 and remote data repository 280 may be operatively coupled to each other.

[0050] In some embodiments, the remote processing module 270 may comprise one or more processors configured to analyze and process data or image information. In some embodiments, the remote data repository 280 may comprise a digital data storage facility, which may be available through the internet or other networking configuration in a “cloud” resource configuration. In some embodiments, all data is stored and all computations are performed in the local processing and data module, allowing fully autonomous use from a remote module.

[0051] FIG. 2B shows the wearable system 200 which can include a display 220 and a frame 230. A blown-up view 202 schematically illustrates various components of the wearable system 200. In certain implements, one or more of the components illustrated in FIG. 2B can be part of the display 220. The various components alone or in combination can collect a variety of data (such as e.g., audio or visual data) associated with the user of the wearable system 200 or the user’s environment. It should be appreciated that other embodiments may have additional or fewer components depending on the application for which the wearable system is used. Nevertheless, FIG. 2B provides a basic idea of some of the various components and types of data that may be collected, analyzed, and stored through the wearable system.

[0052] FIG. 2B shows an example wearable system 200 which can include the display 220. The display 220 can comprise a display lens 106 that may be mounted to a user’s head or a housing or frame 108, which corresponds to the frame 230. The display lens 106 may comprise one or more transparent mirrors positioned by the housing 108 in front of the user’s eyes 302, 304 and may be configured to bounce projected light 38 into the eyes 302, 304 and facilitate beam shaping, while also allowing for transmission of at least some light from the local environment. The wavefront of the projected light beam 38 may be bent or focused to coincide with a desired focal distance of the projected light. As illustrated, two wide-field-of-view machine vision cameras 16 (also referred to as world cameras) can be coupled to the housing 108 to image the environment around the user. These cameras 16 can be dual capture visible light/non-visible (e.g., infrared) light cameras. The cameras 16 may be part of the outward-facing imaging system 464 shown in FIG. 4. Image acquired by the world cameras 16 can be processed by the pose processor 36. For example, the pose processor 36 can implement one or more object recognizers 708 (e.g., shown in FIG. 7) to identify a pose of a user or another person in the user’s environment or to identify a physical object in the user’s environment.

[0053] With continued reference to FIG. 2B, a pair of scanned-laser shaped-wavefront (e.g., for depth) light projector modules with display mirrors and optics configured to project light 38 into the eyes 302, 304 are shown. The depicted view also shows two miniature infrared cameras 24 paired with infrared light sources 26 (such as light emitting diodes “LED” s), which are configured to be able to track the eyes 302, 304 of the user to support rendering and user input. The cameras 24 may be part of the inward-facing imaging system 462 shown in FIG. 4 The wearable system 200 can further feature a sensor assembly 39, which may comprise X, Y, and Z axis accelerometer capability as well as a magnetic compass and X, Y, and Z axis gyro capability, preferably providing data at a relatively high frequency, such as 200 Hz. The sensor assembly 39 may be part of the IMU described with reference to FIG. 2A The depicted system 200 can also comprise a head pose processor 36, such as an ASIC (application specific integrated circuit), FPGA (field programmable gate array), or ARM processor (advanced reduced-instruction-set machine), which may be configured to calculate real or near-real time user head pose from wide field of view image information output from the capture devices 16. The head pose processor 36 can be a hardware processor and can be implemented as part of the local processing and data module 260 shown in FIG. 2A.

[0054] Also shown is a processor 32 configured to execute digital or analog processing to derive pose from the gyro, compass, or accelerometer data from the sensor assembly 39. The processor 32 may be part of the local processing and data module 260 shown in FIG. 2A. The wearable system 200 as shown in FIG. 2B can also include a position system such as, e.g., a GPS 37 (global positioning system) to assist with pose and positioning analyses. In addition, the GPS may further provide remotely-based (e.g., cloud-based) information about the user’s environment. This information may be used for recognizing objects or information in user’s environment.

[0055] The wearable system may combine data acquired by the GPS 37 and a remote computing system (such as, e.g., the remote processing module 270, another user’s ARD, etc.) which can provide more information about the user’s environment. As one example, the wearable system can determine the user’s location based on GPS data and retrieve a world map (e.g., by communicating with a remote processing module 270) including virtual objects associated with the user’s location. As another example, the wearable system 200 can monitor the environment using the world cameras 16 (which may be part of the outward-facing imaging system 464 shown in FIG. 4). Based on the images acquired by the world cameras 16, the wearable system 200 can detect characters in the environment (e.g., by using one or more object recognizers 708 shown in FIG. 7). The wearable system can further use data acquired by the GPS 37 to interpret the characters. For example, the wearable system 200 can identify a geographic region where the characters are located and identify one or more languages associated with the geographic region. The wearable system can accordingly interpret the characters based on the identified language(s), e.g., based on syntax, grammar, sentence structure, spelling, punctuation, etc., associated with the identified language(s). In one example, a user 210 in Germany can perceive a traffic sign while driving down the autobahn. The wearable system 200 can identify that the user 210 is in Germany and that the text from the imaged traffic sign is likely in German based on data acquired from the GPS 37 (alone or in combination with images acquired by the world camera 16).

[0056] In some situations, the images acquired by the world cameras 16 may include incomplete information of an object in a user’s environment. For example, the image may include an incomplete text (e.g., a sentence, a letter, or a phrase) due to a hazy atmosphere, a blemish or error in the text, low lighting, fuzzy images, occlusion, limited FOV of the world cameras 16, etc. The wearable system 200 could use data acquired by the GPS 37 as a context clue in recognizing the text in image.

[0057] The wearable system 200 may also comprise a rendering engine 34 which can be configured to provide rendering information that is local to the user to facilitate operation of the scanners and imaging into the eyes of the user, for the user’s view of the world. The rendering engine 34 may be implemented by a hardware processor (such as, e.g., a central processing unit or a graphics processing unit). In some embodiments, the rendering engine is part of the local processing and data module 260. The rendering engine 34 can be communicatively coupled (e.g., via wired or wireless links) to other components of the wearable system 200. For example, the rendering engine 34, can be coupled to the eye cameras 24 via communication link 102, and be coupled to a projecting subsystem 18 (which can project light into user’s eyes 302, 304 via a scanned laser arrangement in a manner similar to a retinal scanning display) via the communication link 104. The rendering engine 34 can also be in communication with other processing units such as, e.g., the sensor pose processor 32 and the image pose processor 36 via links 105 and 94 respectively.

[0058] The cameras 24 (e.g., mini infrared cameras) may be utilized to track the eye pose to support rendering and user input. Some example eye poses may include where the user is looking or at what depth he or she is focusing (which may be estimated with eye vergence). The GPS 37, gyros, compass, and accelerometers 39 may be utilized to provide coarse or fast pose estimates. One or more of the cameras 16 can acquire images and pose, which in conjunction with data from an associated cloud computing resource, may be utilized to map the local environment and share user views with others.

[0059] The example components depicted in FIG. 2B are for illustration purposes only. Multiple sensors and other functional modules are shown together for ease of illustration and description. Some embodiments may include only one or a subset of these sensors or modules. Further, the locations of these components are not limited to the positions depicted in FIG. 2B. Some components may be mounted to or housed within other components, such as a belt-mounted component, a hand-held component, or a helmet component. As one example, the image pose processor 36, sensor pose processor 32, and rendering engine 34 may be positioned in a beltpack and configured to communicate with other components of the wearable system via wireless communication, such as ultra-wideband, Wi-Fi, Bluetooth, etc., or via wired communication. The depicted housing 108 preferably is head-mountable and wearable by the user. However, some components of the wearable system 200 may be worn to other portions of the user’s body. For example, the speaker 240 may be inserted into the ears of a user to provide sound to the user.

[0060] Regarding the projection of light 38 into the eyes 302, 304 of the user, in some embodiment, the cameras 24 may be utilized to measure where the centers of a user’s eyes 302, 304 are geometrically verged to, which, in general, coincides with a position of focus, or “depth of focus”, of the eyes 302, 304. A 3-dimensional surface of all points the eyes verge to can be referred to as the “horopter”. The focal distance may take on a finite number of depths, or may be infinitely varying. Light projected from the vergence distance appears to be focused to the subject eye 302, 304, while light in front of or behind the vergence distance is blurred. Examples of wearable devices and other display systems of the present disclosure are also described in U.S. Patent Publication No. 2016/0270656, which is incorporated by reference herein in its entirety.

[0061] The human visual system is complicated and providing a realistic perception of depth is challenging. Viewers of an object may perceive the object as being three-dimensional due to a combination of vergence and accommodation. Vergence movements (e.g., rolling movements of the pupils toward or away from each other to converge the lines of sight of the eyes to fixate upon an object) of the two eyes relative to each other are closely associated with focusing (or “accommodation”) of the lenses of the eyes. Under normal conditions, changing the focus of the lenses of the eyes, or accommodating the eyes, to change focus from one object to another object at a different distance will automatically cause a matching change in vergence to the same distance, under a relationship known as the “accommodation-vergence reflex.” Likewise, a change in vergence will trigger a matching change in accommodation, under normal conditions. Display systems that provide a better match between accommodation and vergence may form more realistic and comfortable simulations of three-dimensional imagery.

[0062] Further spatially coherent light with a beam diameter of less than about 0.7 millimeters can be correctly resolved by the human eye regardless of where the eye focuses. Thus, to create an illusion of proper focal depth, the eye vergence may be tracked with the cameras 24, and the rendering engine 34 and projection subsystem 18 may be utilized to render all objects on or close to the horopter in focus, and all other objects at varying degrees of defocus (e.g., using intentionally-created blurring). Preferably, the system 220 renders to the user at a frame rate of about 60 frames per second or greater. As described above, preferably, the cameras 24 may be utilized for eye tracking, and software may be configured to pick up not only vergence geometry but also focus location cues to serve as user inputs. Preferably, such a display system is configured with brightness and contrast suitable for day or night use.

[0063] In some embodiments, the display system preferably has latency of less than about 20 milliseconds for visual object alignment, less than about 0.1 degree of angular alignment, and about 1 arc minute of resolution, which, without being limited by theory, is believed to be approximately the limit of the human eye. The display system 220 may be integrated with a localization system, which may involve GPS elements, optical tracking, compass, accelerometers, or other data sources, to assist with position and pose determination; localization information may be utilized to facilitate accurate rendering in the user’s view of the pertinent world (e.g., such information would facilitate the glasses to know where they are with respect to the real world).

[0064] In some embodiments, the wearable system 200 is configured to display one or more virtual images based on the accommodation of the user’s eyes. Unlike prior 3D display approaches that force the user to focus where the images are being projected, in some embodiments, the wearable system is configured to automatically vary the focus of projected virtual content to allow for a more comfortable viewing of one or more images presented to the user. For example, if the user’s eyes have a current focus of 1 m, the image may be projected to coincide with the user’s focus. If the user shifts focus to 3 m, the image is projected to coincide with the new focus. Thus, rather than forcing the user to a predetermined focus, the wearable system 200 of some embodiments allows the user’s eye to a function in a more natural manner.

[0065] Such a wearable system 200 may eliminate or reduce the incidences of eye strain, headaches, and other physiological symptoms typically observed with respect to virtual reality devices. To achieve this, various embodiments of the wearable system 200 are configured to project virtual images at varying focal distances, through one or more variable focus elements (VFEs). In one or more embodiments, 3D perception may be achieved through a multi-plane focus system that projects images at fixed focal planes away from the user. Other embodiments employ variable plane focus, wherein the focal plane is moved back and forth in the z-direction to coincide with the user’s present state of focus.

[0066] In both the multi-plane focus systems and variable plane focus systems, wearable system 200 may employ eye tracking to determine a vergence of the user’s eyes, determine the user’s current focus, and project the virtual image at the determined focus. In other embodiments, wearable system 200 comprises a light modulator that variably projects, through a fiber scanner, or other light generating source, light beams of varying focus in a raster pattern across the retina. Thus, the ability of the display of the wearable system 200 to project images at varying focal distances not only eases accommodation for the user to view objects in 3D, but may also be used to compensate for user ocular anomalies, as further described in U.S. Patent Publication No. 2016/0270656, which is incorporated by reference herein in its entirety. In some other embodiments, a spatial light modulator may project the images to the user through various optical components. For example, as described further below, the spatial light modulator may project the images onto one or more waveguides, which then transmit the images to the user.

[0067] FIG. 3 illustrates aspects of an approach for simulating a three-dimensional imagery using multiple depth planes. With reference to FIG. 3, objects at various distances from eyes 302 and 304 on the z-axis are accommodated by the eyes 302 and 304 so that those objects are in focus. The eyes 302 and 304 assume particular accommodated states to bring into focus objects at different distances along the z-axis. Consequently, a particular accommodated state may be said to be associated with a particular one of depth planes 306, which has an associated focal distance, such that objects or parts of objects in a particular depth plane are in focus when the eye is in the accommodated state for that depth plane. In some embodiments, three-dimensional imagery may be simulated by providing different presentations of an image for each of the eyes 302 and 304, and also by providing different presentations of the image corresponding to each of the depth planes. While shown as being separate for clarity of illustration, it will be appreciated that the fields of view of the eyes 302 and 304 may overlap, for example, as distance along the z-axis increases. In addition, while shown as flat for the ease of illustration, it will be appreciated that the contours of a depth plane may be curved in physical space, such that all features in a depth plane are in focus with the eye in a particular accommodated state. Without being limited by theory, it is believed that the human eye typically can interpret a finite number of depth planes to provide depth perception. Consequently, a highly believable simulation of perceived depth may be achieved by providing, to the eye, different presentations of an image corresponding to each of these limited number of depth planes.

Waveguide Stack Assembly

[0068] FIG. 4 illustrates an example of a waveguide stack for outputting image information to a user. A wearable system 400 includes a stack of waveguides, or stacked waveguide assembly 480 that may be utilized to provide three-dimensional perception to the eye/brain using a plurality of waveguides 432b, 434b, 436b, 438b, 4400b. In some embodiments, the wearable system 400 may correspond to wearable system 200 of FIG. 2A, with FIG. 4 schematically showing some parts of that wearable system 200 in greater detail. For example, in some embodiments, the waveguide assembly 480 may be integrated into the display 220 of FIG. 2A.

[0069] With continued reference to FIG. 4, the waveguide assembly 480 may also include a plurality of features 458, 456, 454, 452 between the waveguides. In some embodiments, the features 458, 456, 454, 452 may be lenses. In other embodiments, the features 458, 456, 454, 452 may not be lenses. Rather, they may simply be spacers (e.g., cladding layers or structures for forming air gaps).

[0070] The waveguides 432b, 434b, 436b, 438b, 440b or the plurality of lenses 458, 456, 454, 452 may be configured to send image information to the eye with various levels of wavefront curvature or light ray divergence. Each waveguide level may be associated with a particular depth plane and may be configured to output image information corresponding to that depth plane. Image injection devices 420, 422, 424, 426, 428 may be utilized to inject image information into the waveguides 440b, 438b, 436b, 434b, 432b, each of which may be configured to distribute incoming light across each respective waveguide, for output toward the eye 410. Light exits an output surface of the image injection devices 420, 422, 424, 426, 428 and is injected into a corresponding input edge of the waveguides 440b, 438b, 436b, 434b, 432b. In some embodiments, a single beam of light (e.g., a collimated beam) may be injected into each waveguide to output an entire field of cloned collimated beams that are directed toward the eye 410 at particular angles (and amounts of divergence) corresponding to the depth plane associated with a particular waveguide.

[0071] In some embodiments, the image injection devices 420, 422, 424, 426, 428 are discrete displays that each produce image information for injection into a corresponding waveguide 440b, 438b, 436b, 434b, 432b, respectively. In some other embodiments, the image injection devices 420, 422, 424, 426, 428 are the output ends of a single multiplexed display which may, e.g., pipe image information via one or more optical conduits (such as fiber optic cables) to each of the image injection devices 420, 422, 424, 426, 428.

[0072] A controller 460 controls the operation of the stacked waveguide assembly 480 and the image injection devices 420, 422, 424, 426, 428. The controller 460 includes programming (e.g., instructions in a non-transitory computer-readable medium) that regulates the timing and provision of image information to the waveguides 440b, 438b, 436b, 434b, 432b. In some embodiments, the controller 460 may be a single integral device, or a distributed system connected by wired or wireless communication channels. The controller 460 may be part of the processing modules 260 or 270 (illustrated in FIG. 2A) in some embodiments.

[0073] The waveguides 440b, 438b, 436b, 434b, 432b may be configured to propagate light within each respective waveguide by total internal reflection (TIR). The waveguides 440b, 438b, 436b, 434b, 432b may each be planar or have another shape (e.g., curved), with major top and bottom surfaces and edges extending between those major top and bottom surfaces. In the illustrated configuration, the waveguides 440b, 438b, 436b, 434b, 432b may each include light extracting optical elements 440a, 438a, 436a, 434a, 432a that are configured to extract light out of a waveguide by redirecting the light, propagating within each respective waveguide, out of the waveguide to output image information to the eye 410. Extracted light may also be referred to as outcoupled light, and light extracting optical elements may also be referred to as outcoupling optical elements. An extracted beam of light is outputted by the waveguide at locations at which the light propagating in the waveguide strikes a light redirecting element. The light extracting optical elements (440a, 438a, 436a, 434a, 432a) may, for example, be reflective or diffractive optical features. While illustrated disposed at the bottom major surfaces of the waveguides 440b, 438b, 436b, 434b, 432b for ease of description and drawing clarity, in some embodiments, the light extracting optical elements 440a, 438a, 436a, 434a, 432a may be disposed at the top or bottom major surfaces, or may be disposed directly in the volume of the waveguides 440b, 438b, 436b, 434b, 432b. In some embodiments, the light extracting optical elements 440a, 438a, 436a, 434a, 432a may be formed in a layer of material that is attached to a transparent substrate to form the waveguides 440b, 438b, 436b, 434b, 432b. In some other embodiments, the waveguides 440b, 438b, 436b, 434b, 432b may be a monolithic piece of material and the light extracting optical elements 440a, 438a, 436a, 434a, 432a may be formed on a surface or in the interior of that piece of material.
……
……
……
