Patent: Near-Ocular Display Based On Hologram Projection

Publication Number: 20170038589

Publication Date: 20170209

Applicants: Oculus

Abstract

A display device includes a two-dimensional array of tiles. Each tile includes a two-dimensional array of pixels and a lens, of a two-dimensional array of lenses. Each pixel is configured to output light so that the two-dimensional array of pixels outputs a respective pattern of light. Each lens is configured to direct at least a portion of the respective pattern of light from the two-dimensional array of pixels to a pupil of an eye of a user. The display device also includes one or more processors configured to obtain a transformed image for forming a non-transformed image on a retina of the eye; and activate a subset of the two-dimensional array of tiles for outputting, from at least the subset of the two-dimensional array of tiles, a collective pattern of light that is based on the transformed image and directed to the pupil of the eye.

RELATED APPLICATIONS

[0001] This application claims the benefit of, and priority to, U.S. Provisional Patent Application Ser. No. 62/200,481, filed Aug. 3, 2015 and U.S. Provisional Patent Application Ser. No. 62/246,117, filed Oct. 25, 2015, both of which are incorporated by reference herein in their entireties. This application is related to U.S. patent application Ser. No. __, entitled “Tile Array for Near-Ocular Display” (Attorney Docket No. 010235-01-5054-US), filed concurrently herewith, which is incorporated by reference herein in its entirety.

TECHNICAL FIELD

[0002] This relates generally to display devices, and more specifically to head-mounted display devices.

BACKGROUND

[0003] Head-mounted display devices (also called herein head-mounted displays) are gaining popularity as means for providing visual information to user. However, the size and weight of conventional head-mounted displays have limited applications of head-mounted displays.

SUMMARY

[0004] Accordingly, there is a need for head-mounted displays that are compact and light, thereby enhancing the user’s virtual-reality and/or augmented reality experience. In addition, the head-mounted displays should be low power, to ensure a long battery life.

[0005] The above deficiencies and other problems associated with conventional head-mounted displays are reduced or eliminated by the disclosed display devices. In some embodiments, the device is a head-mounted display device. In some embodiments, the device is portable.

[0006] In accordance with some embodiments, a display device includes a two-dimensional array of tiles. Each tile includes a two-dimensional array of pixels. Each pixel is configured to output light so that the two-dimensional array of pixels outputs a respective pattern of light. Each tile also includes a lens, of a two-dimensional array of lenses, configured to direct at least a portion of the respective pattern of light from the two-dimensional array of pixels to a pupil of an eye of a user. The display device also includes one or more processors coupled with the two-dimensional array of tiles and configured to: obtain a transformed image for forming a non-transformed image on a retina of the eye of the user; and activate a subset of the two-dimensional array of tiles for outputting, from at least the subset of the two-dimensional array of tiles, a collective pattern of light that is directed to the pupil of the eye of the user. The collective pattern of light is configured to form the non-transformed image on the retina of the eye of the user.

[0007] In accordance with some embodiments, a method is performed at a display device comprising a two-dimensional array of tiles. Each tile includes a two-dimensional array of pixels. Each pixel is configured to output light so that the two-dimensional array of pixels outputs a respective pattern of light. Each tile also includes a lens, of a two-dimensional array of lenses, configured to direct at least a portion of the respective pattern of light from the two-dimensional array of pixels to a pupil of an eye of a user. The method includes obtaining a transformed image for forming a non-transformed image on a retina of the eye of the user; and activating a subset of the two-dimensional array of tiles for outputting, from at least the subset of the two-dimensional array of tiles, a collective pattern of light that is directed to the pupil of the eye of the user. The collective pattern of light is configured to form the non-transformed image on the retina of the eye of the user.

[0008] In accordance with some embodiments, a computer readable storage medium stores one or more programs for execution by one or more processors of a display device comprising a two-dimensional array of tiles, each tile comprising: a two-dimensional array of pixels, each pixel being configured to output light so that the two-dimensional array of pixels outputs a respective pattern of light, and a lens, of a two-dimensional array of lenses, configured to direct at least a portion of the respective pattern of light from the two-dimensional array of pixels to a pupil of the eye of the user. The one or more programs include instructions for: obtaining a transformed image for forming a non-transformed image on a retina of the eye of the user; and activating a subset of the two-dimensional array of tiles for outputting, from at least the subset of the two-dimensional array of tiles, a collective pattern of light that is directed to the pupil of the eye of the user. The collective pattern of light is configured to form the non-transformed image on the retina of the eye of the user.

[0009] Thus, the disclosed embodiments provide compact and light display devices with increased efficiency, effectiveness, and user satisfaction with such devices.

BRIEF DESCRIPTION OF THE DRAWINGS

[0010] For a better understanding of the various described embodiments, reference should be made to the Description of Embodiments below, in conjunction with the following drawings in which like reference numerals refer to corresponding parts throughout the figures.

[0011] FIG. 1 is a perspective view of a display device in accordance with some embodiments.

[0012] FIG. 2 is a block diagram of a system including a display device in accordance with some embodiments.

[0013] FIG. 3A is an isometric view of an adjustable electronic display element of a display device in accordance with some embodiments.

[0014] FIG. 3B is a partial cross-sectional view of the adjustable electronic device in accordance with some embodiments.

[0015] FIG. 3C is a perspective view of a tile in accordance with some embodiments.

[0016] FIG. 3D is a perspective view of a portion of the adjustable electronic display element in accordance with some embodiments.

[0017] FIGS. 3E-3G are schematic diagrams illustrating an exemplary operation of tiles in accordance with some embodiments.

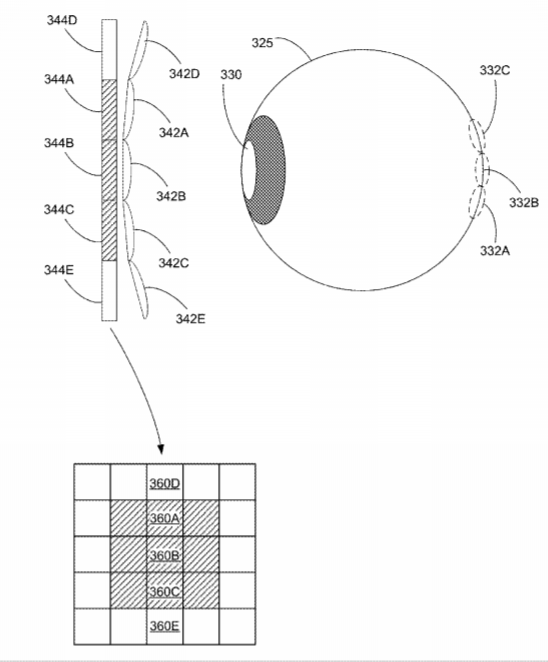

[0018] FIGS. 3H and 3I are schematic diagrams illustrating exemplary operations of activating a subset of tiles in accordance with some embodiments.

[0019] FIGS. 4A and 4B illustrate prophetic examples of correcting brightness variations in accordance with some embodiments.

[0020] FIG. 5 is a flow diagram illustrating a method of activating a subset of a two-dimensional array of tiles of a display device in accordance with some embodiments.

[0021] FIG. 6A is a schematic diagram illustrating a lens assembly in accordance with some embodiments.

[0022] FIG. 6B is a zoomed-in view of the lens assembly shown in FIG. 6A.

[0023] FIG. 6C is a perspective view of a two-dimensional array of tiles in accordance with some embodiments.

[0024] FIG. 7A is a plan view of a two-dimensional array of pixels in accordance with some embodiments.

[0025] FIGS. 7B-7D are cross-sectional views of a pixel in accordance with some embodiments.

[0026] FIG. 8 is a flow diagram illustrating a method of transmitting a respective pattern of light from a two-dimensional array of pixels in accordance with some embodiments.

[0027] FIG. 9 is a schematic diagram of a tile in accordance with some embodiments.

[0028] FIG. 10 is a flow diagram illustrating a method of forming a non-transformed image by projecting a transformed image in accordance with some embodiments.

[0029] These figures are not drawn to scale unless indicated otherwise.

DETAILED DESCRIPTION

[0030] Conventional head-mounted displays are larger and heavier than typical eyeglasses, because conventional head-mounted displays often include a complex set of optics that can be bulky and heavy. It is not easy for users to get used to wearing such large and heavy head-mounted displays.

[0031] The disclosed embodiments, by utilizing a combination of a pixel array and a microlens (called herein a “tile”), provide display devices (including those that can be head-mounted) that are compact and light. In addition, display devices with an array of tiles can provide a large field of view, thereby improving user experience with the display devices.

[0032] Reference will now be made to embodiments, examples of which are illustrated in the accompanying drawings. In the following description, numerous specific details are set forth in order to provide an understanding of the various described embodiments. However, it will be apparent to one of ordinary skill in the art that the various described embodiments may be practiced without these specific details. In other instances, well-known methods, procedures, components, circuits, and networks have not been described in detail so as not to unnecessarily obscure aspects of the embodiments.

[0033] It will also be understood that, although the terms first, second, etc. are, in some instances, used herein to describe various elements, these elements should not be limited by these terms. These terms are used only to distinguish one element from another. For example, a first tile could be termed a second tile, and, similarly, a second tile could be termed a first tile, without departing from the scope of the various described embodiments. The first tile and the second tile are both tiles, but they are not the same tile.

[0034] The terminology used in the description of the various described embodiments herein is for the purpose of describing particular embodiments only and is not intended to be limiting. As used in the description of the various described embodiments and the appended claims, the singular forms “a,” “an,” and “the” are intended to include the plural forms as well, unless the context clearly indicates otherwise. It will also be understood that the term “and/or” as used herein refers to and encompasses any and all possible combinations of one or more of the associated listed items. It will be further understood that the terms “includes,” “including,” “comprises,” and/or “comprising,” when used in this specification, specify the presence of stated features, integers, steps, operations, elements, and/or components, but do not preclude the presence or addition of one or more other features, integers, steps, operations, elements, components, and/or groups thereof. The term “exemplary” is used herein in the sense of “serving as an example, instance, or illustration” and not in the sense of “representing the best of its kind.”

[0035] FIG. 1 illustrates display device 100 in accordance with some embodiments. In some embodiments, display device 100 is configured to be worn on a head of a user (e.g., by having the form of spectacles or eyeglasses, as shown in FIG. 1) or to be included as part of a helmet that is to be worn by the user. When display device 100 is configured to be worn on a head of a user or to be included as part of a helmet, display device 100 is called a head-mounted display. Alternatively, display device 100 is configured for placement in proximity of an eye or eyes of the user at a fixed location, without being head-mounted (e.g., display device 100 is mounted in a vehicle, such as a car or an airplane, for placement in front of an eye or eyes of the user).

[0036] In some embodiments, display device 100 includes one or more components described below with respect to FIG. 2. In some embodiments, display device 100 includes additional components not shown in FIG. 2.

[0037] FIG. 2 is a block diagram of system 200 in accordance with some embodiments. The system 200 shown in FIG. 2 includes display device 205 (which corresponds to display device 100 shown in FIG. 1), imaging device 235, and input interface 240 that are each coupled to console 210. While FIG. 2 shows an example of system 200 including one display device 205, imaging device 235, and input interface 240, in other embodiments, any number of these components may be included in system 200. For example, there may be multiple display devices 205 each having associated input interface 240 and being monitored by one or more imaging devices 235, with each display device 205, input interface 240, and imaging devices 235 communicating with console 210. In alternative configurations, different and/or additional components may be included in system 200. For example, in some embodiments, console 210 is connected via a network (e.g., the Internet) to system 200 or is self-contained as part of display device 205 (e.g., physically located inside display device 205). In some embodiments, display device 205 is used to create mixed reality by adding in a view of the real surroundings. Thus, display device 205 and system 200 described here can deliver virtual reality, mixed reality, and augmented reality.

[0038] In some embodiments, as shown in FIG. 1, display device 205 is a head-mounted display that presents media to a user. Examples of media presented by display device 205 include one or more images, video, audio, or some combination thereof. In some embodiments, audio is presented via an external device (e.g., speakers and/or headphones) that receives audio information from display device 205, console 210, or both, and presents audio data based on the audio information. In some embodiments, display device 205 immerses a user in a virtual environment.

[0039] In some embodiments, display device 205 also acts as an augmented reality (AR) headset. In these embodiments, display device 205 augments views of a physical, real-world environment with computer-generated elements (e.g., images, video, sound, etc.). Moreover, in some embodiments, display device 205 is able to cycle between different types of operation. Thus, display device 205 operate as a virtual reality (VR) device, an AR device, as glasses or some combination thereof (e.g., glasses with no optical correction, glasses optically corrected for the user, sunglasses, or some combination thereof) based on instructions from application engine 255.

[0040] Display device 205 includes electronic display 215, one or more processors 216, eye tracking module 217, adjustment module 218, one or more locators 220, one or more position sensors 225, one or more position cameras 222, memory 228, inertial measurement unit (IMU) 230, or a subset or superset thereof (e.g., display device 205 with electronic display 215, one or more processors 216, and memory 228, without any other listed components). Some embodiments of display device 205 have different modules than those described here. Similarly, the functions can be distributed among the modules in a different manner than is described here.

[0041] One or more processors 216 (e.g., processing units or cores) execute instructions stored in memory 228. Memory 228 includes high-speed random access memory, such as DRAM, SRAM, DDR RAM or other random access solid state memory devices; and may include non-volatile memory, such as one or more magnetic disk storage devices, optical disk storage devices, flash memory devices, or other non-volatile solid state storage devices. Memory 228, or alternately the non-volatile memory device(s) within memory 228, includes a non-transitory computer readable storage medium. In some embodiments, memory 228 or the computer readable storage medium of memory 228 stores the following programs, modules and data structures, or a subset or superset thereof: [0042] instructions for activating at least a subset of a two-dimensional array of tiles for outputting, from at least the subset of the two-dimensional array of tiles, a collective pattern of light that is directed to a pupil of an eye of a user: [0043] instructions for, prior to activating at least the subset of the two-dimensional array of tiles, selecting the subset of the two-dimensional array of tiles for activation; [0044] instructions for directing the light from each pixel that outputs light to a pupil of an eye of a user; and [0045] instructions for activating at least the subset of the two-dimensional array of tiles include instructions for activating less than all of the tiles of the two-dimensional array of tiles.

[0046] Electronic display 215 displays images to the user in accordance with data received from console 210 and/or processor(s) 216. In various embodiments, electronic display 215 may comprise a single adjustable electronic display element or multiple adjustable electronic displays elements (e.g., a display for each eye of a user). As discussed in detail below with regard to FIGS. 3A-3I, an adjustable electronic display element is comprised of a display element, one or more integrated microlens arrays, or some combination thereof. The adjustable electronic display element may be flat, cylindrically curved, or have some other shape.

[0047] In some embodiments, the display element includes an array of light emission devices and a corresponding array of emission intensity array. An emission intensity array is an array of electro-optic pixels, opto-electronic pixels, some other array of devices that dynamically adjust the amount of light transmitted by each device, or some combination thereof. These pixels are placed behind an array of microlenses, and are arranged in groups. Each group of pixels outputs light that is directed by the microlens in front of it to a different place on the retina where light from these groups of pixels are then seamlessly “tiled” to appear as one continuous image. In some embodiments, computer graphics, computational imaging and other techniques are used to pre-distort the image information (e.g., correcting for the brightness variations) sent to the pixel groups so that through the distortions of the system from optics, electronics, electro-optics, and mechanicals, a smooth seamless image appears on the back of the retina, as described below with respect to FIGS. 4A and 4B. In some embodiments, the emission intensity array is an array of liquid crystal based pixels in an LCD (a Liquid Crystal Display). Examples of the light emission devices include: an organic light emitting diode, an active-matrix organic light-emitting diode, a light emitting diode, some type of device capable of being placed in a flexible display, or some combination thereof. The light emission devices include devices that are capable of generating visible light (e.g., red, green, blue, etc.) used for image generation. The emission intensity array is configured to selectively attenuate individual light emission devices, groups of light emission devices, or some combination thereof. Alternatively, when the light emission devices are configured to selectively attenuate individual emission devices and/or groups of light emission devices, the display element includes an array of such light emission devices without a separate emission intensity array.

[0048] The microlens arrays are arrays of lenslets that direct light from the arrays of light emission devices (optionally through the emission intensity arrays) to locations within each eyebox and ultimately to the back of the user’s retina(s). An eyebox is a region that is occupied by an eye of a user located proximity to display device 205 (e.g., a user wearing display device 205) for viewing images from display device 205. In some cases, the eyebox is represented as a 10 mm.times.10 mm square (see. e.g., FIG. 3D). In some embodiments, a lenslet is a conventional passive lens (e.g., glass lens, plastic lens, etc.) or an active lens (e.g., liquid crystal lens, liquid lens, etc.). In some embodiments, display device 205 dynamically adjusts the curvature and/or refractive ability of active lenslets to direct light to specific locations within each eyebox (e.g., location of pupil). In some embodiments, one or more of the microlens arrays include one or more coatings, such as anti-reflective coatings.

[0049] In some embodiments, the display element includes an infrared (IR) detector array that detects IR light that is retro-reflected from the retinas of a viewing user, from the surface of the corneas, lenses of the eyes, or some combination thereof. The IR detector array includes an IR sensor or a plurality of IR sensors that each correspond to a different position of a pupil of the viewing user’s eye. In alternate embodiments, other eye tracking systems may also be employed.

[0050] Eye tracking module 217 determines locations of each pupil of a user’s eyes. In some embodiments, eye tracking module 217 instructs electronic display 215 to illuminate the eyebox with IR light (e.g., via IR emission devices in the display element).

[0051] A portion of the emitted IR light will pass through the viewing user’s pupil and be retro-reflected from the retina toward the IR detector array, which is used for determining the location of the pupil. Alternatively, the reflection off of the surfaces of the eye is used to also determine location of the pupil. The IR detector array scans for retro-reflection and identifies which IR emission devices are active when retro-reflection is detected. Eye tracking module 217 may use a tracking lookup table and the identified IR emission devices to determine the pupil locations for each eye. The tracking lookup table maps received signals on the IR detector array to locations (corresponding to pupil locations) in each eyebox. In some embodiments, the tracking lookup table is generated via a calibration procedure (e.g., user looks at various known reference points in an image and eye tracking module 217 maps the locations of the user’s pupil while looking at the reference points to corresponding signals received on the IR tracking array). As mentioned above, in some embodiments, system 200 may use other eye tracking systems than the embedded IR one described above.

[0052] Adjustment module 218 generates an image frame based on the determined locations of the pupils. This sends a discrete image to the display that will tile subimages together thus a coherent stitched image will appear on the back of the retina. A small portion of each image is projected through each lenslet in the lenslet array. Adjustment module 218 adjusts an output (i.e. the generated image frame) of electronic display 215 based on the detected locations of the pupils. Adjustment module 218 instructs portions of electronic display 215 to pass image light to the determined locations of the pupils. In some embodiments, adjustment module 218 also instructs the electronic display to not pass image light to positions other than the determined locations of the pupils. Adjustment module 218 may, for example, block and/or stop light emission devices whose image light falls outside of the determined pupil locations, allow other light emission devices to emit image light that falls within the determined pupil locations, translate and/or rotate one or more display elements, dynamically adjust curvature and/or refractive power of one or more active lenslets in the microlens arrays, or some combination thereof.

[0053] In some embodiments, adjustment module 218 is configured to instruct the display elements to not use every pixel (e.g., one or more light emission devices), such that black spaces aperture the diverging light to abut the image together from the retinal perspective. In addition, in some embodiments, gaps are created between the pixel groups or “tiles” to match divergence of the light source array and the magnification of the group of pixels as it transverses through the optical system and fully fills the lenslet. In some embodiments, adjustment module 218 determines, for a given position of an eye, which pixels are turned on and which pixels are turned off, with the resulting image being seamlessly tiled on the eye’s retina.

[0054] Optional locators 220 are objects located in specific positions on display device 205 relative to one another and relative to a specific reference point on display device 205. A locator 220 may be a light emitting diode (LED), a corner cube reflector, a reflective marker, a type of light source that contrasts with an environment in which display device 205 operates, or some combination thereof. In embodiments where locators 220 are active (i.e., an LED or other type of light emitting device), locators 220 may emit light in the visible band (e.g., about 400 nm to 750 nm), in the infrared band (e.g., about 750 nm to 1 mm), in the ultraviolet band (about 100 nm to 400 nm), some other portion of the electromagnetic spectrum, or some combination thereof.

[0055] In some embodiments, locators 220 are located beneath an outer surface of display device 205, which is transparent to the wavelengths of light emitted or reflected by locators 220 or is thin enough to not substantially attenuate the wavelengths of light emitted or reflected by locators 220. Additionally, in some embodiments, the outer surface or other portions of display device 205 are opaque in the visible band of wavelengths of light. Thus, locators 220 may emit light in the IR band under an outer surface that is transparent in the IR band but opaque in the visible band.

[0056] IMU 230 is an electronic device that generates calibration data based on measurement signals received from one or more position sensors 225. Position sensor 225 generates one or more measurement signals in response to motion of display device 205. Examples of position sensors 225 include: one or more accelerometers, one or more gyroscopes, one or more magnetometers, another suitable type of sensor that detects motion, a type of sensor used for error correction of IMU 230, or some combination thereof. Position sensors 225 may be located external to IMU 230, internal to IMU 230, or some combination thereof.

[0057] Based on the one or more measurement signals from one or more position sensors 225, IMU 230 generates first calibration data indicating an estimated position of display device 205 relative to an initial position of display device 205. For example, position sensors 225 include multiple accelerometers to measure translational motion (forward/back, up/down, left/right) and multiple gyroscopes to measure rotational motion (e.g., pitch, yaw, roll). In some embodiments, IMU 230 rapidly samples the measurement signals and calculates the estimated position of display device 205 from the sampled data. For example, IMU 230 integrates the measurement signals received from the accelerometers over time to estimate a velocity vector and integrates the velocity vector over time to determine an estimated position of a reference point on display device 205. Alternatively, IMU 230 provides the sampled measurement signals to console 210, which determines the first calibration data. The reference point is a point that may be used to describe the position of display device 205. While the reference point may generally be defined as a point in space; however, in practice the reference point is defined as a point within display device 205 (e.g., a center of IMU 230).

[0058] In some embodiments, IMU 230 receives one or more calibration parameters from console 210. As further discussed below, the one or more calibration parameters are used to maintain tracking of display device 205. Based on a received calibration parameter, IMU 230 may adjust one or more IMU parameters (e.g., sample rate). In some embodiments, certain calibration parameters cause IMU 230 to update an initial position of the reference point so it corresponds to a next calibrated position of the reference point. Updating the initial position of the reference point as the next calibrated position of the reference point helps reduce accumulated error associated with the determined estimated position. The accumulated error, also referred to as drift error, causes the estimated position of the reference point to “drift” away from the actual position of the reference point over time.

[0059] Imaging device 235 generates calibration data in accordance with calibration parameters received from console 210. Calibration data includes one or more images showing observed positions of locators 220 that are detectable by imaging device 235. In some embodiments, imaging device 235 includes one or more still cameras, one or more video cameras, any other device capable of capturing images including one or more locators 220, or some combination thereof. Additionally, imaging device 235 may include one or more filters (e.g., used to increase signal to noise ratio). Imaging device 235 is configured to optionally detect light emitted or reflected from locators 220 in a field of view of imaging device 235. In embodiments where locators 220 include passive elements (e.g., a retroreflector), imaging device 235 may include a light source that illuminates some or all of locators 220, which retro-reflect the light towards the light source in imaging device 235. Second calibration data is communicated from imaging device 235 to console 210, and imaging device 235 receives one or more calibration parameters from console 210 to adjust one or more imaging parameters (e.g., focal length, focus, frame rate, ISO, sensor temperature, shutter speed, aperture, etc.).

[0060] Input interface 240 is a device that allows a user to send action requests to console 210. An action request is a request to perform a particular action. For example, an action request may be to start or end an application or to perform a particular action within the application. Input interface 240 may include one or more input devices. Example input devices include: a keyboard, a mouse, a game controller, data from brain signals, data from other parts of the human body, or any other suitable device for receiving action requests and communicating the received action requests to console 210. An action request received by input interface 240 is communicated to console 210, which performs an action corresponding to the action request. In some embodiments, input interface 240 may provide haptic feedback to the user in accordance with instructions received from console 210. For example, haptic feedback is provided when an action request is received, or console 210 communicates instructions to input interface 240 causing input interface 240 to generate haptic feedback when console 210 performs an action.

[0061] Console 210 provides media to display device 205 for presentation to the user in accordance with information received from one or more of: imaging device 235, display device 205, and input interface 240. In the example shown in FIG. 2, console 210 includes application store 245, tracking module 250, and application engine 255. Some embodiments of console 210 have different modules than those described in conjunction with FIG. 2. Similarly, the functions further described below may be distributed among components of console 210 in a different manner than is described here.

[0062] When application store 245 is included in console 210, application store 245 stores one or more applications for execution by console 210. An application is a group of instructions, that when executed by a processor, is used for generating content for presentation to the user. Content generated by the processor based on an application may be in response to inputs received from the user via movement of display device 205 or input interface 240. Examples of applications include: gaming applications, conferencing applications, video playback application, or other suitable applications.

[0063] When tracking module 250 is included in console 210, tracking module 250 calibrates system 200 using one or more calibration parameters and may adjust one or more calibration parameters to reduce error in determination of the position of display device 205. For example, tracking module 250 adjusts the focus of imaging device 235 to obtain a more accurate position for observed locators on display device 205. Moreover, calibration performed by tracking module 250 also accounts for information received from IMU 230. Additionally, if tracking of display device 205 is lost (e.g., imaging device 235 loses line of sight of at least a threshold number of locators 220), tracking module 250 re-calibrates some or all of system 200.

[0064] In some embodiments, tracking module 250 tracks movements of display device 205 using second calibration data from imaging device 235. For example, tracking module 250 determines positions of a reference point of display device 205 using observed locators from the second calibration data and a model of display device 205. In some embodiments, tracking module 250 also determines positions of a reference point of display device 205 using position information from the first calibration data. Additionally, in some embodiments, tracking module 250 may use portions of the first calibration data, the second calibration data, or some combination thereof, to predict a future location of display device 205. Tracking module 250 provides the estimated or predicted future position of display device 205 to application engine 255.

[0065] Application engine 255 executes applications within system 200 and receives position information, acceleration information, velocity information, predicted future positions, or some combination thereof of display device 205 from tracking module 250. Based on the received information, application engine 255 determines content to provide to display device 205 for presentation to the user. For example, if the received information indicates that the user has looked to the left, application engine 255 generates content for display device 205 that mirrors the user’s movement in a virtual environment. Additionally, application engine 255 performs an action within an application executing on console 210 in response to an action request received from input interface 240 and provides feedback to the user that the action was performed. The provided feedback may be visual or audible feedback via display device 205 or haptic feedback via input interface 240.

[0066] FIG. 3A is an isometric view of an adjustable electronic display element 300 of display device 205, in accordance with some embodiments. In some other embodiments, adjustable electronic display element 300 is part of some other electronic display (e.g., digital microscope, etc.). In some embodiments, adjustable electronic display element 300 includes light emission device array 305, emission intensity array 310, microlens array 315, and IR detector array 320. In some other embodiments, adjustable electronic display element 300 includes a subset or superset of light emission device array 305, emission intensity array 310, microlens array 315, and IR detector array 320 (e.g., adjustable electronic display element 300 includes an adjustable light emission device array that includes individually adjustable pixels and microlens array 315, without a separate emission intensity array).

[0067] Light emission device array 305 emits image light and optional IR light toward the viewing user. Light emission device array 305 may be, e.g., an array of LEDs, an array of microLEDs, an array of OLEDs, or some combination thereof. Light emission device array 305 includes light emission devices that emit light in the visible light (and optionally includes devices that emit light in the IR).

[0068] Emission intensity array 310 is configured to selectively attenuate light emitted from light emission array 305. In some embodiments, emission intensity array 310 is composed of a plurality of liquid crystal cells or pixels, groups of light emission devices, or some combination thereof. Each of the liquid crystal cells is, or in some embodiments, groups of liquid crystal cells are, addressable to have specific levels of attenuation. For example, at a given time, some of the liquid crystal cells may be set to no attenuation, while other liquid crystal cells may be set to maximum attenuation. In this manner emission intensity array 310 is able to control what portion of the image light emitted from light emission device array 305 is passed to the microlens array 315. In some embodiments, display device 205 uses emission intensity array 310 to facilitate providing image light to a location of pupil 330 of eye 325 of a user, and minimize the amount of image light provided to other areas in the eyebox.

[0069] Microlens array 315 receives the modified image light (e.g., attenuated light) from emission intensity array 310, and directs the modified image light to a location of pupil 330. Microlens array 315 includes a plurality of lenslets. In some embodiments, microlens array 315 includes one or more diffractive optics. A lenslet may be a conventional passive lens (e.g., glass lens, plastic lens, etc.) or an active lens. An active lens is a lens whose lens curvature and/or refractive ability may be dynamically controlled (e.g., via a change in applied voltage). An active lens may be a liquid crystal lens, a liquid lens (e.g., using electro-wetting), or some other lens whose curvature and/or refractive ability may be dynamically controlled, or some combination thereof. Accordingly, in some embodiments, system 200 may dynamically adjust the curvature and/or refractive ability of active lenslets to direct light received from emission intensity array 310 to pupil 330.

[0070] Optional IR detector array 320 detects IR light that has been retro-reflected from the retina of eye 325, a cornea of eye 325, a crystalline lens of eye 325, or some combination thereof. IR detector array 320 includes either a single IR sensor or a plurality of IR sensitive detectors (e.g., photodiodes). While IR detector array 320 in FIG. 3A is shown separate from light emission device array 305, in some embodiments, IR detector array 320 may be integrated into light emission device array 305.

[0071] In some embodiments, light emission device array 305 and emission intensity array 310 make up a display element. Alternatively, the display element includes light emission device array 305 (e.g., when light emission device array 305 includes individually adjustable pixels) without emission intensity array 310. In some embodiments, the display element additionally includes IR array 320. In some embodiments, in response to a determined location of pupil 335, the display element adjusts the emitted image light such that the light output by the display element is refracted by microlens array 315 toward the location of pupil 335, and not toward other locations in the eyebox.

[0072] FIG. 3B is a partial cross-sectional view of adjustable electronic device 340 in accordance with some embodiments.

[0073] Adjustable electronic device 340 includes a two-dimensional array of tiles 360 (e.g., 10-by-10 array of tiles 360, as shown in FIG. 3B). In some cases, each tile has a shape of a 1-mm-by-1-mm square, although tiles of different sizes and/or shapes can be used. In some embodiments, the two-dimensional array of tiles 360 is arranged on a flat surface. In some other embodiments, the two-dimensional array of tiles 360 is arranged on a curved surface or a surface of any other shape. Although FIG. 3B shows a square array of tiles 360, in some other embodiments, the two-dimensional array of tiles 360 may have a rectangular shape, or any other shape (e.g., a rasterized circle or a rasterized ellipse). In addition, a different number of tiles 360 may be used depending on the desired performance of the display device (e.g., a field of view).

[0074] As explained above, tile 360 includes a lens. In some embodiments, lenses for the two-dimensional array of tiles are provided in a form of a microlens array (e.g., microlens array 315 in FIG. 3A). In FIG. 3B, a portion of the microlens array is not shown (e.g., an upper-left portion of the microlens array indicated by the line XX’) to illustrate groups of pixels located behind it.

[0075] FIG. 3B also illustrates that each tile 360 includes a two-dimensional array 344 of pixels 346 (e.g., 10-by-10 array of pixels). In some other embodiments, the tiles 360 may include different numbers of pixels (e.g., 40-by-40 pixels).

…….
……
……
