Oculus Patent | Remote Control Unit With Battery Isolation Tab

Patent: Remote Control Unit With Battery Isolation Tab

Publication Number: 20170170446

Publication Date: 20170615

Applicants: Oculus

Abstract

Handheld remote control assemblies with battery isolation tabs are disclosed. An assembly includes a body and a battery pocket formed in the body and defined by a sidewall and a lower surface. An electrical connection terminal is disposed on the lower surface, and a battery is disposed within the battery pocket. The body includes a channel formed therein and extending between the battery pocket and an edge of the body. A battery isolation tab includes a head portion disposed between the battery and the electrical connection terminal, a handle portion disposed external to the body, and a neck portion extending between the head portion and the handle portion, the neck portion at least partially received within the channel formed in the body.

TECHNICAL FIELD

[0001] This patent application is directed to wireless electronic mechanisms, including handheld electronic devices with battery isolation tabs.

BACKGROUND

[0002] Handheld electronic devices such as remote controls are often powered by one or more replaceable batteries, each typically received in a pocket formed within the device, such that the battery abuts against electrical connection terminals. During storage of the device, for example during initial delivery and before the device has been purchased and deployed by a user, the power in the battery can be partially drained due to ongoing contact between the battery and electrical connection terminals.

BRIEF DESCRIPTION OF THE DRAWINGS

[0003] Embodiments of the handheld electronic device with a battery isolation tab introduced herein may be better understood by referring to the following Detailed Description in conjunction with the accompanying drawings, in which like reference numerals indicate identical or functionally similar elements:

[0004] FIG. 1 is an isometric view of a handheld electronic device in accordance with an embodiment of the present technology.

[0005] FIG. 2 is a front plan view of the handheld electronic device of FIG. 1.

[0006] FIG. 3 is a rear plan view of the handheld electronic device of FIGS. 1 and 2.

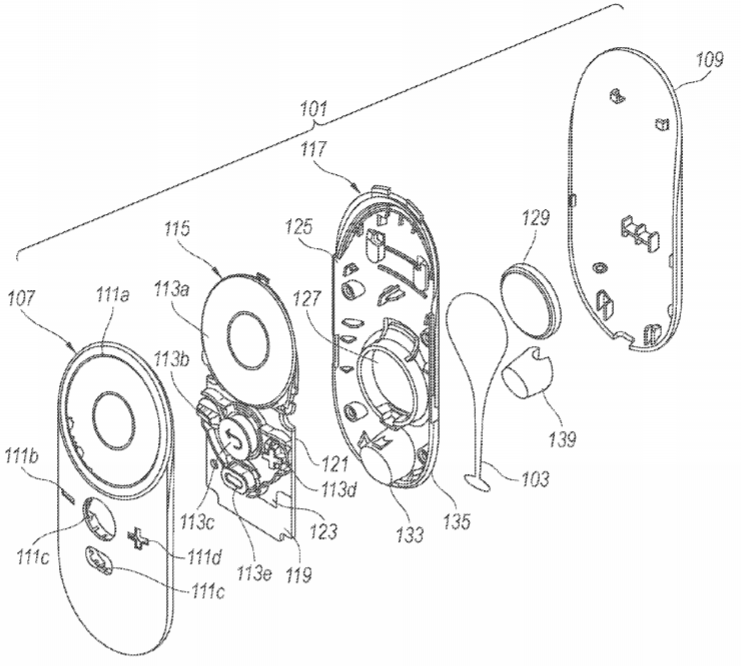

[0007] FIG. 4 is a partially exploded isometric view of the handheld electronic device of FIGS. 1-3.

[0008] FIG. 5 is a partially exploded lower rear isometric view of the handheld electronic device of FIGS. 1-4 with the rear housing not shown for purposes of clarity.

[0009] FIG. 6 is a partially exploded upper rear isometric view of the handheld electronic device of FIGS. 1-5 with the rear housing not shown for purposes of clarity.

[0010] FIG. 7 is a cross-sectional view of the handheld electronic device taken substantially along line 7-7 of FIG. 6.

[0011] FIG. 8 is a partially exploded side cross-sectional view of the handheld electronic device of FIG. 7.

[0012] FIG. 9 is a partially exploded upper rear isometric view of a handheld device with another embodiment of a battery isolation tab.

[0013] FIGS. 10A-10C illustrate different embodiments of battery isolation tabs.

[0014] The headings provided herein are for convenience only and do not necessarily affect the scope or meaning of the claimed embodiments. Further, the drawings have not necessarily been drawn to scale. For example, the dimensions of some of the elements in the figures may be expanded or reduced to help improve the understanding of the embodiments. Moreover, while the disclosed technology is amenable to various modifications and alternative forms, specific embodiments have been shown by way of example in the drawings and are described in detail below. The intention, however, is not to limit the embodiments described. On the contrary, the embodiments are intended to cover all modifications, equivalents, and alternatives falling within the scope of the embodiments.

DETAILED DESCRIPTION

Overview

[0015] A remote control unit having a battery isolation tab is disclosed. The battery isolation tab preserves the charge of a battery pre-installed in an electronic device, such as a handheld remote control. The battery isolation tab is disposed between a terminal of the battery and an electrical connection terminal of the device. In some embodiments, the tab is a flexible plastic tab. The tab can extend into the battery housing through a channel formed in the body of the device. Accordingly, the tab extends from outside the device, through the channel, and between the electrical connection terminal and the battery. A rear housing can be attached to the body to enclose the battery and channel. A user may remove the battery isolation tab by grasping the tab and pulling it from between the battery and the electrical connection terminal.

General Description

[0016] Various examples of the devices introduced above will now be described in further detail. The following description provides specific details for a thorough understanding and enabling description of these examples. One skilled in the relevant art will understand, however, that the techniques discussed herein may be practiced without many of these details. Likewise, one skilled in the relevant art will also understand that the technology can include many other features not described in detail herein. Additionally, some well-known structures or functions may not be shown or described in detail below so as to avoid unnecessarily obscuring the relevant description.

[0017] The terminology used below is to be interpreted in its broadest reasonable manner, even though it is being used in conjunction with a detailed description of some specific examples of the embodiments. Indeed, some terms may even be emphasized below; however, any terminology intended to be interpreted in any restricted manner will be overtly and specifically defined as such in this section.

[0018] FIGS. 1-4 are isometric, front, rear, and exploded views, respectively, of a handheld electronic device 101. The handheld electronic device 101 is illustrated and described throughout as a remote control device, however in other embodiments the handheld electronic device 101 can take other forms or perform other functions. For example, in some embodiments the handheld electronic device 101 can be any small, portable electronic device, such as a media player, smartphone, camera, an RFID transponder, or other electronic device powered by a removable battery.

[0019] Referring to FIGS. 1-4 together, the illustrated device 101 has a substantially oblong shape. A portion of a battery isolation tab 103 extends away from a lower portion 105 of the device 101. The device 101 includes a front housing 107 that mates with a corresponding rear housing 109. The front housing 107 includes a plurality of openings 111a-e that receive a plurality of user input controls 113a-e therethrough. For example, the first user input control 113a can include a touch-sensitive surface that allows a user to provide input via touching or moving the user’s finger across a touch-sensitive surface of the control 113a, and/or by depressing a button portion of the control 113a. Second and third user input controls 113b and 113c are volume-down and volume-up buttons, respectively, while the fourth user input control 113d provides a return or “back” function. The fifth user input control 113e is a power button. In other embodiments the user input controls can take a variety of configurations, including other touch-sensitive surfaces, depressible-buttons, or any other input mechanism.

[0020] Sandwiched between the front housing 107 and the rear housing 109 are an internal control assembly 115 and a support body portion 117. The internal control assembly 115 includes the plurality of input controls 113a-e on a front side 119 that faces toward the front housing 107. The control assembly 115 can include a printed circuit board 123, carrying associated electronics configured to process user input provided via the controls 113a-e and perform various other electronic functions of the device 101.

[0021] The support body portion 117 has a front side 125 that mates with the internal control assembly 115. The support body portion 117 also includes a lanyard receptacle 133 formed in a back side 135 of the support body portion 117 adjacent to the aperture 127. A lanyard anchor 139 is configured to be removably received within the lanyard receptacle 133. The lanyard anchor 139 and the lanyard receptacle 133 are described in more detail in U.S. application Ser. No. _, Attorney Docket No. 60406-8310.US01, titled Remote Control Unit with Lanyard Attachment Mechanism, filed _, which is hereby incorporated by reference in its entirety. The support body portion 117 further includes an aperture 127 that provides access to a portion of the backside 121 of the control assembly 115 having electrical connection terminals 131a, 131b (FIGS. 5-8) that releasably receive a battery 129. When assembled, the aperture 127 and the back 121 of the control assembly 115 can together define a battery pocket 141 configured to receive the battery 129 therein. Accordingly, the battery 129 can be installed through the aperture 127 when the rear housing 109 is removed from the support body portion 117.

[0022] FIGS. 5 and 6 are a partially exploded lower and upper rear isometric views, respectively, of the device 101 with the rear housing not shown for purposes of clarity. Referring to FIGS. 5 and 6 together, the battery 129 of the illustrated embodiment is a button-cell style battery with a squat, substantially cylindrical shape, and the battery pocket 141 has a corresponding substantially cylindrical shape. The battery pocket 141 is defined by a sidewall 143 and a lower surface 145. The lower surface 145 is part of the backside 121 of the control assembly 115. The first connection terminal 131a is disposed at a first, substantially central location on the lower surface 145, and the second connection terminal 131b is disposed at a second location on the lower surface 145, adjacent to the sidewall 143 of the aperture 127. When the battery 129 is disposed within the battery pocket 141, portions of the battery 129 are in electrical connection with the first connection terminal 131a and the second connection terminal 131b, thereby enabling the battery 129 to power the device 101. In the illustrated embodiment, the support body portion 117 has one or more battery retention features that releasably retain the battery in the battery pocket 141. The retention features can include a flexible latch arm and/or flanges adjacent to the battery pocket 141 as described in more detail in U.S. application Ser. No. _, Attorney Docket No. 60406-8312.US01, titled Remote Control Unit with Battery Retention Mechanism, filed _, which is hereby incorporated by reference in its entirety.

[0023] A channel 147 is formed in the rear surface 135 of the support body portion 117, including in the rear surface of the lanyard anchor 139. The channel 147 extends between the battery pocket 141 and an edge 148 of the device 101. In other embodiments, the channel 147 take the form of a tunnel formed within the support body portion 117 and/or the lanyard anchor 139, rather than being formed in the rear surface of these structures.

[0024] The battery isolation tab 103 can be positioned between the battery 129 and the support body portion 117, so that one or more portions of the battery isolation tab 103 is physically located between the battery 129 and the first and/or second connection terminals 131a and 131b. The battery isolation tab 103 of the illustrated embodiment includes a head portion 151, a handle portion 155, and a neck portion 153 integrally interconnected and extending between the head portion 151 and the handle portion 155. The battery isolation tab 103 is made of a strong, flexible, lubricious, non-conductive material such as mylar, plastic, or other suitable non-conductive material. When the battery isolation tab 103 is in and installed position, the battery isolation tab 103 is positioned at least partially in the battery pocket 141 and the channel 147 of the device 101. In the illustrated embodiment, the head portion 151 is positioned within the battery pocket 141, while the neck portion 153 is positioned at least partially within the channel 147. In the illustrated embodiment, the head portion 151 is shown as having a shape generally corresponding to the shape of the battery pocket 141, which can be beneficial to ensure proper alignment within the battery pocket 141. In other embodiments, the head portion 151 can have other shapes or sizes relative to the battery pocket 141. The handle portion 155 then extends away from the channel 147 and beyond the edge 148 of the device 101, so as to provide a portion of the battery isolation tab 103 that a user can grasp and pull to move the battery isolation tab from the installed position to a removed position. The battery 129 is inserted into the battery pocket 141 over the head portion 151 of the battery isolation tab 103 with the head portion 151 between the battery 129 and the connection terminals 131a and 131b. In this position, the head portion 151 of the battery isolation tab 103 electrically isolates the battery 129 from the first connection terminal 131a and the second connection terminal 131b.

[0025] FIG. 7 is a cross-sectional view of the device 101, and FIG. 8 is a partially exploded cross-sectional view of the device 101. Referring to FIGS. 7 and 8 together, the battery isolation tab 103 is positioned between the battery 129 and the lower surface 145 of the battery pocket 141, thereby electrically isolating the battery 129 from the first and second connection terminals 131a and 131b. In particular, the second connection terminal 131b is covered by part of the head portion 151 which bends upwardly and joins the neck portion 153. In alternate embodiment, the battery isolation tab 103 can be shaped to isolate only one of the first or second connection terminals 131a or 131b, as shown and described in more detail below with respect to FIG. 9. The neck portion 153 of the battery isolation tab 103 extends away from the battery pocket 141 and through the channel 147. The rear housing 109 covers the battery 129, the battery pocket 141, and the head portion 151 and neck portion 153 of the battery isolation tab 103. The handle portion 155 of the battery isolation tab 103 is exterior of the device 101 and extends away from the edge 148 of the device 101 through an opening 150 in the rear housing 109.

[0026] The battery isolation tab 103 in the installed position provides a physical interruption that prevents the battery 129 from prematurely contacting one or both of the contact terminals 131a and 131b and being drained while in position in the battery pocket 141. To allow the battery 129 to provide power the device 101, the battery isolation tab 103 can be moved from the installed position to the removed position, wherein the battery 129 can engage the first and second contact terminals 131a and 131b. For example, the handle portion 155 of the battery isolation tab 103 protruding from the device 101 can be grasped by a user and pulled axially away from the device 101, so that the head portion 151 slips smoothly out from between the battery 129 and the contact terminals 131a and 131b without damaging the contact terminals. As the battery isolation tab 103 is made of a strong, thin, lubricious, flexible material, the head portion 151 and the neck portion 153 can both be pulled through the channel 147 and out of the device 101 through the opening 150 in the rear housing 109. The neck portion 153 and/or head portion 151 are configured so they can deform and smoothly slide through the channel 147 toward the removed position without substantially binding or breaking. For example, the head portion 151 can include score or fold lines configured to allow the head portion 151 to deform in a predetermined and controlled manner to facilitate sliding through the channel 147. Once the battery isolation tab 103 is removed, the battery 129 will be in direct contact with the first and second connection terminals 131a and 131b, thereby allowing the battery to provide power for normal operation of the device 101.

[0027] FIG. 9 is a partially exploded upper rear isometric view of the handheld device 101 with another embodiment of a battery isolation tab 201. The device 101 can be substantially similar to that described above with respect to FIGS. 1-8, with the rear housing 109 not shown in FIG. 9 for purposes of clarity. The battery isolation tab 201 can be similar to the battery isolation tab 103 described above with respect to FIGS. 1-8, except that the head portion 203 of the battery isolation tab 201 is configured to cover only the second connection terminal 131b within the battery pocket 141. Additionally, the neck portion 205 of the battery isolation tab 201 extends over the rear surface 135 of the support body portion 117 rather than extending through a channel. As illustrated, the neck portion 205 of the battery isolation tab 201 extends between the head portion 203 and the handle portion 207 which extends away from the device 101.

[0028] FIGS. 10A-10C illustrate different embodiments of battery isolation tabs. As illustrated, the battery isolation tab can take various different shapes. The battery isolation tab 301 shown in FIG. 10A includes a head portion 303, a handle portion 307, and a neck portion 305 extending between the head portion 303 and the handle portion 307. The head portion 303 and the handle portion 307 are each wider than the neck portion 305. The head portion 303 tapers outwardly forming an oval shape configured to overlay the electrical connection terminals when in position in the device. The wider handle portion 307 provides a gripping surface for a user to remove the battery isolation tab 301 and to prevent the handle portion 307 from inadvertently being retracted into the channel.

[0029] The battery isolation tab 311 shown in FIG. 10B is similar to that of FIG. 10A, except that the head portion 313 is substantially wider than both the neck portion 315 and the handle portion 317. The wider head portion 313 can aid in isolating the electrical connection terminals from the battery. The battery isolation tab 321 shown in FIG. 10C has a head portion 323, neck portion 325, and handle portion 327 all having substantially the same width. This configuration can improve the ability of the head portion 323 to be pulled through the channel during removal of the battery isolation tab 321, and depending on the placement of the electrical connection terminals, the head portion 323 may be configured to overlay and isolate one or more of the electrical connection terminals from the battery. These various embodiments of battery isolation tabs 301, 311, 321 illustrate some of the ways that these tabs can vary in size and shape, while still providing an effective way to electrically isolate the battery from the electrical connection terminals of the device.

Remarks

[0030] The above description and drawings are illustrative and are not to be construed as limiting. Numerous specific details are described to provide a thorough understanding of the disclosure. However, in some instances, well-known details are not described in order to avoid obscuring the description. Further, various modifications may be made without deviating from the scope of the embodiments.

[0031] Reference in this specification to “one embodiment” or “an embodiment” means that a particular feature, structure, or characteristic described in connection with the embodiment is included in at least one embodiment of the disclosure. The appearances of the phrase “in one embodiment” in various places in the specification are not necessarily all referring to the same embodiment, nor are separate or alternative embodiments mutually exclusive of other embodiments. Moreover, various features are described which may be exhibited by some embodiments and not by others. Similarly, various requirements are described which may be requirements for some embodiments but not for other embodiments.

[0032] The terms used in this specification generally have their ordinary meanings in the art, within the context of the disclosure, and in the specific context where each term is used. It will be appreciated that the same thing can be said in more than one way. Consequently, alternative language and synonyms may be used for any one or more of the terms discussed herein, and any special significance is not to be placed upon whether or not a term is elaborated or discussed herein. Synonyms for some terms are provided. A recital of one or more synonyms does not exclude the use of other synonyms. The use of examples anywhere in this specification, including examples of any term discussed herein, is illustrative only and is not intended to further limit the scope and meaning of the disclosure or of any exemplified term. Likewise, the disclosure is not limited to various embodiments given in this specification. Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this disclosure pertains. In the case of conflict, the present document, including definitions, will control.
