Patent: Interconnectable Handheld Controllers

Publication Number: 20170128828

Publication Date: 20170511

Applicants: Oculus

Abstract

A pair of interconnectable handheld controllers is disclosed. The pair of controllers includes a right-hand controller and a left-hand controller. The right-hand controller includes a right-hand handle portion, a surrounding right-hand ring portion, and a first connector disposed on the right-hand ring portion. The left-hand controller includes a left-hand handle portion, a surrounding left-hand ring portion, and a second connector disposed on the left-hand ring portion. The first connector and the second connector are cooperative to releasably attach the right-hand controller and the left-hand controller together. The first connector and the second connector can be magnets, cooperative hook and loop material, or a ball and socket arrangement.

TECHNICAL FIELD

[0001] This patent application is directed to handheld controllers and, more specifically, to handheld controllers for virtual reality systems.

BACKGROUND

[0002] In a virtual reality system, handheld controllers can be used by a user to manipulate virtual items within a virtual setting. The user typically wears a head-mounted display that presents a selected virtual reality (VR) environment in front of the user’s eyes, but which can obscure the user’s view of the real world. Accordingly, if a user sets down one of the handheld controllers, it may be difficult to find that controller again without moving or removing the head mounted display, which can interrupt use of the VR system. In some virtual reality systems, the handheld controllers are highly contoured or otherwise unstable when set on a surface, such that the controllers may tip over and inadvertently activate certain buttons and/or send an errant command to the VR system. Therefore, there is need for handheld controllers that address these issues.

BRIEF DESCRIPTION OF THE DRAWINGS

[0003] Embodiments of the interconnectable handheld controllers introduced herein may be better understood by referring to the following Detailed Description in conjunction with the accompanying drawings, in which like reference numerals indicate identical or functionally similar elements:

[0004] FIG. 1A is a perspective view of a pair of interconnectable handheld controllers according to a representative embodiment.

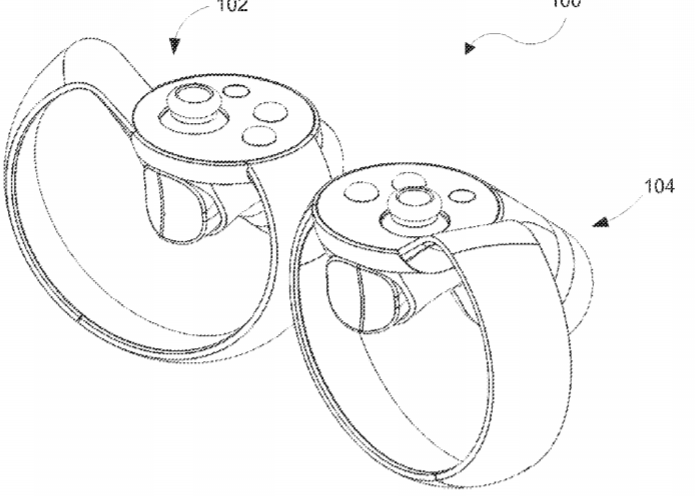

[0005] FIG. 1B is a perspective view of the interconnectable handheld controllers of FIG. 1A connected together.

[0006] FIG. 2 is a perspective view of the interconnectable handheld controllers shown in FIGS. 1A and 1B with a portion of one of the controllers removed to illustrate the construction thereof.

[0007] FIG. 3 is a perspective view of a pair of interconnectable handheld controllers according to another representative embodiment.

[0008] FIG. 4 is a perspective view of a pair of interconnectable handheld controllers according to yet another representative embodiment.

[0009] FIG. 5 is a perspective view of a pair of interconnectable handheld controllers according to a further representative embodiment.

[0010] The headings provided herein are for convenience only and do not necessarily affect the scope or meaning of the claimed embodiments. Further, the drawings have not necessarily been drawn to scale. For example, the dimensions of some of the elements in the figures may be expanded or reduced to help improve the understanding of the embodiments. Moreover, while the disclosed technology is amenable to various modifications and alternative forms, specific embodiments have been shown by way of example in the drawings and are described in detail below. The intention, however, is not to limit the embodiments described. On the contrary, the embodiments are intended to cover all modifications, equivalents, and alternatives falling within the scope of the embodiments as defined by the appended claims.

DETAILED DESCRIPTION

Overview

[0011] A pair of interconnectable handheld controllers is disclosed. The pair of controllers includes a right-hand controller and a left-hand controller. The right-hand controller includes a right-hand handle portion, a surrounding right-hand ring portion, and a first connector disposed on the right-hand ring portion. The left-hand controller includes a left-hand handle portion, a surrounding left-hand ring portion, and a second connector disposed on the left-hand ring portion. The first connector and the second connector are cooperative to releasably attach the right-hand controller and the left-hand controller together.

[0012] In some embodiments, the first connector and the second connector are magnets. In some embodiments, one of the first and second connectors is loop material, and the other of the first and second connectors is hook material. In some embodiments, one of the first and second connectors is a ball or tee, and the other of the first and second connectors is a socket or receptacle configured to releasably receive the ball or tee. In some embodiments, the right-hand and the left-hand controllers are substantially symmetric with respect to each other.

GENERAL DESCRIPTION

[0013] Various examples of the devices introduced above will now be described in further detail. The following description provides specific details for a thorough understanding and enabling description of these examples. One skilled in the relevant art will understand, however, that the techniques discussed herein may be practiced without many of these details. Likewise, one skilled in the relevant art will also understand that the technology can include many other features not described in detail herein. Additionally, some well-known structures or functions may not be shown or described in detail below so as to avoid unnecessarily obscuring the relevant description.

[0014] The terminology used below is to be interpreted in its broadest reasonable manner, even though it is being used in conjunction with a detailed description of some specific examples of the embodiments. Indeed, some terms may even be emphasized below; however, any terminology intended to be interpreted in any restricted manner will be overtly and specifically defined as such in this section.

[0015] FIG. 1A illustrates a pair of interconnectable handheld controllers 100 according to a representative embodiment. The pair of interconnectable handheld controllers 100 includes first and second controllers, such as a right-hand controller 102 and a left-hand controller 104. Each controller includes a handle portion and a tracking frame. The tracking frame supports one or more tracking features 117 (see FIG. 2), such as for example, fiducial markers or light emitting diodes. In at least one embodiment, the right-hand controller 102 includes a contoured right-handed handle portion 106 with a tracking frame in the form of a surrounding ring portion 108. Similarly, the left-hand controller 104 includes a contoured left-handed handle portion 110 and a surrounding ring portion 112. In some embodiments, the controllers 102/104 are substantially symmetrical with respect to each other (e.g., mirror images of each other). Each controller also includes a connector whereby the right-hand controller 102 and the left-hand controller 104 can be releasably connected together. In the depicted embodiment, the right-hand controller 102 includes a connector 120, and the left-hand controller 104 includes a connector 122. In some embodiments, the connectors 120 and 122 can be magnets sized and positioned to allow for the interconnection, but do not create electrical interference with operation of the controllers 100. For example, the connectors 120 and 122 can be rare earth magnets including, for example, neodymium magnets. In other embodiments, the connectors 120 and 122 can be comprised of cooperative hook and loop material, such as Velcro.RTM., or other connection mechanism.

[0016] As shown in FIG. 1A, the connectors 120 and 122 are positioned on the surrounding ring portions 108 and 112 such that they face each other when the controllers 102/104 are adjacent to each other with a similar spatial orientation. In other embodiments, the connectors 120 and 122 can be positioned on different quadrants (e.g., outside, bottom, or top) of the surrounding ring portions 108 and 112. FIG. 1B illustrates the right-hand controller 102 and the left-hand controller 104 connected together. When the controllers 102/104 are connected together and placed, for example, on a table or other support surface, they support each other and block each other from rolling on the support surface about the surrounding ring portions. Thus, when connected together, the controllers 102/104 have at least three points of contact on the support surface providing a stable structure to prevent tipping and/or rolling of the individual controllers 102/104. As depicted in FIG. 1B, the controllers 102/104 have four points of contact provided by the surrounding ring portions 108 and 112 and the handle portions 106/110. In addition, when a user is interacting with a VR system 10, such as the Rift.TM. available from Oculus.TM., using the left and right controllers 102/104, the user can interconnect the controllers 102/104 by attaching the connectors 120/122 together and then let go of one of the controllers 102/104, which can free one of the user’s hands in order to pick something up or to adjust his or her head-mounted display without having to set down the released controller on a support surface. For example, a user may connect the right-hand controller 102 and the left-hand controller 104 together and then release his or her hand from the left-hand controller 104 in order to adjust the head-mounted display without setting down the left-hand controller 104 and potentially losing the controller or otherwise interrupting the interaction with the VR system 10.

[0017] FIG. 2 illustrates the left and right-hand controllers 102/104 of an embodiment, and outer cover 124 of the right-hand controller 102 is not shown for purposes of clarity and to illustrate the mounting location of magnet 120 in the ring portion 108. For purposes of discussion, and from the perspective of the left and right-hand controllers 102/104 positioned in a connecting position adjacent to each other with a similar spatial orientation, the ring portion 108 of each controller 102/104 has a medial side 123 immediately adjacent to and facing toward the other controller. The ring portions 108 each have a lateral side 125 opposite the medial side 123 and spaced furthest away from the other controller. In the illustrated embodiment, the magnets 120 are mounted to the medial side 123 of the surrounding ring portion 108 of each controller 102/104. Thus, the magnet 120 can be mounted flush with the surface of the surrounding ring portion 108 and partially exposed as shown in, for example, FIG. 1A. In other embodiments, the magnet 120 can be disposed underneath the surface of the outer cover 124.

[0018] FIG. 3 illustrates another representative embodiment of an interconnectable pair of handheld controllers 200. The interconnectable pair of handheld controllers 200 includes a right-hand controller 202 and a left-hand controller 204. The controllers 202 and 204 include a surrounding ring portion 208 and 212, respectively. As with the embodiment discussed above with respect to FIGS. 1A-2, the controllers 202 and 204 include cooperative connectors. In this embodiment, the connectors are in the form of a tee or tee shaped member 220 which mates with a slotted socket 222. The slotted socket 222 includes a boss 224 disposed on the surrounding ring portion 212 of one of the controllers, such as the left-hand controller 204 as illustrated. The boss 224 includes a slotted receptacle 226 configured to receive the tee 220. Accordingly, a user can rotate the right-hand controller 202 with respect to the left-hand controller 204 (or vice versa) to insert the tee 220 into the slotted receptacle 226. When the controllers 202/204 are rotated back into substantially the same spatial orientation relative to each other, the tee 220 is captured within the slotted receptacle 226, thereby connecting the controllers 202/204 together.

[0019] FIG. 4 illustrates an interconnectable pair of handheld controllers 300 according to another representative embodiment. The interconnectable pair of handheld controllers 300 includes a right-hand controller 302 and a left-hand controller 304. As above, each controller includes a surrounding ring portion 308 and 312, respectively. A ball 320 is disposed on surrounding ring portion 308 of one of the controllers, such as the right-hand controller 302 as illustrated. A corresponding socket 322 is disposed on the surrounding ring portion 312 of the other controller, such as the left-hand controller 304. The socket 322 is comprised of a boss 324 including a socket aperture 326 sized and configured to receive and releasably retain the ball 320. The socket aperture 326 is configured such that ball 320 snaps into the socket 322, thereby interconnecting the left-hand and right-hand controllers 302/304.

[0020] FIG. 5 illustrates a pair of interconnectable handheld controllers 400 according to a further representative embodiment. The pair of interconnectable handheld controllers 400 includes a right-hand controller 402 and a left-hand controller 404, each of which includes a surrounding ring portion 408 and 412, respectively. One or both of the surrounding ring portions 408 and 412 includes a gap 422 formed through the surrounding ring portion. For example, the surrounding ring portion 408 of the right-hand controller 402 includes a gap 420, and the surrounding ring portion 412 of the left-hand controller 402 includes a gap 422. The gaps 420 and 422 are sized such that the surrounding ring of the opposing controller can be inserted through the gap, thereby connecting the surrounding rings together. For example, the surrounding ring portion 412 can be inserted through the gap 420 such that the surrounding ring portions 408 and 412 are connected together, thereby easily and quickly releasably interconnecting the controllers 402 and 404.

Remarks

[0021] The above description and drawings are illustrative and are not to be construed as limiting. Numerous specific details are described to provide a thorough understanding of the disclosure. However, in some instances, well-known details are not described in order to avoid obscuring the description. Further, various modifications may be made without deviating from the scope of the embodiments. Accordingly, the embodiments are not limited except as by the appended claims.

[0022] Reference in this specification to “one embodiment” or “an embodiment” means that a particular feature, structure, or characteristic described in connection with the embodiment is included in at least one embodiment of the disclosure. The appearances of the phrase “in one embodiment” in various places in the specification are not necessarily all referring to the same embodiment, nor are separate or alternative embodiments mutually exclusive of other embodiments. Moreover, various features are described which may be exhibited by some embodiments and not by others. Similarly, various requirements are described which may be requirements for some embodiments but not for other embodiments.

[0023] The terms used in this specification generally have their ordinary meanings in the art, within the context of the disclosure, and in the specific context where each term is used. It will be appreciated that the same thing can be said in more than one way. Consequently, alternative language and synonyms may be used for any one or more of the terms discussed herein, and any special significance is not to be placed upon whether or not a term is elaborated or discussed herein. Synonyms for some terms are provided. A recital of one or more synonyms does not exclude the use of other synonyms. The use of examples anywhere in this specification, including examples of any term discussed herein, is illustrative only and is not intended to further limit the scope and meaning of the disclosure or of any exemplified term. Likewise, the disclosure is not limited to various embodiments given in this specification. Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this disclosure pertains. In the case of conflict, the present document, including definitions, will control.
