Patent: Optical Device Having Multiplexed Electrodes

Publication Number: 20180364481

Publication Date: 2018-12-20

Applicants: Microsoft

Abstract

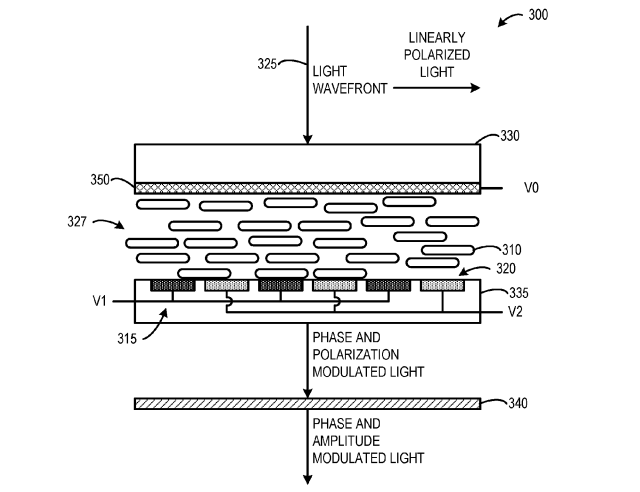

An optical device comprises a pixel array including one or more pixels. Two or more independently controllable electrodes are electrically coupled to each pixel. A common ground reference electrode is electrically coupled to all pixels of the pixel array. Each pixel includes a plurality of liquid crystal molecules. The liquid crystal molecules may be oriented in a first direction based on a first function of voltages applied by the two or more independently controllable electrodes for the pixel, and oriented in a second direction based on a second function of the voltages applied by the two or more independently controllable electrodes for the pixel. In this way, both phase modulation and polarization modulation may be introduced to light illuminating the pixel array.

Background

Holographic display devices create virtual three-dimensional images. Some holographic display devices may utilize a phase modulating display panel to create a holographic image.

Summary

This Summary is provided to introduce a selection of concepts in a simplified form that are further described below in the Detailed Description. This Summary is not intended to identify key features or essential features of the claimed subject matter, nor is it intended to be used to limit the scope of the claimed subject matter. Furthermore, the claimed subject matter is not limited to implementations that solve any or all disadvantages noted in any part of this disclosure.

An optical device comprises a pixel array including one or more pixels. Two or more independently controllable electrodes are electrically coupled to each pixel. A common ground reference electrode is electrically coupled to all pixels of the pixel array. Each pixel includes a plurality of liquid crystal molecules. The liquid crystal molecules may be oriented in a first direction based on a first function of voltages applied by the two or more independently controllable electrodes for the pixel, and oriented in a second direction based on a second function of the voltages applied by the two or more independently controllable electrodes for the pixel. In this way, both phase modulation and polarization modulation may be introduced to light illuminating the pixel array.
