Microsoft Patent | Holographic Display System
Patent: Holographic Display System
Publication Number: 20180364482
Publication Date: 2018-12-20
Applicants: Microsoft
Abstract

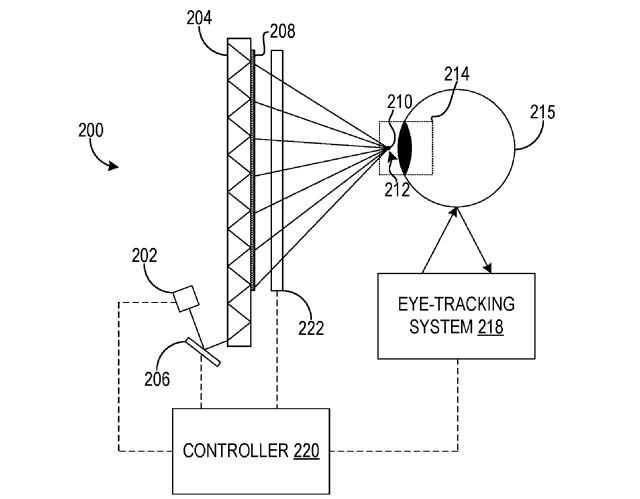

Examples are disclosed that relate to holographic display systems. One example provides a display system comprising a waveguide, a light source configured to introduce light into the waveguide at a controllable light input angle, and a holographic optical element (HOE) configured to outcouple from the waveguide light received from within the waveguide that meets an angular condition. The display system may further comprise a controller configured to control the light input angle and also to control a corrective component optically downstream of the HOE to correct for aberration of the light by the HOE based upon the light iput angle.
Background
A near-eye display, such as a head-mounted display device, may be used to present immersive visual experiences.
Summary
Examples are disclosed that relate to holographic display systems. One example provides a display system comprising a waveguide, a light source configured to introduce light into the waveguide at a controllable light input angle, and a holographic optical element (HOE) configured to outcouple light received from within the waveguide that meets an angular condition. The display system further comprises a controller configured to control the light input angle, and also to control a corrective component optically downstream of the HOE to correct for aberration of the light by the HOE based upon the light input angle.
This Summary is provided to introduce a selection of concepts in a simplified form that are further described below in the Detailed Description. This Summary is not intended to identify key features or essential features of the claimed subject matter, nor is it intended to be used to limit the scope of the claimed subject matter. Furthermore, the claimed subject matter is not limited to implementations that solve any or all disadvantages noted in any part of this disclosure.
