Abstract

A computing device includes a processor and a memory. The processor is configured to generate spectrograms, for example, using short-time Fourier transform, for a plurality of channels of reference and test ambisonic signals. In some implementations, the test ambisonic signal may be generated by decoding an encoded version of the reference ambisonic signal. The processor is further configured to compare, for each of the plurality of channels of a reference ambisonic signal, at least a patch associated with a channel of the reference ambisonic signal with at least a corresponding patch of a corresponding channel of the test ambisonic signal and determine a localization accuracy of the test ambisonic signal based on the comparison. In some implementations, the comparing may be based on phaseograms of the reference and test ambisonic signals.

FIELD

The present disclosure generally relates to streaming of spatial audio, and specifically, to streaming of ambisonic spatial audio.

BACKGROUND

Streaming of spatial audio over networks requires efficient encoding techniques to compress raw audio content without compromising users’ quality of experience (QoE). However, objective quality metrics to measure users’ perceived quality and spatial localization accuracy are not currently available.

SUMMARY

In one aspect, a computing device includes a processor and a memory. The processor is configured to generate spectrograms, for example, using short-time Fourier transform, for a plurality of channels of reference and test ambisonic signals. In some implementations, the test ambisonic signal may be generated by decoding an encoded version of the reference ambisonic signal. The processor is further configured to compare, for each of the plurality of channels of a reference ambisonic signal, at least a patch associated with a channel of the reference ambisonic signal with at least a corresponding patch of a corresponding channel of the test ambisonic signal and determine a localization accuracy of the test ambisonic signal based on the comparison. In some implementations, the comparing may be based on phaseograms of the reference and test ambisonic signals.

BRIEF DESCRIPTION OF THE DRAWINGS

Example implementations will become more fully understood from the detailed description given herein below and the accompanying drawings, wherein like elements are represented by like reference numerals, which are given by way of illustration only and thus are not limiting of the example implementations and wherein:

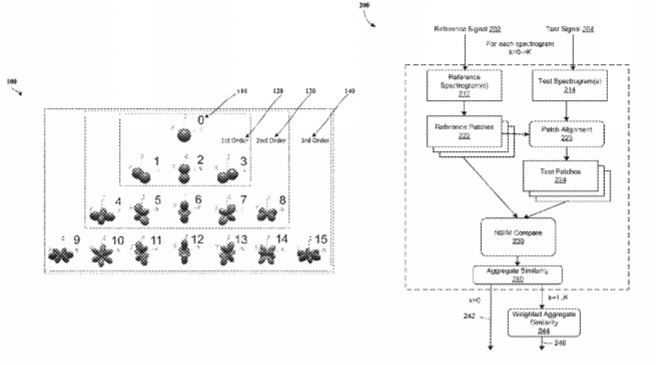

FIG. 1 illustrates spherical harmonics of a third order ambisonics stream, according to at least one example implementation.

FIG. 2 illustrates a flowchart for determining an objective quality metric for ambisonic spatial audio, according to least one example implementation.

FIG. 3 illustrates a flowchart of a method for determining listening quality and localization accuracy of ambisonics spatial audio, according to least one example implementation.

FIG. 4 illustrates a flowchart of a method for determining listening quality and localization accuracy of ambisonics spatial audio, according to least another example implementation.

FIG. 5 shows an example of a computer device and a mobile computer device, which may be used with the techniques described here according to least one example implementation.

FIG. 6 illustrates a four-quadrant inverse tangent, atan 2(Y,X), that returns values in a closed interval [-pi, pi] based on values of Y and X, according to least one example implementation.

It should be noted that these Figures are intended to illustrate the general characteristics of methods, structure, or materials utilized in certain example implementations and to supplement the written description provided below. These drawings are not, however, to scale and may not precisely reflect the precise structural or performance characteristics of any given implementation, and should not be interpreted as defining or limiting the range of values or properties encompassed by example implementation. The use of similar or identical reference numbers in the various drawings is intended to indicate the presence of a similar or identical element or feature.

DETAILED DESCRIPTION

Perceptual Evaluation of Speech Quality (PESQ) and Perceptual Objective Listening Quality Assessment (POLQA) are full-reference measures, described in International Telecommunication Union (ITU) standards, to predict speech quality by comparing a reference signal to a received (or degraded) signal. Neurogram similarity index measure (NSIM) is a simplified version of structural similarity index measure (SSIM) for speech signal comparison with factors (e.g., luminance, structure, etc.) that give a weighted adjustment to the similarity measure that looks at the intensity (luminance), and cross-correlation (structure) between a given pixel and those that surround it versus the reference image. NSIM between two spectrograms, e.g., a reference spectrogram, r, and a degraded spectrogram, d, may be defined with a weighted function of intensity, I, contrast, c, and structure, s, as shown in the following equation,

.function..function..function..times..mu..times..mu..mu..mu..sigma..times- ..times..sigma..times..sigma. ##EQU00001## each component containing constant values C.sub.1=0.01 L and C.sub.2=C.sub.3=(0.03 L).sup.2, where L is intensity range of the reference spectrogram (for instance, to avoid instabilities at boundary conditions, for example, where .mu.2r+.mu.2d.mu.r2+.mu.d2 is close to zero). In some implementations, for the purposes of neurogram comparisons for speech intelligibility estimation, the optimal window size may be a 3.times.3 pixel square covering three frequency bands and a 12.8-ms time window.

Virtual Speech Quality Objective Listener (ViSQOL) is a signal-based, full-reference, intrusive metric that models human speech quality perception using a spectro-temporal measure of similarity between a reference and a test signal. ViSQOL also works with Voice over Internet Protocol (VoIP) transmissions (e.g., streaming audio), which may encounter quality issues due to the nature of VoIP. ViSQOL provides a useful alternative to other metrics, for example, POLQA, in predicting speech quality in VoIP transmissions or streaming audio.

ViSQOLAudio (V) is a full reference objective metric for measuring audio quality. It is based on using NSIM, a similarity measure that compares the similarity of signals by aligning and evaluating the similarity across time and frequency bands using a spectrogram-based comparison. ViSQOLAudio calculates magnitudes of the reference and test spectrograms using a 32-band Gammatone filter bank (e.g., 50 Hz-20 KHz) to compare their similarity. ViSQOLAudio may also pre-process the test signal with time alignment and perform level adjustments to match timing and power characteristics of the reference signal. After pre-preprocessing, the signals may be compared with the NSIM similarity metric. ViSQOL is a model of human sensitivity to degradations in speech quality. It compares a reference signal with a degraded signal. The output is a prediction of speech quality perceived by an average individual. Moreover, ViSQOL and ViSQOL audio contain subsystems that map raw NSIM similarity score (e.g., 0-1 scale) to a human perceptual scale mean opinion score (MOS).

The delivery of spatial audio for streaming services over limited bandwidth networks using higher order ambisonics (HOA) has driven development of various compression (e.g., encoding) techniques. This requires quality assessment methodologies to measure the perceptual quality of experience (QoE) for spatial audio using compressed ambisonics. However, unlike existing metrics for speech or regular audio quality assessment, an assessment of QoE of spatial audio must take into account not only the effects of audio fidelity degradations but also whether compression has altered the perceived localization of sound source origins.

The present disclosure provides an objective audio quality metric that assesses Listening Quality (LQ) and/or Localization Accuracy (LA) of compressed B-format ambisonic signals. For example, in one implementation, the present disclosure describes an objective metric, referred to as AMBIQUAL that predicts users’ quality of experience (QoE) by estimating Listening Quality and/or Localization Accuracy of an audio signal. The objective metric may be determined (e.g., computed) using ambisonics, which can simulate placement of auditory cues in a virtual 3D space to allow a person’s ability to determine the virtual origin of a detected sound.

Ambisonics is a full sphere audio surround technique that can be based upon the decomposition of a 3D sound field into a number of spherical harmonics signals. In contrast to channel-based methods with fixed speakers’ layouts (e.g. stereo, surround 5.1, surround 7.1, etc.), ambisonics contain a speaker-independent representation of a 3D sound field known as B-format, which can be decoded to any speaker layout. The B-format may be especially useful in Augmented Reality (AR) and Virtual Reality (VR) applications as the format offers good audio signal manipulation possibilities (e.g., rendering audio in real-time according to head movements). The complete spatial audio information can be encoded into an ambisonics stream containing a number of spherical harmonics signals and scaled to any desired spatial order.

The AMBIQUAL model builds on an adaptation of the ViSQOLAudio algorithm. The AMBIQUAL model predicts perceived quality and spatial localization accuracy by computing signal similarity directly from the B-format ambisonic audio streams. As with ViSQOLAudio, the AMBIQUAL model derives a spectro-temporal measure of similarity between a reference and test audio signal. AMBIQUAL derives Listening Quality and Localization Accuracy metrics directly from the B-format ambisonic audio channels unlike other existing methods that evaluate binaurally rendered signals. The AMBIQUAL model predicts a composite QoE for the spatial audio signal that is not focused on a particular listening direction or a given head related transfer function (HRTF) that is used in rendering the binaural signal.

In some implementations, for example, a computing device may generate spectrograms for each channel of reference and test signals. The reference and test signals may be higher order ambisonics (e.g., third order) and the computing device may create (or generate) patches from each of the spectrograms. For example, the computing device may create one more patches for each channel of the reference and test signals. A patch may be a short duration of the entire signal, for example, 0.5 second in duration, and may a defined as a portion of the reference or test signal. Once the patches are created, the computing device may compare patches of the reference signal with corresponding patches (e.g., patches of a corresponding channel and with the closest match) of the test signal. The comparison may be performed using NSIM based on comparing spectrograms, phaseograms, or a combination thereof) to generate aggregate similarity scores. In one implementation, for example, the computing device may determine the Listening Quality based on an aggregate score associated with an omni-directional channel (e.g., channel 0). In another implementation, for example, the computing device may determine Localization Accuracy based on a weighted sum of similarity scores between corresponding multi-directional channels (e.g., channels 1-15).

FIG. 1 illustrates spherical harmonics 100 of a third order ambisonics stream. The spherical harmonics illustrated in FIG. 1 are sorted by increasing ambisonic channel number (ACN) and aligned for symmetry. The relevant spherical harmonics functions that may provide the direct-dependent amplitudes of each of the ambisonics signals are defined below in Table I.

For example, as illustrated in FIG. 1, a first order ambisonics (1OA) audio 120 may be encoded into four spherical harmonics signals: an omni-directional component of order 0 (110) and three directional components of order 1 (120)-X (forward/backwards), Y (left/right), and Z (up/down). A second order ambisonics (2OA) audio 130 may be encoded into the omni-directional component of order 0 (110), the four directional components of order 1 (120), and five directional components of order 2 (130). A third order ambisonics (3OA) audio 140 may be encoded into the omni-directional component of order 0 (110), four directional components of order 1 (120), the five directional components of order 2 (130), and seven directional components of order 3 (140). An ambisonics stream (or signal) is said to be of order n when the ambisonics stream contains all the signals of orders 0 to n. Moreover, the corresponding directional spherical harmonics represent more complex polar patterns allowing more accurate source localization as ambisonics order increases. The use of higher order ambisonics (HOA) may improve Listening Quality and Localization accuracy (e.g., more directional spherical harmonics). However, higher amounts of processing resources may be needed to transform ambisonic multi-channel streams into a rendered soundscape. Therefore, streaming ambisonics (e.g., ambisonics data) over networks requires efficient encoding techniques to compress raw audio content in real time and without significantly compromising QoE.

In one implementation, omni-directional or multi-dimensional components of ambisonics may be referred to by ACNs, ambisonics of third order that may include 16 channels (of orders 0-3), as shown below in Table I. In addition, Table I has formulas for ambisonics expressing amplitudes as a function of Azimuth (a) and Elevation (e), in one example implementation.

TABLE-US-00001 TABLE I ACN Order Formula 0 0 1 1 1 sin(.alpha.)cos(e) 2 1 sin(e) 3 1 cos(.alpha.)cos(e) 4 2 .times..function..times..alpha..times..function. ##EQU00002## 5 2 .times..function..alpha..times..function..times. ##EQU00003## 6 2 .times..times..times..function. ##EQU00004## 7 2 .times..function..alpha..times..function..times. ##EQU00005## 8 2 .times..function..times..alpha..times..function. ##EQU00006## 9 3 .times..function..times..alpha..times..function. ##EQU00007## 10 3 .times..function..times..alpha..times..function..times..function. ##EQU00008## 11 3 .times..function..alpha..times..function..times..times..times..funct- ion. ##EQU00009## 12 3 .times..function..times..times..times..function. ##EQU00010## 13 3 .times..function..alpha..times..function..times..times..times..funct- ion. ##EQU00011## 14 3 .times..function..times..alpha..times..function..times..function. ##EQU00012## 15 3 .times..function..times..alpha..times..function. ##EQU00013##

FIG. 2 illustrates a flowchart 200 for determining an objective quality metric for ambisonic spatial audio, according to least one example implementation.

In some implementations, a reference signal 202 and a test signal 204 may be inputs to a computing device (e.g., a computing device 500 of FIG. 5) for executing the process of the flowchart 200. The reference signal 202 and the test signal 204, for example, may be B-format ambisonic signals, which, in one example, may be 10-20 seconds in duration. In one implementation, for example, the reference signal 202 and the test signal 202 may be 3OA signals. The test signal 204 may be extracted (e.g., decoded) from an encoded (or compressed) version of the reference signal 202 so that the QoE may be determined by taking into account signal degradations and any changes to the perceived localization of sound source origins due to the decoding/encoding process.

In one example implementation, the reference signal 202 (e.g., reference ambisonic audio sources) may be rendered to 22 fixed localizations that may be evenly distributed on a quarter of the sphere. The test signal 204 (e.g., test ambisonic audio signals) may be rendered at 206 fixed localizations that may be evenly distributed on the whole sphere (e.g., with 30 horizontal and vertical steps).

At block 212, the computing device may create spectrograms (that may be referred to as reference spectrograms or reference phaseograms) of each channel of the reference signal 202. For example, 16 spectrograms of the reference signal 202 may be created, one spectrogram of each channel of the reference signal 202. At block 214, the computing device may create spectrograms (that may be referred to as test spectrograms or test phaseograms) of each channel of the test signal 204. For example, 16 spectrograms may be created, one spectrogram of each channel of the test signal 204.

In some implementations, the spectrograms of the test signal 202 and the reference signal 204 may be created using short-time Fourier transform (STFT) of their respective ambisonic channels. For instance, a STFT with a 1536-point Hamming window (e.g., 50% overlap) may be applied to the channels of the reference signal 202 and the test signal 204 to generate the spectrograms. In one implementation, for example, the generated spectrograms may be phaseograms (also referred to as phase spectrograms). In a phaseogram, phase values of STFT may be processed and presented graphically such that time-frequency distribution of the phase of a component may provide information about phase modulations around a reference point to determine reference phase and reference frequency for the component. For instance, the STFT may create a spectrogram of real and imaginary numbers for every time/frequency from which the phase of every frequency at any given time may be extracted. In one more implementation, the spectrograms may be generated based on intensities or a combination of phase angles and intensities.

For instance, a spectrogram, z, may be a matrix that is computed using a short-time Fourier transform of an input signal using a 1536-poing Hamming window (e.g., 50% overlap). The matrix may contain real and imaginary components and a phaseogram is a corresponding phase angle matrix of the spectrogram that is computed from the spectrogram using the equation below, angle(z)=imag(log(z))=atan 2(imag(z),real(z)), where atan 2 is a four-quadrant inverse tangent, as illustrated by 600 of FIG. 6. For example, atan 2(Y, X) may return values in the closed interval [-pi, pi] based on values of Y and X as shown in FIG. 6.

At block 222, the computing device may segment the reference spectrograms generated at block 212 into patches (that may be referred to as reference patches). That is, one or more reference patches may be created for each channel of the reference signal 202 from the respective reference spectrograms. In some implementations, the computing device may create (or generate) one or more patches from each of the reference spectrograms. A reference patch may be generated from a portion of the reference signal 202, for example, 0.5 seconds long and may be created using STFT. In one implementation, for example, a reference patch may be a 30.times.32 matrix (e.g., 32 frequency bands x 30 time frames). The references patches may be used for comparing with corresponding patches generated from the test signal 204 to compute similarity scores to determine Listening Quality and/or Localization Accuracy.

At block 224, the computing device may segment the test spectrograms generated at block 214 into patches (may be referred to as test patches). That is, one or more test patches may be created for each channel of the test signal 204 from the respective test spectrograms. In some implementations, the computing device may create (or generate) one or more patches from each of the test spectrograms. Similar to the reference patches, a test patch may be, for example, 0.5 seconds long and may be created using STFT. In one implementation, for example, a test patch may be a 30.times.32 matrix (e.g., 32 frequency bands x 30 time frames). The test patches may be used for comparing with the corresponding reference patches to compute similarity scores to determine Listening Quality and/or Localization Accuracy.

In some implementations, at block 223, the test patches and the reference patches may be aligned with each other. The alignment (e.g., time alignment) may be performed, prior to comparing of the reference and test patches, to ensure that a reference patch is being compared with a corresponding test patch that is most similar. In other words, the alignment may be performed to time-align the patches prior to the comparison.

At block 230, the computing device may compare reference patches with test patches. In some implementations, the comparing may be performed using NSIM which may compare patches across all frequency bands and compute aggregate similarity scores at block 240. As described above, NSIM is a similarity measure for comparing spectrograms of reference patches and test patches to compute similarity scores. In one implementation, for example, the comparison may be based on phase angles and NSIM may compare the phases in each of the points in the 30.times.32 matrices (associated with the reference and test patches) and compute the average value to generate the NSIM values.

In some implementations, at 242, the Listening Quality may be determined based on an aggregate score of channel 0 based on the comparing of one or more patches of channel 0 (e.g., k=0). That is, the Listening Quality may be determined based on aggregate similarity scores of channel 0, the omni-directional channel 110. The omni-directional channel 110 is considered to contain a composite of directional channels and the content of the omni-directional channel 10 may be considered to be a good (e.g., representative) indicator of the Listening Quality (e.g., due to encoding artefacts and without localization differences). In one implementation, for example, the Listening Quality (LQ) may be computed by applying a ViSQOLAudio algorithm to the phaseograms of channel 0 (e.g., k=0) of the reference signal 202 (r) and the test signal 204 (t) as shown in the following equation, LQ=V(r.sub.0,t.sub.0), where LQ is the listening quality, V is ViSQOLAudio algorithm, r.sub.0 is the reference phaseograms of channel 0, and t.sub.0 is the test phaseograms of channel 0.

For example, the LQ may be computed using ViSQOLAudio model (described above) that measures similarity scores using NSIM for patches of channel 0.

In some implementations, the LQ scores may have values between 0 and 1, with a value of I being a perfect match. That is, a test patch matches perfectly with a corresponding reference patch.

In some implementations, at 244, the Localization Accuracy (LA) may be determined based on aggregate similarity scores of channels 1 to K (e.g., channels 1 to 15 for 3OA). That is, the similarity scores of channels 1-15 are computed and aggregated to determine the aggregate similarity score. However, in one implementation, for example, the LA may be determined as a weighted sum of similarity between the reference and test channels. That is, different weights may be assigned to the various directional components of channels 1-15.

For instance, the channels (e.g., 1-15) may be grouped into vertical-only channels and mixed direction channels. For 3OA, channels 2, 6, and 12 are vertical-only channels. For higher order ambisonics, the vertical-only channels may be determined as shown below: k.sub.vertical(n)=n(n+1)

The LA may be computed as a weighted sum of similarity between reference patch, r, and test patch, t, as shown in the following equation,

.alpha..times..times..function..alpha..times..times..function. ##EQU00014## where LA is the listening quality, V is ViSQOLAudio algorithm, alpha (.alpha.) is a parameter that controls trade-off between vertical and horizontal components, r.sub.k is the reference phaseogram of vertical component channel k, t.sub.k is the test phaseogram of vertical component channel k, r.sub.k is the reference phaseogram of mixed component channel k, and t.sub.k is the test phaseogram of mixed component channel k.

For example, the LA may be computed using the ViSQOLAudio model (described above) that measures NSIM similarity scores, for example, for channels 1-15 for third order ambisonics. In some implementations, the value of alpha (.alpha.) may control a trade-off between the importance of vertical and horizontal components (e.g., control bias). That is, the higher the value of a, the more emphasis may be given to vertical channel similarity (vs horizontal channel similarity). Thus, as described above, the Listening Quality and/or the Localization Accuracy of ambisonic spatial audio may be determined by computing aggregate similarity scores of channel 0 and channels 1-15, respectively, of the ambisonic spatial audio. In some other implementations, the value of alpha may be channel dependent. In other words, different channels may have different alpha values to control the trade-off between the importance of vertical and horizontal components on a per-channel basis and/or the value of alpha may change depending on the ambisonic order.

FIG. 3 illustrates a flowchart 300 of a method of determining quality of experience (QoE) of ambisonics spatial audio according to least one example implementation.

At block 310, a computing device may compare at least a patch associated with a channel of the reference ambisonic signal with at least a corresponding patch of a corresponding channel of a test ambisonic signal. The comparison may be performed for each of a plurality of channels of reference and test ambisonic signals. In some implementations, the test ambisonic signal may be generated by decoding an encoded version of the reference ambisonic signal and the comparison may be based on phaseograms of the reference ambisonic signal and the test ambisonic signal. For example, the computing device may compare at least one patch associated with each channel of the reference signal 202 with at least the corresponding patch of the test signal 204. For instance, the computing device may compare patch 1 of channel 0 of the reference signal 202 with patch 1 of channel 0 of the test signal 204. In another instance, the computing device may compare patch 1 of channel 1 of the reference signal 202 with patch 1 of channel 1 of the test signal 204, and so on.

At block 320, the computing device may determine a localization accuracy of the test ambisonic signal based on the comparison. The comparison may be performed using NSIM, as described above in reference to FIG. 2, to generate similarity scores. In one implementation for example, the computing device may determine the listening quality may be based on an aggregate score that is based on comparing of the omni-directional components (or channels) of the reference signal and the test signal. In one more implementation, for example, the computing device may determine the localization accuracy based on a weighted sum of similarity scores between corresponding multi-directional channels (e.g., channels 1-15) of the test and reference signals. Thus, the listening quality and/or localization accuracy of an ambisonic spatial audio are determined.

FIG. 4 illustrates a flowchart 400 of a method of determining quality of experience (QoE) of ambisonics spatial audio, according to least another example implementation.

At block 410, a computing device may generate phaseograms of the plurality of channels of the reference ambisonic signal and the test ambisonic signal. In some implementations, the computing device may generate phaseograms of the plurality of channels of the reference ambisonic signal 202 and test ambisonic signal 204, as described above in reference to FIG. 2. The phaseograms may be created using STFT.

At block 420, the computing device may align, prior to comparing, the patch associated with the channel of the reference ambisonic signal with the corresponding patch of the corresponding channel of the test ambisonic signal. In some implementations, the computing device may align corresponding patches with each other prior to comparison to provide for the patches with the best match to be compared with each other.

At block 430, the operations are similar to operations at block 310 of FIG. 3.

At block 440, the operations are similar to operations at block 320 of FIG. 3.

Thus, the listening quality and/or localization accuracy of an ambisonic spatial audio are determined.
