Patent: Enhanced High-Level Signaling For Fisheye Virtual Reality Video

Publication Number: 10659760

Publication Date: 20200519

Applicants: Qualcomm

Abstract

A method of processing a file including video data, including processing a file including fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, determining, based on the one or more bits of the syntax structure, the fisheye video type information for the fisheye video data, outputting, based on the determination, the fisheye video data for rendering.

TECHNICAL FIELD

This disclosure relates to the transport of encoded media data.

BACKGROUND

Digital video capabilities can be incorporated into a wide range of devices, including digital televisions, digital direct broadcast systems, wireless broadcast systems, personal digital assistants (PDAs), laptop or desktop computers, digital cameras, digital recording devices, digital media players, video gaming devices, video game consoles, cellular or satellite radio telephones, video teleconferencing devices, and the like. Digital video devices implement video compression techniques, such as those described in the standards defined by MPEG-2, MPEG-4, ITU-T H.263 or ITU-T H.264/MPEG-4, Part 10, Advanced Video Coding (AVC), ITU-T H.265 (also referred to High Efficiency Video Coding (HEVC)), and extensions of such standards, to transmit and receive digital video information more efficiently.

Video compression techniques perform spatial prediction and/or temporal prediction to reduce or remove redundancy inherent in video sequences. For block-based video coding, a video frame or slice may be partitioned into macroblocks. Each macroblock can be further partitioned. Macroblocks in an intra-coded (I) frame or slice are encoded using spatial prediction with respect to neighboring macroblocks. Macroblocks in an inter-coded (P or B) frame or slice may use spatial prediction with respect to neighboring macroblocks in the same frame or slice or temporal prediction with respect to other reference frames.

After video (and other media data) data has been encoded, the video data may be packetized for transmission or storage. The video data may be assembled into a video file conforming to any of a variety of standards, such as the International Organization for Standardization (ISO) base media file format and extensions thereof, such as AVC.

SUMMARY

In general, this disclosure describes functionality relating to virtual reality (VR)/360 degree video applications. More specifically, this disclosure describes enhanced high-level signaling for fisheye VR/360 video, in both container files and in the media presentation description of adaptive streaming formats such as dynamic adaptive streaming over HTTP (DASH). Although the techniques may be described herein in the context of the Omnidirectional MediA Format (OMAF) and/or DASH, or in other media formats, it should be understood that such techniques may apply generally to any virtual reality (VR) or 360 degree media formats. Also, although this disclosure may refer to file formats in the form of ISO base media file format (ISOBMFF), it should be understood that such file formats may apply generally across a variety of types of file formats.

In one example, this disclosure describes a method of processing a file including video data, the method comprising processing a file including fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, determining, based on the one or more bits of the syntax structure, the fisheye video type information for the fisheye video data, and outputting, based on the determination, the fisheye video data for rendering.

In another example, this disclosure describes an apparatus configured to process a file including video data, the apparatus comprising a memory configured to store the file, and one or more processors in communication with the memory, the one or more processors configured to process the file including fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, determine, based on the one or more bits of the syntax structure, the fisheye video type information for the fisheye video data, and output, based on the determination, the fisheye video data for rendering.

In another example, this disclosure describes an apparatus configured to process a file including video data, the apparatus comprising means for processing a file including fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, means for determining, based on the one or more bits of the syntax structure, the fisheye video type information for the fisheye video data, and means for outputting, based on the determination, the fisheye video data for rendering.

In another example, this disclosure describes a non-transitory computer-readable storage medium storing instructions that, when executed, cause one or more processors to process a file including fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, determine, based on the one or more bits of the syntax structure, the fisheye video type information for the fisheye video data, and output, based on the determination, the fisheye video data for rendering.

In another example, this disclosure describes a method of generating a file including video data, the method comprising receiving fisheye video data, generating a file including the fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, and outputting the file.

In another example, this disclosure describes an apparatus configured to generate a file including video data, the apparatus comprising a memory configured to store the file, and one or more processors in communication with the memory, the one or more processors configured to receive fisheye video data, generate the file including the fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, and output the file.

In another example, this disclosure describes an apparatus configured to generate a file including video data, the apparatus comprising means for receiving fisheye video data means for generating a file including the fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, and means for outputting the file.

In another example, this disclosure describes a non-transitory computer-readable storage medium storing instructions that, when executed, cause one or more processors to receive fisheye video data, generate a file including the fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, and output the file.

The details of one or more examples are set forth in the accompanying drawings and the description below. Other features, objects, and advantages will be apparent from the description and drawings, and from the claims.

BRIEF DESCRIPTION OF DRAWINGS

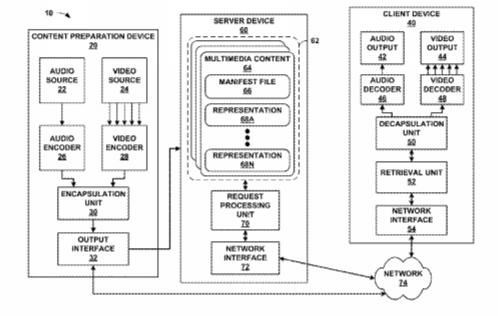

FIG. 1 is a block diagram illustrating an example system that implements techniques for streaming media data over a network.

FIG. 2 is a block diagram illustrating an example set of components of a retrieval unit of FIG. 1 in greater detail.

FIG. 3 is a conceptual diagram illustrating elements of example multimedia content.

FIG. 4 is a block diagram illustrating elements of an example video file, which may correspond to a segment of a representation.

FIGS. 5A and 5B are block diagrams illustrating example devices for capturing omnidirectional image content, in accordance with one or more example techniques described in this disclosure.

FIG. 6 is an image illustrating an example of multiple fisheye images per video picture.

FIG. 7 is a flowchart showing an example method for generating a file according to techniques of this disclosure.

FIG. 8 is a flowchart showing an example method for processing a file according to techniques of this disclosure.

DETAILED DESCRIPTION

Certain aspects and examples of this disclosure are provided below. Some of these aspects and examples may be applied independently and some of them may be applied in combination as would be apparent to those of skill in the art. In the following description, for the purposes of explanation, specific details are set forth in order to provide a thorough understanding of examples of the disclosure. However, it will be apparent that various examples may be practiced without these specific details. The figures and description are not intended to be restrictive.

The ensuing description provides examples only, and is not intended to limit the scope, applicability, or configuration of the disclosure. Rather, the ensuing description of the examples will provide those skilled in the art with an enabling description for implementing an example of the disclosure. It should be understood that various changes may be made in the function and arrangement of elements without departing from the spirit and scope of the application as set forth in the appended claims.

Specific details are given in the following description to provide a thorough understanding of the examples. However, it will be understood by one of ordinary skill in the art that the examples may be practiced without these specific details. For example, circuits, systems, networks, processes, and other components may be shown as components in block diagram form in order not to obscure the examples in unnecessary detail. In other instances, well-known circuits, processes, algorithms, structures, and techniques may be shown without unnecessary detail in order to avoid obscuring the examples.

Also, it is noted that individual examples may be described as a process which is depicted as a flowchart, a flow diagram, a data flow diagram, a structure diagram, or a block diagram. Although a flowchart may describe the operations as a sequential process, many of the operations can be performed in parallel or concurrently. In addition, the order of the operations may be re-arranged. A process is terminated when its operations are completed, but could have additional steps not included in a figure. A process may correspond to a method, a function, a procedure, a subroutine, a subprogram, etc. When a process corresponds to a function, its termination can correspond to a return of the function to the calling function or the main function.

The term “computer-readable medium” includes, but is not limited to, portable or non-portable storage devices, optical storage devices, and various other mediums capable of storing, containing, or carrying instruction(s) and/or data. A computer-readable medium may include a non-transitory medium in which data can be stored and that does not include carrier waves and/or transitory electronic signals propagating wirelessly or over wired connections. Examples of a non-transitory medium may include, but are not limited to, a magnetic disk or tape, optical storage media such as compact disk (CD) or digital versatile disk (DVD), flash memory, memory or memory devices. A computer-readable medium may have stored thereon code and/or machine-executable instructions that may represent a procedure, a function, a subprogram, a program, a routine, a subroutine, a module, a software package, a class, or any combination of instructions, data structures, or program statements. A code segment may be coupled to another code segment or a hardware circuit by passing and/or receiving information, data, arguments, parameters, or memory contents. Information, arguments, parameters, data, etc. may be passed, forwarded, or transmitted via any suitable means including memory sharing, message passing, token passing, network transmission, or the like.

Furthermore, examples of the disclosure may be implemented by hardware, software, firmware, middleware, microcode, hardware description languages, or any combination thereof. When implemented in software, firmware, middleware or microcode, the program code or code segments to perform the necessary tasks (e.g., a computer-program product) may be stored in a computer-readable or machine-readable medium. A processor(s) may perform the necessary tasks.

In general, this disclosure describes some enhanced designs, devices, and techniques for high-level signaling for fisheye virtual reality (VR) video (e.g., also called 360-degree video or omnidirectional video data). Although the techniques may be described herein in the context of the Omnidirectional MediA Format (OMAF), it should be understood that such functionality may apply generally to any VR, omnidirectional or 360-degree media formats. Also, although this disclosure may refer to file formats in the form of ISO base media file format (ISOM/WE), it should be understood that such file formats may apply generally across a variety of types of file formats. For example, this disclosure discloses multiple example methods of alternative signaling of fisheye video information. One or more of these methods may be performed independently, or in any combination.

Associated video coding standards include ITU-T H.261, ISO/IEC MPEG-1 Visual ITU-T H.262 or ISO/IEC MPEG-2 Visual, ITU-T H.263, ISO/IEC MPEG-4 Visual ITU-T H.264 or ISO/IEC MPEG-4 AVC, including its Scalable Video Coding (SVC) and Multiview Video Coding (MVC) extensions, and High-Efficiency Video Coding (HEVC), also known as ITU-T H.265 and ISO/IEC 23008-2, including its scalable coding extension (i.e., scalable high-efficiency video coding, SHVC) and multiview extension (i.e., multiview high efficiency video coding, MV-HEVC). A new video coding standard called Versatile Video Coding (VVC) or ITU-T H.266 is being developed by the Joint Video Experts Team (JVET).

File format standards include ISO base media file format (ISOBMFF, ISO/IEC 14496-12), and other derived from the ISOBMFF, including MPEG-4 file format (ISO/IEC 14496-15), 3GPP file format (3GPP TS 26.244) and file formats for AVC and HEVC families of video codecs (ISO/IEC 14496-15). The draft texts of recent new editions for ISO/IEC 14496-12 and 14496-15 are available at http://phenix.int-evey.fr/mpeg/doc_end_user/documents/111_Geneva/wg11/w15- 177-v6-w15177.zip and http://wg11.sc29.org/doc_end_user/documents/115_Geneva/wg11/w16169-v2-w16- 169.zip, respectively.

The ISOBMFF is used as the basis for many codec encapsulation formats, such as the AVC file format, as well as for many multimedia container formats, such as the MPEG-4 file format, the 3GPP file format (3GP), and the DVB file format.

In addition to continuous media, such as audio and video, static media, such as images, as well as metadata can be stored in a file conforming to ISOBMFF. Files structured according to the ISOBMFF may be used for many purposes, including local media file playback, progressive downloading of a remote file, segments for adaptive streaming techniques such as Dynamic Adaptive Streaming over HTTP (DASH), HTTP Live Steam (HLS), etc., that utilize containers for content to be streamed and its packetization instructions, and recording of received real-time media streams.

A box is the elementary syntax structure in the ISOBMFF, including a four-character coded box type, the byte count of the box, and the payload. An ISOBMFF file consists of a sequence of boxes, and boxes may contain other boxes. A Movie box (“moov”) contains the metadata for the continuous media streams present in the file, each one represented in the file as a track. The metadata for a track is enclosed in a Track box (“trak”), while the media content of a track is either enclosed in a Media Data box (“mdat”) or directly in a separate file. The media content for tracks consists of a sequence of samples, such as audio or video access units.

The ISOBMFF specifies the following types of tracks: a media track, which contains an elementary media stream, a hint track, which either includes media transmission instructions or represents a received packet stream, and a timed metadata track, which comprises time-synchronized metadata.

Although originally designed for storage, the ISOBMFF has proven to be very valuable for streaming, e.g., for progressive download or DASH. For streaming purposes, the movie fragments defined in ISOBMFF can be used.

The metadata for each track includes a list of sample description entries, each providing the coding or encapsulation format used in the track and the initialization data needed for processing that format. Each sample is associated with one of the sample description entries of the track.

The ISOBMFF enables specifying sample-specific metadata with various mechanisms. Specific boxes within the Sample Table box (“stbl”) have been standardized to respond to common needs. For example, a Sync Sample box (“stss”) is used to list the random access samples of the track. The sample grouping mechanism enables mapping of samples according to a four-character grouping type into groups of samples sharing the same property specified as a sample group description entry in the file. Several grouping types have been specified in the ISOBMFF.

Dynamic adaptive streaming over HTTP (DASH), specified in ISO/IEC 23009-1, is a standard for HTTP (adaptive) streaming applications. DASH specifies the format of a media presentation description (MPD), also known as manifest, and the media segment format. The MPD describes the media available on the server and lets the DASH client autonomously download the media version at the media time it is interested in.

One example of a typical procedure for DASH based HTTP streaming includes the following steps: 1) A DASH client obtains the MPD of a streaming content, e.g., a movie. The MPD includes information on different alternative representations, e.g., bit rate, video resolution, frame rate, audio language, of the streaming content, as well as the URLs of the HTTP resources (the initialization segment and the media segments). 2) Based on information in the MPD and the DASH client’s local information, e.g., network bandwidth, decoding/display capabilities and user preference, the client requests the desired representation(s), one segment (or a part thereof, e.g., a partial segment) at a time. 3) When the DASH client detects a network bandwidth change, the DASH client requests segments of a different representation with a better-matching bitrate, ideally starting from a segment that starts with a random access point.

During an HTTP streaming “session,” to respond to a user request to seek backward to a past position or forward to a future position, the DASH client requests past or future segments starting from a segment that is close to the user-requested position and that ideally starts with a random access point. The user may also request to fast-forward the content, which may be realized by requesting data sufficient for decoding only the intra-coded video pictures or only a temporal subset of the video stream.

In HTTP streaming, such as DASH, frequently used operations include HEAD, GET, and partial GET. The HEAD operation retrieves a header of a file associated with a given uniform resource locator (URL) or uniform resource name (URN), without retrieving a payload associated with the URL or URN. The GET operation retrieves a whole file associated with a given URL or URN. The partial GET operation receives a byte range as an input parameter and retrieves a continuous number of bytes of a file, where the number of bytes correspond to the received byte range. Thus, movie fragments may be provided for HTTP streaming, because a partial GET operation can get one or more individual movie fragments. In a movie fragment, there can be several track fragments of different tracks. In HTTP streaming, a media presentation may be a structured collection of data that is accessible to the client. The client may request and download media data information to present a streaming service to a user.

In the example of streaming 3GPP data using HTTP streaming, there may be multiple representations for video and/or audio data of multimedia content. As explained below, different representations may correspond to different coding characteristics (e.g., different profiles or levels of a video coding standard), different coding standards or extensions of coding standards (such as multiview and/or scalable extensions), or different bitrates. The manifest of such representations may be defined in a Media Presentation Description (MPD) data structure. A media presentation may correspond to a structured collection of data that is accessible to an HTTP streaming client device. The HTTP streaming client device may request and download media data information to present a streaming service to a user of the client device. A media presentation may be described in the MPD data structure, which may include updates of the MPD.

A media presentation may contain a sequence of one or more Periods. Each period may extend until the start of the next Period, or until the end of the media presentation, in the case of the last period. Each period may contain one or more representations for the same media content. A representation may be one of a number of alternative encoded versions of audio, video, timed text, or other such data. The representations may differ by encoding types, e.g., by bitrate, resolution, and/or codec for video data and bitrate, language, and/or codec for audio data. The term representation may be used to refer to a section of encoded audio or video data corresponding to a particular period of the multimedia content and encoded in a particular way.

Representations of a particular period may be assigned to a group indicated by an attribute in the MPD indicative of an adaptation set to which the representations belong. Representations in the same adaptation set are generally considered alternatives to each other, in that a client device can dynamically and seamlessly switch between these representations, e.g., to perform bandwidth adaptation. For example, each representation of video data for a particular period may be assigned to the same adaptation set, such that any of the representations may be selected for decoding to present media data, such as video data or audio data, of the multimedia content for the corresponding period. The media content within one period may be represented by either one representation from group 0, if present, or the combination of at most one representation from each non-zero group, in some examples. Timing data for each representation of a period may be expressed relative to the start time of the period.

A representation may include one or more segments. Each representation may include an initialization segment, or each segment of a representation may be self-initializing. When present, the initialization segment may contain initialization information for accessing the representation. In general, the initialization segment does not contain media data. A segment may be uniquely referenced by an identifier, such as a uniform resource locator (URL), uniform resource name (URN), or uniform resource identifier (URI). The MPD may provide the identifiers for each segment. In some examples, the MPD may also provide byte ranges in the form of a range attribute, which may correspond to the data for a segment within a file accessible by the URL, URN, or URI.

Different representations may be selected for substantially simultaneous retrieval for different types of media data. For example, a client device may select an audio representation, a video representation, and a timed text representation from which to retrieve segments. In some examples, the client device may select particular adaptation sets for performing bandwidth adaptation. That is, the client device may select an adaptation set including video representations, an adaptation set including audio representations, and/or an adaptation set including timed text. Alternatively, the client device may select adaptation sets for certain types of media (e.g., video), and directly select representations for other types of media (e.g., audio and/or timed text).

FIG. 1 is a block diagram illustrating an example system 10 that implements techniques for streaming media data over a network. In this example, system 10 includes content preparation device 20, server device 60, and client device 40. Client device 40 and server device 60 are communicatively coupled by network 74, which may comprise the Internet. In some examples, content preparation device 20 and server device 60 may also be coupled by network 74 or another network, or may be directly communicatively coupled. In some examples, content preparation device 20 and server device 60 may comprise the same device.

Content preparation device 20, in the example of FIG. 1, comprises audio source 22 and video source 24. Audio source 22 may comprise, for example, a microphone that produces electrical signals representative of captured audio data to be encoded by audio encoder 26. Alternatively, audio source 22 may comprise a storage medium storing previously recorded audio data, an audio data generator such as a computerized synthesizer, or any other source of audio data. Video source 24 may comprise a video camera that produces video data to be encoded by video encoder 28, a storage medium encoded with previously recorded video data, a video data generation unit such as a computer graphics source, or any other source of video data. Content preparation device 20 is not necessarily communicatively coupled to server device 60 in all examples, but may store multimedia content to a separate medium that is read by server device 60.

Raw audio and video data may comprise analog or digital data. Analog data may be digitized before being encoded by audio encoder 26 and/or video encoder 28. Audio source 22 may obtain audio data from a speaking participant while the speaking participant is speaking, and video source 24 may simultaneously obtain video data of the speaking participant. In other examples, audio source 22 may comprise a computer-readable storage medium comprising stored audio data, and video source 24 may comprise a computer-readable storage medium comprising stored video data. In this manner, the techniques described in this disclosure may be applied to live, streaming, real-time audio and video data or to archived, pre-recorded audio and video data.

Audio frames that correspond to video frames are generally audio frames containing audio data that was captured (or generated) by audio source 22 contemporaneously with video data captured (or generated) by video source 24 that is contained within the video frames. For example, while a speaking participant generally produces audio data by speaking, audio source 22 captures the audio data, and video source 24 captures video data of the speaking participant at the same time, that is, while audio source 22 is capturing the audio data. Hence, an audio frame may temporally correspond to one or more particular video frames. Accordingly, an audio frame corresponding to a video frame generally corresponds to a situation in which audio data and video data were captured at the same time and for which an audio frame and a video frame comprise, respectively, the audio data and the video data that was captured at the same time.

In some examples, audio encoder 26 may encode a timestamp in each encoded audio frame that represents a time at which the audio data for the encoded audio frame was recorded, and similarly, video encoder 28 may encode a timestamp in each encoded video frame that represents a time at which the video data for encoded video frame was recorded. In such examples, an audio frame corresponding to a video frame may comprise an audio frame comprising a timestamp and a video frame comprising the same timestamp. Content preparation device 20 may include an internal clock from which audio encoder 26 and/or video encoder 28 may generate the timestamps, or that audio source 22 and video source 24 may use to associate audio and video data, respectively, with a timestamp.

In some examples, audio source 22 may send data to audio encoder 26 corresponding to a time at which audio data was recorded, and video source 24 may send data to video encoder 28 corresponding to a time at which video data was recorded. In some examples, audio encoder 26 may encode a sequence identifier in encoded audio data to indicate a relative temporal ordering of encoded audio data but without necessarily indicating an absolute time at which the audio data was recorded, and similarly, video encoder 28 may also use sequence identifiers to indicate a relative temporal ordering of encoded video data. Similarly, in some examples, a sequence identifier may be mapped or otherwise correlated with a timestamp.

Audio encoder 26 generally produces a stream of encoded audio data, while video encoder 28 produces a stream of encoded video data. Each individual stream of data (whether audio or video) may be referred to as an elementary stream. An elementary stream is a single, digitally coded (possibly compressed) component of a representation. For example, the coded video or audio part of the representation can be an elementary stream. An elementary stream may be converted into a packetized elementary stream (PES) before being encapsulated within a video file. Within the same representation, a stream ID may be used to distinguish the PES-packets belonging to one elementary stream from the other. The basic unit of data of an elementary stream is a packetized elementary stream (PES) packet. Thus, coded video data generally corresponds to elementary video streams. Similarly, audio data corresponds to one or more respective elementary streams.

Many video coding standards, such as ITU-T H.264/AVC and ITU-T H.265/High Efficiency Video Coding (HEVC), define the syntax, semantics, and decoding process for error-free bitstreams, any of which conform to a certain profile or level. Video coding standards typically do not specify the encoder, but the encoder is tasked with guaranteeing that the generated bitstreams are standard-compliant for a decoder. In the context of video coding standards, a “profile” corresponds to a subset of algorithms, features, or tools and constraints that apply to them. As defined by the H.264 standard, for example, a “profile” is a subset of the entire bitstream syntax that is specified by the H.264 standard. A “level” corresponds to the limitations of the decoder resource consumption, such as, for example, decoder memory and computation, which are related to the resolution of the pictures, bit rate, and block processing rate. A profile may be signaled with a profile_idc (profile indicator) value, while a level may be signaled with a level_idc (level indicator) value.

The H.264 standard, for example, recognizes that, within the bounds imposed by the syntax of a given profile, it is still possible to require a large variation in the performance of encoders and decoders depending upon the values taken by syntax elements in the bitstream such as the specified size of the decoded pictures. The H.264 standard further recognizes that, in many applications, it is neither practical nor economical to implement a decoder capable of dealing with all hypothetical uses of the syntax within a particular profile. Accordingly, the H.264 standard defines a “level” as a specified set of constraints imposed on values of the syntax elements in the bitstream. These constraints may be simple limits on values. Alternatively, these constraints may take the form of constraints on arithmetic combinations of values (e.g., picture width multiplied by picture height multiplied by number of pictures decoded per second). The H.264 standard further provides that individual implementations may support a different level for each supported profile.

A decoder conforming to a profile ordinarily supports all the features defined in the profile. For example, as a coding feature, B-picture coding is not supported in the baseline profile of H.264/AVC but is supported in other profiles of H.264/AVC. A decoder conforming to a level should be capable of decoding any bitstream that does not require resources beyond the limitations defined in the level. Definitions of profiles and levels may be helpful for interpretability. For example, during video transmission, a pair of profile and level definitions may be negotiated and agreed for a whole transmission session. More specifically, in H.264/AVC, a level may define limitations on the number of macroblocks that need to be processed, decoded picture buffer (DPB) size, coded picture buffer (CPB) size, vertical motion vector range, maximum number of motion vectors per two consecutive MBs, and whether a B-block can have sub-macroblock partitions less than 8.times.8 pixels. In this manner, a decoder may determine whether the decoder is capable of properly decoding the bitstream.

In the example of FIG. 1, encapsulation unit 30 of content preparation device 20 receives elementary streams comprising coded video data from video encoder 28 and elementary streams comprising coded audio data from audio encoder 26. In some examples, video encoder 28 and audio encoder 26 may each include packetizers for forming PES packets from encoded data. In other examples, video encoder 28 and audio encoder 26 may each interface with respective packetizers for forming PES packets from encoded data. In still other examples, encapsulation unit 30 may include packetizers for forming PES packets from encoded audio and video data.

Video encoder 28 may encode video data of multimedia content in a variety of ways, to produce different representations of the multimedia content at various bitrates and with various characteristics, such as pixel resolutions, frame rates, conformance to various coding standards, conformance to various profiles and/or levels of profiles for various coding standards, representations having one or multiple views (e.g., for two-dimensional or three-dimensional playback), or other such characteristics. A representation, as used in this disclosure, may comprise one of audio data, video data, text data (e.g., for closed captions), or other such data. The representation may include an elementary stream, such as an audio elementary stream or a video elementary stream. Each PES packet may include a stream_id that identifies the elementary stream to which the PES packet belongs. Encapsulation unit 30 is responsible for assembling elementary streams into video files (e.g., segments) of various representations.

Encapsulation unit 30 receives PES packets for elementary streams of a representation from audio encoder 26 and video encoder 28 and forms corresponding network abstraction layer (NAL) units from the PES packets. Coded video segments may be organized into NAL units, which provide a “network-friendly” video representation addressing applications such as video telephony, storage, broadcast, or streaming. NAL units can be categorized to Video Coding Layer (VCL) NAL units and non-VCL NAL units. VCL units may contain the core compression engine and may include block, macroblock, and/or slice level data. Other NAL units may be non-VCL NAL units. In some examples, a coded picture in one time instance, normally presented as a primary coded picture, may be contained in an access unit, which may include one or more NAL units.

Non-VCL NAL units may include parameter set NAL units and SEI NAL units, among others. Parameter sets may contain sequence-level header information (in sequence parameter sets (SPS)) and the infrequently changing picture-level header information (in picture parameter sets (PPS)). With parameter sets (e.g., PPS and SPS), infrequently changing information need not to be repeated for each sequence or picture, hence coding efficiency may be improved. Furthermore, the use of parameter sets may enable out-of-band transmission of the important header information, avoiding the need for redundant transmissions for error resilience. In out-of-band transmission examples, parameter set NAL units may be transmitted on a different channel than other NAL units, such as SEI NAL units.

Supplemental Enhancement Information (SEI) may contain information that is not necessary for decoding the coded pictures samples from VCL NAL units, but may assist in processes related to decoding, display, error resilience, and other purposes. SEI messages may be contained in non-VCL NAL units. SEI messages are the normative part of some standard specifications, and thus are not always mandatory for standard compliant decoder implementation. SEI messages may be sequence level SEI messages or picture level SEI messages. Some sequence level information may be contained in SEI messages, such as scalability information SEI messages in the example of SVC and view scalability information SEI messages in MVC. These example SEI messages may convey information on, e.g., extraction of operation points and characteristics of the operation points. In addition, encapsulation unit 30 may form a manifest file, such as a media presentation descriptor (MPD) that describes characteristics of the representations. Encapsulation unit 30 may format the MPD according to extensible markup language (XML).

Encapsulation unit 30 may provide data for one or more representations of multimedia content, along with the manifest file (e.g., the MPD) to output interface 32. Output interface 32 may comprise a network interface or an interface for writing to a storage medium, such as a universal serial bus (USB) interface, a CD or DVD writer or burner, an interface to magnetic or flash storage media, or other interfaces for storing or transmitting media data. Encapsulation unit 30 may provide data of each of the representations of multimedia content to output interface 32, which may send the data to server device 60 via network transmission or storage media. In the example of FIG. 1, server device 60 includes storage medium 62 that stores various multimedia contents 64, each including a respective manifest file 66 and one or more representations 68A-68N (representations 68). In some examples, output interface 32 may also send data directly to network 74.

In some examples, representations 68 may be separated into adaptation sets. That is, various subsets of representations 68 may include respective common sets of characteristics, such as codec, profile and level, resolution, number of views, file format for segments, text type information that may identify a language or other characteristics of text to be displayed with the representation and/or audio data to be decoded and presented, e.g., by speakers, camera angle information that may describe a camera angle or real-world camera perspective of a scene for representations in the adaptation set, rating information that describes content suitability for particular audiences, or the like.

Manifest file 66 may include data indicative of the subsets of representations 68 corresponding to particular adaptation sets, as well as common characteristics for the adaptation sets. Manifest file 66 may also include data representative of individual characteristics, such as bitrates, for individual representations of adaptation sets. In this manner, an adaptation set may provide for simplified network bandwidth adaptation. Representations in an adaptation set may be indicated using child elements of an adaptation set element of manifest file 66.

Server device 60 includes request processing unit 70 and network interface 72. In some examples, server device 60 may include a plurality of network interfaces. Furthermore, any or all of the features of server device 60 may be implemented on other devices of a content delivery network, such as routers, bridges, proxy devices, switches, or other devices. In some examples, intermediate devices of a content delivery network may cache data of multimedia content 64, and include components that conform substantially to those of server device 60. In general, network interface 72 is configured to send and receive data via network 74.

Request processing unit 70 is configured to receive network requests from client devices, such as client device 40, for data of storage medium 62. For example, request processing unit 70 may implement hypertext transfer protocol (HTTP) version 1.1, as described in RFC 2616, “Hypertext Transfer Protocol–HTTP/1.1,” by R. Fielding et al, Network Working Group, IETF, June 1999. That is, request processing unit 70 may be configured to receive HTTP GET or partial GET requests and provide data of multimedia content 64 in response to the requests. The requests may specify a segment of one of representations 68, e.g., using a URL of the segment. In some examples, the requests may also specify one or more byte ranges of the segment, thus comprising partial GET requests. Request processing unit 70 may further be configured to service HTTP HEAD requests to provide header data of a segment of one of representations 68. In any case, request processing unit 70 may be configured to process the requests to provide requested data to a requesting device, such as client device 40.

Additionally or alternatively, request processing unit 70 may be configured to deliver media data via a broadcast or multicast protocol, such as eMBMS. Content preparation device 20 may create DASH segments and/or sub-segments in substantially the same way as described, but server device 60 may deliver these segments or sub-segments using eMBMS or another broadcast or multicast network transport protocol. For example, request processing unit 70 may be configured to receive a multicast group join request from client device 40. That is, server device 60 may advertise an Internet protocol (IP) address associated with a multicast group to client devices, including client device 40, associated with particular media content (e.g., a broadcast of a live event). Client device 40, in turn, may submit a request to join the multicast group. This request may be propagated throughout network 74, e.g., via routers making up network 74, such that the routers are caused to direct traffic destined for the IP address associated with the multicast group to subscribing client devices, such as client device 40.

As illustrated in the example of FIG. 1, multimedia content 64 includes manifest file 66, which may correspond to a media presentation description (MPD). Manifest file 66 may contain descriptions of different alternative representations 68 (e.g., video services with different qualities) and the description may include, e.g., codec information, a profile value, a level value, a bitrate, and other descriptive characteristics of representations 68. Client device 40 may retrieve the MPD of a media presentation to determine how to access segments of representations 68.

In particular, retrieval unit 52 may retrieve configuration data (not shown) of client device 40 to determine decoding capabilities of video decoder 48 and rendering capabilities of video output 44. The configuration data may also include any or all of a language preference selected by a user of client device 40, one or more camera perspectives corresponding to depth preferences set by the user of client device 40, and/or a rating preference selected by the user of client device 40. Retrieval unit 52 may comprise, for example, a web browser or a media client configured to submit HTTP GET and partial GET requests. Retrieval unit 52 may correspond to software instructions executed by one or more processors or processing units (not shown) of client device 40. In some examples, all or portions of the functionality described with respect to retrieval unit 52 may be implemented in hardware, or a combination of hardware, software, and/or firmware, where requisite hardware may be provided to execute instructions for software or firmware.

Retrieval unit 52 may compare the decoding and rendering capabilities of client device 40 to characteristics of representations 68 indicated by information of manifest file 66. Retrieval unit 52 may initially retrieve at least a portion of manifest file 66 to determine characteristics of representations 68. For example, retrieval unit 52 may request a portion of manifest file 66 that describes characteristics of one or more adaptation sets. Retrieval unit 52 may select a subset of representations 68 (e.g., an adaptation set) having characteristics that can be satisfied by the coding and rendering capabilities of client device 40. Retrieval unit 52 may then determine bitrates for representations in the adaptation set, determine a currently available amount of network bandwidth, and retrieve segments from one of the representations having a bitrate that can be satisfied by the network bandwidth.

In general, higher bitrate representations may yield higher quality video playback, while lower bitrate representations may provide sufficient quality video playback when available network bandwidth decreases. Accordingly, when available network bandwidth is relatively high, retrieval unit 52 may retrieve data from relatively high bitrate representations, whereas when available network bandwidth is low, retrieval unit 52 may retrieve data from relatively low bitrate representations. In this manner, client device 40 may stream multimedia data over network 74 while also adapting to changing network bandwidth availability of network 74.

Additionally or alternatively, retrieval unit 52 may be configured to receive data in accordance with a broadcast or multicast network protocol, such as eMBMS or IP multicast. In such examples, retrieval unit 52 may submit a request to join a multicast network group associated with particular media content. After joining the multicast group, retrieval unit 52 may receive data of the multicast group without further requests issued to server device 60 or content preparation device 20. Retrieval unit 52 may submit a request to leave the multicast group when data of the multicast group is no longer needed, e.g., to stop playback or to change channels to a different multicast group.

Network interface 54 may receive and provide data of segments of a selected representation to retrieval unit 52, which may in turn provide the segments to decapsulation unit 50. Decapsulation unit 50 may decapsulate elements of a video file into constituent PES streams, depacketize the PES streams to retrieve encoded data, and send the encoded data to either audio decoder 46 or video decoder 48, depending on whether the encoded data is part of an audio or video stream, e.g., as indicated by PES packet headers of the stream. Audio decoder 46 decodes encoded audio data and sends the decoded audio data to audio output 42, while video decoder 48 decodes encoded video data and sends the decoded video data, which may include a plurality of views of a stream, to video output 44.

Video encoder 28, video decoder 48, audio encoder 26, audio decoder 46, encapsulation unit 30, retrieval unit 52, and decapsulation unit 50 each may be implemented as any of a variety of suitable processing circuitry, as applicable, such as one or more microprocessors, digital signal processors (DSPs), application specific integrated circuits (ASICs), field programmable gate arrays (FPGAs), discrete logic circuitry, software, hardware, firmware or any combinations thereof. Each of video encoder 28 and video decoder 48 may be included in one or more encoders or decoders, either of which may be integrated as part of a combined video encoder/decoder (CODEC). Likewise, each of audio encoder 26 and audio decoder 46 may be included in one or more encoders or decoders, either of which may be integrated as part of a combined CODEC. An apparatus including video encoder 28, video decoder 48, audio encoder 26, audio decoder 46, encapsulation unit 30, retrieval unit 52, and/or decapsulation unit 50 may comprise an integrated circuit, a microprocessor, and/or a wireless communication device, such as a cellular telephone.

Client device 40, server device 60, and/or content preparation device 20 may be configured to operate in accordance with the techniques of this disclosure. For purposes of example, this disclosure describes these techniques with respect to client device 40 and server device 60. However, it should be understood that content preparation device 20 may be configured to perform these techniques, instead of (or in addition to) server device 60.

As will be described in more detail below, content preparation device 20 may be configured to receive fisheye video data, generate a file including the fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, and output the file. Similarly, client device 40 may be configured to process a file including fisheye video data, the file including a syntax structure including a plurality of syntax elements that specify attributes of the fisheye video data, wherein the plurality of syntax elements include one or more bits that indicate fisheye video type information, determine, based on the one or more bits of the syntax structure, the fisheye video type information for the fisheye video data, and output, based on the determination, the fisheye video data for rendering.

Encapsulation unit 30 may form NAL units comprising a header that identifies a program to which the NAL unit belongs, as well as a payload, e.g., audio data, video data, or data that describes the transport or program stream to which the NAL unit corresponds. For example, in H.264/AVC, a NAL unit includes a 1-byte header and a payload of varying size. A NAL unit including video data in its payload may comprise various granularity levels of video data. For example, a NAL unit may comprise a block of video data, a plurality of blocks, a slice of video data, or an entire picture of video data. Encapsulation unit 30 may receive encoded video data from video encoder 28 in the form of PES packets of elementary streams. Encapsulation unit 30 may associate each elementary stream with a corresponding program.

Encapsulation unit 30 may also assemble access units from a plurality of NAL units. In general, an access unit may comprise one or more NAL units for representing a frame of video data, as well as audio data corresponding to the frame when such audio data is available. An access unit generally includes all NAL units for one output time instance, e.g., all audio and video data for one time instance. For example, if each view has a frame rate of 20 frames per second (fps), then each time instance may correspond to a time interval of 0.05 seconds. During this time interval, the specific frames for all views of the same access unit (the same time instance) may be rendered simultaneously. In one example, an access unit may comprise a coded picture in one time instance, which may be presented as a primary coded picture.

Accordingly, an access unit may comprise all audio and video frames of a common temporal instance, e.g., all views corresponding to time X This disclosure also refers to an encoded picture of a particular view as a “view component.” That is, a view component may comprise an encoded picture (or frame) for a particular view at a particular time. Accordingly, an access unit may be defined as comprising all view components of a common temporal instance. The decoding order of access units need not necessarily be the same as the output or display order.
