Patent: Head-Mountable Apparatus, Systems And Methods

Publication Number: 20200133009

Publication Date: 20200430

Applicants: Sony

Abstract

A head-mounted display (HMD) apparatus comprises a head attachment unit comprising a first attachment member configured to attach the HMD to a user’s head when the HMD is worn by the user and a first element having an adjustable weight distribution, and an adjustment unit configured to adjust a distribution of the weight of the HMD based on user profile information associated with the user, wherein the adjustment unit is configured to adjust the weight distribution of the first element of the HMD based on the user profile information by adjusting a configuration of one or more mobile components of the first element without adjusting a position or an orientation of the first element with respect to the HMD.

BACKGROUND OF THE INVENTION

Field of the Invention

[0001] This disclosure relates to virtual reality systems and methods.

Description of the Prior Art

[0002] The “background” description provided herein is for the purpose of generally presenting the context of the disclosure. Work of the presently named inventors, to the extent it is described in this background section, as well as aspects of the description which may not otherwise qualify as prior art at the time of filing, are neither expressly or impliedly admitted as prior art against the present disclosure.

[0003] A head-mountable display (HMD) is one example of a head-mountable apparatus for use in a virtual reality system in which an HMD wearer views a virtual environment. In an HMD, an image or video display device is provided which may be worn on the head or as part of a helmet. Either one eye or both eyes are provided with small electronic display devices.

[0004] It has been proposed to provide detection arrangements for detecting a relative location of one device (such as an HMD) from another device, by using a camera on the one device to detect images of one or more markers, for example on the other device.

[0005] Although the original development of HMDs and virtual reality was perhaps driven by the military and professional applications of these devices, HMDs are becoming more popular for use by casual users in, for example, computer game or domestic computing applications.

[0006] The foregoing paragraphs have been provided by way of general introduction, and are not intended to limit the scope of the following claims. The described embodiments, together with further advantages, will be best understood by reference to the following detailed description taken in conjunction with the accompanying drawings.

SUMMARY

[0007] An example embodiment provides a head-mounted display (HMD) apparatus comprising: a head attachment unit comprising a first attachment member configured to attach the HMD to a user’s head when the HMD is worn by the user and a first element having an adjustable weight distribution;* and*

[0008] an adjustment unit configured to adjust a distribution of the weight of the HMD based on user profile information associated with the user, wherein the adjustment unit is configured to adjust the weight distribution of the first element of the HMD based on the user profile information by adjusting a configuration of one or more mobile components of the first element without adjusting a position or an orientation of the first element with respect to the HMD.

[0009] Another example embodiment provides a method of adjusting a weight distribution of a head-mounted display (HMD) comprising a head attachment unit comprising a first attachment member configured to attach the HMD to a user’s head when the HMD is worn by the user and a first element for which the weight distribution of the first element is adjustable, the method comprising:

[0010] storing user profile information for a user indicative of one or more characteristics of the user;* and*

[0011] adjusting a distribution of the weight of the HMD based on the user profile information, comprising adjusting the weight distribution of the first element of the HMD based on the user profile information by adjusting a configuration of one or more mobile components of the first element without adjusting a position or an orientation of the first element with respect to the HMD.

[0012] Another example embodiment provides computer software which, when executed by a computer, causes the computer to perform the steps of the method defined above.

[0013] Another example embodiment provides a machine-readable, non-transitory storage medium which stores such computer software.

[0014] Various other aspects and features of the present disclosure are defined in the appended claims and within the text of the accompanying description and include at least a head mountable apparatus such as a display and a method of operating a head-mountable apparatus as well as a computer program.

[0015] It is to be understood that both the foregoing general description of the invention and the following detailed description are exemplary, but are not restrictive, of the invention.

BRIEF DESCRIPTION OF THE DRAWINGS

[0016] A more complete appreciation of the disclosure and many of the attendant advantages thereof will be readily obtained as the same becomes better understood by reference to the following detailed description when considered in connection with the accompanying drawings, wherein:

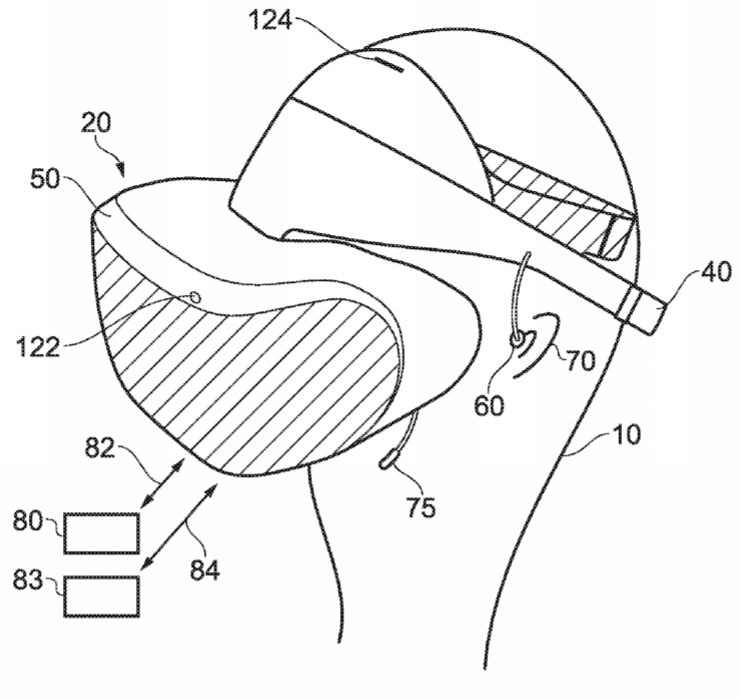

[0017] FIG. 1 schematically illustrates an HMD worn by a user;

[0018] FIG. 2 is a schematic plan view of an HMD;

[0019] FIG. 3 schematically illustrates the formation of a virtual image by an HMD;

[0020] FIG. 4 schematically illustrates another type of display for use in an HMD;

[0021] FIG. 5 schematically illustrates a pair of stereoscopic images;

[0022] FIGS. 6 and 7 schematically illustrate a user wearing an HMD connected to a Sony.RTM. PlayStation 3.RTM. games console;

[0023] FIG. 8 schematically illustrates a change of view of user of an HMD;

[0024] FIGS. 9a and 9b schematically illustrate HMDs with motion sensing;

[0025] FIG. 10 schematically illustrates a position sensor based on optical flow detection;

[0026] FIG. 11 schematically illustrates image processing carried out in response to a detected position or change in position of an HMD;

[0027] FIG. 12a schematically illustrates an HMD comprising a head attachment unit and an adjustment unit;

[0028] FIG. 12b schematically illustrates an HMD comprising a head attachment unit, an adjustment unit and a processing unit;

[0029] FIG. 13a is a schematic side view showing a head attachment unit comprising a first attachment member that attaches to a user’s head when an HMD is worn by the user;

[0030] FIG. 13b is a schematic side view showing a head attachment unit comprising a first attachment member angled with respect to the horizontal when worn by a user;

[0031] FIG. 14a schematically illustrates an HMD comprising a first element having an adjustable weight distribution;

[0032] FIG. 14b schematically illustrates an HMD comprising a first element having an adjustable weight distribution in which the first element has an annular shape;

[0033] FIG. 15a schematically illustrates a head attachment unit comprising a first element and a plurality of electromagnets;

[0034] FIG. 15b schematically illustrates a head attachment unit comprising a first element and a plurality of electromagnets in which the first element has an annular shape;

[0035] FIG. 15c schematically illustrates a head attachment unit comprising a first element and a plurality of electromagnets configured to generate a magnetic field according to a predetermined schedule;

[0036] FIG. 15d schematically illustrates a head attachment unit 1210 comprising a first element and a second element;* and*

[0037] FIG. 16 is a schematic flowchart illustrating a method of adjusting a weight distribution of an HMD.

DESCRIPTION OF THE EMBODIMENTS

[0038] Referring now to the drawings, wherein like reference numerals designate identical or corresponding parts throughout the several views, then referring to FIG. 1, a user 10 is wearing an HMD 20 (as an example of a generic head-mountable apparatus or virtual reality apparatus). The HMD comprises a frame 40, in this example formed of a rear strap and a top strap, and a display portion 50.

[0039] Note that the HMD of FIG. 1 may comprise further features, to be described below in connection with other drawings, but which are not shown in FIG. 1 for clarity of this initial explanation.

[0040] The HMD of FIG. 1 completely (or at least substantially completely) obscures the user’s view of the surrounding environment. All that the user can see is the pair of images displayed within the HMD.

[0041] The HMD has associated headphone audio transducers or earpieces 60 which fit into the user’s left and right ears 70. The earpieces 60 replay an audio signal provided from an external source, which may be the same as the video signal source which provides the video signal for display to the user’s eyes. A boom microphone 75 is mounted on the HMD so as to extend towards the user’s mouth.

[0042] The combination of the fact that the user can see only what is displayed by the HMD and, subject to the limitations of the noise blocking or active cancellation properties of the earpieces and associated electronics, can hear only what is provided via the earpieces, mean that this HMD may be considered as a so-called “full immersion” HMD. Note however that in some embodiments the HMD is not a full immersion HMD, and may provide at least some facility for the user to see and/or hear the user’s surroundings. This could be by providing some degree of transparency or partial transparency in the display arrangements, and/or by projecting a view of the outside (captured using a camera, for example a camera mounted on the HMD) via the HMD’s displays, and/or by allowing the transmission of ambient sound past the earpieces and/or by providing a microphone to generate an input sound signal (for transmission to the earpieces) dependent upon the ambient sound.

[0043] A front-facing camera 122 may capture images to the front of the HMD, in use. A Bluetooth.RTM. antenna 124 may provide communication facilities or may simply be arranged as a directional antenna to allow a detection of the direction of a nearby Bluetooth transmitter.

[0044] In operation, a video signal is provided for display by the HMD. This could be provided by an external video signal source 80 such as a video games machine or data processing apparatus (such as a personal computer), in which case the signals could be transmitted to the HMD by a wired or a wireless connection 82. Examples of suitable wireless connections include Bluetooth.RTM. connections. Audio signals for the earpieces 60 can be carried by the same connection. Similarly, any control signals passed from the HMD to the video (audio) signal source may be carried by the same connection. Furthermore, a power supply 83 (including one or more batteries and/or being connectable to a mains power outlet) may be linked by a cable 84 to the HMD. Note that the power supply 83 and the video signal source 80 may be separate units or may be embodied as the same physical unit. There may be separate cables for power and video (and indeed for audio) signal supply, or these may be combined for carriage on a single cable (for example, using separate conductors, as in a USB cable, or in a similar way to a “power over Ethernet” arrangement in which data is carried as a balanced signal and power as direct current, over the same collection of physical wires). The video and/or audio signal may be carried by, for example, an optical fibre cable. In other embodiments, at least part of the functionality associated with generating image and/or audio signals for presentation to the user may be carried out by circuitry and/or processing forming part of the HMD itself. A power supply may be provided as part of the HMD itself.

[0045] Some embodiments of the disclosure are applicable to an HMD having at least one electrical and/or optical cable linking the HMD to another device, such as a power supply and/or a video (and/or audio) signal source. So, embodiments of the disclosure can include, for example:

[0046] (a) an HMD having its own power supply (as part of the HMD arrangement) but a cabled connection to a video and/or audio signal source;

[0047] (b) an HMD having a cabled connection to a power supply and to a video and/or audio signal source, embodied as a single physical cable or more than one physical cable;

[0048] (c) an HMD having its own video and/or audio signal source (as part of the HMD arrangement) and a cabled connection to a power supply;

[0049] (d) an HMD having a wireless connection to a video and/or audio signal source and a cabled connection to a power supply;* or*

[0050] (e) an HMD having its own video and/or audio signal source and its own power supply (both as part of the HMD arrangement).

[0051] If one or more cables are used, the physical position at which the cable 82 and/or 84 enters or joins the HMD is not particularly important from a technical point of view. Aesthetically, and to avoid the cable(s) brushing the user’s face in operation, it would normally be the case that the cable(s) would enter or join the HMD at the side or back of the HMD (relative to the orientation of the user’s head when worn in normal operation). Accordingly, the position of the cables 82, 84 relative to the HMD in FIG. 1 should be treated merely as a schematic representation.

[0052] Accordingly, the arrangement of FIG. 1 provides an example of a head-mountable display system comprising a frame to be mounted onto an observer’s head, the frame defining one or two eye display positions which, in use, are positioned in front of a respective eye of the observer and a display element mounted with respect to each of the eye display positions, the display element providing a virtual image of a video display of a video signal from a video signal source to that eye of the observer.

[0053] FIG. 1 shows just one example of an HMD. Other formats are possible: for example an HMD could use a frame more similar to that associated with conventional eyeglasses, namely a substantially horizontal leg extending back from the display portion to the top rear of the user’s ear, possibly curling down behind the ear. In other (not full immersion) examples, the user’s view of the external environment may not in fact be entirely obscured; the displayed images could be arranged so as to be superposed (from the user’s point of view) over the external environment. An example of such an arrangement will be described below with reference to FIG. 4.

[0054] In the example of FIG. 1, a separate respective display is provided for each of the user’s eyes. A schematic plan view of how this is achieved is provided as FIG. 2, which illustrates the positions 100 of the user’s eyes and the relative position 110 of the user’s nose. The display portion 50, in schematic form, comprises an exterior shield 120 to mask ambient light from the user’s eyes and an internal shield 130 which prevents one eye from seeing the display intended for the other eye. The combination of the user’s face, the exterior shield 120 and the interior shield 130 form two compartments 140, one for each eye. In each of the compartments there is provided a display element 150 and one or more optical elements 160. The way in which the display element and the optical element(s) cooperate to provide a display to the user will be described with reference to FIG. 3.

[0055] Referring to FIG. 3, the display element 150 generates a displayed image which is (in this example) refracted by the optical elements 160 (shown schematically as a convex lens but which could include compound lenses or other elements) so as to generate a virtual image 170 which appears to the user to be larger than and significantly further away than the real image generated by the display element 150. As an example, the virtual image may have an apparent image size (image diagonal) of more than 1 m and may be disposed at a distance of more than 1 m from the user’s eye (or from the frame of the HMD). In general terms, depending on the purpose of the HMD, it is desirable to have the virtual image disposed a significant distance from the user. For example, if the HMD is for viewing movies or the like, it is desirable that the user’s eyes are relaxed during such viewing, which requires a distance (to the virtual image) of at least several metres. In FIG. 3, solid lines (such as the line 180) are used to denote real optical rays, whereas broken lines (such as the line 190) are used to denote virtual rays.

[0056] An alternative arrangement is shown in FIG. 4. This arrangement may be used where it is desired that the user’s view of the external environment is not entirely obscured. However, it is also applicable to HMDs in which the user’s external view is wholly obscured. In the arrangement of FIG. 4, the display element 150 and optical elements 200 cooperate to provide an image which is projected onto a mirror 210, which deflects the image towards the user’s eye position 220. The user perceives a virtual image to be located at a position 230 which is in front of the user and at a suitable distance from the user.

[0057] In the case of an HMD in which the user’s view of the external surroundings is entirely obscured, the mirror 210 can be a substantially 100% reflective mirror. The arrangement of FIG. 4 then has the advantage that the display element and optical elements can be located closer to the centre of gravity of the user’s head and to the side of the user’s eyes, which can produce a less bulky HMD for the user to wear. Alternatively, if the HMD is designed not to completely obscure the user’s view of the external environment, the mirror 210 can be made partially reflective so that the user sees the external environment, through the mirror 210, with the virtual image superposed over the real external environment.

[0058] In the case where separate respective displays are provided for each of the user’s eyes, it is possible to display stereoscopic images. An example of a pair of stereoscopic images for display to the left and right eyes is shown in FIG. 5. The images exhibit a lateral displacement relative to one another, with the displacement of image features depending upon the (real or simulated) lateral separation of the cameras by which the images were captured, the angular convergence of the cameras and the (real or simulated) distance of each image feature from the camera position.

[0059] Note that the lateral displacements in FIG. 5 could in fact be the other way round, which is to say that the left eye image as drawn could in fact be the right eye image, and the right eye image as drawn could in fact be the left eye image. This is because some stereoscopic displays tend to shift objects to the right in the right eye image and to the left in the left eye image, so as to simulate the idea that the user is looking through a stereoscopic window onto the scene beyond. However, some HMDs use the arrangement shown in FIG. 5 because this gives the impression to the user that the user is viewing the scene through a pair of binoculars. The choice between these two arrangements is at the discretion of the system designer.

[0060] In some situations, an HMD may be used simply to view movies and the like. In this case, there is no change required to the apparent viewpoint of the displayed images as the user turns the user’s head, for example from side to side. In other uses, however, such as those associated with virtual reality (VR) or augmented reality (AR) systems, the user’s viewpoint needs to track movements with respect to a real or virtual space in which the user is located.

[0061] FIG. 6 schematically illustrates an example virtual reality system and in particular shows a user wearing an HMD connected to a Sony.RTM. PlayStation 3.RTM. games console 300 as an example of a base device. The games console 300 is connected to a mains power supply 310 and (optionally) to a main display screen (not shown). A cable, acting as the cables 82, 84 discussed above (and so acting as both power supply and signal cables), links the HMD 20 to the games console 300 and is, for example, plugged into a USB socket 320 on the console 300. Note that in the present embodiments, a single physical cable is provided which fulfils the functions of the cables 82, 84.

[0062] The video displays in the HMD 20 are arranged to display images generated by the games console 300, and the earpieces 60 in the HMD 20 are arranged to reproduce audio signals generated by the games console 300. Note that if a USB type cable is used, these signals will be in digital form when they reach the HMD 20, such that the HMD 20 comprises a digital to analogue converter (DAC) to convert at least the audio signals back into an analogue form for reproduction.

[0063] Images from the camera 122 mounted on the HMD 20 are passed back to the games console 300 via the cable 82, 84. Similarly, if motion or other sensors are provided at the HMD 20, signals from those sensors may be at least partially processed at the HMD 20 and/or may be at least partially processed at the games console 300. The use and processing of such signals will be described further below.

[0064] The USB connection from the games console 300 also provides power to the HMD 20, according to the USB standard.

[0065] FIG. 6 also shows a separate display 305 such as a television or other openly viewable display (by which it is meant that viewers other than the HMD wearer may see images displayed by the display 305) and a camera 315, which may be (for example) directed towards the user (such as the HMD wearer) during operation of the apparatus. An example of a suitable camera is the PlayStation Eye camera, although more generally a generic “webcam”, connected to the console 300 by a wired (such as a USB) or wireless (such as WiFi or Bluetooth) connection.

[0066] The display 305 may be arranged (under the control of the games console) to provide the function of a so-called “social screen”. It is noted that playing a computer game using an HMD can be very engaging for the wearer of the HMD but less so for other people in the vicinity (particularly if they are not themselves also wearing HMDs). To provide an improved experience for a group of users, where the number of HMDs in operation is fewer than the number of users, images can be displayed on a social screen. The images displayed on the social screen may be substantially similar to those displayed to the user wearing the HMD, so that viewers of the social screen see the virtual environment (or a subset, version or representation of it) as seen by the HMD wearer. In other examples, the social screen could display other material such as information relating to the HMD wearer’s current progress through the ongoing computer game. For example, the HMD wearer could see the game environment from a first person viewpoint whereas the social screen could provide a third person view of activities and movement of the HMD wearer’s avatar, or an overview of a larger portion of the virtual environment. In these examples, an image generator (for example, a part of the functionality of the games console) is configured to generate some of the virtual environment images for display by a display separate to the head mountable display.

[0067] In FIG. 6 the user is wearing one or two so-called haptic gloves 331. These can include actuators to provide haptic feedback to the user, for example under the control of processing carried out by the console 300. They may also provide configuration and/or location sensing as discussed below.
